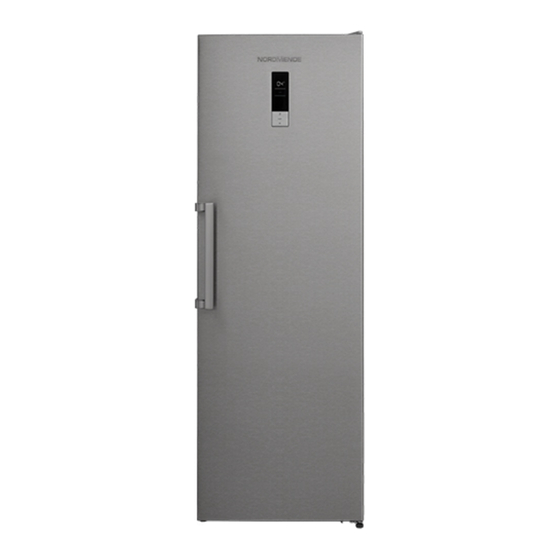

Fridge / User Manual
RTL398RIX

Advertisement

Table of Contents
loading

Related Manuals for Nordmende RTL398RIX

Summary of Contents for Nordmende RTL398RIX

  • Page 1 Fridge / User Manual RTL398RIX...
  • Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1 SAFETY INSTRUCTIONS ................4 1.1 General Safety Warnings ....................4 1.2 Installation warnings .......................8 1.3 Electrical information (For UK type plug) ................8 1.4 During Usage........................9 2 DESCRIPTION OF THE APPLIANCE ............10 3 USING THE APPLIANCE ................12 3.1 Information on No-Frost technology ................12 3.2 Display and Control Panel ....................12 3.3 Operating Your Fridge ....................12 3.3.1 Super Cool Mode.......................13...

  • Page 4: Safety Instructions

    1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Page 5 natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
  • Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 7 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...

  • Page 8: Installation Warnings

    1.2 Installation warnings • Clearance of at least 150 mm is required at the top of your appliance. Do not place Before using your fridge for the first time, anything on top of your appliance. please pay attention to the following points: •...

  • Page 9: During Usage

    Old and Out-of-order Fridges • If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may The mains lead of this appliance has been get trapped inside it and may cause an fitted with a BS 1363A 13A fused plug.

  • Page 10: Description Of The Appliance

    2 DESCRIPTION OF THE Packaging and the Environment Packaging materials protect APPLIANCE your machine from damage that may occur during transportation. This appliance is not intended to be used The packaging materials are as a built-in appliance. environmentally friendly as they are recyclable.
  • Page 11 2.1 Dimensions Overall dimensions 1860,0 595,0 650,0 the height, width and depth of the appliance without the handle. Overall space required in use 981,6 Space required in use 1243,5 2010,0 the height, width and depth of the 695,0 appliance including the handle, plus the space necessary for free 744,1 circulation of the cooling air, plus...

  • Page 12: Using The Appliance

    3 USING THE APPLIANCE 3.2 Display and Control Panel 3.1 Information on No-Frost technology No-frost refrigerators differ from other static refrigerators in their operating principle. In normal refrigerators the humidity entering the refrigerators due to opening the door and the humidity inherent in the food causes freezing in the backside of air duct.

  • Page 13: Super Cool Mode

    3.3.1 Super Cool Mode 3.3.2 Economy Mode Purpose Purpose • To cool and store a large quantity of food Energy savings. During periods of less in the fridge compartment. frequent use (door opening) or absence from home, such as a holiday, Eco program •...

  • Page 14: Screen Saver Mode

    3.3.3 Screen Saver Mode 3.3.4 The Child Lock Function Purpose Purpose This mode saves energy by switching off all Child lock can be activated to prevent any control panel lighting when the panel is left accidental or unintentional changes being inactive.

  • Page 15: Door Open Alarm Function

    • The temperature value selected before • Your appliance is designed to operate in super cool mode or economy mode the ambient temperature (T/SN = 10°C is activated and will remain the same - 43°C) intervals stated in the standards, when the mode is over or cancelled.

  • Page 16: Accessories

    3.5 Accessories 3.5.2 The Fresh Dial (In some models) Fresh dial Visual and text descriptions in the accessories section may vary according to the model of your appliance. 3.5.1 The Chiller Shelf (In some models) If the crisper is full, the fresh dial located Chiller shelf in front of the crisper should be opened.

  • Page 17: Adjustable Door Shelf (In Some Models)

    3.5.3 Adjustable Door Shelf (In some 3.5.4 Adjustable Glass Shelf (In some models) models) Six different height adjustments can be Adjustable glass shelf mechanism provides made to provide storage areas that you higher storage spaces with a simple need by adjustable door shelf. movement.

  • Page 18: Maxi-Fresh Preserver (If Available)

    4 FOOD STORAGE 3.5.6 Maxi-fresh preserver (If available) Maxi Fresh Preserver technology helps to • To reduce humidity and avoid the remove ethylene gas (a consequent formation of frost, always bioproduct released naturally store liquids in sealed containers in the from fresh foods) and refrigerator.
  • Page 19 • Do not put food in front of the air flow Maximum How and where to Food passage. storage time store • Consume packaged foods before the Bottled Until the recommended expiry date. products expiry date On the designated e.g. milk recommended NOTE: Potatoes, onions and garlic door shelf...

  • Page 20: Cleaning And Maintenance

    5 CLEANING AND 6 SHIPMENT AND MAINTENANCE REPOSITIONING Disconnect the unit from the power 6.1 Transportation and Changing supply before cleaning. Positioning Do not wash your appliance by pouring water on it. • The original packaging and foam may be Do not use abrasive products, kept for re-transportation (optional).

  • Page 21: Before Calling After-Sales Service

    7 BEFORE CALLING AFTER-SALES SERVICE Errors If you are experiencing problems with your refrigerator, please check the following before contacting the after-sales service. ERROR TYPE MEANING WHAT TO DO Call Service for assistance as Sensor warning soon as possible. Call Service for assistance as Sensor warning soon as possible.
  • Page 22 If your fridge is not working properly, it may • The fridge door is opened frequently. be a minor problem, therefore check the Humidity of the room enters the fridge following, before calling an electrician to when the doors are opened. Humidity save time and money.

  • Page 23: Tips For Saving Energy

    8 TIPS FOR SAVING ENERGY 9 TECHNICAL DATA 1. Install the appliance in a cool, well- The technical information is situated in ventilated room, but not in direct sunlight the rating plate on the internal side of the and not near a heat source (such as a appliance and on the energy label.

  • Page 24: Information For Test Institutes

    7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. Visit our website to: Republic of Ireland & Northern Ireland www.nordmende.ie Great Britain www.nordmende.co EN - 24...
  • Page 25 EN - 25...
  • Page 26 EN - 26...
  • Page 27 EN - 27...
  • Page 28 52335358...
