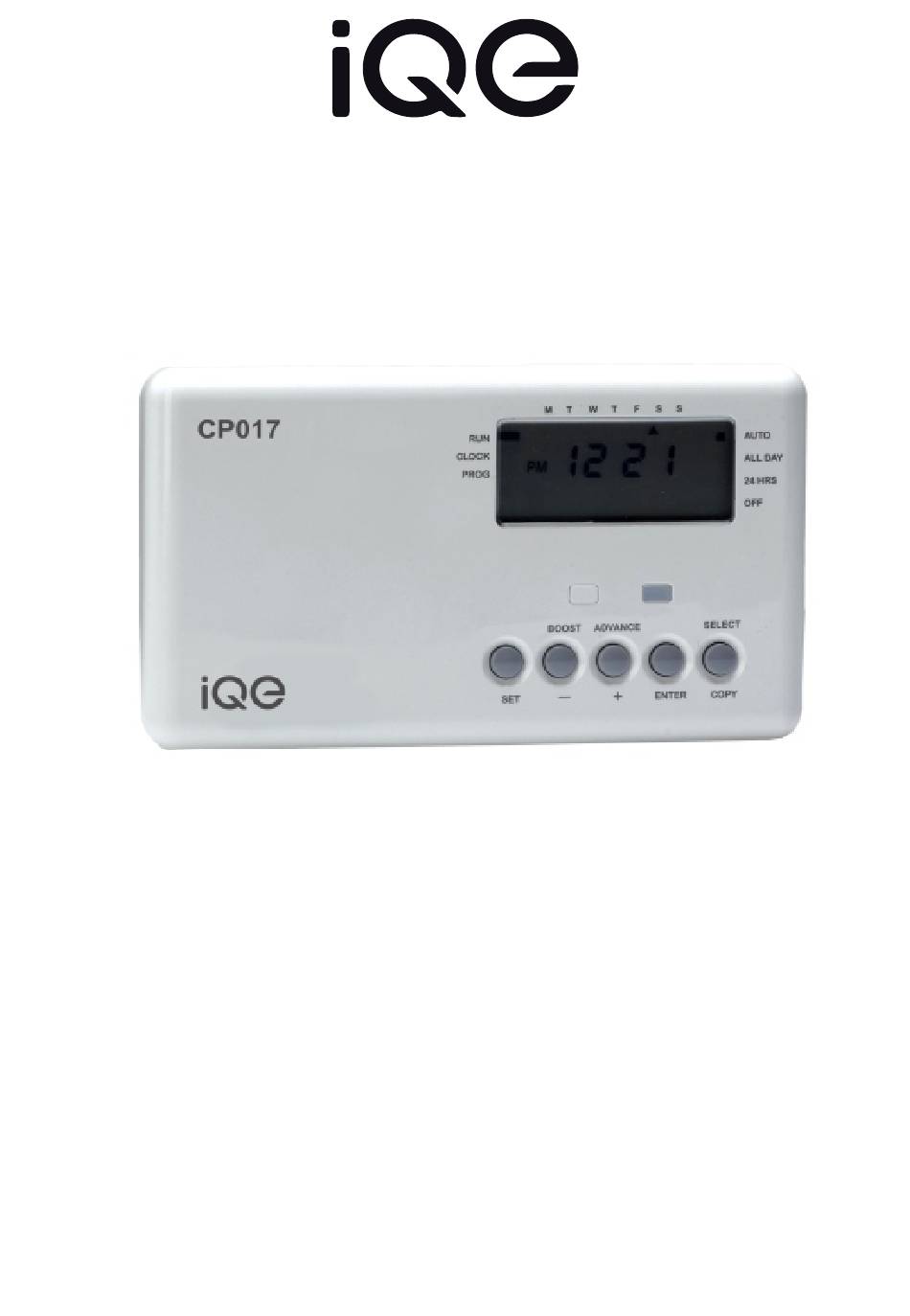

CP017
USER OPERATING INSTRUCTIONS
Single Channel Timeswitch
The CP017 timeswitch will allow up to 3 ON/OFF settings per day
for each day of the week and has a 1 hour manual boost and
advance button to temporarily override current settings.
There is also a programming switch allowing permanent selection
of: OFF/ON/AUTO/ALL DAY.
1
Advertisement
Related Manuals for iQe CP017
Summary of Contents for iQe CP017
- Page 1 CP017 USER OPERATING INSTRUCTIONS Single Channel Timeswitch The CP017 timeswitch will allow up to 3 ON/OFF settings per day for each day of the week and has a 1 hour manual boost and advance button to temporarily override current settings.
- Page 2 The CP017 timeswitch The simple instructions contained in this user guide are designed to help with the programming and operation of the unit. SET indicator - RUN is the normal position Time of day Switch period symbol SET button BOOST or adjust (-) button...
- Page 3 Manual Overrides Boost Function - 1 Hour Temporary Override The boost facility will allow the user to boost the system which is currently ‘OFF’ for 1 hour. To indicate the boost being activated BOOST will be shown on the display for the duration of the boost period.
- Page 4 Programme Override Facilities With the CP017 timeswitch operating in the normal running mode it is possible to alter the functionality of the programme by means of the SELECT button. The options include; Auto - Timeswitch follows all programmed ‘ON’ and ‘OFF’ times.
- Page 5 Setting Time of Day and Date The CP017 has a built in clock and calendar. This will mean that you will need to enter the date as well as the time on initial set up or if the factory re-set has been used.
- Page 6 Setting the On and Off Times To alter these settings please proceed as follows:- Press the set button until set + and - + and - + and - Press Press Press indicator is buttons buttons buttons ENTER ENTER ENTER next to HW to adjust to adjust...
- Page 7 After initial installation it is advisable, before programming the CP017 for the first time, to reset the unit. Resetting can only be achieved with the power ‘ON’ by pressing the SET and SELECT buttons together. This will return the programmer to the factory set default times.
-
Page 8: General Information
RESETTING THE PROGRAMMER section of this user guide shown above. If this fails to resolve the problem please contact a local heating engineer or a qualified electrician. www.iQE.co.uk Trade House BA22 8RT Leaflet Number P85481 Issue 1...
