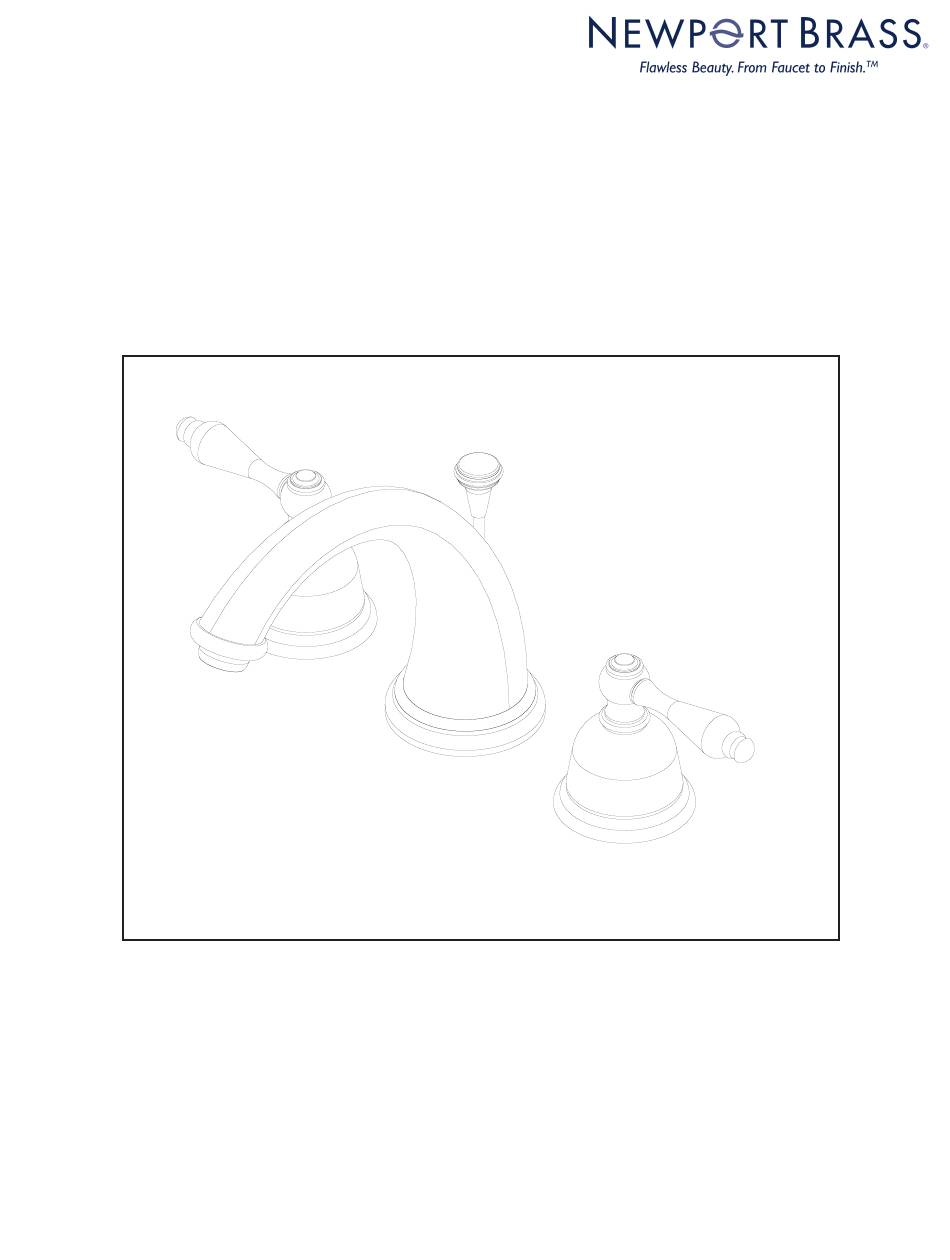

- Page 1 INSTALLATION INSTRUCTIONS WIDESPREAD LAVATORY SET Model No: 800C, 850C & 853 Congratulations on the purchase of your Newport Brass product, an excellent choice, that will give you years of quality service and enhance the look and style of your home.
- Page 2 2. Place flange NUT (1) and fiber WASHER (2) onto valve BODY (3). Insert valve BODY (3) through sink hole from underside of sink.Valve BODY (3) should extend: 2-9/16” for 800c & 2-1/2” for 850C and 853, above mounting sur- face.
- Page 3 2-9/16”(800C) 2-1/2”(850C, 853) Figure 1 Figure 2 Figure 4 Figure 3 Figure 6 (949)417-5207 NWP-800C Santa Ana, Ca. 92705 10/10/2011 www.brasstech.com...
