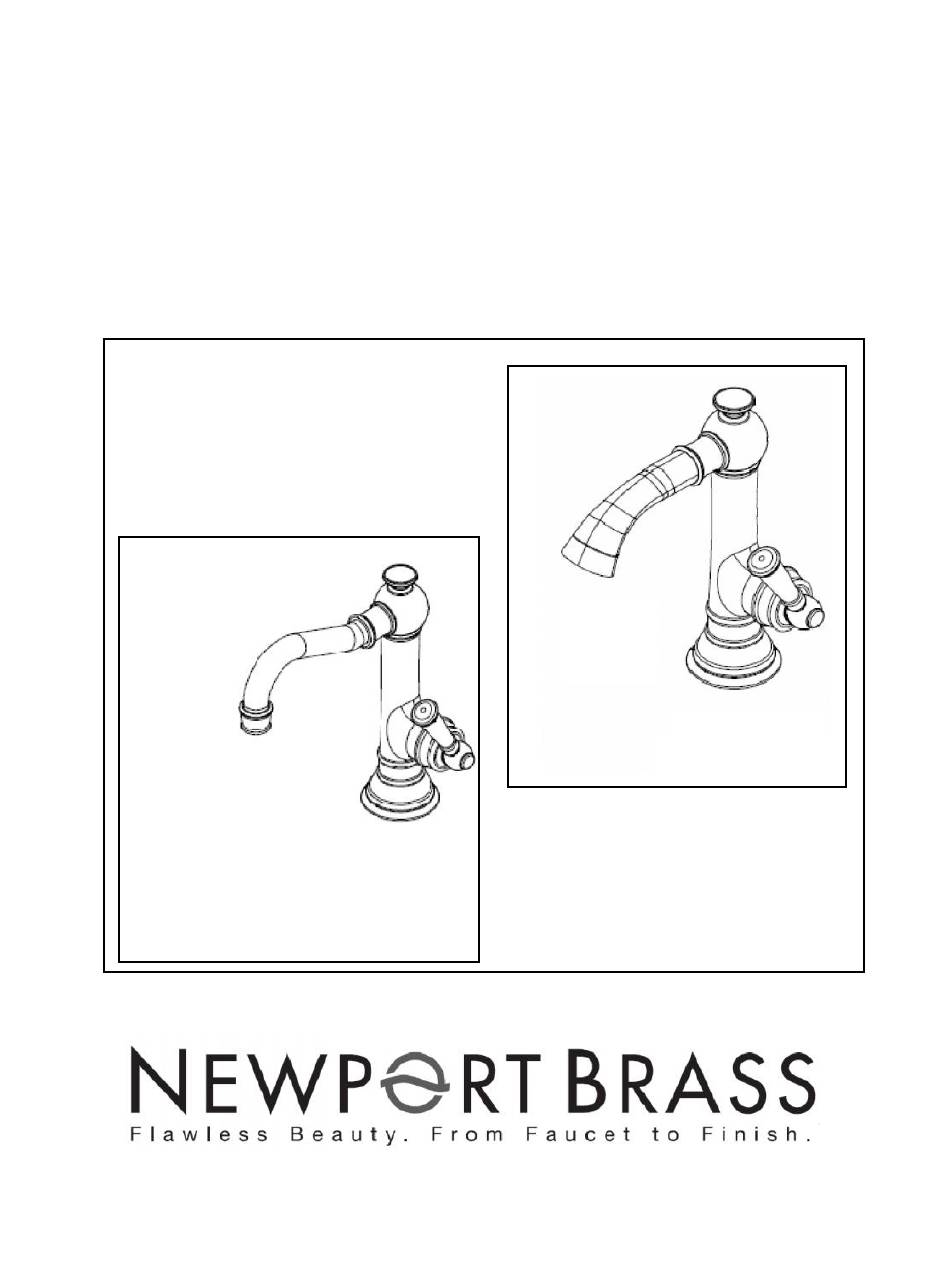

- Page 1 J A C O B E A N A Y L E S B U R Y SINGLE HOLE LAV FAUCET INSTALLATION INSTRUCTIONS Model No: 2433 /2473 AYLESBURY 2433 JACOBEAN 2473 2001 CARNEGIE AVE, SANTA ANA CA 92705 (949) 417-5207 WWW.NEWPORTBRASS.COM...
- Page 2 Recommended Installation by a Professional Plumbing Contractor Note: The use of petroleum base plumbers putty on our products will nullify the war- ranty. We recommend the use of clear silicone sealing materials. Recommended deck thru hole Ø 1-3/8” to 1-1/2”. 1.
- Page 3 3/8” COMPRESSION OUTLET Mounting Stud 9/16-24 UNEF Mounting (FOR 3/8” COMPRESSION Bracket OUTLET ) Mounting Nut Figure 2 Figure 1 Figure 3 NWP-2403 / 2413 (949)417-5207 Santa Ana, CA. 92705 10/10/2018 EN-3718 www.newportbrass.com REV B...
