Summary of Contents for Hanns.G HA195

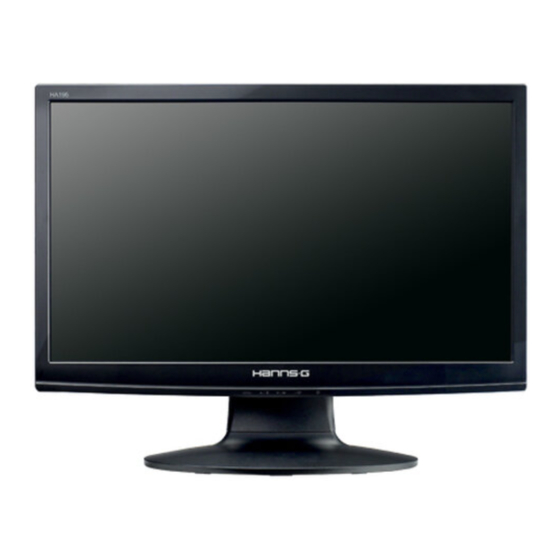

- Page 1 HA195 HSG1071...
- Page 2 User’s Manual OSD[4.38] Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 User’s Manual Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
- Page 4 User’s Manual RECYCLING INFORMATION We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.
-
Page 5: Table Of Contents
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................6 PRECAUTIONS....................6 SPECIAL NOTES ON LCD MONITORS ............7 BEFORE YOU OPERATE THE MONITOR ............8 FEATURES......................8 CHECKING THE CONTENTS OF THE PACKAGE ........8 INSTALLATION INSTRUCTIONS ..............9 POWER....................... 9 SETTING THE MONITOR ON THE WALL .......... -
Page 6: Safety Notice
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. -
Page 7: Special Notes On Lcd Monitors
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the • Power Switch and then turn it on again to make sure the flicker disappears. -
Page 8: Before You Operate The Monitor
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 47cm / 18,5" Wide screen TFT Color LCD Monitor • Crisp, Clear Display for Windows • ® EPA ENERGY STAR • GP Green Product • Ergonomic Design • Space Saving, Compact Case Design •... -
Page 9: Installation Instructions
User’s Manual INSTALLATION INSTRUCTIONS INSTALL REMOVE Figure.1. Installing and Removing the Base INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. -
Page 10: Setting The Monitor On The Wall
*Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Hanns.G bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a qualified service... -
Page 11: Making Connections
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer’s VGA port. 2. -
Page 12: Djusting The Viewing Angle
User’s Manual ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the • monitor’s angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 13: Operating Instructions
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. -
Page 14: Front Panel Control
User’s Manual FRONT PANEL CONTROL Power Button: • Press this button to switch ON/OFF of monitor’s power. Power Indicator: • Green — Power On mode. Orange — Power Saving mode. MENU / RETURN: • 1. Turn the OSD menu on/off or return to the previous menu. 2. - Page 15 User’s Manual Resolution 640x400@70Hz ↔ 720x400@70Hz 640x400@85Hz ↔ 720x400@85Hz 640x480@60Hz ↔ 720x480@60Hz 1024x768@70Hz ↔ 1280x768@70Hz 1280x768@60Hz ↔1360x768@60Hz 1400x1050@60Hz ↔ 1680x1050@60Hz 1400x1050@RB 60Hz ↔ 1680x1050@RB 60Hz 1400x1050@75Hz ↔ 1680x1050@75Hz ** The screen resolutions available will depend on the purchased model. NOTES: Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a •...
-
Page 16: How To Adjust A Settings
User’s Manual HOW TO ADJUST A SETTINGS BRIGHTNESS/ CONTRAST Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the BRIGHTNESS brightness value. Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast CONTRAST value. - Page 17 User’s Manual display, which does not ensure the image is shown as is or in initial scale. 「FIT」 indicates scaling by the proportion of original images, which may cause the screen showing black bands. [The availability of this function depends upon the selected model] Select the 「H-POSITION」...
- Page 18 User’s Manual the OSD. Enter the option and adjust the level. Select 「OSD TIME-OUT」option to set the OSD time out from OSD TIME-OUT 10 to 100 seconds. Enter the option and adjust the level. To choose the color combination of the OSD window, select 「OSD COLOR」...
-
Page 19: Plug And Play
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 20: Technical Support (Faq)
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &... - Page 21 User’s Manual INPUT as a PC option, and make sure PC audio output cable is connected to monitor’s LINE IN port(or AUDIO IN port). [For HDMI Input only] Addendum related to Windows 7 When you encounter display problem under Windows 7, you need to do the following: 1.
-
Page 22: Error Message & Possible Solutions
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table. -
Page 23: Appendix
User’s Manual APPENDIX SPECIFICATIONS Driving system TFT Color LCD LCD Panel Size 47cm / 18,5” viewable Pixel pitch 0.3mm(H) x 0.3mm(V) H-Frequency 24KHz – 61KHz Video V-Frequency 56 – 75Hz Display Colors 16.7M Colors Max. Resolution 1366 x768@60Hz VESA DDC2B Plug &...
