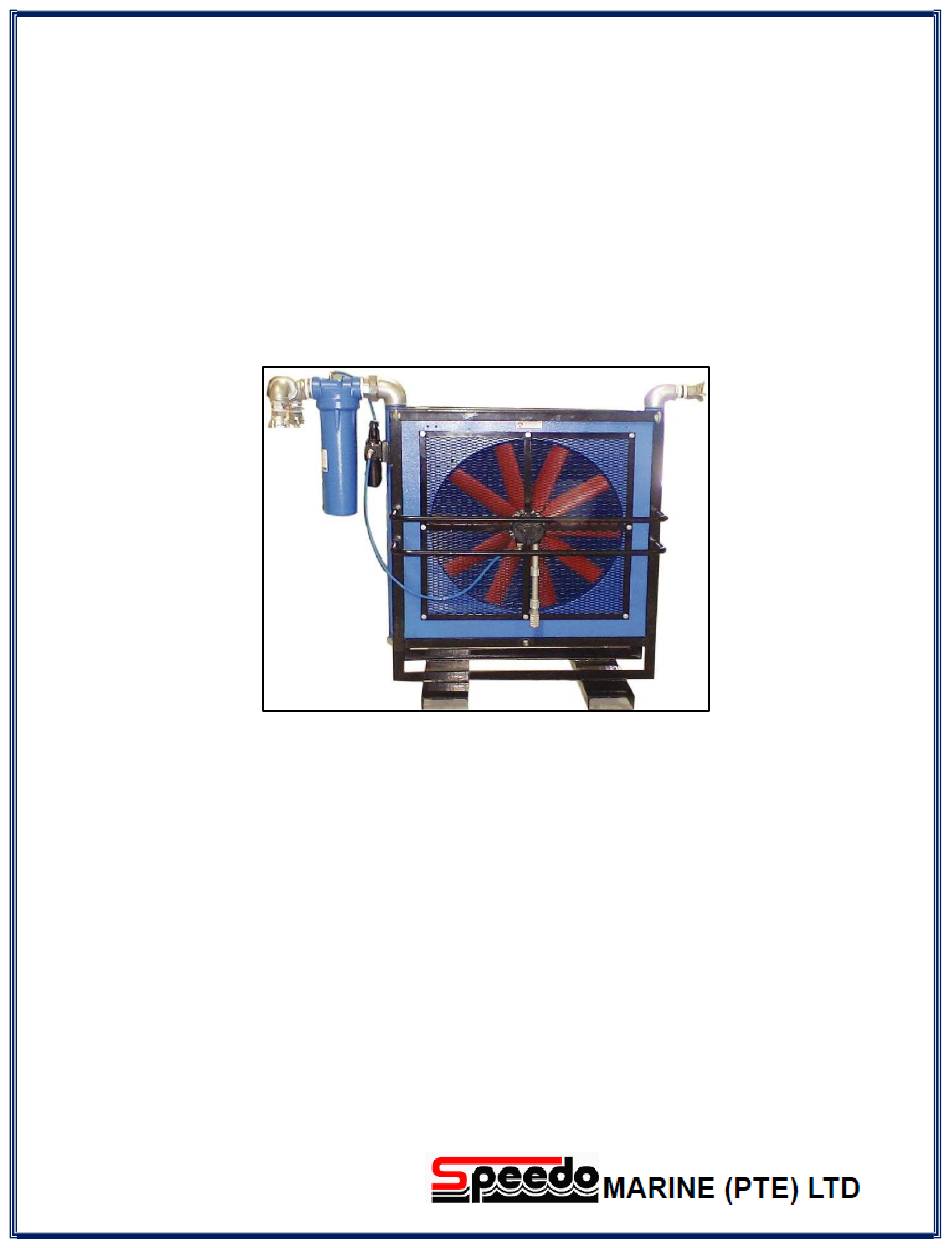

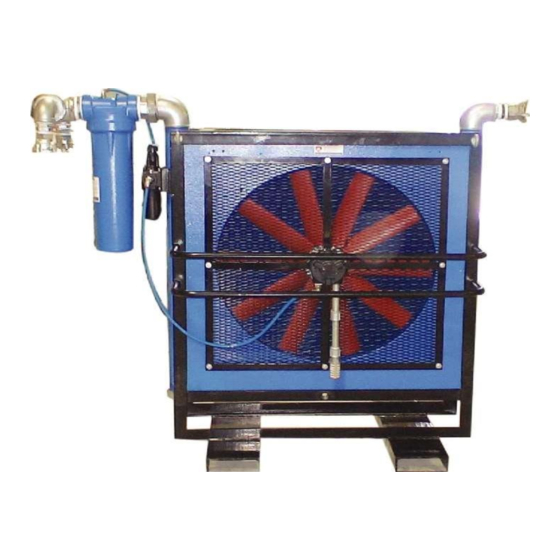

- Page 1 OPERATION & MAINTENANCE MANUAL AIR COOLED AFTERCOOLERS- PNEUMATIC TYPE AC 400 & AC 900 Model...
-
Page 2: General Informations
1.0 GENERAL INFORMATIONS 1.1 Remarks This manual is to be considered a part of the final air cooled aftercooler alike and should always accompany it for quick reference, to any person like the end-user, the mechanic or any other qualified workman who installs the unit.We wish to emphasize the importance of reading and understanding its contents before starting the machine. - Page 3 Our technical department will make the final decision in this regard. 1.2.1 Warranty exclusions The warranty excludes any liability for direct or indirect damages to persons or things arising from wrong installation and/or incorrect operation of the unit. The liability is limited to defective manufacture or assembly.
-
Page 4: Receipt And Storage
Any overloading of the equipment, within the maximum limits, will cause a lower performance of the unit (higher humidity) but it will not affect the safety. 1.5 Safety symbols 2.0 RECEIPT AND STORAGE 2.1 Receipt Upon receipt the client must carefully examine the aftercooler thoroughly in order to verify the integrity and the availability of all items listed on the shipping documents. -
Page 5: Installation
3.0 INSTALLATION 3.1 Foundation Where the installation of the aftercooler is concerned, no special foundation is needed. A solid and flat horizontal surface will do for this purpose. It is important that enough free space is left around the unit in order to allow enough air circulation and thus the proper cooling. -
Page 6: Maintenance
4.0 MAINTENANCE 4.1 Routine maintenance For best performances of the aftercooler the following maintenance program is recommended: • Weekly, check the regular condensate discharge. • Monthly, depending on the quality of the ambient air and however at the beginning of the hot season, the radiant heat exchanger should be cleaned with compressed air and, if necessary, wash the finned block to eliminate dirt deposits (this must be done after the ventilator motor is disconnected from the power supply). - Page 7 AC 400 & AC 900 Model Air Flow No of Inlet / Sizes No of Outlet / Weight & Rate Sizes Dimension AC 400 400 cfm 2” threaded x 1 1-1/4” claw 152 KG coupling x 1 (0301-019/1-C) 147 X 82 X 145 3/4”...
