SPEEDO MARINE (PTE) LTD
11 Tuas Link 2, Singapore 638559 Tel : (65) 68631998 Fax : (65) 68631667
Website : www.speedo.com.sg Email : enquiry@speedo.com.sg
Instruction and Maintenance Manual
MODEL: 0301-018/C

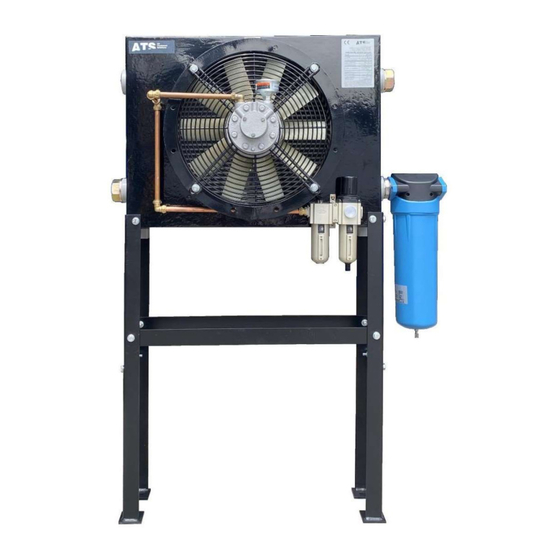

AFTER COOLER 2 OUTLET,
AIR-COOLED MODEL: PAC-550
(550 CFM)
PAC 550
( Tropical Version )
Rev.04.
2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC-550 and is the answer not in the manual?

Questions and answers

Related Manuals for Speedo PAC-550

Summary of Contents for Speedo PAC-550

  • Page 1 SPEEDO MARINE (PTE) LTD 11 Tuas Link 2, Singapore 638559 Tel : (65) 68631998 Fax : (65) 68631667 Website : www.speedo.com.sg Email : enquiry@speedo.com.sg Instruction and Maintenance Manual MODEL: 0301-018/C AFTER COOLER 2 OUTLET, AIR-COOLED MODEL: PAC-550 (550 CFM) PAC 550 ( Tropical Version ) Rev.04.
  • Page 2 PAC - series INDEX 1.0 GENERAL INFORMATION 1.1 Remarks 1.2 Warranty 1.2.1 Warranty Exclusions 1.3 Safety Information 1.4 Purpose and General Description 1.5 Safety Symbols 2.0 RECEIPT AND STORAGE 2.1 Receipt 2.2 Unpackaging 3.0 INSTALLATION 3.1 Transport / Handling 3.2 Indoor Positioning 3.3 Outdoor Positioning 3.4 Installation 3.5 Operation...

  • Page 3: General Information

    PAC - series GENERAL INFORMATION 1.1 Remarks This manual is to be considered a part of the final air-cooled aftercooler alike and should always accompany it for quick reference, to any person like the end-user, the mechanic or any other qualified workman who installs the unit. We wish to emphasize the importance of reading and understanding its contents before starting the machine.

  • Page 4: Warranty Exclusions

    PAC - series 1.2.1 Warranty Exclusions The warranty excludes any liability for direct or indirect damages to persons or things arising from wrong installation and / or incorrect operation of the unit. The liability is limited to defective manufacture or assembly. The manufacturer declines any liability for damage due to alterations and / or changes of the packing.

  • Page 5: Safety Symbols

    PAC - series 1.4 Purpose and General Description The aftercooler is becoming increasingly popular in particular for the following reasons: • Good refrigeration power; • Practical; • Economical. The right collocation of the aftercooler unit is at the air outlet point of the compressors, it is basically made up of: A COOLING GROUP with a radiant heat exchanger in copper tubes with aluminum finning, •...

  • Page 6: Receipt And Storage

    PAC - series 2.0 RECEIPT AND STORAGE 2.1 Receipt Upon receipt the client must carefully examine the aftercooler thoroughly in order to verify the integrity and the availability of all items listed on the shipping documents. As soon as you receive the unit, if you notice any damage inform the carrier immediately. All claims for missing goods and/or damages have to be notified to us or to the nearest retailer within 8 (eight) days from date of receipt.

  • Page 7: Installation

    PAC - series 3.0 INSTALLATION 3.1 Transport / Handling Use lifting equipment of suitable capacity to lift and move the unit (fork lift etc.). Protect the unit from impact to prevent damage to internal components, the manufacturer assumes no liability for damages which may be caused by decayed of modified packaging. 3.2 Indoor Positioning The unit can either be wall mounting (using brackets) or floor mounted using the legs, either supplied as standard or available as an optional depending upon the model.

  • Page 8: Operation

    PAC - series Connect the condensate discharge pipe to the drainage system according to local regulation. It is forbidden to discharge the condensate directly into the water system therefore it is recommended to install a water-oil separator for the treatment of the condensate. Install one or more safety valves as necessary on the compressed air side to ensure that maximum design pressure is never exceeded.

  • Page 9: Routine Maintenance

    PAC - series 4.0 MAINTENANCE 4.1 Routine Maintenance Maintenance must only be performed by specialist personnel. Always use original spares supplied by the manufacturer, failure to do so renders the manufacturer not liable for incorrect unit operation. For best performances of the aftercooler the following maintenance program is recommended: Weekly, check the Water Separator condensate discharge.

  • Page 10: Water Separator

    PAC - series 4.2.1 FRL – Filter, Regulator + Lubricator 4.2.2 WATER SEPARATOR Model SGO 934 Flowrate 550 cfm Connection 2" Working Pressure 7 bar ( Max. 15 bar ) Inlet Air Temperature Max. 100°C Auto Drain ( p/n # ) AM10 WARNING: do not attempt to remove the body while the unit is pressurized.

  • Page 11: Technical Data Sheet

    PAC - series TECHNICAL DATA SHEET Performances & specifications: +/- 5% Outlet air temperature : 9°C higher than ambient temperature 11/13 Rev.04. 2022...
  • Page 12 PAC - series SKID INSTALLATION Description Value ( mm ) 1480 Z ( OD ) 12/13 Rev.04. 2022...

  • Page 13: Installation Layout

    Pre-filter 3 - P Dryer Filter 1 - M Filter 0,01 - H Carbon Filter - C Oil water separator SPEEDO MARINE (PTE) LTD No.11 Tuas Link 2 Singapore 638559 TEL: +65-68631998 FAX: +65-68631667 E-mail : enquiry@speedo.com.sg http://www.speedo.com.sg 13/13 Rev.04.
