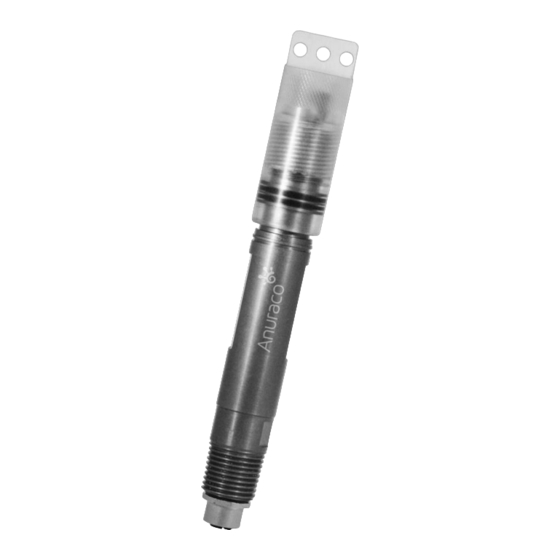

BLE-485 Bluetooth Adaptor
<Twist counterclockwise to Turn off, clockwise to turn on
<Break here to replace battery
<M12 connector
Pin out
1: 6.8 vdc out, 12 vdc out, or 9-24
VDC input depending on model
2. RS485 D-
3. RS485 D+
4. SDI12
5 Ground
Let's Build a Better Planet Together
www.anuraco.com
©2016-2024
Advertisement
Table of Contents
Related Manuals for Anuraco BLE-485
Summary of Contents for Anuraco BLE-485

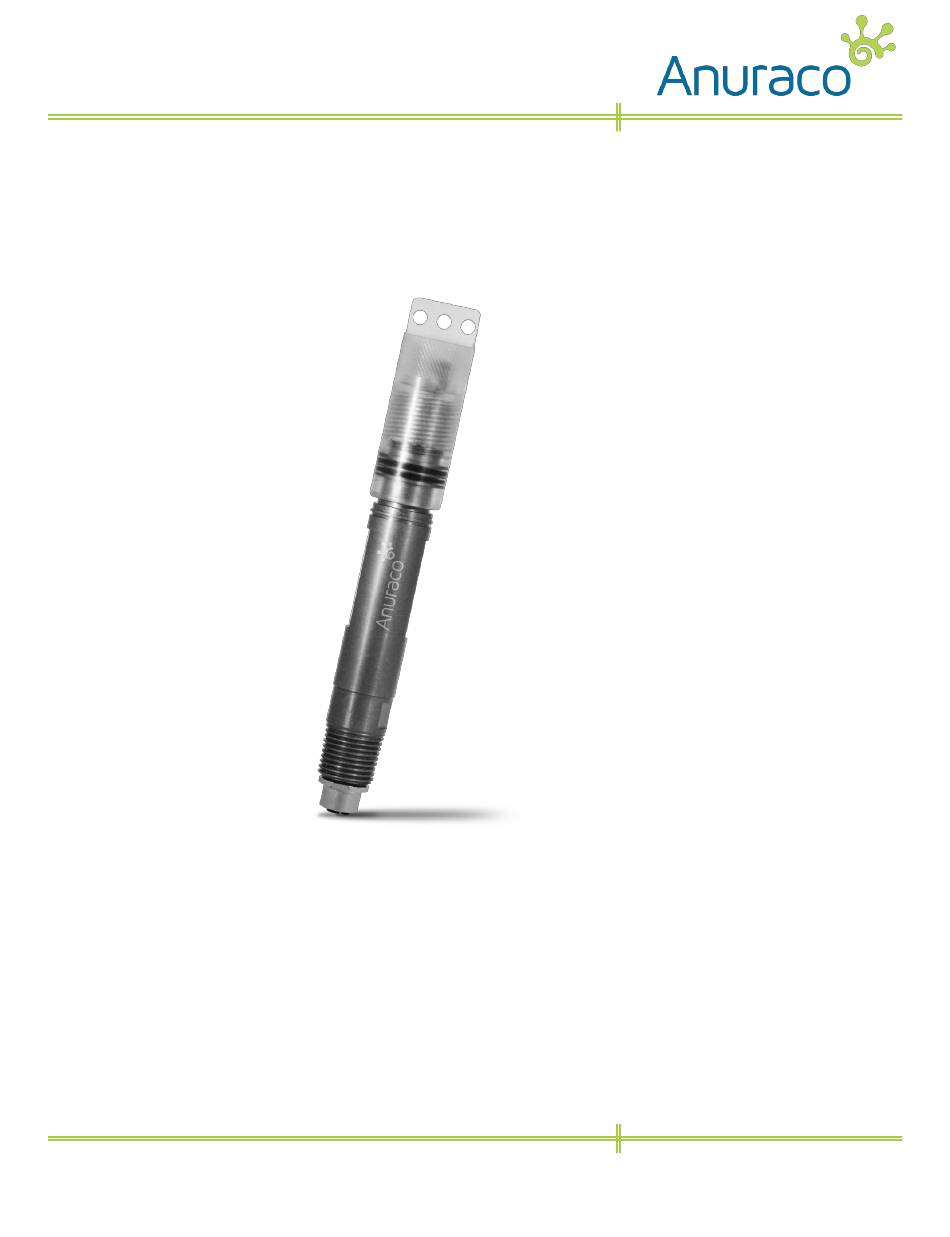

- Page 1 BLE-485 Bluetooth Adaptor <Twist counterclockwise to Turn off, clockwise to turn on <Break here to replace battery <M12 connector Pin out 1: 6.8 vdc out, 12 vdc out, or 9-24 VDC input depending on model 2. RS485 D- 3. RS485 D+ 4.
-
Page 2: Table Of Contents
DO’s AND DON’Ts INSTALLATION AND SET-UP How do RS485 and Bluetooth work? Power Connecting BLE-485 Bluetooth Adaptor to an RS485 device Connecting BLE-485 Bluetooth Adapter to an SDI12 device Turning on and off your device Connecting to Windows Computer Connecting to IOS/Android Device... -
Page 3: What Is Ble-485 Bluetooth Adaptor
BLE-485 is a model that can be externally powered externally with a 9-24 VDC power supply. and does not provide power to an attached sensor, only sdi12 or RS485 connections. It is used with devices that have their own power supply such as Seametrics smart sensors. -
Page 4: Installation And Set-Up
How RS485 and Bluetooth Low energy adaptors work? The BLE-485 device is an adaptor that converts a Bluetooth Low Energy radio connection to a RS485 serial connection or an SDI-12 serial connection, which allows you to connect hands free to a remote serial device with a RS485 or SDI-12 interface. The adaptor... -
Page 5: Turning On And Off Your Device
App or Play store by searching for Anuraco SensorSeer Connecting to Windows Computers 1. With Windows a usb to master BLE device kit is required with Anuraco’s Windows application Sensor Connect. Anuraco currently does not support native BLE 4.0 without our Master BLE device kit. -
Page 6: Maintenance
6.8 or 12 VDC supplies. We recommend scheduling a battery change depending on your application needs. Trouble Shooting www.anuraco.com Please email us at support@anuraco.com or visit or any issues with installation or use of your device. Anuraco Innovation Center support@anuraco.com... -
Page 7: Technical Specifications
Material of construction: Anodized aluminum & polycarbonate AC-1001 5 pole field mating connector. Environmental AC-1010 Bluetooth to USB master kit with SensorConnect Operating temperature: -40 to 85 degree C Approvals / Certifications FCC, IC, CE, ROHs Bluetooth SIG declared Anuraco Innovation Center support@anuraco.com www.anuraco.com... -
Page 8: Limited Warranty
Similarly, some places do not allow the exclusion or limitation of consequential damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights; however, you may also have other rights which may vary. Anuraco Innovation Center support@anuraco.com...
