Anuraco BLE-485 Getting Starded Manual

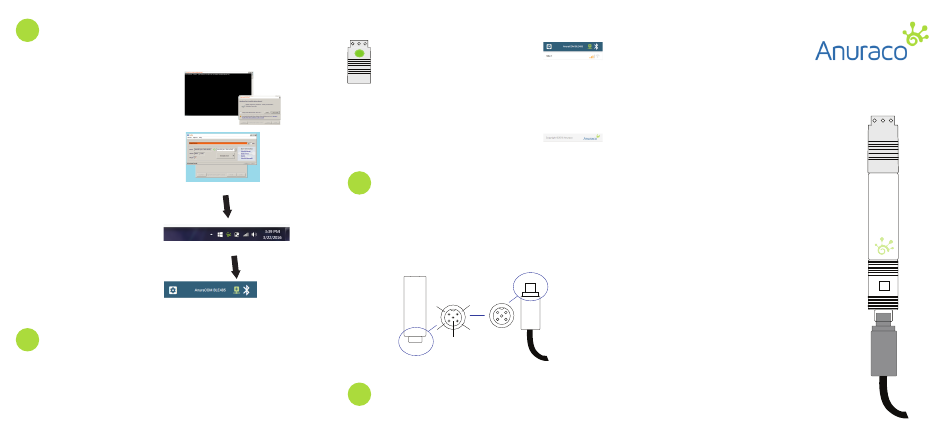

5 INSTALL ANURACOM UTILITY
ON WINDOWS 7 or 10 COMPUTER
Open your downloaded .exe file.
Install following the utility instructions.
Click install when prompted.
Black screen will run during
install in background.
Select your Bluetooth
4.0+ dongle device when
prompted.
Once installed you will
see the Anuraco logo
in your dock toolbar,
and as a shortcut on your
desktop.
Click Anuraco icon in your
toolbar to begin using
Anuracom Utility.
The COM port link will
blink green until COM
port is established (then
will become solid green).
6 CONNECT BLE-485 ADAPTOR
TO ANURACOM UTILITY
Need help? Call us: +1 425.890.8221
anuraco.com / support@anuraco.com
Make sure adaptor is on and utility is open.
Click on the adaptor (will have name
that is user changeable) to connect.
Actual BLE-485 Adaptor will signal
green when connection established.
See the full manual for detailed
instructions on the utility functions
including: naming device, changing
baud rate, battery change notes,
parity, and security lock.
7 CONNECT BLE-485 ADAPTOR TO
DEVICE/SENSOR
BLE-485 Adaptor can be connected to any
RS485 device via an M12 connector (either wired, or
built into device).
Insert RS485 M12 female into device M12 male.
Screw together until secure.
Female M12 Connector
1 2
3
4
5
START SERIAL APPLICATION TO
8
SERVICE DEVICE/SENSOR
GETTING STARTED GUIDE

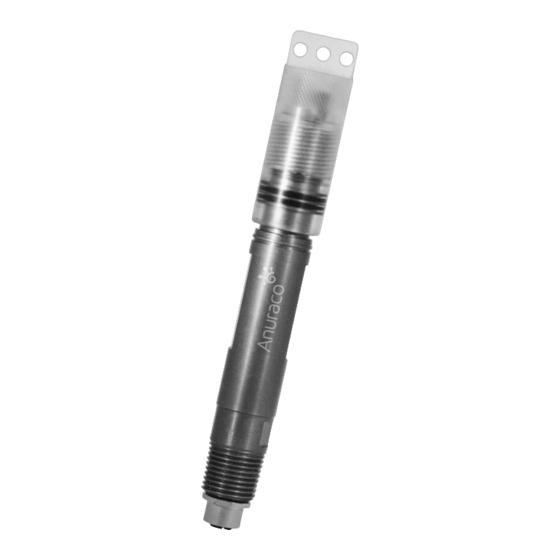

BLE-485 Bluetooth Adaptor
Function
1 - 9-24 VDC
2 - RS485 D-
3 - RS485 D+
4 - No Connect
5 - Ground
anuraco.com / +1 425.890.8221
