Toto ECOPOWER TET2UBi SS Series Installation Manual

TET2UBi*#SS/TET2LBi*#SS/TET2GBi*#SS/TET3UBi*#SS/TET3LBi*#SS/TET3GBi*#SS/TEU2UAi*#SS/TEU2LAi*#SS/TEU3UAi*#SS/TEU3LAi*#SS
* indicates '2' for TOTO/Georgia-Paci c IoT system, '4' for TOTO/TeraCode IoT system
NOTE: Install the ush valve according to the Flush Valve Installation Manual
Valve Body Assembly* Front Cover*
(* may vary in appearance depending on model. TET2UBi*#SS model shown.)
WARNINGS
Please read and adhere to these notes. Failure to do so could result
in personal injury, risk of re or smoke and/or property damage.
- Install the product according to installation instructions.
- Install the product in the correct vertical orientation.
- Do not use or operate the product with its covers removed.
For i2 system
1. Pull the battery tab out from IoT communication card.
NOTE: Red LED light will blink to indicate that the IoT communication card is
functioning.
For i4 system
1. Remove the battery cover, and install the 4 AA batteries included in the package.
NOTE: Green LED light will blink to indicate that the IoT communication card is
functioning.
2. Remove the controller cover and guide the IoT wire harness (black & white) out
through the notch on the bottom of the controller case.
3. Reattach the controller cover. Be careful to keep the IoT wire harness and the
connection cables in the notch. Do not kink. Do not pinch.
4. Route the IoT wire harness under the controller case and then between the case
and valve body as shown. Let the end of the harness rest on the top of the
controller case.
5. Line up the velcro strips on the IoT communication card to the corresponding
strips on the controller case (Location "A") and attach. If there is any obstacle to
mounting at location "A", use location "B".
6. Connect the IoT wire harness connection. Listen for the "click" indicating a
secure connection.
7. Coil the IoT communication card connection harness neatly and make sure
the harness and connectors are above the controller case.
8. Apply the QR code sticker on the top of the controller cover..
9. Commit the IoT communication card according to TOTO's Instructions.
For any questions regarding installation or maintenance, please contact:
TOTO at (888) 295-8134
(For i2 system) Georgia-Paci c at (800) 890-0896 or KOLOhelp@gapac.com
(For i4 system) TeraCode at (800) 305-2310 or tototsupport@teracode.com
0GU3097E Rev.A
KEEP THIS DOCUMENT FOR REFERENCE AND MAKE AVAILABLE FOR MAINTENANCE PERSONNEL.

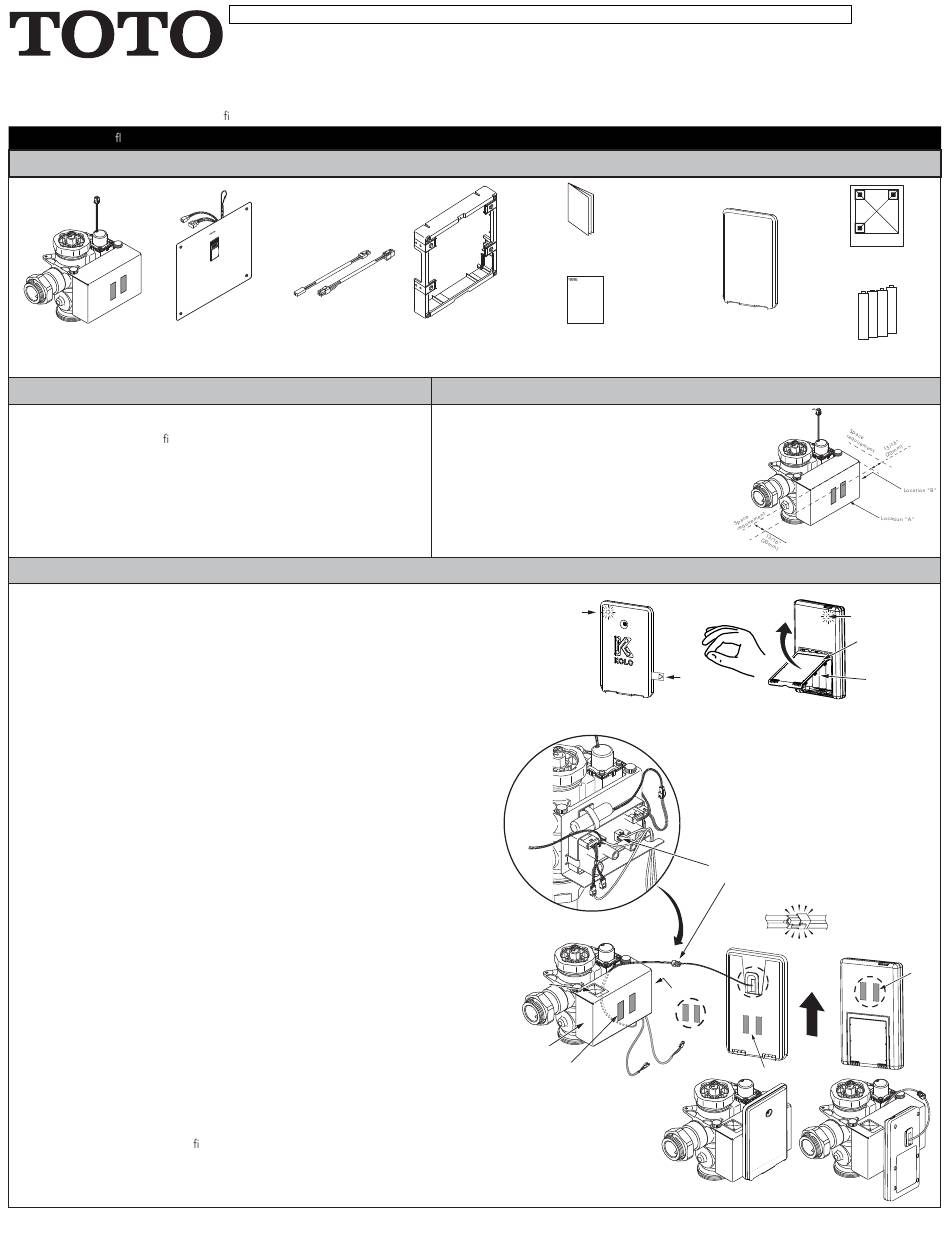

ECOPOWER Concealed Flush Valve
IoT Communication Card Installation Manual
INCLUDED PARTS
Connection cables
INSTALLATION PROCEDURE
Flush Valve
Installation Manual
IoT Communication Card
Base Frame*
Installation Manual
(Refers to this document)
BEFORE INSTALLATION
Make sure there is enough space for the IoT
communication card to attach at location "A" or
"B" without interference. A minimum of 13/16"
(20mm) clearance around the controller case is
required.
Do not drop the IoT communication card!
Handle with care!
LED Light
IoT Communication Card
QR Code Sticker
Controller Cover
Location "A"
Velcro
IoT Communication Card
THP3395 (for i2 system)
THP3566 (for i4 system)
Battery Tab
IoT Communication Card
(for i2)
IoT Wire
Harness
NOTE:
"CLICK" sound.
T O P
Location "B"
Velcro
Velcro
QR Code
Sticker
AA Batteries x4
(for i4 system)
LED Light
Battery
Cover
AA Batteries
x4
(for i4)
Velcro
