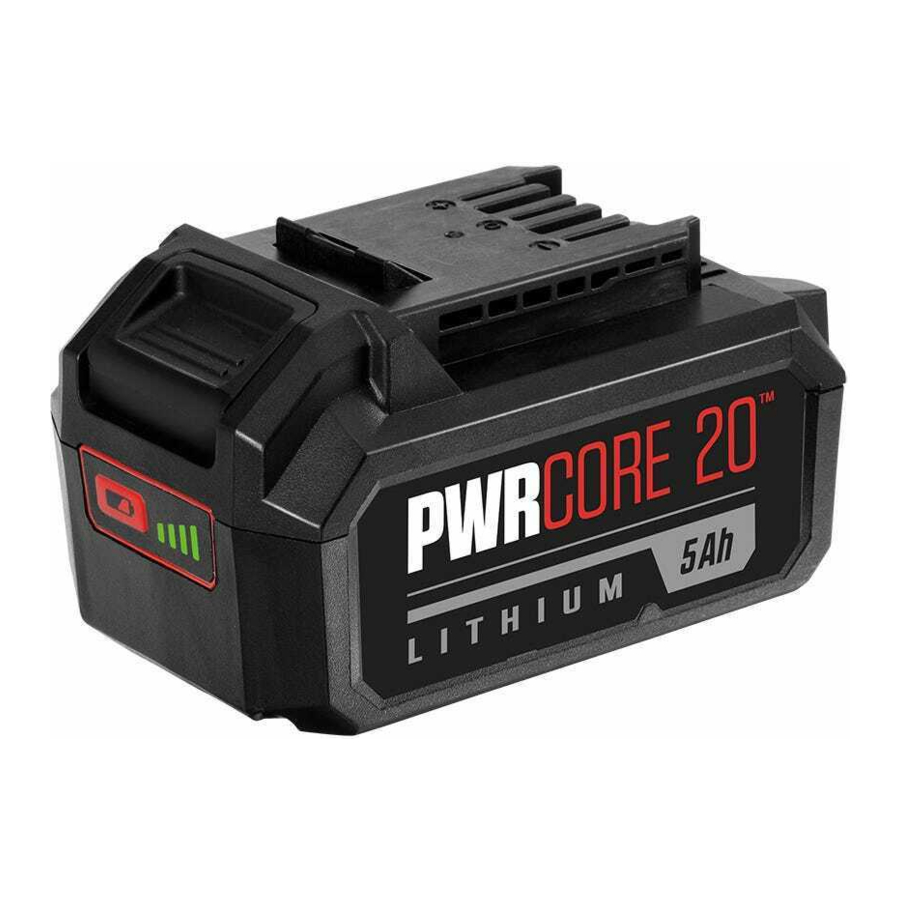

Skil BY5196E-03, BY5197E-03 - Rechargeable Lithium Battery Manual

OVERVIEW

SPECIFICATIONS

USE

• When to Charge the Battery Pack
  It is not necessary to run down the battery pack charge before recharging. The Lithium-Ion battery can be charged at any time and will not develop a "memory" when charged after only a partial discharge.
  Remove the battery pack from the tool when it is convenient for you and your job. "Top off" the battery pack charge by charging it for a time before starting a big job or use for long period of use.
• How to Charge the Battery Pack
  Follow the instructions in the manual for the SKIL charger.
• Fuel Gauge
  The four LEDs on the front housing of the battery indicate the current battery capacity when the battery-indicator button is depressed.
  If the first LED on the Fuel Gauge flashes slowly when the battery indicator button is depressed, this indicates a low charge level. Recharge the battery.
  If the first and third LED on the fuel gauge rapidly flash green when the battery-indicator button is depressed, this indicates that the battery is too hot. Cool the battery pack under air flow.
• Defective Battery Pack
  If the charger detects a problem, the red Defect Indicator will begin flashing. Remove and re-insert the battery pack in the charger. If the Defect Indicator flashes a second time, try charging a different battery pack.
  1. If a different battery pack charges normally, have the first defective battery pack serviced by an Authorized SKIL Service Station.
  2. If a different battery pack also indicates "defective" the charger may be defective. Have the charger serviced by an Authorized SKIL Service Station.

MAINTENANCE

When batteries are not in tool or charger, keep them away from metal objects.
For example, to protect terminals from shorting do not place batteries in a toolbox or pocket with nails, screws, keys, etc. Fire or injury may result.

SAFETY

GENERAL SAFETY WARNINGS

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY
   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
2. ELECTRICAL SAFETY
   1. Do not expose power tools to rain or wet conditions. Water entering a power tool.
3. BATTERY TOOL USE AND CARE
   1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
   2. Use power tools only with specifically designated battery packs.Use of any other battery packs may create a risk of injury and fire.
   3. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
   4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
   5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
   6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
   7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
4. SERVICE
   1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
   2. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR BATTERY PACK

• The battery supplied is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time)
• Only use the following chargers with this battery pack - SKIL charger: SC5358E-01, QC5360E-01
• Do not use battery when damaged; it should be replaced immediately
• Do not disassemble the battery.
• Do not expose battery to rain.
• Permitted ambient temperature:
  • when charging 4...40°C
  • during operation –20...+50°C
  • during storage –20...+50°C

EXPLANATION OF SYMBOLS ON TOOL

Read the instruction manual before use

Do not dispose of electric tools and batteries together with household waste material

Store battery in locations where temperature will not exceed 50°C

Do not dispose of electric tools and batteries together with household waste material
