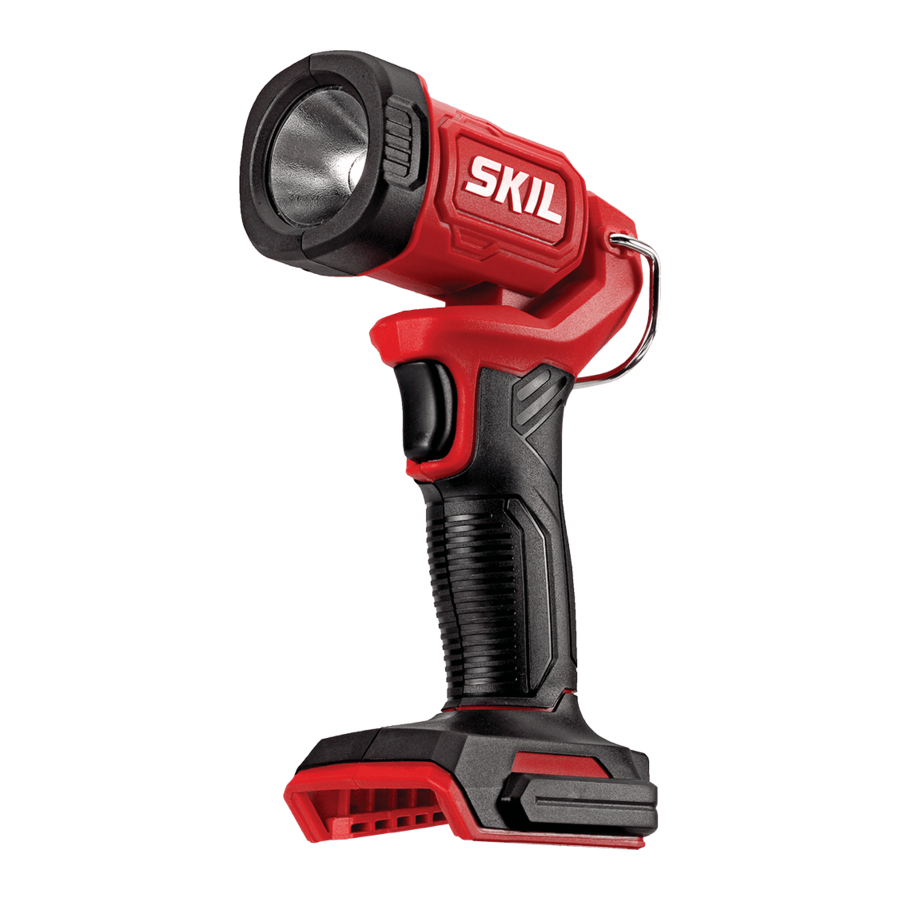

Skil LH5523E-0 - Cordless Spot Light Manual
![]()
INTRODUCTION
- The spot light is intended for illumination in dry indoor areas
- This tool is not intended for professional use
- Read this instruction manual carefully before use and save it for future reference
SPECIFICATIONS
Rated Voltage | 18V d.c. (20V max) |
Head pivot range | 0-104° |
SAFETY
GENERAL SAFETY INSTRUCTION FOR SPOT LIGHT
- Handle the spot with care
- Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance)
![]()
Do not cover off the lamp head while operating the spot light (the lamp head heats up during operation and can cause burns when the heat accumulates) - Only use the following batteries and chargers with this tool
- SKIL battery: BY5197E-03 BY5196E-03
- SKIL charger: SC5358E-01 QC5360E-01
- Do not use battery when damaged; it should be replaced immediately
- Do not disassemble the battery.
- Do not expose tool/battery to rain.
- Permitted ambient temperature (tool/charger/battery):
- when charging 4...40°C
- during operation –20...+50°C
- during storage –20...+50°C
Insulation class III
![]()
Do not stare into the light beam
FEATURES
![Skil - LH5523E-0 - FEATURES FEATURES]()
USE
- Removing/installing the battery
![]()
![Skil - LH5523E-0 - USE - Removing/installing the battery USE - Removing/installing the battery]()
- Two-Stage Brightness Adjustment Controlled by ON/OFF Switch
- Your tool is equipped with a two-stage brightness adjustment, providing different light intensities for your operation.
- Depress the ON/OFF switch to turn on the light: the light is in the high light mode.
- Depress the ON/OFF switch again to change to the low light mode.
- Depress a third time to turn the light off
- Adjusting the pivoting head
![]()
![Skil - LH5523E-0 - USE - Adjusting the pivoting head USE - Adjusting the pivoting head]()
- The light head pivots 104° for maximum flexibility. Manually move the head to any position within the pivot range. Do not force the head beyond that range.
- Loop and magnets
- Using the hanging loop and magnets, the light can be placed in multiple locations for ideal lighting.
- Loop
![]()
![Skil - LH5523E-0 - USE - Using the hanging loop USE - Using the hanging loop]()
- Your tool is equipped with a loop. It can be carried or hung to an object with the loop.
- Magnets
![]()
Attach the spot light to ferromagnetic area with the integrated magnets.
MAINTENANCE / SERVICE
- This tool is not intended for professional use.
- Always keep tool clean.
remove battery from tool before cleaning
WARRANTY
For all SKIL warranty & enquiries, please contact 1300 01
SKIL (1300 01 7545) Monday to Friday 9:00am to 5:00pm EST
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Chervon Australia Pty Ltd, Unit 14, 5 Kelletts Road, Rowville, VIC. 3178. Ph; 1300 01 SKIL (1300 01 7545). Email: support@skil.com.au
* Industry leading battery technology wraps each cell with cooling material to keep the battery powering on for 25% longer run time compare to general battery technology.
![]()
SKIL's patented technology extends the battery life 2X longer compare to general battery technology.
![]()
For Customer Service 1300-017-545 OR www.skil.com.au
