Ryobi P7131 / P7131ID - 18 VOLT DRY HAND VAC Manual

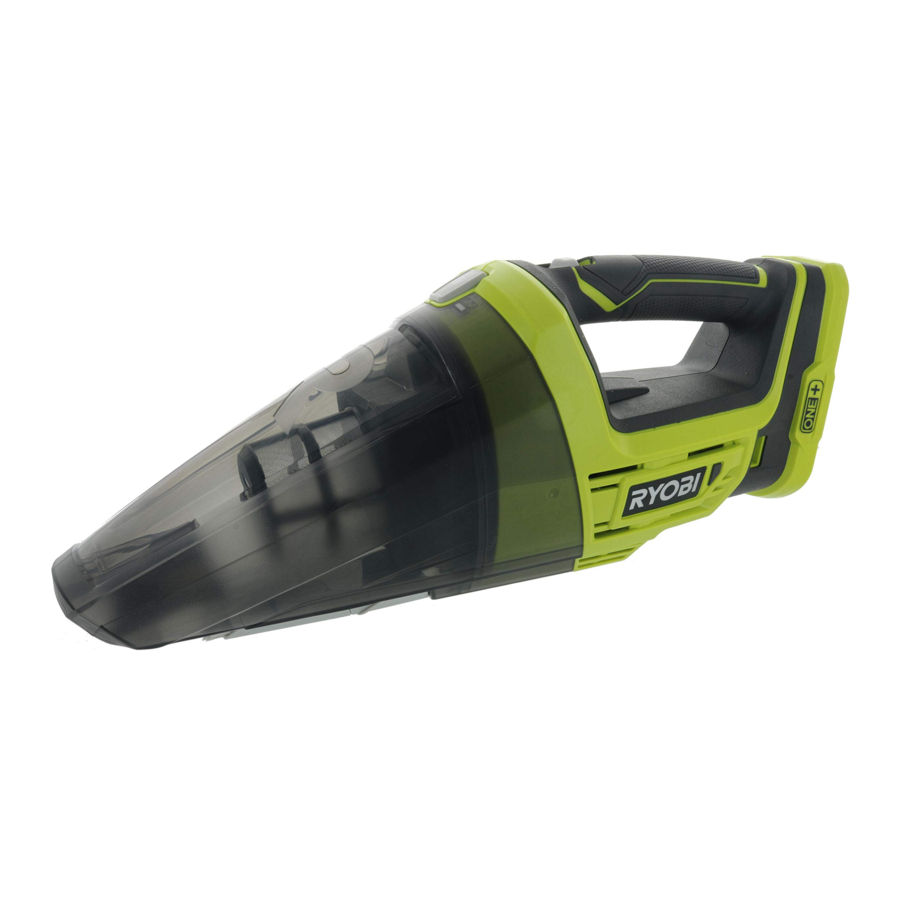

OVERVIEW

OVERVIEW

  1. Dust bowl
  2. Release button
  3. ON/OFF switch
  4. Crevice tool

ASSEMBLY

  • Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a product that is not properly and completely assembled or with damaged or missing parts could result in serious personal injury.
  • Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

OPERATION

  • Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
  • Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.
  • Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this product for the following purpose:

  • Light-duty vacuuming of dry surfaces

INSTALLING/REMOVING BATTERY PACK

  1. Battery pack
  • Insert the battery pack into the battery port.
  • Make sure the latches on each side of the battery pack snap into place and that the battery pack is secured in the hand vac before beginning operation.
  • Locate the latches on the side of the battery pack and depress both sides to release the battery pack from the hand vac.

For complete charging instructions, see the operator's manuals for your battery pack and charger.

STARTING/STOPPING THE VACUUM

  1. ON/OFF switch
  • To start the vacuum: slide the ON/OFF switch toward the front of the vacuum.
  • To stop the vacuum: slide the ON/OFF switch toward the back of the vacuum.

CREVICE TOOL

  1. Crevice tool

  1. Crevice tool

  1. Crevice tool cover
  2. Crevice tool

The combination crevice tool is stored on the underside of the dust bowl.
To detach the crevice tool, pull it forward and remove it from the dust bowl.
The cover of the crevice tool slides back to reveal the brush so the attachment can be used as a brush tool.

  • Turn off the vacuum.
  • Remove the battery pack.
  • Insert the attachment into the front end of the vacuum dust bowl, making sure the attachment is firmly pushed into place.

When purchasing replacement crevice tool, request recommended part number 313139001.

REMOVING/REATTACHING THE DUST BOWL

  1. Dust bowl
  2. Release button

  1. Tab
  2. Slot

The dust bowl should be checked, emptied, and cleaned periodically for maximum dust collection.

To remove:

  • Remove the battery pack.
  • Depress the release button located on top of the hand vac. Pull the dust bowl down and out.

To reattach:

  • Position the two sections as shown. Align the slot on the bottom of dust bowl with the tab on the bottom of motor housing, then snap the two sections together.

MAINTENANCE

This product contains no serviceable parts.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.


Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which could result in serious personal injury.

CLEANING/REPLACING THE FILTER

  1. Dust bowl
  2. Filter
  3. Tabs
  4. Screen assembly
  • Remove the battery pack and the dust bowl.
  • Remove the filter by pressing the tabs inward and lifting the filter out of the screen assembly.
  • Shake or lightly brush any dust or dirt off the filter.
  • Remove the screen assembly from the dust bowl.
  • Shake or lightly brush any dust off the screen and screen assembly. Wash if necessary.
  • Empty the dust bowl; wash if necessary. Before reattaching to the hand vac, make sure all pieces are completely dry.

When purchasing replacement filter, request recommended part number 533907001 (model no. A32VC04).

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:


READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE


To reduce the risk of electric shock DO NOT expose to rain. Store indoors.

  • Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, loose clothing, fingers, and all parts of the body and clothing, away from openings and moving parts. Loose clothes, jewelry, or long hair can be caught in internal moving parts.
  • Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the hand vac in unexpected situations. Do not use on a ladder or unstable support.
  • Use safety equipment. Dust mask must be used for appropriate conditions.
  • Do not allow children to operate the product or play with the product as a toy. Close attention is necessary when used by or near children.
  • Use this product ONLY for its intended use as described in this manual. Use only the attachments recommended in this manual.
  • If the product is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return to your nearest service center.
  • Do not handle charger plug or product with wet hands.
  • Do not put any objects in ventilation openings. Do not use with any opening blocked. Keep openings free of dust, lint, hair, and anything that may reduce air flow.
  • NEVER vacuum materials that are burning or smoking, such as hot coals, cigarette butts, matches, burning or smoking ashes, etc.
  • DO NOT use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
  • Use extra care when using on stairs.
  • This unit is for dry vacuuming only. Do not use to clean up liquids.
  • Do not use without dust bowl and filter in place.
  • Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
  • The product does not have to be plugged into an electrical outlet, therefore it is always in operating condition. Be aware of possible hazards when using the product or when changing accessories.
  • Remove battery when the vacuum is not in use and before servicing.
  • Use this product only with batteries and chargers listed in tool/appliance/battery pack/charger correlation supplement 987000-432.
  • Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.
  • Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.
  • Do not use a battery pack or power tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
  • Do not modify or attempt to repair a power tool or battery pack that has been damaged.
  • To reduce the risk of serious personal injury, never use or expose battery pack or any cordless product in the presence of an open flame or temperature above 265°F. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
  • Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the product. Carrying battery products with your finger on the switch or energizing battery products that have the switch on invites accidents.
  • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
  • Do not charge battery tool in a damp or wet location. Do not use, store, or charge battery packs or products in locations where the temperature is less than 50°F or more than 100°F. Do not store outside or in vehicles.
  • Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.
  • Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the hand vac's operation. If damaged, have the product serviced before using. Many accidents are caused by poorly maintained products.
  • Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one product may create a risk of injury when used on another product.
  • Do not let gasoline, oils, petroleum-based products, etc., come in contact with plastic parts. They contain chemicals that can damage, weaken, or destroy plastic.
  • Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
  • Appliance is intended for household use only.
  • This product contains no serviceable parts.
  • Save these instructions. Refer to them frequently and use them to instruct others who may use this hand vac. If you loan someone this hand vac, loan them these instructions also.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL NAME DESIGNATION/EXPLANATION
warning Safety Alert Indicates a potential personal injury hazard.
Read Operator's Manual To reduce the risk of injury, user must read and understand operator's manual before using this product.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Long Hair Risk of long hair being drawn into air inlet.
Recycle Symbol This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
V Volts Voltage
min Minutes Time
Direct Current Type or a characteristic of current
no No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
