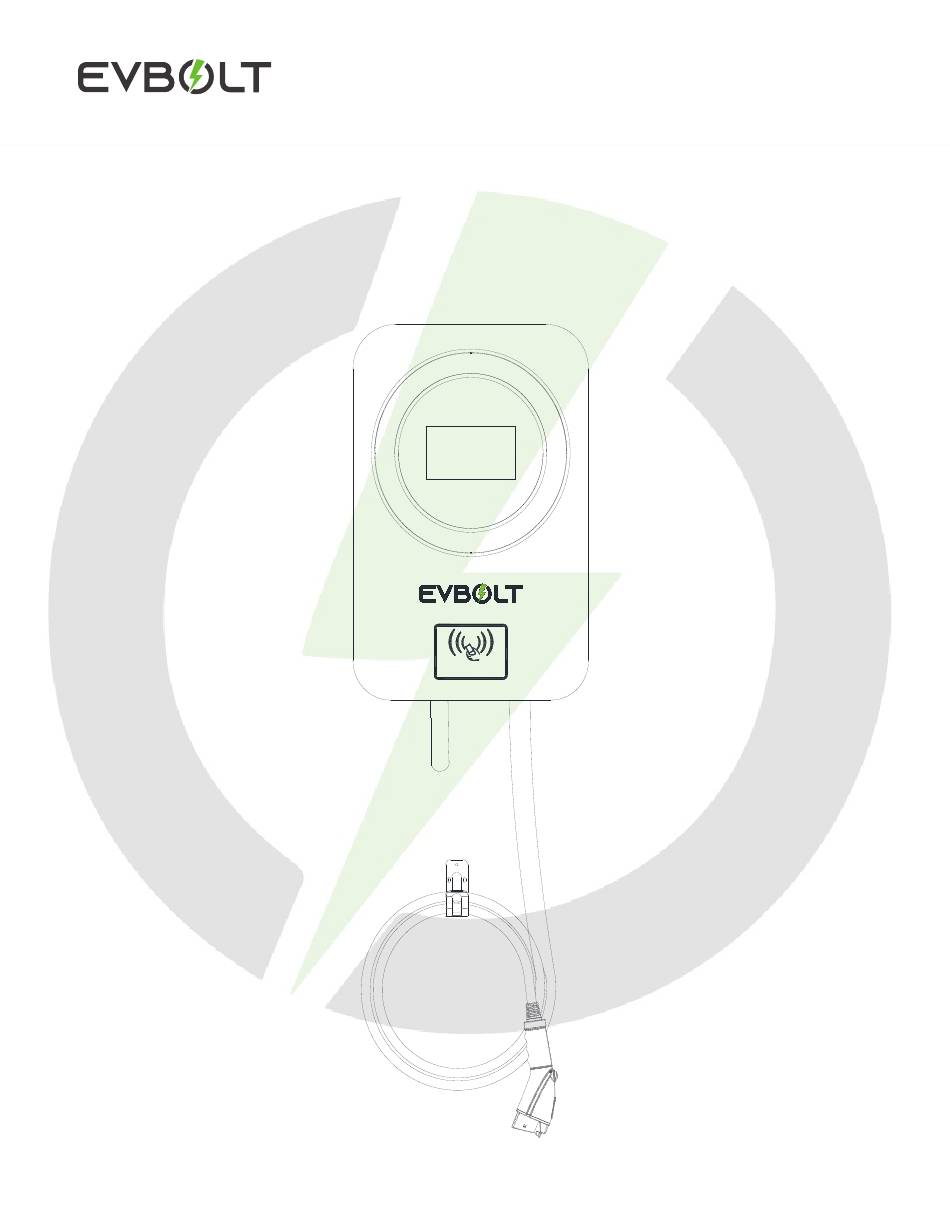

- Page 1 Electric vehicle AC Charger DYNO 11 – User Manual EVB-AC-B11 SCAN CARD PLEASE Intellectual property of EVBOLT, Inc.
-
Page 2: Table Of Contents
Wall-Mount Bracket Installation Requirements ....................... 16 Wall-Mounted Installation Requirements ......................... 17 Pedestal Installation Requirements ........................... 20 Operating Instructions ..............................24 Operating Steps (ONLINE) ............................24 9.1.1 EVBOLT iOS/Android Application ........................24 9.1.2 EVBOLT WebApp ............................... 24 Operating Steps (OFFLINE) ............................. 25 9.2.1 Plug-n-Play ................................25 9.2.2... -
Page 3: Important Safety Instructions
• Risk of electric shock. Do not remove the cover or attempt to open the enclosure of this device. There are no user-serviceable parts inside. Contact a qualified service company if you require any service repairs. Intellectual property of EVBOLT, Inc. Page 1 of 30... - Page 4 • This device should be supervised when used around children. • Do not put fingers into the electric vehicle connector. • The device is not to be lifted or carried by either the flexible cord or the EV cable. Intellectual property of EVBOLT, Inc. Page 2 of 30...
-
Page 5: Federal Communication Commission Interference Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Intellectual property of EVBOLT, Inc. Page 3 of 30... -
Page 6: Industry Canada Statement
As long as the 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Intellectual property of EVBOLT, Inc. Page 4 of 30... - Page 7 IC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada. Intellectual property of EVBOLT, Inc. Page 5 of 30...
-
Page 8: Interface
4. Interface 4.3” LCD Screen LED Light Indication Ring RFID Scanner SCAN CARD PLEASE Wall-Mount Bracket Charging Cable Inlet AC Power Inlet Ethernet Inlet Intellectual property of EVBOLT, Inc. Page 6 of 30... -
Page 9: Dimensions
5. Dimensions Main Size of Charger 9.84 [250] 5.72 [145.29] Wall-Mount Bracket 6.97 [177] 1.08 [27.37] 8.35 [212] 3.17 [80.5] 1.9 [48.32] Intellectual property of EVBOLT, Inc. Page 7 of 30... -
Page 10: Specifications
Wall Mount, Pedestal Mount Altitude ≤ 6562 ft (≤ 2000 meters) Weight <15.87lbs (7.2kg) with Cable; <18.74lbs (8.5kg) With Package Dimensions 14.96in x 9.84in x 5.14in (380mm x 250mm x 130.5mm) Intellectual property of EVBOLT, Inc. Page 8 of 30... -
Page 11: Status Description
7. Status Description STANDBY Green light stays steady in standby mode. CHARGING Green Light Blinking FAULT Steady red light when fault occurs Intellectual property of EVBOLT, Inc. Page 9 of 30... -
Page 12: Installation Instructions
Report unsafe activities immediately to supervisors or the responsible person in control of the workplace, and o Report all accidents and dangerous occurrences to the supervisor immediately after they happen Intellectual property of EVBOLT, Inc. Page 10 of 30... - Page 13 • Set up cooling equipment, such as exhaust fans • Make water dispensers available • Provide suitable protective clothing such as hat, sunglasses and long sleeves to protect workers from heat stroke and UV rays Intellectual property of EVBOLT, Inc. Page 11 of 30...
- Page 14 • Fully open stepladders when in use • Do not overreach when working on a ladder • Beware of overload restrictions Country Standards ANSI A 14.1, ANSI A 14.2, ANSI A 14.5 Canada CSA Z11 M81 Intellectual property of EVBOLT, Inc. Page 12 of 30...
- Page 15 • Live electrical work permit (input terminals with HV after door open) • Use personal protective equipment (PPE) • Safe workplace conditions and space • Adhere to other occupational health, safety and security codes, such as those published by OSHA Intellectual property of EVBOLT, Inc. Page 13 of 30...
-
Page 16: Safety Requirements
In residential power supplies, check the bond between ground and neutral at the main panel. If connected to a step- down transformer, contact the transformer's manufacturer for direction on how to bond the ground connection Intellectual property of EVBOLT, Inc. Page 14 of 30... -
Page 17: Packing List
Packing List Electric vehicle AC Charger DYNO 11 – User Manual EVB-AC-B11 C EA A R SE D Intellectual property of EVBOLT, Inc. Product Name Notes AC Charger (With Charging Cable) Wall-Mount Bracket User Manual Expansion Screw M5 Self-Tapping Screws... -
Page 18: Tools And Materials Required
When installing on a wooden wall, you can directly use the included M5 self-tapping screws to install the wall- mount bracket and use the wall- mount backplane to lock and install on the wall directly. Intellectual property of EVBOLT, Inc. Page 16 of 30... -
Page 19: Wall-Mounted Installation Requirements
-65dBm. If it is lower than this value, it may result in a weak Wi-Fi or 4G connection or disconnection due to external interference in the area. Intellectual property of EVBOLT, Inc. Page 17 of 30... - Page 20 Install the wall-mounted metal plate on the cement wall. STEP 2 Installation and setting of the network cable Insert the RJ45 connector CAT6 cable into the connection port. SCAN CARD PLEASE Network Cable Intellectual property of EVBOLT, Inc. Page 18 of 30...
- Page 21 STEP 3 Installation of the charger Slide the charging equipment in a vertical direction on to the back plate with applied pressure to ensure a secure mounting. Intellectual property of EVBOLT, Inc. Page 19 of 30...
-
Page 22: Pedestal Installation Requirements
-65dBm. If it is lower than this value, it may result in a weak Wi-Fi or 4G connection or disconnection due to external interference in the area. Intellectual property of EVBOLT, Inc. Page 20 of 30... - Page 23 Draw one cable (two cables for dual chargers) from the center Pre-embedded Ø3.15” PVC pipe in concrete Drill 4 holes in the concrete pier (4-Ø0.394”) Drive the expansion screw into the concrete pier Intellectual property of EVBOLT, Inc. Page 21 of 30...
- Page 24 Align the screw holes of the pedestal with the ones in the concrete pier Tighten the bolts Secure the base cover Place the Cable management on top and secure using 4 screws Intellectual property of EVBOLT, Inc. Page 22 of 30...
- Page 25 Install the charging equipment as explained. Holder Install the holder on pedestal Pull down the slinger ring Assemble the wire in cable management, clamp clips at suitable place. Replace the EV connector in the holder Intellectual property of EVBOLT, Inc. Page 23 of 30...
-
Page 26: Operating Instructions
Operating Steps (ONLINE) For commercial purposes, this product can be connected to internet via Wi-Fi or 4G LTE. This is the case for Public and Semi-Public chargers. The chargers can be accessed using EVBOLT Application or WebApp. 9.1.1 EVBOLT iOS/Android Application... -
Page 27: Operating Steps (Offline)
The screen will display charging data once the charging starts Unplug the charger to stop charging and enter the settlement interface 9.2.2 RFID Authentication Tap the screen to select charging method Intellectual property of EVBOLT, Inc. Page 25 of 30... - Page 28 Tap “Swipe RFID Card” method Swipe RFID Card to initiate charging The screen will display charging data once the charging starts Swipe the RFID Card again to stop charging and enter the settlement interface Intellectual property of EVBOLT, Inc. Page 26 of 30...
-
Page 29: Password
Enter the password on the screen to start charging The screen will display charging data once the charging starts Enter the password on the screen to stop charging Unplug the charger to enter the settlement interface Intellectual property of EVBOLT, Inc. Page 27 of 30... -
Page 30: Error And Warning Message
RCD Self-Test Fail Constantly Bright Contact Customer Service Relay Self-Test Fail Constantly Bright Contact Customer Service RCD Abnormal Stop Charging Constantly Bright Auto Recover Output OCP Stop Charging Constantly Bright Auto Recover Intellectual property of EVBOLT, Inc. Page 28 of 30... -
Page 31: Maintenance And Repair
• Do not place external objects or heavy objects on the charger, in order to avoid danger. 10.2 Maintenance Spares • This product is covered by a two-year parts warranty. If you have a technical issue, contact our technical support representative at our helpline. Intellectual property of EVBOLT, Inc. Page 29 of 30... -
Page 32: Warranty And Maintenance
Malfunction and damage caused by improper use of the equipment, such as water or other solutions entering into the equipment. Malfunction and damage caused by the mains power supply and voltage which is not specified for use with the charger equipment. Intellectual property of EVBOLT, Inc. Page 30 of 30... - Page 33 © 2023 EVBOLT INC. All Rights Reserved.
