Summary of Contents for Vortex DB-214
-
Page 2: Basic Operation

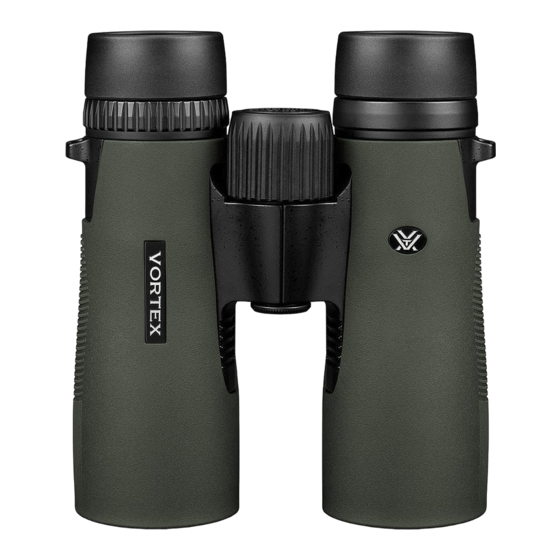

DIAMONDBACK ® BINOCULAR BASIC OPERATION Center Focus Adjust the Eyecups Ocular Lens Twist-up Eyecup The eyecups on the Diamondback HD binocular twist up ® and down so any viewer can see the full field and enjoy Strap comfortable viewing—with or without eyeglasses. Attachment Diopter When not using eyeglasses or... - Page 3 DIAMONDBACK ® BINOCULAR Properly Focus the Binocular ACCESSORIES GlassPak™ Binocular Harness For the best reults, follow this two-step process to properly (Not included with all models) adjust the center focus and diopter. Choose an object about The GlassPak™ Binocular Harness stores and protects 20 yards away and stay in the same spot until you have your binoculars while keeping them close at hand for quick adjusted the binocular for your eyes.
- Page 4 DIAMONDBACK ® BINOCULAR Follow these steps to attach the binocular tether straps. Lens Covers The Diamondback HD comes with tethered objective lens ® 1. Thread the wide end of covers and a rainguard for the ocular lenses. Use these covers the binocular tether straps to protect the lenses whenever you are not using your binocular.
-
Page 5: Lens Care
DIAMONDBACK ® BINOCULAR LENS CARE Maintain the optical brilliance of your binocular by keeping lens surfaces free of dirt, oils, and dust. Protect Lenses While Out in the Field Make use of the provided eyepiece and tethered objective lens covers to protect the lenses when not viewing. If the optics are exposed to moisture, keep the caps off and allow the optics to dry out completely before putting them in the case for storage. - Page 6 DIAMONDBACK ® BINOCULAR...
- Page 7 M-00253-0 © 2018 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics...
