Summary of Contents for Vortex Diamondback HD

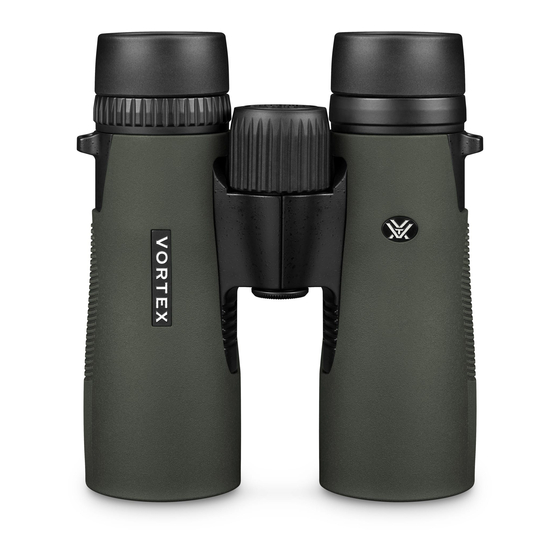

- Page 2 Center Focus Ocular Lens Twist-up Eyecup Strap Attachment Diopter Objective Lens Tripod Adapter Socket Images are for representation only. Product may vary slightly from what is shown.
-
Page 3: Basic Operation
DIAMONDBACK ® BINOCULAR BASIC OPERATION Adjust the Eyecups The eyecups on the Diamondback HD binocular twist up ® and down so any viewer can see the full field and enjoy comfortable viewing—with or without eyeglasses. When not using eyeglasses or sunglasses, keep the eyecups fully extended. - Page 4 Properly Focus the Binocular For the best reults, follow this two-step process to properly adjust the center focus and diopter. Choose an object about 20 yards away and stay in the same spot until you have adjusted the binocular for your eyes. 1.
- Page 5 DIAMONDBACK ® BINOCULAR ACCESSORIES GlassPak™ Binocular Harness (Not included with all models) The GlassPak™ Binocular Harness stores and protects your binoculars while keeping them close at hand for quick deployment. Tethers attach to your binocular for added security against accidental drops while the fully adjustable straps create a comfortable fit.
- Page 6 Follow these steps to attach the binocular tether straps. 1. Thread the wide end of the binocular tether straps through the harness strap buckles. 2. Size to fit by adjusting the one-size-fits-all harness strap. 3. Thread the binocular tether straps through the strap attachments on binocular.
- Page 7 DIAMONDBACK ® BINOCULAR Lens Covers The Diamondback HD comes with tethered objective lens ® covers and a rainguard for the ocular lenses. Use these covers to protect the lenses whenever you are not using your binocular. Neck Strap Attach the padded neck strap in these three simple steps. 1.
-
Page 8: Lens Care
LENS CARE Maintain the optical brilliance of your binocular by keeping lens surfaces free of dirt, oils, and dust. Protect Lenses While Out in the Field Make use of the provided eyepiece and tethered objective lens covers to protect the lenses when not viewing. If the optics are exposed to moisture, keep the caps off and allow the optics to dry out completely before putting them in the case for storage. - Page 9 DIAMONDBACK ® BINOCULAR VIP WARRANTY OUR UNCONDITIONAL PROMISE TO YOU. We promise to repair or replace the product. Absolutely free. Unlimited Unconditional Lifetime Warranty Learn more at www.VortexOptics.com service@VortexOptics.com • 800-426-0048 Note: The VIP Warranty does not cover loss, theft, deliberate damage, or cosmetic damage not affecting product performance.
