Please read this operating guide carefully before
using the Monitor.
Keep the operating guide with the Monitor.
For future reference, write down the serial number
on the back of the Monitor in the space provided
below.
Model Number: P60W26P
Serial Number:
ON/OFF
P60W26P
P60W26H

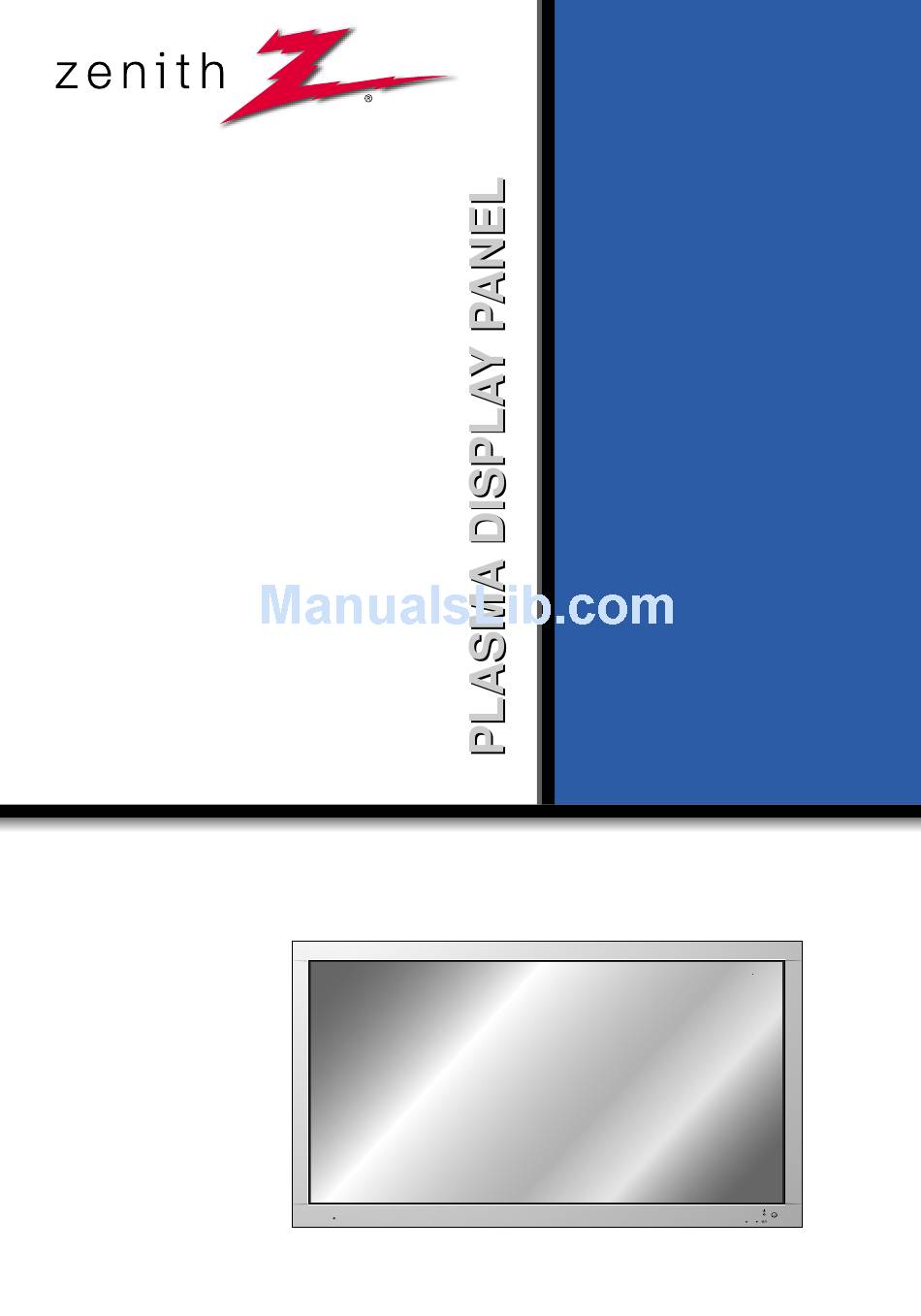

OWNER'S MANUAL
INPUT
SELECT
VOLUME
Advertisement
Chapters
Table of Contents
Related Manuals for Zenith P60W26H
Summary of Contents for Zenith P60W26H
- Page 1 Please read this operating guide carefully before using the Monitor. Keep the operating guide with the Monitor. For future reference, write down the serial number on the back of the Monitor in the space provided below. Model Number: P60W26P Serial Number:...
- Page 2 In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operating and cooling the PDP.
-
Page 3: Table Of Contents
Turning The Monitor On ...32 Menu Rotation for Vertical Viewing ...33 Checking Features ...34 Sleep Timer Setup Setting Sleep Timer (Monitor turn-off time) ...35 Picture & Sound Auto Picture Control ...36 Adjusting Picture Appearance ...37 DRP (Digital Reality Picture) ...38 Adjusting Sound: Bass, Treble, Balance ...39... -
Page 4: Setup And Operation Checklist
Setup and Operation Checklist Setup and Operation Checklist (See page 9 for available connection and operational setup options.) 1. Unpack Monitor and all accessories. 2. Connect all external video and audio equipment. see pages 14 - 20. 3. Install batteries in remote control. -
Page 5: Warnings
- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product. -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference. - Page 7 (Continued from previous page) 14. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 15.
-
Page 8: Front Panel Controls
Front Panel Controls ON/OFF Main Power Button Power Standby Indicator Illuminates red in standby mode, Illuminates green when the Monitor is turned INPUT SELECT Button Front Panel Controls ON/OFF INPUT SELECT VOLUME Sub Power Button VOLUME ( ) Buttons INPUT... -
Page 9: Connection Panel Overview
CONTROL LOCK / REMOTE CONTROL When “CONTROL LOCK” is set “ON”, wired remote control mode is operated. POWER INPUT SOCKET This Monitor operates on standard AC power: 120 Do not attempt to operate the monitor on DC power. Volt 60 Hz. -
Page 10: Remote Control Key Functions/Accessories
Remote Control Key Functions/Accessories - When using the remote control, aim it at the remote control sensor on the Monitor. power on button Switches the sound on or off. number buttons video/pc button input select button (Refer to p. 27, 30) ratio button (Refer to p. - Page 11 system off button (Refer to p. 32) Not functional menu button enter button up/down buttons vol buttons twin picture button (Refer to p. 29) When pressed, displays on screen. position button (Refer to p. 27) freeze button (Refer to p. 42) easy sound button (Refer to p.
-
Page 12: Monitor Installation
- It is recommended that this product only be used at an altitude of less than 6562 feet (2000m) to get the best quality picture and sound. - Your monitor can be installed on a wall as shown below. Wall mount is optional, and is not supplied with the monitor. - Page 13 Wall Mount: Vertical Installation • The monitor can be installed vertically on the wall as shown above. Caution: When installing the monitor vertically, the front panel controls must be in the left- down side position as shown above. (For further information, refer to the optional ‘Wall Mounting Bracket Installation and Setup Guide’.)
-
Page 14: Vcr Setup
VCR Setup - As shown below, when connecting the Monitor to a VCR, match the colors of AV input jacks on the Monitor with the output jacks on the VCR: Video = yellow, Audio (Left) = white, Audio (Right) = red. - Page 15 (480i/480p/720p/1080i) (DVD/DTV INPUT) (480p/720p/1080i) AUDIO AUDIO INPUT RS-232C EXTERNAL SPEAKER(8 ) Connections Panel on Monitor To Watch a VCR Press video/pc button on the remote con- trol and select VIDEO (When connecting with S-Video, select S-VIDEO Insert a video tape into the VCR and press the PLAY button on the VCR.
-
Page 16: Cable Tv Setup
- After subscribing to a cable TV service from a local provider and installing a cable con- verter box, you can watch cable TV programming. This monitor cannot display TV pro- gramming without a TV tuner device or cable TV converter box connected to the monitor. Speakers shown for illustration only. -
Page 17: External A/V Source Setup
External A/V Source Setup - As shown below, when connecting the monitor to an external source, match the colors of A/V input jacks on the monitor with the output jacks on the audio/video equipment: Video = yellow, Audio (Left) = white, Audio (Right) = red. -
Page 18: Dvd Setup
S-VIDEO (480i/480p/720p/1080i) (DVD/DTV INPUT) To Watch A DVD • Turn on the DVD player, and insert a DVD. • Use video/pc button on the monitor remote control to select COMPONENT .Refer to the DVD player's manual for operating instructions. for COMPONENT (480i/480p/720p/1080i) -
Page 19: Dtv Setup
- You can only select the 16:9 picture format in DTV 720p/1080i mode. How To Connect A User-supplied Digital Set-top Box • You can use either the Monitor’s COMPONENT (Y, P INPUT for video connections, depending on your Set Top Box connectors. Then, make the corresponding Audio connections. -
Page 20: Pc Setup
On The Remote Control Tips • Avoid keeping a fixed image on the Monitor's screen for a long period of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible. • If the resolution output of the PC computer is over SVGA, connect the PC to the RGB-PC (VGA/SVGA/XGA/SXGA) input port on the Monitor. - Page 21 Monitor Image Display Specifications Horizontal Resolution Frequency (KHz) 31.468 640x350 37.861 31.469 720x400 37.927 31.469 35.000 37.861 37.500 640x480 43.269 45.913 53.011 64.062 35.156 37.879 48.077 800x600 46.875 53.674 56.000 64.016 832x624 49.725 48.363 56.476 1024x768 60.023 68.677 52.400 1280x720 54.348...
-
Page 22: Pc Mode Feature Check(Overview)
PC Mode Feature Check (Overview) - Select first by pressing video/pc, see page 11. - Make sure the PC and monitor are both turned on. - Use the monitor’s remote control to make adjustments. menu Press the menu button to show menus on screen. -
Page 23: Pc Mode Adjustments
• If the position of the image is incorrect, try Auto adjustment again. If picture needs to be adjusted more after Auto adjustment, you can manually adjust the image position and • If the image is still not correct, your Monitor is functioning properly but needs further adjustment. button. - Page 24 PC Mode Adjustments Adjusting Horizontal / Vertical Picture Position Manually - Only adjust V-POSITION Press the MENU button and then use the select menu Use the up/down button to select and then press the vol ( down Use the up/down button to select TION H-POSITION ) button.
-
Page 25: Picture Phase Adjustments
Picture Phase Adjustments • If the picture isn’t clear after auto adjustment and especially if the characters are still trembling, then adjust the picture phase manually. • When watching PIP/TWIN PICTURE, the Press the MENU button and then use the select menu. -
Page 26: Picture In Picture (Pip) Function
Picture-In-Picture (PIP) Function - PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the other source will show a smaller (PIP) inset image. - Select RGB input source before pressing PIP. - Page 27 Selecting PIP Sub-Picture Source input select Press the input select button in PIP mode. • Each time you press input select button, you toggle between VIDEO VIDEO COMPONENT PIP INPUT Moving The PIP Picture position Press the position button in PIP mode. •...
-
Page 28: Selecting Pip Sound Options
Picture-In-Picture (PIP) Function Selecting PIP Sound Options - To select main sound or sub picture (inset) sound - This function only works with the following resolutions; 640x480, 800x600, 1024x768 (only in Vertical frequency 60 Hz) - To use this function, connect PC/DTV video output to RGB-PC INPUT/RGB-DTV INPUT and connect PC/DTV audio outputs to AUDIO INPUT. -
Page 29: Twin Picture Function
Twin Picture Feature - As the name suggests, this mode divides the screen into 2, allowing 2 sources to be shown on the monitor screen at the same time. Each source is given half the screen. - Select input source. -
Page 30: Twin Picture Mode
Twin Picture Mode Selecting A Twin Picture Source input select Press the input select button in TWIN PICTURE mode. • Each time you press the input select button, you toggle between VIDEO S-VIDEO COMPONENT VIDEO S-VIDEO COMPONENT COMPONENT source only works in 480i input signal. PIP INPUT VIDEO... -
Page 31: Using The Remote Control
Using the Remote Control Installing Batteries • Open the battery compartment cover on the back • Install two 1.5V “AA” alkaline batteries. Notes For Remote Control Operation Make sure these are no objects between the remote control and its sensor. of the remote control and insert the batteries with correct polarity, match “+”... -
Page 32: Turning The Monitor On
Turning The Monitor On - When using the remote control, aim it at its sensor on the Monitor. Turning on the Monitor just after installation Connect power cord correctly. Press the main ON/OFF button on the Monitor. At this moment, the Monitor is switched to standby mode. -
Page 33: Menu Rotation For Vertical Viewing
NORMAL • ROTATE Select • Press the enter button. enter menu. Press the button. down if the monitor was installed horizontally. if the monitor was installed vertically. button to OSD ROTATE OSD ROTATE NORMAL ROTATE SCREEN TRANSPARENCY PIP/DW SET ID COLOR TEMP. -
Page 34: Checking Features
Checking Features - Use the remote control to make adjustments. - Select VIDEO input source menu down down Press the menu button. Press the up/down button. • Each press will cycle through the menus shown below. CONTRAST BRIGHTNESS COLOR TINT SHARPNESS MOVE NEXT... -
Page 35: Sleep Timer Setup
• To check remaining sleep time after setting, press the sleep or enter button just once. • If you turn the Monitor off after setting the sleep timer, the setting is erased. SLEEP SLEEP 1 ’ will be displayed one minute before... -
Page 36: Auto Picture Control
Auto Picture Control Use APC to set the Monitor for the best picture appearance - APC is not available for RGB sources or in PIP/TWIN PICTURE modes. APC (Auto Picture Control) Press the apc button. Use the apc or vol buttons to select your desired picture condition. -
Page 37: Adjusting Picture Appearance
Adjusting Picture Appearance - PIP inset and Twin Picture settings are not adjustable. Press the MENU button and then use the select menu Example : Changing the contrast. Use the up/down button to select TRAST and then press the vol ( ) button. -
Page 38: Drp (Digital Reality Picture)
DRP (Digital Reality Picture) DRP improves image outlines in dark screens. - This function works with Video, S-Video, and Component (480i mode) sources. Press the MENU button and then use the select menu Use the up/down button to select and then press the vol ( down Use the up/down button to select CLEAR... -
Page 39: Adjusting Sound: Bass, Treble, Balance
Adjusting Sound Press the MENU button and then use the select menu. Press the menu Example: Treble adjustment Use the up/down button to select TREBLE and then press the vol ( ) button. down Use the vol buttons to make appropriate adjustment and then press the enter button. -
Page 40: Auto Sound Control
Auto Sound Control DASP (Digital Auto Sound Processing) • This function lets you enjoy the best sound without any manual adjustment because the Monitor automatically selects the appropriate audio tone levels based on the program content. easy sound Press the easy sound button. -
Page 41: Avl (Auto Volume Leveler)
AVL (Auto Volume Leveler) This feature maintains an equal volume level; even if you change channels. Press the MENU button and then use the select menu Use the up/down button to select and then press the vol ( button. down Use the up/down button to select down Press the enter button to remove menu. -
Page 42: Using Still Function
If another function is activated, normal screen brightness is restored. • This is a protective feature designed to reduce the chance of a ghost image burning onto the monitor screen. Press the freeze button. • The image displayed is frozen (still). -
Page 43: Using The Screen Menu Options
Using the Screen Menu Options - This function works only in the video mode. - Use this option to correct trembling or picture instability while viewing a video tape. Press the MENU button and use press the select menu. Press the menu Use the up/down button to select SCREEN... -
Page 44: Adjusting Menu Transparency
Adjusting Menu Transparency To make the menu backgrounds clear or opaque Press the MENU button and then use the select menu Use the up/down button to select TRANSPARENCY vol ( ) button. down Use the vol buttons to adjust menu transparency. -
Page 45: Adjusting Color Temperature
Adjusting Color Temperature - You should adjust color temperature for PC mode again if color temperature was adjusted for another input source. - To initialize values (reset to default settings), select ‘0’ for RED, GREEN, and BLUE. Press the MENU button and then use the select menu. -
Page 46: Setting Picture Format
Setting Picture Format - You can view RGB-PC sources, in either 16:9 or 4:3 screen aspect ratios. - A RGB-DTV source can only use the 16:9 screen aspect ratio (720p/1080i). - If 4:3 aspect ratio mode is used for a long time, the outline of the image may remain on the screen after you change to the 16:9 screen. -
Page 47: External Control Device Setup
Monitor’s functions externally. When you connect a control (RS-232C) cable to this monitor, use a control cable with a ferrite core attached. If you do not do this, this monitor will not conform to mandatory CISPR22 (EN55022) stan- dards. - Page 48 When using the 3-Wire cable connected to RXD, TXD and GND; Pin No. 4 (DTR) and Pin No. 6 (DSR) must be connected to the monitor. (The cable must be disconnected from the Monitor to be able to use the remote control and Monitor front panel controls.)
- Page 49 SET ID • Use this function to specify a monitor ID number. Press the MENU button and then use the select menu. Press the menu Use the up/down buttons to select and then press the vol ( down Use the vol button to adjust choose the desired monitor ID number and then press the enter button.
- Page 50 External Control Device Setup The RS-232C input jack is used to control the Monitor’s functions using an external control device. Communication Parameters • Baud rate : 2400 bps (UART) • Data length : 8 bits • Parity : None •...
-
Page 51: Power
Type : P 3 1 ‘0x0D’ Acknowledgement [Set ID][:][OK][x][Data][x] Data 0 : Power Off 1 : Power On * In example : Monitor Acknowledges power on for set ID No.3. G To show Power On/Off. Transmission [p][ ][Set ID][ ][FF][Cr]... -
Page 52: Volume Control 07. Contrast K 0
External Control Device Setup 06. Volume Control (Command:v) G To adjust volume. You can also adjust volume with the volume buttons on remote control. Transmission [v][ ][Set ID][ ][Data][Cr] Data Min : 0 ~ Max : 64 * Refer to ‘Real data mapping’ as shown below. Acknowledgement [Set ID][:][OK][x][Data][x] Data Min : 0 ~ Max : 64... -
Page 53: Osd Select
[Set ID][:][OK][x][Data][x] Data 0 : OSD off 1 : OSD on * The remote control and Monitor front panel controls (except main power) are not operable when the Monitor is set up to be controlled by the PC computer. 13. Abnormal State (Command:a) G To recognize an abnormal state. -
Page 54: Pip Sound Select
2 : Left up on screen 3 : Right up on screen 18. Change Into Remote Control Adjustment Mode (Command:j) G To control the Monitor with the remote control while the cable is still connected. Transmission [j][ ][Set ID][ ][Data][Cr]... -
Page 55: Ir Code (Nec Format)
How To Connect G Connect your wired remote control to remote control jack of the monitor. Set the CONTROL LOCK ‘ON’ on the monitor back panel to work wired remote control. Remote Control IR Code (NEC Format) G Output waveform Single pulse, modulated with 37.917KHz signal at 455KHz... - Page 56 IR CODE (NEC Format) G Bit description • Bit “0” 0.56 ms 1.12 ms G Frame interval : Tf The waveform is transmitted as long as a key is depressed. Code (Hexa) Function UP ( DOWN ( VOL+ ( VOL- ( POWER POWER ON SYSTEM OFF...
-
Page 57: Maintenance
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning The Screen 1. -
Page 58: Troubleshooting Checklist
• Check whether the Monitor is turned on. • Power cord inserted into wall outlet? • Plug another product’s power cord into the wall outlet where the Monitor’s power cord was plugged in, to test it. • Press the VOLUME ( ) button. -
Page 59: Product Specifications
Resolution Color Temperature (In operation) Humidity (In operation) • The specifications shown above may be changed without prior notice for quality improvement. P60W26H, P60W26P 57.3 / 1455 34.8 / 883 3.9 / 99 154.3 / 70 AC 120V, 60Hz 1280 x 720 (Dot) 16,770,000 (256 steps of each R, G and B) 32 ~ 104°F (0 ~ 40°C) - Page 60 P/NO : 3828VA0277Y (NP00KB) 206-3820...
