Summary of Contents for Beamz professional BPP205 PAR64 18x15W 5-1 PENTA IR DMX
Page 1

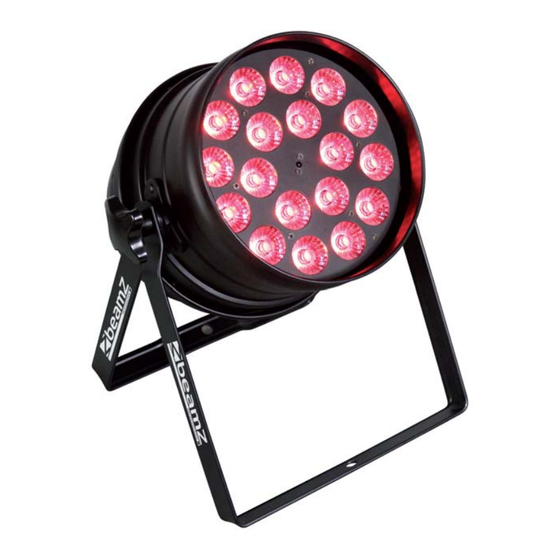

BPP205 PAR64 18x15W 5-1 PENTA IR DMX Ref. nr.: 151.233 INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS V1.0...
Page 2
ENGLISH Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock.
UNPACKING INSTRUCTION CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling.
DISPLAY The control board offer several features: you can simple set the starting address, run the pre-programmed program or make a reset. The main menu is accessed by pressing the Mode-button, browse through the submenu by pressing Up or Down. Press the Enter-button in order to select the desired menu.
DMX / % Mode To enable DMX or disallow DMX on the product. Press <DMX> on the remote controller, the product work on the DMX controlling modes. MANUAL Mode 1. Press <MANUAL> on the remote controller. 2. Press <R>, <G>, <B>, <W>,<A>, (red, green, blue, white or amber) to choose your colour. 3.
Page 6
NEDERLANDS Hartelijk dank voor de aanschaf van dit Beamz lichteffect. Neemt U a.u.b. een paar momenten de tijd om deze handleiding zorgvuldig te lezen, aangezien wij graag willen dat u onze producten snel en volledig gebruikt. Lees deze handleiding eerst door alvorens het product te gebruiken. Volg de instructies op anders zou de garantie wel eens kunnen vervallen.
Page 7
UITPAKKEN LET OP! Onmiddellijk na ontvangst, zorgvuldig uitpakken van de doos, controleer de inhoud om ervoor te zorgen dat alle onderdelen aanwezig zijn en zijn in goede staat zijn ontvangen. Bij transportschade of ontbreken van onderdelen onmiddellijk de verkopende partij inlichten. Bewaar de verpakking en het verpakkingsmateriaal. Indien het apparaat moet worden teruggestuurd, is het belangrijk dat de apparatuur in originele verpakking wordt geretourneerd.
Page 8
DISPLAY Het bedieningspaneel biedt verschillende mogelijkheden zoals: eenvoudige invoeren van het startadres, voorgeprogrammeerde programma selecteren of een reset. Het hoofdmenu wordt geopend door op de Mode-toets, blader door het submenu door Up of Down-toets. Druk op de Enter-toets om het gewenste menu te selecteren. U kunt de selectie wijzigen door te drukken op de Up of Down-toets.
DMX / % MODE In de “DMX” modus kunt u de bediening via DMX in- en uitschakelen. 1. Druk op <DMX> van de afstandsbediening om de functie in te schakelen. 2. Druk nogmaals op <DMX> om uit de functie uit te schakelen. MANUAL MODE In de “MANUAL”...
MENU / MENÜ / MENÚ Mode Program Description Au-1 Auto program 1 Auto Au-2 Auto program 2 Au-3 Auto program 3 So-1 Sound program 1 Sound So-2 Sound program 2 So-3 Sound program 3 SP 1 – SP 9 Speed value for program adjustable Speed Se 1 –...
Page 11
DMX CHANNELS / DMX KANALEN / DMX-KANÄLE / CANALES DMX / CANAUX DMX 4 Channels Channel Function Value Description 000-009 No function 010-019 020-029 Green 030-039 Blue 040-049 White 050-059 Amber 060-069 Red + Green 070-079 Red + Blue 080-089 Red + White 090-099 Red + Amber...
Page 12
7602 KM – ALMELO +31(0)546589299 +31(0)546589298 The Netherlands Product number: 151.233 Product Description: BPP205 PAR 64-18x15W 5-1 PENTA IR DMX Trade Name: BEAMZ PROFESSIONAL Regulatory Requirement: EN 60598-1:2008+A11:2009 EN 60598-2-17:1989+A2:1991 EN 62471:2008 EN 62493:2010 EN 61000-3-2:2006+A1+A2:2009 EN 61000-3-3:2013 EN 55015:2013...
