Summary of Contents for Beamz professional LCB-192

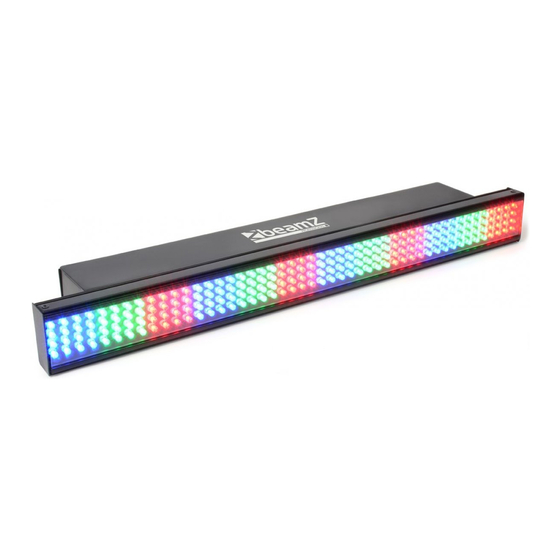

- Page 1 Ref. Nr. 150.562 LED COLORLINE BAR LCB-192 MANUAL ...
-
Page 2: Table Of Contents
Thank you for purchasing our company products. Please read these instructions carefully to enjoy optimum performance and a longer service life before you start to use. CONTENTS CONTENTS ............................... 2 Unpacking Inspections .......................... 3 Unpacking instructions ........................ 3 Checking the contents of the carton: .................... 3 Safety Instructions ........................... 3 Product Overview ............................ 4 Functions Introductions .......................... 4 ... -
Page 3: Unpacking Inspections
UNPACKING INSPECTIONS Unpacking instructions Please unpack the carton and check the goods carefully when you receive it , if discover packing damage, shortage or quality problem, please notify the shipper and reject the goods. Before using this product, please read the instructions carefully and keep it in a safe place for future reference. -
Page 4: Product Overview
Stop using the product in case of a serious operating problem and send it to our maintenance agent immediately. Never repair by non-professional workers . Avoid direct eye exposure to the light source while the product is on. PRODUCT OVERVIEW 1. -
Page 5: Operation Instructions
Operation Instructions Power supply connecting： Two sockets in the product, Power In and Power Out , the product can be supplied power by the power out. Maximum output power of the socket is 460W . POWER OUT POWER IN Maximum connecting machines are ... -
Page 6: Functions For Action Mode And System Setup Mode
When display S DAD and press Enter to set up DMX value . When display S AAD and press Enter to display 8888, it resets ok with all light on. 5. Factory parameter Settings With the factory parameter setting function, users can go back the factory parameter setting after adjusting by pressing the button of Mode for five seconds or so. -
Page 7: Master/Slave Mode
Master/Slave mode Connect the LCB-192 as below picture and power on all the connecting products. Control panel of master displays current saved mode and slave displays L005.L009.L013.Number of products connected can be shown on the slave control panel, slaves follow the actions of master. - Page 8 No.3 No. .. No.2 No.1 No.3 No. .. No.2 No.1 Operation Instructions for DMX512： In the mode of System setup, press Up or Down, and then choose “SDAD”to set up DMX value. The channels for LCB-192： （0-23） Mode ‐ 8 ‐ ...
- Page 9 （0-100%） Run Speed Strobe Speed （0-100%） （0-100%） Color DMX Value Functions CHANNEL VALUE FUNCTION CH 2 CH 3 CH 4 Static colors Flash 000 – 009 Blackout speed 010 – 019 000 – 249 020 – 029 Green 030 – 039 Blue Sound 040 –...
-
Page 10: Maintenance
MAINTENANCE The unit should be cleaned periodically to ensure the optimum performance, the smudginess can decrease the life of light and the output of light is affected by the dust which can make the machine overheating. In general, make the maintenance at least two times a month. Be sure to power off the unit before cleaning . -
Page 11: Ce & R&Tte Declaration Of Conformity
CE & R&TTE DECLARATION OF CONFORMITY Importer: TRONIOS BV Bedrijvenpark Twente 415 7602 KM - ALMELO Tel : 0031546589299 Fax : 0031546589298 The Netherlands Product number: 150.562 LCB‐192 LED Colorline 0,5m DMX 4‐Channel Product Description: Beamz, Regulatory Requirement: EN 60598-1/-2-17:2009 EN 62031:2008 EN 61347-2-13:2007 EN 55015:2006/A2:2009 EN 61547:2009 EN 61000-3-2/-3-3 The product meets the requirements stated in the above mentioned Standards. - Page 12 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2013 by TRONIOS the Netherlands ...
