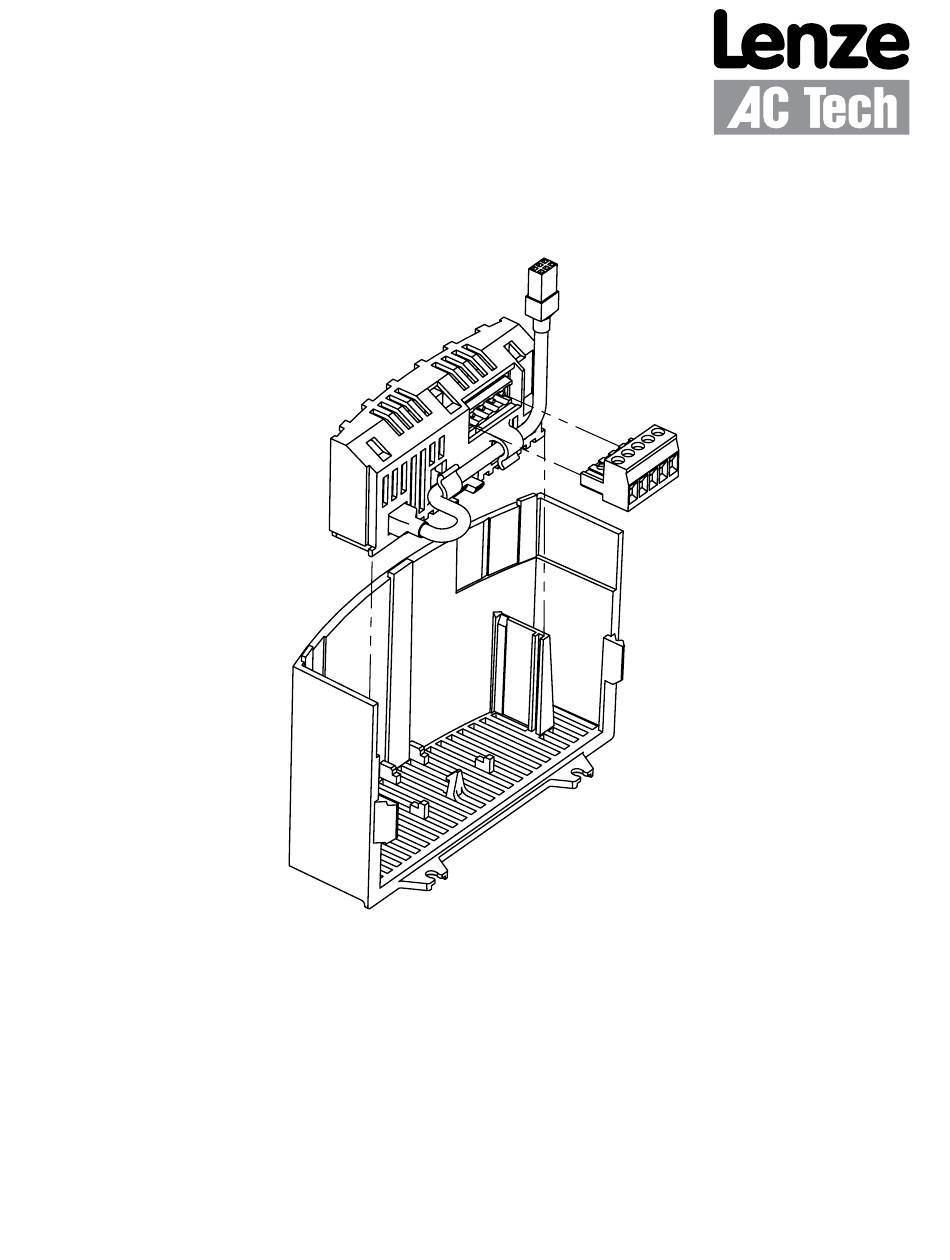

- Page 1 SMVector Additional I/O Module Installation and Operation Manual...
- Page 2 Lenze AC Tech Corporation. All information given in this documentation has been carefully selected and tested for compliance with the hardware and software described. Nevertheless, discrepancies cannot be ruled out. Lenze AC Tech does not accept any responsibility nor liability for damages that may occur. Any necessary corrections will be implemented in subsequent editions.
-
Page 3: Table Of Contents
Contents 1 Safety Information ......................1 Warnings, Cautions and Notes ................1 1.1.1 General ....................1 1.1.2 Application ....................1 1.1.3 Installation ....................1 1.1.4 Electrical Connection ................2 1.1.5 Operation ....................2 2 Introduction ........................3 Module Overview ....................3 Module Specification ....................3 Module Identification Label ...................3 3 Installation ........................4 Mechanical Installation ..................4 Module Terminal Block ..................5 Electrical Installation .....................6... -
Page 4: Safety Information
Safety Information Safety Information 1.1 Warnings, Cautions and Notes 1.1.1 General Some parts of Lenze controllers (frequency inverters, servo inverters, DC controllers) can be live, moving and rotating. Some surfaces can be hot. Non-authorized removal of the required cover, inappropriate use, and incorrect installation or operation creates the risk of severe injury to personnel or damage to equipment. -
Page 5: Electrical Connection
Safety Information 1.1.4 Electrical Connection When working on live drive controllers, applicable national regulations for the prevention of accidents (e.g. VBG 4) must be observed. The electrical installation must be carried out in accordance with the appropriate regulations (e.g. cable cross-sections, fuses, PE connection). Additional information can be obtained from the regulatory documentation. -
Page 6: Introduction
Introduction Introduction This manual provides installation and operational data specific to the Additional I/O Module for the SMVector series inverters. This manual is a supplement (not a substitution for) the standard SMVector - Frequency Inverter Operating Instructions (document number SV01). This document assumes that the reader has a working knowledge of the standard SMVector Frequency Inverter and has familiarity with the programming and operation of the SMVector Frequency Inverter. -
Page 7: Installation
Installation Installation 3.1 Mechanical Installation 1. Ensure that for safety reasons the AC supply has been disconnected before opening the terminal cover. 2. Insert the Additional I/O module in the terminal cover and securely “click” into position as illustrated in Figure 2. 3. -
Page 8: Module Terminal Block
Installation Figure 3: Re-Installing the Terminal Cover 3.2 Module Terminal Block Table 2 identifies the terminals and describes the function of each. Figure 4 illustrates the Additional I/O 5 pole 5mm pluggable connector. Table 2: Additional I/O Terminals Terminal Function Description Relay N.O. Relay Common Relay N.C. -
Page 9: Electrical Installation
Installation 3.3 Electrical Installation 3.3.1 Terminal Description Table 3 contains each terminal's electrical specification and any parameter description associated with that terminal. Table 3: Additional I/O Module Specifications Terminal Function Description Relay N.O. Relay output configurable with P441, P144 AC 250 V / 3 A 17 DC 24 V / 2 A … 240 V / 0.22 A, non-inductive Relay Common Relay N.C. -
Page 10: Commissioning
Commissioning Commissioning 4.1 Network Parameters (P400) Code Possible Settings IMPORTANT Name Default Selection p400 Network Protocol 0 Not Active This parameter setting is based upon the network or I/O module that is installed. 1 Remote Keypad 2 Modbus RTU 3 CANopen 4 DeviceNet 5 Ethernet 6 Profibus 7 Lecom-B... -
Page 11: Additional I/O Module Parameters
Commissioning 4.2 Additional I/O Module Parameters In addition to the parameters detailed in the SMVector Frequency Inverter Operating Instructions (SV01), installing the Additional I/O Module provides access to supplementary parameters exclusive to the Additional I/O Module. Table 4 lists these supplementary parameters. Table 4: Additional I/O Module Parameters Code Possible Settings IMPORTANT... - Page 12 Commissioning Code Possible Settings IMPORTANT Name Default Selection p441 Relay Output None Disables the output TB-19, 20, 21 Energizes when the drive is running Reverse Energizes when reverse rotation is active Fault De-energizes when the drive trips, or power is removed Inverse Fault Energizes when the drive trips Fault Lockout...
-
Page 13: Display
Commissioning 4.3 Display Parameter P530 allows monitoring of the control terminal points and common drive conditions. An illuminated LED segment indicates: • the protective circuit is active (LED 1) • the Logic Assertion Switch is set to High (+) • input terminal is asserted (LED 2) •... - Page 14 Lenze AC Tech Corporation 630 Douglas Street • Uxbridge MA 01569 • USA Sales: 800-217-9100 •Service: 508-278-9100 www.lenzeamericas.com SMVector Additional I/O Module Installation & Operation Manual (ALSV01B-en2) (13376253)
