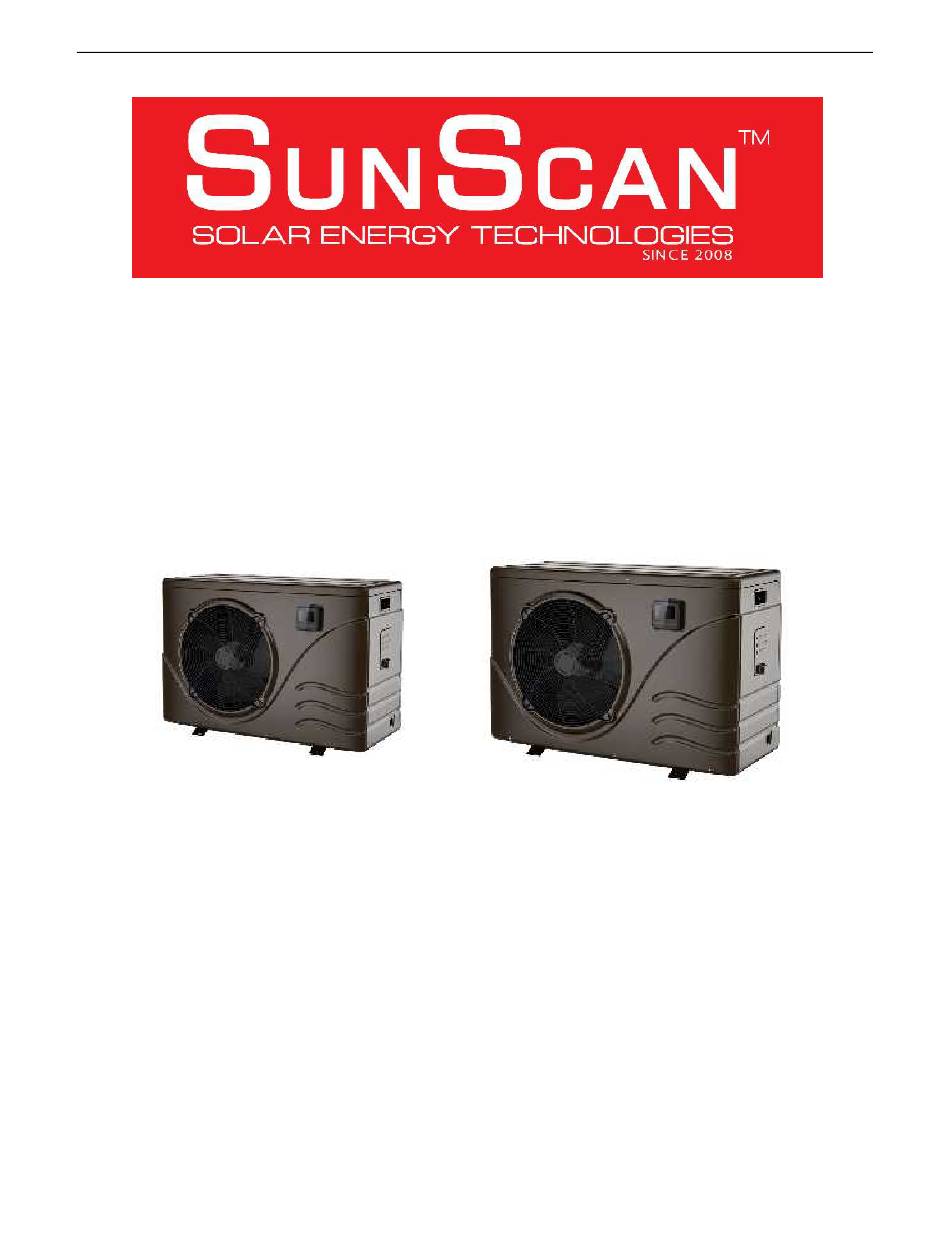

Swimming Pool Heat Pump

Installation & Operation Manual

A Guide to the installation and operation of Sun Swim Heat Pumps. Please read

this manual before installing and operating the Heat Pump. Keep it for future reference.

Model Number :

SSP-INV-007

SSP-INV-010

SSP-INV-013

SSP-INV-017

SSP-INV-0 21

SSP-INV-028

Table of Contents

Need help?

Do you have a question about the SSP-INV-007 and is the answer not in the manual?

Questions and answers

Summary of Contents for SUNSCAN SSP-INV-007

Page 1 Swimming Pool Heat Pump Model Number : SSP-INV-007 Installation & Operation Manual SSP-INV-010 SSP-INV-013 SSP-INV-017 SSP-INV-0 21 SSP-INV-028 A Guide to the installation and operation of Sun Swim Heat Pumps. Please read this manual before installing and operating the Heat Pump. Keep it for future reference.
Page 2 Packing List Name Qty. Remark Installation &Operation Manual Wire-controller Wire controller box and sponge pad (Will install on the heat pump shell) Wire-controller Cable (about 10m) Drain-pipe (2 m) Drain-pipe connector Rubber shock absorber - 5 -...
Page 3: Table Of Contents
Heat Pump Unit (The pipe connector has been installed on the machine) Please keep installation manual properly, and read it carefully before using. The unit must be installed by professional personnel, and install it based on this manual as possible. Special reminding: if the unit would be installed where is vulnerable to lightning strike, lightning protection measurements must be carried out.
Page 4 Installation and operation of electric devices........14 Instruction of operation ................18 Adjusting and Initial operation..............29 Operation and maintenance..............30 Fault analysis and elimination method..........32 Technical parameter................33 After-sale service..................34 - 7 -...
Page 5: Accessories Description
1. Accessories Description Each unit produced by our factory is with the following accessories: Name Qty. Installation & Operation Manual 1 PC Guide users to install the system Wire controller 1 PC Used for the man-machineoperation interface Wire controller connecting cable 1 PC Connect wired controller to heat pump unit Drain-pipe...
Page 6: Attention For Safety
2. Attention for safety Range of application: 1.Power supply: 220V-240V/1N~50Hz. 2.Environment temperature: -15°C〜43°C ： 3.Working water temperature: Min. inlet water temperature 8°C,max 40°C out ● The installation shall be done by the professional persons, to prevent leaking, electric shock, or fire disaster.
Page 7 ● When install the heat pump in a small room, must keep well ventilated. ● Don't put finger or sticker into the air inlet or air outlet. Because the internal rotor high-speed operation may cause injury. ● When an exception happens (burning smell), turn off the manual power switch immediately, stop operating, and contact with after-sale service department.
Page 8: Heat Pump Unit Working Principle
3. Heat pump unit working principle 3.1 Heat pump working process ●First, the low pressure and superheated gas in the evaporator is inhaled into the compressor then becomes the high temperature and high pressure overheated vapour. ●Second, the overheated vapour is exhausted into the condenser and exchange the heat with the water, then the refrigerant is condensed and becomes the saturated or over cooling high pressure and high temperature refrigerant liquid.
Page 9: Installation Of The Unit
4 way valve Water inlet Condenser Water Outlet Gas-liquid Compressor separator Filter Filter Expansion valve Figure 1 (Heat energy get) =Q (Compressor consumption) +Q (Heat energy absorbed from ambient environment) 4. Installation of the unit 4.1 Installation attention ● Avoid installations in such locations with mineral oil. ●...
Page 10 ● Avoid installation in locations with strong electromagnetic wave. ● Avoid installation in locations with special harsh environmental conditions. 4.2 Installation check ● Check the model, number, name etc, avoid incorrect installation. ● Make sure enough space for installation and maintenance. ●...
Page 11 4.4 Heat pump unit size Figure 4 Horizontal type heat pump size Size(mm) Model No. SSPINV-007/ SSP-INV-010/ SSP- INV-017 SSP-INV-021/SSP-INV-028 1084 4.5 Reserve the installation base for the heat pump Please refer to Figure 5. - 14...
Page 12 A n c h o r b o lt Anchor bolt Screw nut/washer Drainage tray Heat Pump Heat Pump Shock absorb Installation base Drainage tray Concrete Figure 5 Reserved installation base 4.6 Hoisting attention ●Please use four or more soft lifting belts to move the sets Figure 6. ●Please use protective plate on the surface of the sets when moving, to avoid scratch and deformation.
Page 13: Installation Of The Pipeline
5. Installation of the pipeline 5.1 Attention ● Prevent air, dust and other sundries from going into the water pipes. ● Fix the whole system before install the water pipes. ● Water inlet and outlet pipes shall be protected by the insulation layer. ●...
Page 14 Figure 8 Diagram （ Single unit for reference ） ●The one-way valve is suggested for each unit, to prevent the water back flow. ●The system can be combined with multiple units, but should be controlled by each unit independently. ●Regarding the installation of backup pump, maintenance valve and temperature measure point, please consider it yourself.
Page 15: Installation Of Optional Accessories
SSP-INV-007/SSP-INV-010/ SSP-INV-017/SSP-INV-0 21/ Inlet/outlet pipe One unit DN50 SSP-INV-028 ●The pipe press and flow rate should be calculated before the diameter selection, the range of pressure drop is 0.3〜0.5 kgf/cm2(3〜5m） the range of head pipe flow rate is 1 .2〜2. 5 m/s.
Page 16 6.2 Selection of the flow switch ●The selection of the flow switch is based on the actual system, the target flow switch is recommended. Temperature of fluid: 0-120 °C , max working pressure 13.5 bar. ●The flow switch can be installed on the horizontal pipeline or the vertical pipeline which the fluid flow direction is upward, but should not be installed on the vertical pipeline which the fluid flow direction is downward.
Page 17 7. Installation of electric devices 7.1 Electrical wiring ●The unit should use a dedicated power supply, power supply voltage with rated voltage. ●Unit power supply circuit must be ground, power supply wire and external grounding reliable connection, and the external grounding is effective. ●Wiring must be constructed by the professional installation technicians in accordance with the circuit diagram.
Page 18 Figure 14 7.3 Circulation pump installation The heat pump only provide the signal for circulation pump, must use an a.c. Contactor to connect the circulation pump. NOTE: Here only for signal control never drive it directly Figure 15 Figure 16 7.4 Electric wiring diagram COMP : COMPRESSOR GND : GROUND...
Page 19 Figure 17 SSP-INV 007, SSP-INV-010 AND SSP-INV017Electric wiring diagram - 22...
Page 20 Figure 17-1 SSP-INV-01 3 Electric wiring diagram - 23...
Page 21: Instruction Of Operation
Figure 17-2 SSP-INV-0 21/028 Electric wiring diagram 8. Instruction of operation Wire controller and operation - 24...
Page 22 1) Controller Instruction symbol status meaning Constantly bright heat pump is on Extinguished Heat pump is off Constantly bright at cooling mode Constantly bright at heating mode Constantly bright need repair Constantly bright at AUTO mode Extinguished Currently in the manual set temperature state Constantly bright this unit is a water connection heat pump Extinguished...
Page 23 Constantly bright heat pump is on and at defrosting Flashing Heat pump is on and at defrost delay Flashing heat pump is off and at refrigerant recovery status Constantly bright electric heater is on for quick heating Flashing electric heater is on for disinfection Constantly bright current water temperature in the tank Constantly bright...
Page 24 Extinguished turn off water return (timing/manual) function display Currently the return water is in regular timing working period Flashing Current set start time of backwater working time display Currently the return water is in the non-working hours Flashing Currently set end time of water return period Constantly bright / Timing zero cold water period 1, always on when setting, at Extinguished...
Page 25 down 1. Press at main interface to set the temperature. 2. Press and hold for 3 seconds in the power on/off state to enter the query state. 3. In the query status, click to status query 4. Under parameter setting state, click parameter to 1.
Page 26 “ ”+“ Under the main interface, press and hold for 10 seconds to turn on/off the “sterilization” function ”+“ ” manually (Parameter 66=1 is valid) Within 5 minutes after power-on, press and hold for 5 “ ”+“ ” seconds to restore the factory parameter settings. +“...
Page 27 In manual mode, press“ ∧ ” or “ ∨ ” key to enter the water temperature setting state. Then starts to display the setting symbol and display the corresponding water temperature set according to the current cooling or heating mode. When the water temperature is set, press the “ ∧ ” or “ ∨ ” button to increase or decrease the water temperature setting value;...
Page 28 working mode. When the timed working mode is enabled, enter the timed period setting. Press and release “ ” to switch the hour and minute of the start time and end time of the three time slots in sequence., The value is flashing when switching to the corresponding value of the certain time slot. At the same time, “ON”...
Page 29 "Defrost" function. The symbol is illuminated when the "Defrost" is running. If heat pump is in cooling mode, "defrosting" operation is not allowed. 2.8 Query running status: When the main interface of the power on or off is displayed, press and hold the “∧” or “∨” button for more than 3 seconds to enter the running status query interface;...
Page 30 outlet water Display value = measured value + temperature(return water compensation value temperature) compressor 0＝stop；1＝running 4-way valve 0＝stop；1＝running high-speed fan 0＝stop；1＝running low-speed fan 0＝stop；1＝running circulation water pump 0＝stop；1＝running electric heater 0＝stop；1＝running 2.9 Key lock: When the controller is in the normal display state, the button is locked when there is no button operation for more than 60 seconds.
Page 31 When cooling or heating, it is turned on 10 seconds before the compressor and stops 30 seconds after the compressor. Antifreeze mode: When the controller is powered on, whether heat pump is off or on, when the ambient temperature is too low, water pump will enter antifreeze mode to prevent the circulation line or the water tank from freezing.
Page 32 after 30 seconds, the " " icon flashes 3 times, buzzing the device will beep for 3 seconds, the water pump will be turned off, and the “ ” icon will be off (if the timed water is previously set, the “Back Pump”...
Page 33 3.5 Anti-fouling function Sometimes the return pump/circulation pump stops for a long time, the pump will be rusted or scaled, and the pump needs to be started periodically. After the pump has been on standby for 12 hours, it is forced to run for 1 minute. 4, The Alarm 4.1.
Page 34 4.4, water flow failure (water cycle model): After the circulating water pump starts, it detects that the water flow switch is in the off state for 10 seconds, then heat pump stops. At this time, the controller displays the water flow switch fault alarm code “01E”.Periodically (1 minute) restarts the water pump and 10 seconds later, the flow switch is detected.
Page 35 4.9, temperature sensor failure: Heat pump will stop once the water tank temperature sensor or outlet water temperature sensor or ambient temperature sensor is faulty. When absorb or exhaust or evaporator coil or water return temperature sensor is faulty, electric heater is allowed to operate.
Page 36: Adjusting And Initial Operation
water inlet temperature sensor failure tank temperature sensor failure absorb temperature sensor failure water outlet temperature sensor failure return water temperature sensor failure outlet water temperature too high protection(water cycle heat pump) outlet water temperature too low protection(water cycle heat pump) 9.
Page 37: Operation And Maintenance
●Ensure the smooth drainage. ●Ensure the perfect insulation. ●Correct connection of ground lead. ●The supply voltage can meet the requirement of rated voltage. ●Air inlet and outlet function can work well. ●Electrical leakage protector can work well. 9.3 Adjustment Process ●Check if the switch of the line controller can work well.
Page 38 ex-changer copper coil after long period of operation, which will influence the heat exchange performance and lead to high electrical consumption, discharge pressure increasing and air suction pressure drop, unit hot water volume produced is less. We can adopt formic acid, citric acid, acetic acid or other organic acid to clean.
Page 39: Fault Analysis And Elimination Method
●Fire prevention: if there is a fire, please turn off the power switch immediately, put the fire out with fire extinguisher. ●To prevent flammable gas: the unit working environment should stay away from gasoline, ethyl alcohol and other flammable materials, to avoid explosion accident. ●Malfunction: if malfunction occurs, should find out the reason, eliminate it and then reboot the unit.
Page 40 - 43...
Page 41: Parameter
12. Technical parameter - 44...
Page 42 SSP-INV-007 SSP-INV-010 SSP-INV-013 SSP-INV-017 SSP-INV-021 SSP-INV-028 BYC-028TD1 Heating temperatuer range 15°C 40°C 15°C 40°C 15°C 40°C 15°C 40°C 15°C 40°C 15°C 40°C 15°C 40°C ～～～～～～ ℃ Cooling temperatuer range 7°C 35°C 7°C 35°C 7°C 35°C 7°C 35°C...
Page 43: After-Sale Service
After-sale service If your hot water heater can not operate normally, please turn off the unit and cut off the power supply at once, then contact with our service center or technical department.

This manual is also suitable for:

Ssp-inv-010 Ssp-inv-013 Ssp-inv-017 Ssp-inv-021 Ssp-inv-028
