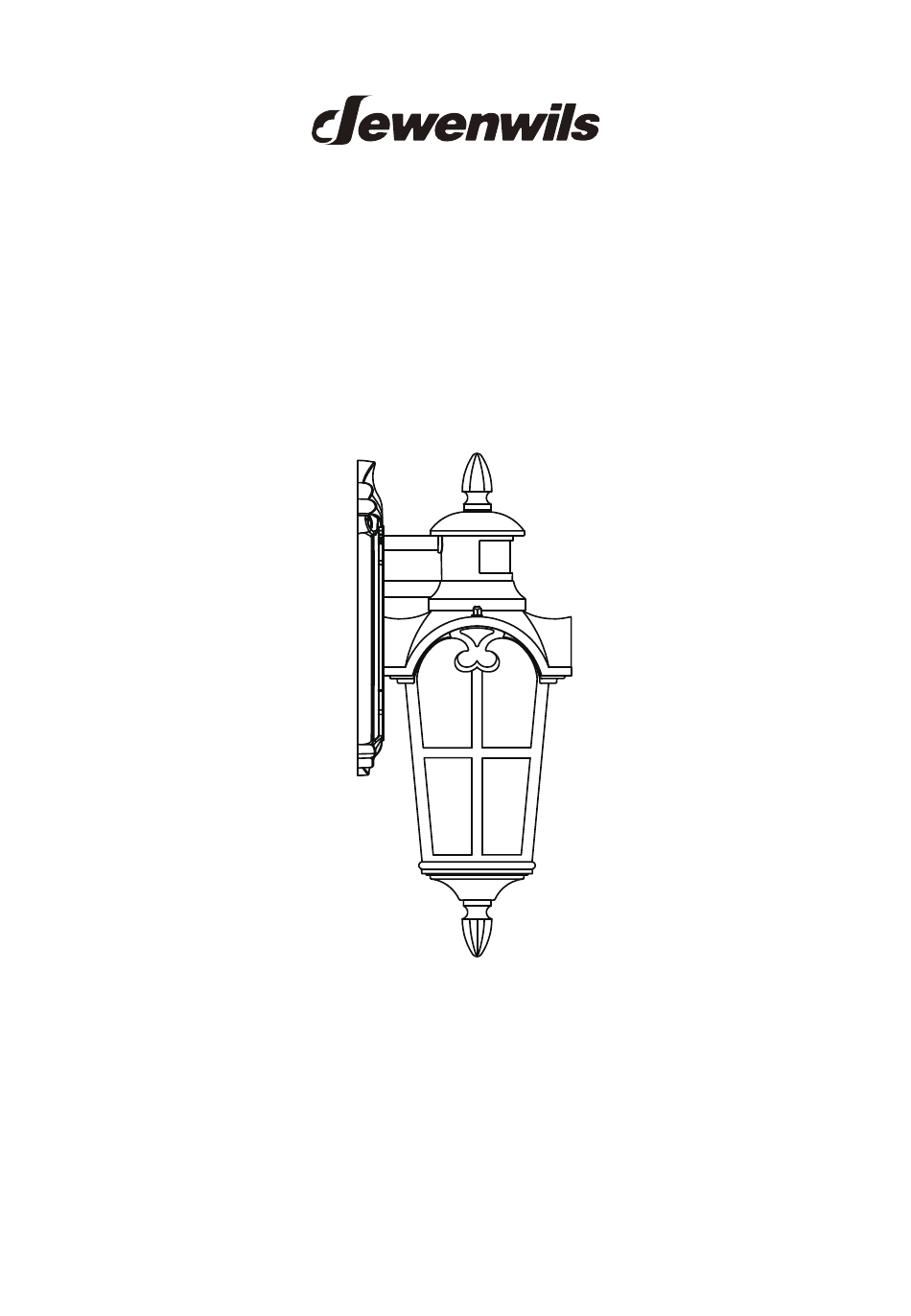

- Page 1 Outdoor Wall Light SKU: HOWL07D [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V30526...
-
Page 2: Product Specifications
Warning: Risk of fire. Min 75°C supply conductors. Consult a qualified electrician to ensure correct installation.Before installation, please turn off the main power of the circuit breaker to prevent possible electric shock. Packing list ITEX NAME SPEC QUANTITY NOTE Wall light 16.85”... -
Page 3: Step 01: Power Off
FIG.3 FUSE BOX STEP 01: POWER OFF FIG.1. Turn the wall switch to the “OFF” position. Depending on which type of fuse box is in your home: FIG.2. Either turn the main (Master) switch to the "OFF" position to cut off the power supply of the entire home, or turn off the individual switch that supplies power to the fixture installation location. -
Page 4: Step 05: Power On
STEP 05: POWER ON Turn on the main (Master) switch to get the power back, the light will turn on automatically at dusk and off at dawn. The lamp structure is described as following picture: BLACK LIVE WIRE WIRE CONNECTORS WHITE NEUTRAL WIRE BULB... -
Page 5: Auto Mode
Remark: The lighting time can be adjusted. Factory setting is AUTO mode (20 seconds, the maximum preset induction distance is 10 meters.) AUTO MODE Set the slide switch to AUTO. The fixture will stay off at daytime and automatically turn on when human body activity is sensed at night. - Page 6 TIME - Adjust Lighting Time: Adjust the “Time” knob with a flat head screwdriver(Not Included). Turn clockwise to increase the lighting time, and counterclockwise to decrease the lighting time. For every 1/4 clockwise rotation, the lighting time increases by 60 seconds. The maximum is 180 seconds.
-
Page 7: Low Level
Fig.6 Flathead Screwdriver Slide Switch (Set to AUTO) not included) Detail A View LOW LEVEL - This function is out of work in AUTO mode. AUTO+ MODE Set the slide switch to AUTO+.The fixture will stay OFF at daytime and stay at low-level brightness (20%-50% brightness to be manually adjusted)at night if no motion is detected within 20-180 seconds, and automatically adjust the brightness to 100% when human body activity is sensed at night. - Page 8 TIME - Adjust Lighting Time: Adjust the “Time” knob with a flat head screwdriver (Not Included). Turn clockwise to increase the lighting time, and counterclockwise to decrease the lighting time. For every 1/4 clockwise rotation, the lighting time increases by 60 seconds. The maximum is 180 seconds.
- Page 9 Fig.8 Flathead Screwdriver Slide Switch (Set to AUTO+ ) not included) Detail A View LOW LEVEL - Adjust low-level brightness: Adjust the “Sens” knob with a flat head screwdriver(Not Included). Turn clockwise to increase brightness, and counterclockwise to decrease brightness. Note: This function is only available for Incandescent bulbs or dimmable LED bulbs.
- Page 10 Fig.9 Flathead Screwdriver (not included) Slide Switch (Set to AUTO+ ) Detail A View PC MODE Lights off during the day and on at dusk. Other functions are out of keep work. Fig.10 Slide Switch (Set to PC) Detail A View...
- Page 11 NOTE: 1. The sensitivity of the motion sensor will increase as the environmental temperature drops. For best performance, gently clean the lens with a soft cloth every 1 or 2 months to ensure maximum sensitivity. 2. The magnitude of adjustment for sensitivity and time may not precisely correspond to the amount of the knob being turned.
-
Page 12: One Year Limited Warranty
Aftersales FAQS (1)Is there any matching POST LIGHT for sale? - Yes, we have matching POST LIGHT for sale, you can buy it in our store. (2)Is the light bulb replaceable? - Yes. But the light bulb is not included. You can replace it with a suitable bulb (A19 bulb is recommended).
