Dewenwils HOWL07B Instruction Manual

Outdoor wall light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

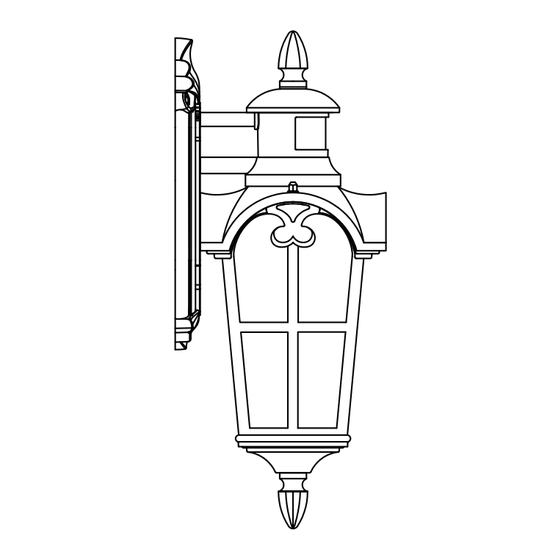

Outdoor Wall Light
SKU: HOWL07B
[Instruction Manual]
Thank you for your purchase.
Please contact us if you have any questions.
We will get back to you within 24 hours.
Please attach your Order ID so that
we can serve you better.
V20329

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOWL07B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dewenwils HOWL07B

Summary of Contents for Dewenwils HOWL07B

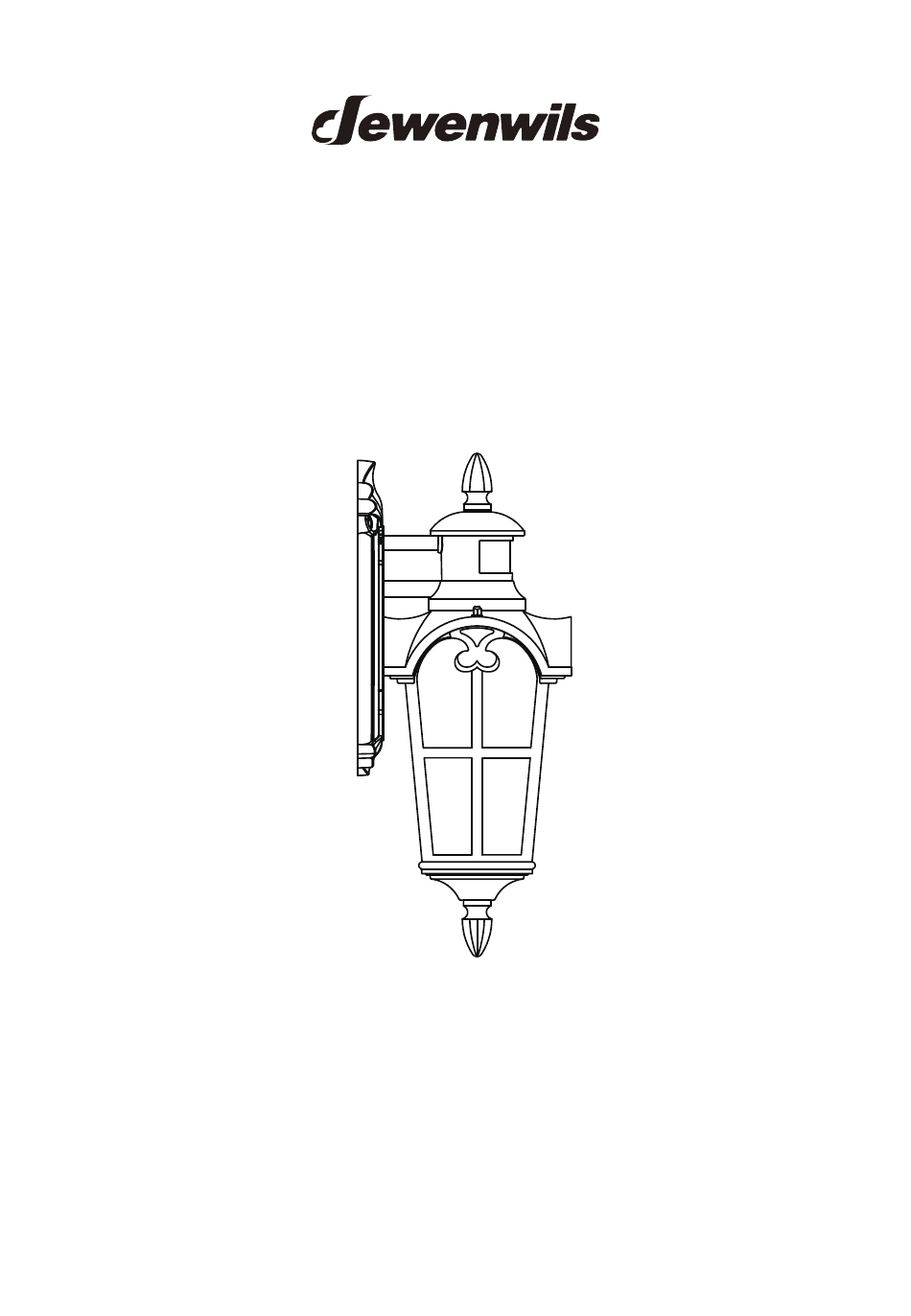

  • Page 1 Outdoor Wall Light SKU: HOWL07B [Instruction Manual] Thank you for your purchase. Please contact us if you have any questions. We will get back to you within 24 hours. Please attach your Order ID so that we can serve you better.

  • Page 2: Product Specifications

    Warning: Risk of fire. Min 75°C supply conductors. Consult a qualified electrician to ensure correct installation. Before installation, please turn off the main power of the circuit breaker to prevent possible electric shock. Packing list ITEM NAME SPEC QUANTITY NOTE Wall light 42.8”x18”x16”...

  • Page 3: Step 01: Power Off

    FIG.3 FUSE BOX STEP 01: POWER OFF FIG.1. Turn the wall switch to the “OFF” position. Depending on which type of fuse box in your home: FIG.2. Either turn the main (Master) switch to the "OFF" position to cut off the power supply of the entire home, or turn off the individual switch that supplies power to the fixture installation location.

  • Page 4: Step 05: Power On

    STEP 05: POWER ON Turn on the main (Master) switch to get the power back, the light will turn on automatically at dusk and off at dawn. The lamp structure is described as following picture: BLACK LIVE WIRE WIRE CONNECTORS WHITE NEUTRAL WIRE BULB...
  • Page 5 Remark: The lighting time can be adjusted. Factory setting is AUTO mode (60 second, the maximum preset induction distance is 10 meters.) AUTO MODE - Set the slide switch to AUTO. The fixture will stay off at daytime and automatically turn on when human body activity is sensed at night.
  • Page 6 rotation, the lighting time increases by 60 seconds. The maximum is 180 seconds. Fig.5 Flathead Screwdriver not included) Slide Switch (Set to AUTO) Detail A View SENS - Adjust Sensing Distance: Adjust the “Sens” knob with a flat head screwdriver(Not Included). Turn clockwise to increase sensing distance, and counterclockwise to decrease the sensing distance.

  • Page 7: Low Level

    Fig.6 Flathead Screwdriver Slide Switch (Set to AUTO) not included) Detail A View LOW LEVEL - This function is out of work in AUTO mode. AUTO+ MODE: Set the slide switch to AUTO+.The fixture will stay OFF at daytime and stay low-level brightness (0%-50% brightness to be manually adjusted)at night if no motion is detected within 20-180 seconds，and automatically adjust the brightness to 100% when human body activity is sensed at night.
  • Page 8 Fig.7 Flathead Screwdriver not included) Slide Switch (Set to AUTO+ ) Detail A View SENS - Adjust Sensing Distance: Adjust the “Sens” knob with a flat head screwdriver(Not Included). Turn clockwise to increase sensing distance, and counterclockwise to decrease the sensing distance. The factory preset distance is 10M(Maximum), you can adjust the “Sens”...
  • Page 9 Fig.8 Flathead Screwdriver Slide Switch (Set to AUTO+ ) not included) Detail A View LOW LEVEL - Adjust low-level brightness: Adjust the “Sens” knob with a flat head screwdriver(Not Included). Turn clockwise to increase brightness, and counterclockwise to decrease brightness. Note: This function is only available for Incandescent bulbs or dimmable LED bulbs.
  • Page 10 Fig.9 Flathead Screwdriver (not included) Slide Switch (Set to AUTO+ ) Detail A View 5.PC MODE:Lights off during the day and on at dusk. Other functions are out of work. Fig.10 Slide Switch (Set to PC) Detail A View...
  • Page 11 NOTE: 1. The sensitivity of the motion sensor will increase as the environmental temperature drops. For best performance, gently clean the lens with a soft cloth every 1 or 2 months to ensure maximum sensitivity. 2. The magnitude of adjustment for sensitivity and time may not be precisely correspond to the amount of the knob is turned.

  • Page 12: After Sales Service

    Aftersales service Warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase. Warranty is void if damage is caused by misuse or improper installation. Our dedicated customer service team will get back to you within 24 hours. Aftersales FAQS (1)Is there any matching POST LIGHT for sale? - Yes, we have matching POST LIGHT for sale, you can search...
