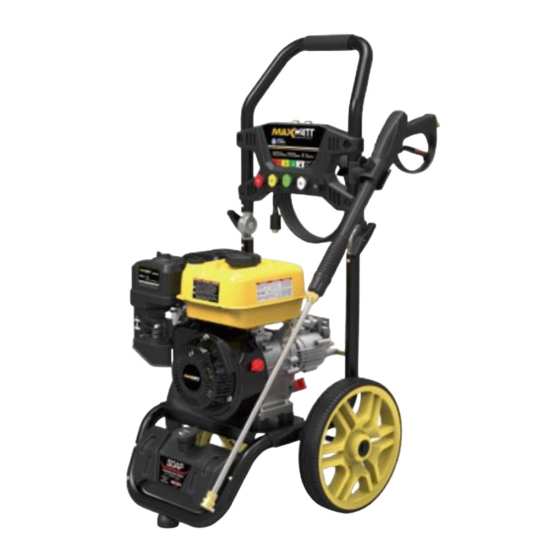

maxwatt MXPW3200 Operator's Manual

Hide thumbs Also See for MXPW3200:
Table of Contents

Advertisement

Quick Links

Download this manual

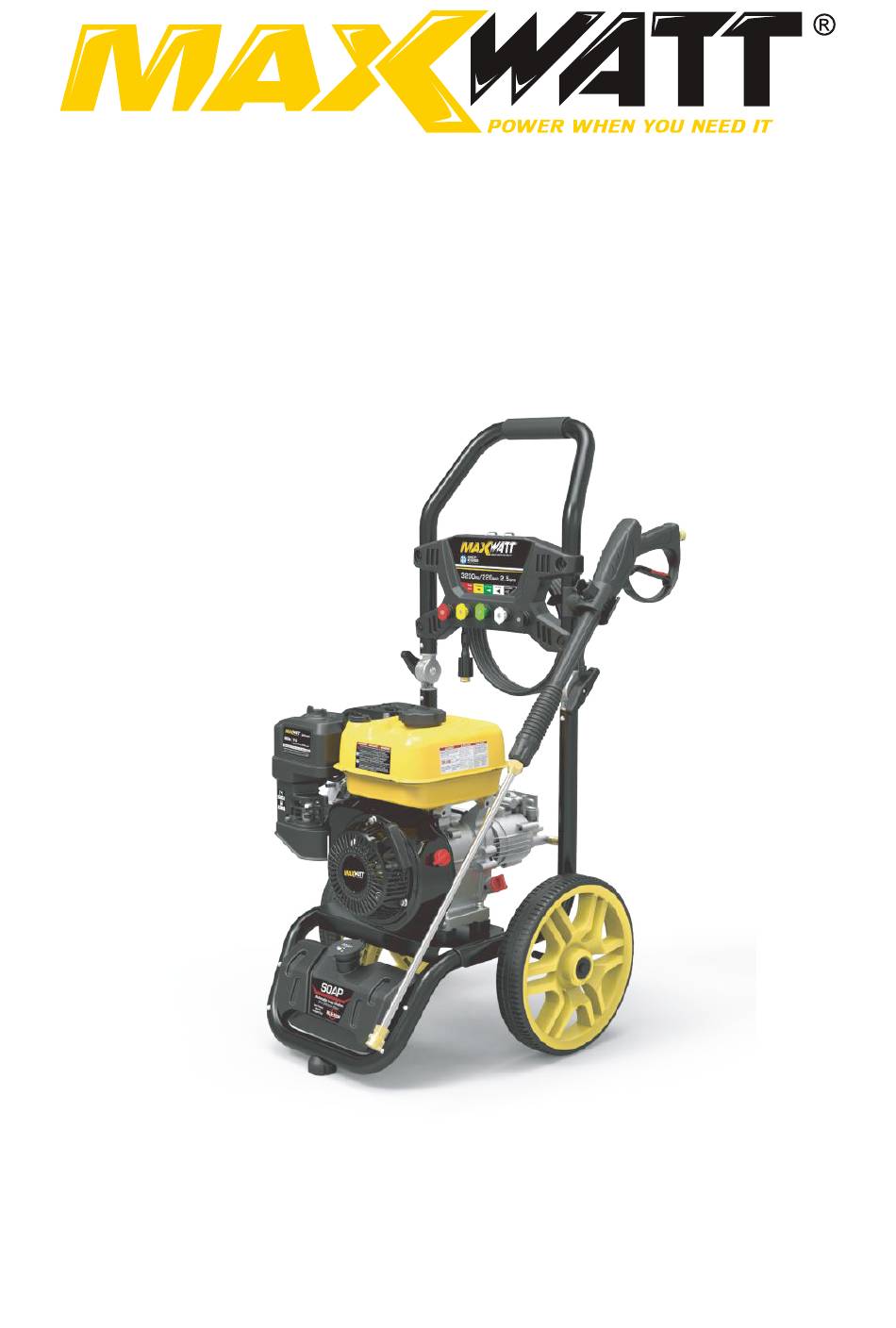

Pressure Washer Operator's Manual
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE
AND STORAGE OF THIS PRODUCT. BEFORE USE,READ CAREFULLY AND UNDERSTAND ALL CAUTIONS,
WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS
PERSONAL INJURY AND/OR PROPERTY DAMAGE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXPW3200 and is the answer not in the manual?

Questions and answers

Related Manuals for maxwatt MXPW3200

Summary of Contents for maxwatt MXPW3200

  • Page 1 Pressure Washer Operator’s Manual THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. BEFORE USE,READ CAREFULLY AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.

  • Page 2: Table Of Contents

    SAFETY Equipment Description................................1 Safety Symbols And Meanings..............................1 Operation Precautions................................1 Safety Precautions................................2 Pressure Washer Components..............................9 SET UP Pressure Washer Components..............................9 Assembly....................................10 General Information................................11 Pre-start Checks..................................12 OPERATION Pre-start Checks..................................12 Starting the Engine................................13 Pressure Washer Operation..............................14 Stopping the Engine and Pressure Washer..........................16 High Altitude Operation.................................16 Adding Engine Oil ................................19 MAINTENANCE Engine Maintenance Schedule...............................17...

  • Page 3: Equipment Description

    Equipment Description DANGER indicates a hazard which, if not avoided, will Read this manual carefully and become familiar result in death or serious injury. with your pressure washer. Know its applications, WARNING indicates a hazard which, if not avoided, its limitations, and any hazards involved. could result in death or serious injury.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS WARNING The engine exhaust from this product contains chemicals know to the State of California to cause Using an pressure washer indoors CAN KILL YOU IN cancer, birth defects, or other reproductive harm. MINUTES. Pressure washer exhaust contains carbon Monoxide.
  • Page 5 WHEN OPERATING EQUIPMENT WARNING DO NOT operate this product inside any building, Starter cord kickback (rapid retraction) carport, porch, mobile equipment, marine will pull hand arm toward engine faster applications, or enclosure. than you can let go which could cause DO NOT tip engine or equipment at angle which broken bones, fractures, bruises, or causes fuel to spill.
  • Page 6 WARNING WARNING Starter and other rotating parts could entangle hands, hair, clothing, or accessories resulting in serious injury. Exhaust heat/gases could ignite combustibles, NEVER operate pressure washer without protective housing structures or damage fuel tank causing a fire, or covers. resulting in death or serious injury and/or DO NOT wear loose clothing, jewelry or anything that could property damage.
  • Page 7 NOTE: Improper treatment of pressure washer could damage it and shorten its life. Use pressure washer only for intended uses. If you have questions about intended use, ask dealer or contact local service center. DO NOT insert any objects through cooling slots. WARNING Medical and Life Support Uses.
  • Page 8 WARNING Exhaust heat/gases could ignite WARNING combustibles, structures or damage Chemical Burn Hazard. Chemicals could fuel tank causing a fire, resulting in cause burns resulting in death ot serious death or serious injury. injury. Contact with muffler area could cause burns resulting in DO NOT use caustic liquid with pressure washer.
  • Page 9 WHEN TRANSPORTING,MOVING OR DO NOT secure spray gun in open position. DO NOT leave spray gun unattended while machine is REPAIRING EQUIPMENT running. Transport/move/repair with fuel tank EMPTY or with fuel NEVER use a spray gun which does not have a trigger lock shutoff valve OFF.
  • Page 10 CAUTION Excessively high operating speeds could result in minor injury. Excessively low speeds impose a heavy load. DO NOT tamper with governor spring, links or other parts to uncrease engine speed. Pressure washer supplies correct rated pressure and flow when running at governed speed. DO NOT modify pressure washer in any way.

  • Page 11: Pressure Washer Components

    Read the entire “SAFETY” section at the beginning of this manual including all text under sunheadings thersin before set up or use of this product. WARNING TO PREVENT SERIOUS INJURY: Operate only with proper spark arrestor installed. Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.

  • Page 12: Assembly

    Attach the gun holde rassembly to the frame, install the lock nut, wrench tighten until the nut is snug. (Rotate the holder according to the need.) See Figure B Figure B Insert the hose holder into the holes on the back of panel.

  • Page 13: General Information

    8 . Attach high pressure hose(A) to the pump(D), pull back 9 . Run water through the hose for 30 seconds to flush any the quick-connect collar(C) of pump, insert hose debris from the hose, inspect inlet screen and remove any connector(B) and then release the quick-connect collar, debris,connect hose to water inlet and tighten by hand.

  • Page 14: Pre-Start Checks

    Read the entire“SAFETY” section at the beginning of this manual including all text under subheadings therein before set up or use of this product Improper treatment of Pressure Washer can damage internal components and shorten the life of unit. Failure to follow this warning will void warranty.

  • Page 15: Starting The Engine

    Pre-Start Checks(Continued) 3. Lubrication O-Rings 2. Move the Fuel Valve to the “ON” position. Lubrication of o-rings is extremely important for installation and operation. The use of a lubricant (petroleum or synthetic grease) during assembly helps seat o-rings properly and provides an improved seal, It also helps protect the o-ring from damage by abrasion, pinching or cutting and extends the life of the o-ring.

  • Page 16: Pressure Washer Operation

    Pressure Washer Operation 40° Nozzel-White: This nozzle delivers a 40 degree WARNING spray pattern and a less powerful stream of water. This nozzle can cover a wide area and should be Do not direct spray from the Pressure Washer at a person or an used for most general cleaning jobs.
  • Page 17 4. Washing/Cleaning 1 If the Pressure Washer have a onboard soap tank: 1.1 Fill the soap tank with detergent and close the lid. WARNING 1.2 Change the nozzle in the wand to Black Nozzle. SOME ENGINE PARTS CAN BECOME EXTREMELY HOT. 1.3 Start the engine.

  • Page 18: Stopping The Engine And Pressure Washer

    Stopping the Engine and Pressure Washer High Altitude Operation WARNING At high altitudes over 3,000 feet, the engine carburetor and any other parts that control the fuel-air ratio will be affected,which will SOME ENGINE PARTS CAN BECOME EXTREMLY HOT. decrease performance, increase fuel consumption and increase If you intend to disconnect the high pressure hose after emission.

  • Page 19: Engine Maintenance Schedule

    WARNING Regular maintenace will improve performance and extend life of Pressure Washer. Pressure Washer’s warranty does not cover items that have been subjected to operator abuse or negligence. Only by maintaining Pressure Washer in accordance with instructions in this manual will the full value of the warranty be honored. Some adjustments will need to be made periofically to priperly maintain the Pressure Washer.

  • Page 20: Pump Maintenance

    Pump Maintenance • Before doing any maintenance work, depressurise the water system and isolate the pump from all energy sources. • When the jobs are done, before restarting the pump, check that no tools, rags or other materials have been left close to moving parts or in hazardous zones.

  • Page 21: Adding Engine Oil

    Pump Maintenance (Continued) Changing Engine Oil 1.Checking Pressure Pump CAUTION Oil is very hot during operation and can cause burns. Wait for engine The pressure pump is maintenance free. If you notice any sign to cool before changing oil. of oil leakage in and around the pump, DO NOT operate the pressure washer.

  • Page 22: Spark Plug Maintenance

    Spark Plug Maintenance Air Filter Maintenance 1. Remove the Air Filter Cover and the air filter(s) and check for dirt. Clean as described below. Spark 2. Cleaning: Plug • For paper filters: To prevent injury from dust and debris, wear ANSI-approved NIOSH-approved dust mask/respirator, and hesvy-duty work gloves.
  • Page 23 3. Lubrication 6. Storage Area To protect against rust formation during storage,oil the Cover and store in a dry, level, well-ventilated area out of reach of children. Storage area should also be away from ignition cylinder bore: sources. such water heaters, clothes dryers and furnaces. 3.1 Change engine oil.

  • Page 24: Trouble Shooting

    Trouble Shooting Pronblem Possible Causes Probable Solutions Engine will not start FUEL RELATED: FUEL RELATED: 1.No fuel in tank of fuel valve is in “OFF” position. 1.Fill fuel tank with fresh 87+ octance unleaded stabilizer-treated 2.Low quality, stale, dirty or deteriorated petrol. gasoline and turn fuel valve to “ON”...
  • Page 25 Trouble Shooting(Continued) Pronblem Probable Solutions Possible Causes 1.Check wire connections. Engine misfires 1.Sparkplug cap loose. 2.Re-gap or replace spark plug. 2.Incorrect or defective spark plug. 3.Replace spark plug cap. 3.Defective spark plug cap. 4.Use only fresh 87+octane stabilizer-treated 4.Old or low quality gasoline unleaded gasoline.
  • Page 36 32082-03073-02...
