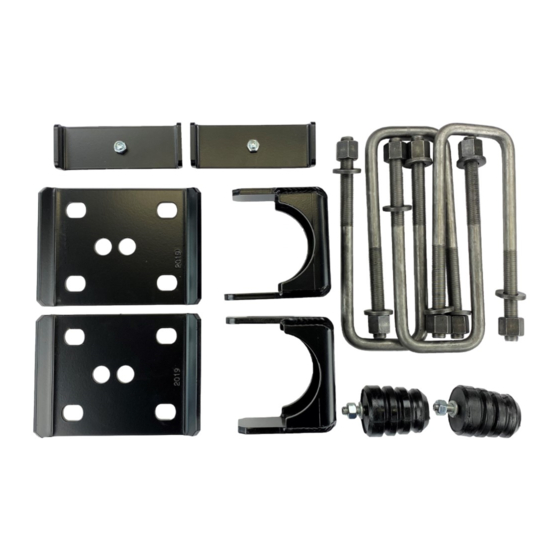

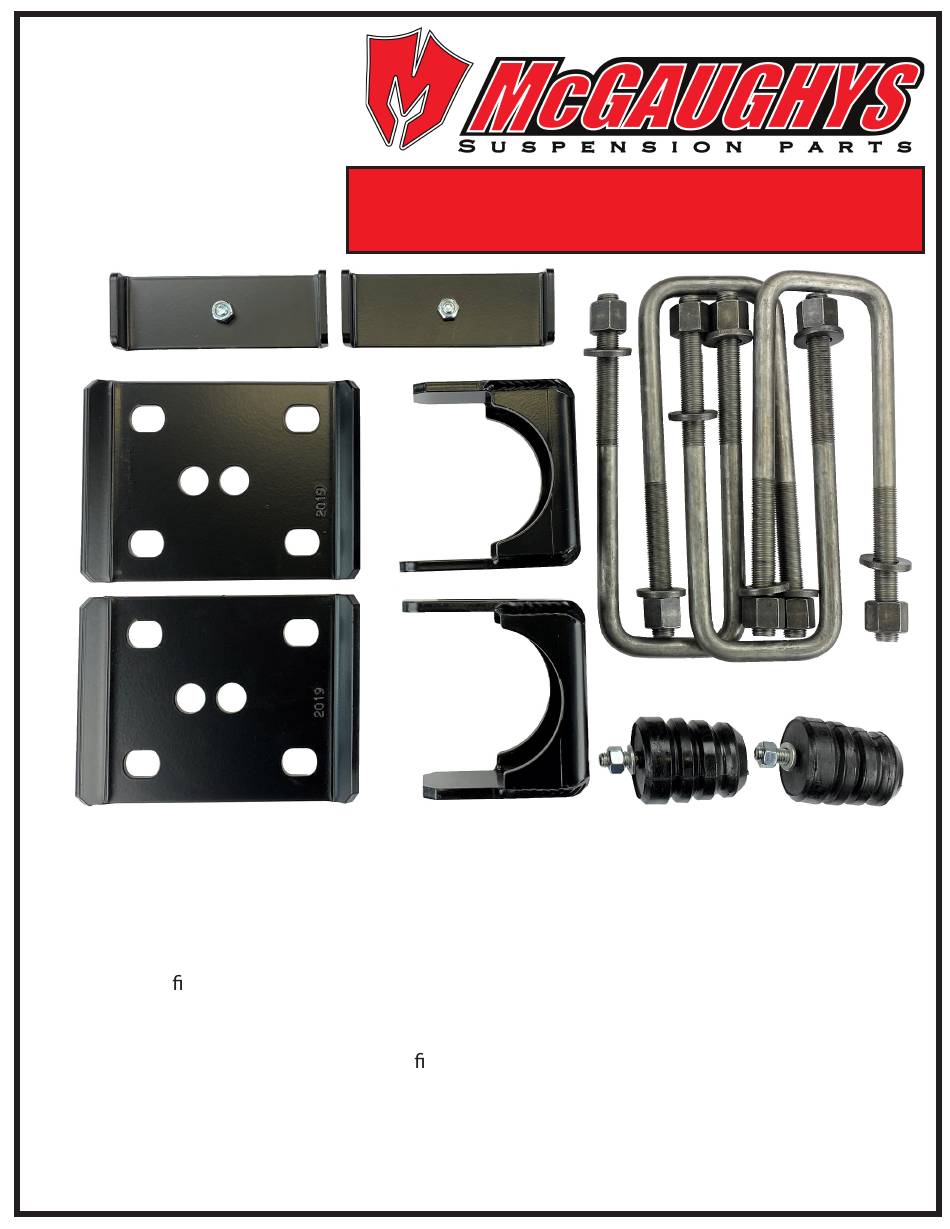

1. U-Bolt Plates (2)
2. U-Bolt Retainer Plates (2)
3. Flip Kit Saddles (2)
4. U-Bolts (4)
PART # 34347
5. Bump Stops (2)
REAR FLIP KIT FOR 2019-22 GM 1500
2.
4.
3.
1.
5.
- If you are the installer only, and not the owner of the vehicle, please make sure the owner of the
vehicle gets these instructions. They contain very important information about the kit, maintainace,
and warranty.
-Before moving forward with installation, please layout all parts from boxes and ensure everything is
present. If any parts are missing, please contact McGaughy's Suspension immediately at
559-226-8196.
-If you alter the nish of any of the provided components, like zinc plating, chroming, or powder-
coating, which can cause damage to the strength and structure of the metal, any warranties will be
null and void.
-If any components are ground on or modi ed in any way, then no returns or exchages will be
accepted and any warranties will be null and void.
-NO welding is required to install any part of this lift kit. Do not weld any components.
-U-bolts are shipped with protective coating on surface. This allows them to be delivered to you
without rust. We recommend you clean and paint the parts before you install, to protect against any
future rust. Remember, u-bolts are bare metal, and will rust without paint.
Advertisement
Table of Contents
Related Manuals for McGAUGHYS 34347
Summary of Contents for McGAUGHYS 34347
- Page 1 2. U-Bolt Retainer Plates (2) 3. Flip Kit Saddles (2) 4. U-Bolts (4) PART # 34347 5. Bump Stops (2) REAR FLIP KIT FOR 2019-22 GM 1500 - If you are the installer only, and not the owner of the vehicle, please make sure the owner of the vehicle gets these instructions.
- Page 2 559-226-8196 4603 E. VINE AVE. FRESNO, CA 93725 www.mcgaughys.com WARRANTY INFORMATION -McGaughy’s warrants all McGaughy’s products against manufacturer’s defects in materials or workmanship for a period of ONE-YEAR from the date of original purchase. All McGaughy’s spindles carry a LIFETIME warranty against manufacturer’s defects.
- Page 3 Always use the proper tools and consult the factory service manual for torque values and procedures. With the vehicle turned o and the parking brake set, secure the front wheels/tires with wheel chocks. Use a jack and lift the rear of the vehicle. Place jack stands under the frame on both side of the vehicle. Remove the rear wheels. 1.
- Page 4 5. To install the ip kit on the rear end, you will need to remove the factory brake line bracket on the driver side and the passenger side. Now, with the bracket removed, you will cut o the the factory mount on the axle. Your mount will look like either of the pics below.
- Page 5 6. The ip kit saddle will have a tapped hole for you to re-install you factory bracke line bracket. Be sure to have the factory bracket completely secure using the locator holes and bolt down the factory bracket to the ip kit using the new provided bolt and washer.
- Page 6 7. Use the provided u-bolt retainer plate on top of the rear end. Then install the provided u-bolts and bottom u-bolt plate on the leaf springs. Make sure the leaf spring center pin is installed through the front hole (furtherest hole towards the front of the vehicle).
