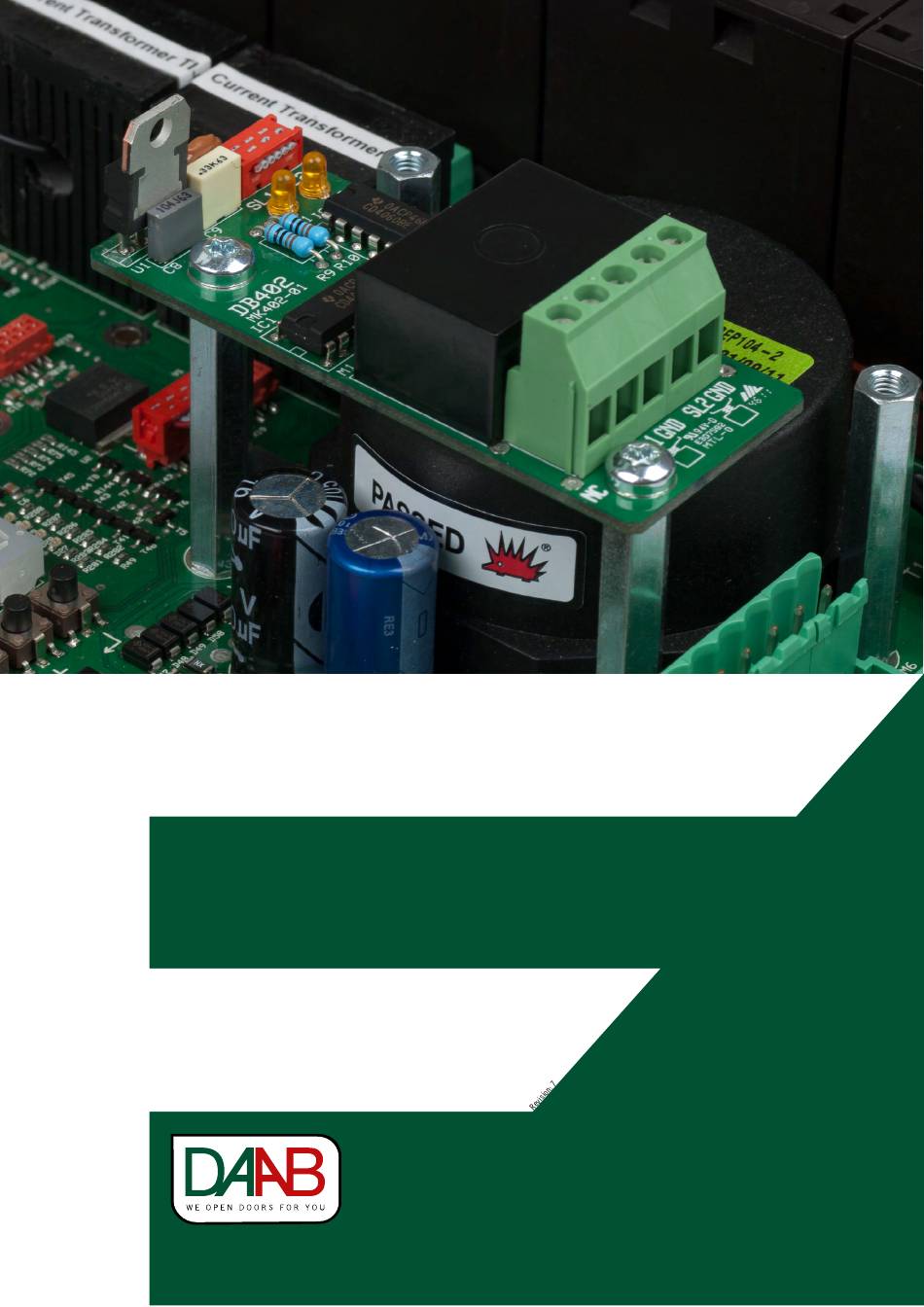

INSTRUCTION MANUAL
DAAB VEHICLE DETECTOR DB402
For DAAB automatic control unit
EP104
EP105
BOX 125, SE-284 22 PERSTORP SWEDEN,
FAAC Nordic AB
 
+46 435 77 95 00,
support@faac.se
www.faac.se

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAAB DB402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FAAC DAAB DB402

  • Page 1 INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 For DAAB automatic control unit EP104 EP105 FAAC Nordic AB     BOX 125, SE-284 22 PERSTORP SWEDEN, +46 435 77 95 00, support@faac.se www.faac.se...
  • Page 2: Table Of Contents

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Contents Technical data ...............................2 Safety instructions ..............................2 General description ..............................2 Installation of DB402 ............................3 Installation of vehicle loops for vehicle detector ....................4 Suggested vehicle loop layout ..........................5 Connection of vehicle loops to DB402........................6 Indications ................................6 Description of function, d-channels ........................7 Configuring the vehicle loop Vehicle loop functions...
  • Page 3: Installation Of Db402

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Installation of DB402 Discharge any static charge in your body by touching an earthed connection before handling PCB. Disconnect the power to the automatic control unit. Screw the DB402 card into place on the spacers on the automatic control unit using two M4x6 screws. Connect cable to “LOOP”...
  • Page 4: Installation Of Vehicle Loops For Vehicle Detector

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Installation of vehicle loops for vehicle detector • General The loop is made of RK 0.75-1.5 mm , heat-resistant to at least 90 degrees, and is coiled 2 or 3 times depending on the circumference of the loop.
  • Page 5: Suggested Vehicle Loop Layout

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Suggested vehicle loop layout Revision 7...
  • Page 6: Connection Of Vehicle Loops To Db402

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Connection of vehicle loops to DB402 If two loops are used, the one with the longest loop must be connected to input SL1. Note that installation must be carried out by a qualified electrician and that the power supply must be cut when connecting the connectors. The connector from the loop must be twisted-pair with at least ten turns per metre.
  • Page 7: Description Of Function, D-Channels

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Description of function, d-channels Two vehicle loops can be connected to the automatic control units via DB402 add-in cards – to activate the inputs set channels d100 and/or d200 to the value 1. When the unit is delivered and following a reset, channels d100 and d200 are set to 0, disabled.
  • Page 8: Loop Safety Functions

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Loop safety functions You can use the following channels to select and configure these safety functions. d140, Safety when closing Used to configure the safety setting in the closing movement. The value 0 means the function is disabled – note that the door will close even if there is a vehicle on the loop.
  • Page 9: Channel List, D-Channels

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Channel list, d-channels Vehicle loop 1 Note that the display of the d-channels is determined by the setting in C702 for EP105 Name Range Factory Setting d100 Vehicle loop 1 0 – 1 Disabled Enabled d101 Loop reading x1...
  • Page 10 INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Name Range Factory Setting d160 Control function 0 - 1 Disabled Open d161 Type of control signal when activated 1 - 2 Pulse Constant signal when loop is activated d162 Half operation 1 - 3 Motor 1 Motor 2 Motors 1 and 2...
  • Page 11 INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Vehicle loop 2 Note that the display of the d-channels is determined by the setting in C702 for EP105 Name Range Factory Setting d200 Vehicle loop 2 0 - 1 Disabled Enabled d201 Loop reading x1 000 - 999 d202 Loop reading x1000...
  • Page 12 INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Name Range Factory Setting d260 Control function 0 - 1 Disabled Open d261 Type of control signal when activated 1 - 2 Pulse Signal when loop is activated d262 Half operation 1 - 3 Motor 1 Motor 2 Motors 1 and 2...
  • Page 13: Notes

    INSTRUCTION MANUAL DAAB VEHICLE DETECTOR DB402 Notes: Revision 7...
