FAAC XBFA ON User Manual

LED-SIGNALS
A DIP-switch was changed
The ORANGE LED
without confi rmation.
fl ashes quickly.
The ORANGE LED The sensor signals
an internal fault.
fl ashes 1 x.
1
The ORANGE LED Irregularities in the
fl ashes 2 x. power supply
2
The sensor receives
The ORANGE LED
fl ashes 4 x. not enough IR-energy.
4
The sensor receives
The ORANGE LED
fl ashes 5 x. too much IR-energy.
5
The ORANGE LED The sensor encounters
is on. a memory problem.
The RED LED fl ashes
The sensor sees the door
quickly after an
during the assisted setup.
assisted setup.
The sensor vibrates.
The RED LED
lights up
sporadically.
The sensor sees the door.
The sensor is disturbed by
lamps or another sensor.
The sensor is disturbed
by the rain.
The LED is off.
The reaction of
the door does not
correspond to the
LED-signal.
FAAC S.p.A . - Via Calari, 10 40069 Zola Predosa - Italia - tel. +39 051 61724 - fax. +39 051 758518 - www.faacgroup.com
BEA hereby declares that the FAAC XBFA ON is in conformity with the basic requirements and the other relevant provisions
of the directives 2004/108/EC and 2006/42/EC.
Notifi ed Body for EC inspection: 0044 - TÜV NORD CERT GmbH, Langemarckstr. 20, D-45141 Essen
Angleur, June 2013 Pierre Gardier, Authorized representative and responsible for technical documentation
Only for EC countries: According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE)
Manufactured by: BEA SA - LIEGE Science Park - Allée des Noisetiers 5 - 4031 Angleur - Belgium - T +32 4 3616565 - F +32 4 3612858 - info@bea.be - www.bea.be
1
Confi rm the DIP-settings by a long push on the
push button.
1 Cut and restore power supply.
If orange LED fl ashes again, replace sensor.
2
1
Check power supply.
2 Check wiring.
1 Use the 1 m prism if possible (accessory).
Check the angle of the IR-curtains.
2
Use a low energy prism if possible (accessory).
1
Check the angle of the IR-curtains.
2
1 Cut and restore power supply.
If orange LED lights up again, replace sensor.
2
1 Check the angle of the IR-curtains.
2 Launch a new assisted setup.
Attention: Do not stand in the detection fi eld!
1 Check if the sensor is fastened fi rmly.
Check position of prism and cover.
2
1
Launch an assisted setup and adjust the IR angle.
1
Choose a different frequency (DIP 2).
1
Choose the critical environment presetting (DIP 1).
Check connections to test output.
1
If your door controller is not able to test the sensor,
2
connect the red and blue cable to the power supply.*
Change the output confi guration (DIP 4).
1
*excludes EN 16005-conformity of the door system
User's Guide for product version 0100 and higher
See product label for serial number

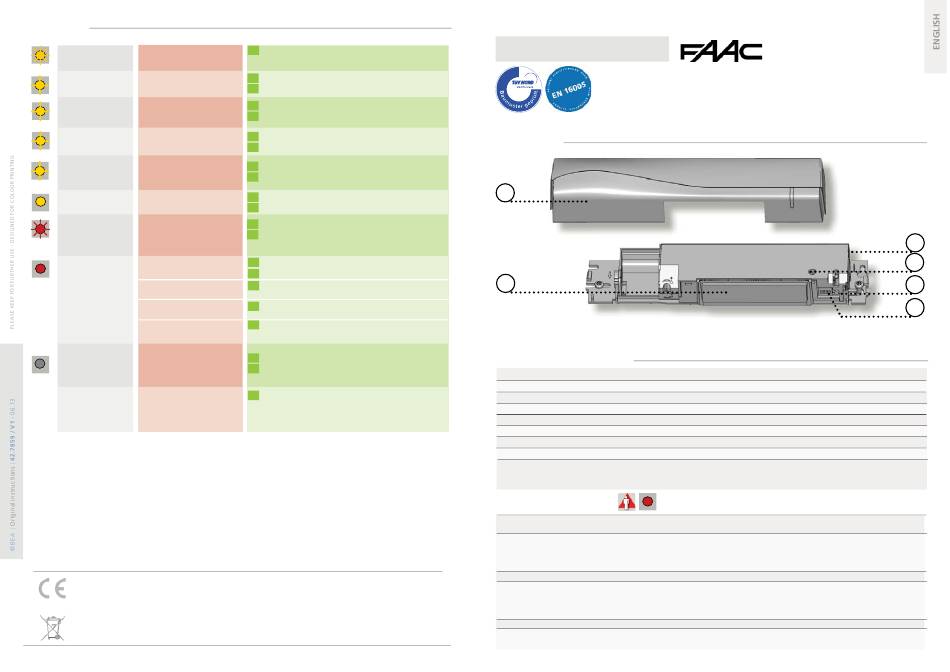

DESCRIPTION
1
2
1. cover
2. IR-prism
(2 m)
3. main connector
TECHNICAL SPECIFICATIONS
Supply voltage: 12 V - 30 V DC -5%/+10%
Power consumption: < 1.6 W
Mounting height: 1.8 m to 3 m
Sensitivity of the test input: < 1 V : Log. L; > 10 V: Log. H (max. 30 V)
Temperature range: -25 °C to +55 °C
Degree of protection: IP54
Noise: < 70 dB
Expected lifetime: 20 years
Norm conformity: MD 2006/42/EC; ROHS 2 2011/65/EU; EN 16005:2012; EN 12978:2009;
EN IEC 62061:2005 SIL2; EN 61496-1:2012 ESPE Type 2; EN ISO 13849-1:2008 Pl «c»
(under the condition that the door control system monitors the sensor at least once per door cycle)
RED
LED
Detection mode:
Presence
Typical response time: <256 ms
Technology:
Active infrared with background analysis
Spot diameter: 0.1 m (typ)
Number of spots: 24
Number of curtains: 2
Angle:
From -4 ° to +4 ° (adjustable)
Output: Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
Hold time output signal:
0.3 s to 1 s (not adjustable)
Response time on test request: Typical: < 5 ms
XBFA ON
Safety sensor
for automatic sliding doors
4. IR-angle adjustment
5. push button for setup or DIP-setting confi rmation
6. DIP-switch
(to be operated from SELV compatible power supplies only)
Specifi cations are subject to changes without prior notice. All values measured in specifi c conditions.
3
4
5
6
CAT.2
