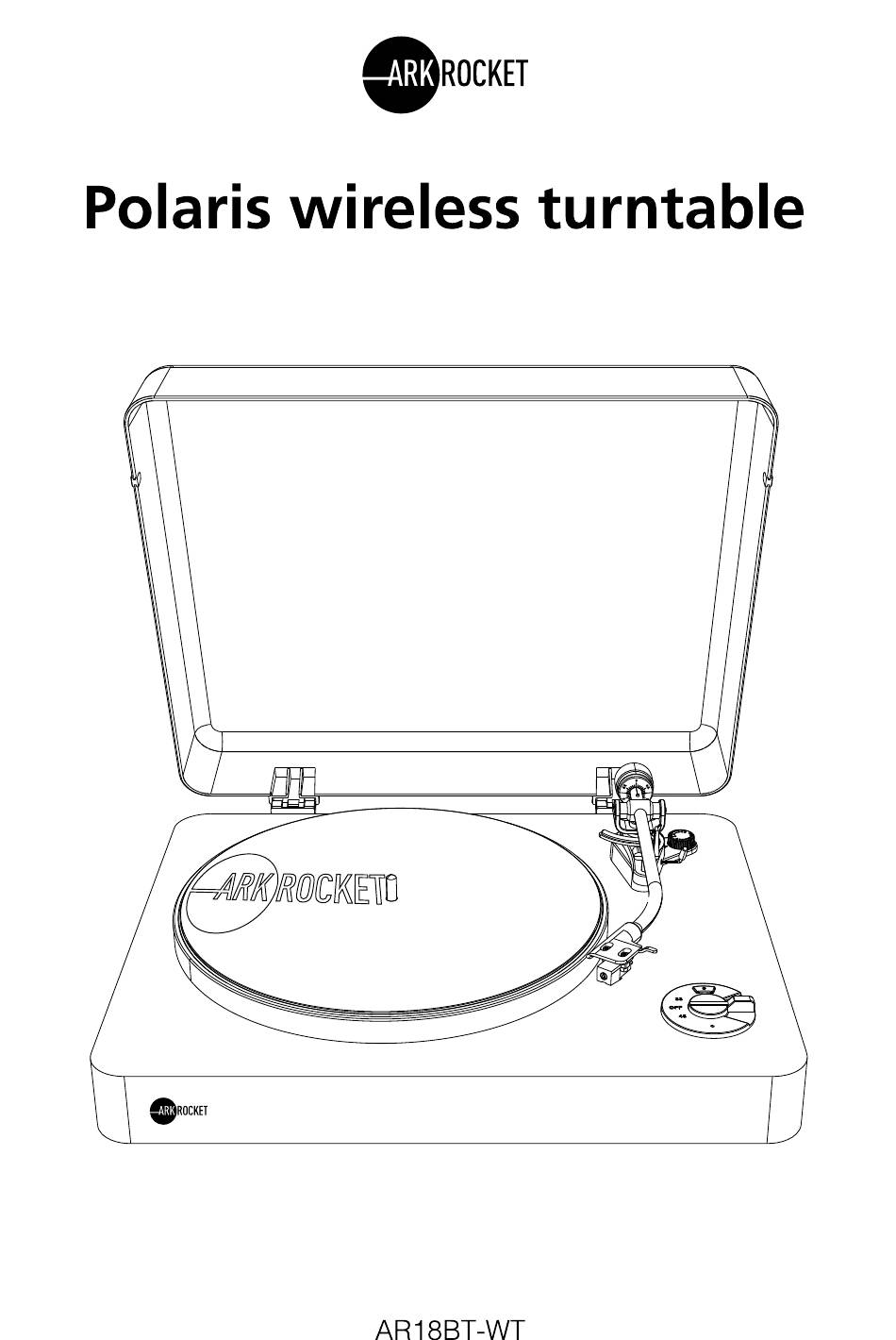

ARKROCKET Polaris AR18BT-WT Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Polaris AR18BT-WT and is the answer not in the manual?

Questions and answers

Related Manuals for ARKROCKET Polaris AR18BT-WT

Summary of Contents for ARKROCKET Polaris AR18BT-WT

  • Page 2: Table Of Contents

    Contents Product Overview ..................2 Top view .................... 2 Back view ................... 3 Se ing up your turntable................. 4 Installing the pla er and turntable mat ..........5 Install dust cover................6 A aching and adjusting the counterweight ........7 Using your turntable ................

  • Page 3: Product Overview

    Product overview Top view ITEM DESCRIPTION Turntable Aluminum alloy turntable. Spindle Place a record onto the spindle to play. Counterweight Turn to adjust the needle pressure. Anti-skate control Turn to adjust the inward tracking forces that occur with certain pick-up when the stylus nears the center of the record.

  • Page 4: Back View

    RPM selector switch Turn to select the record type (33 or 45) or OFF to turn off Turn to select the record type (33 or 45) or OFF to turn off your turntable.(The default OFF) Bluetooth pairing status Bluetooth standby: white light slowly flash indicator light Bluetooth pairing: red and white light quickly flash.

  • Page 5: Se Ing Up Your Turntable

    Setting up your turntable Setting up your turntable You need to install the turntable before you can use it. You need to install the turntable before you can use it. 1. Take the accessories out of the packing case and check that the accessories are in 1.

  • Page 6: Installing The Pla Er And Turntable Mat

    5. Carefully remover the tape. Too much force will damage the cover and stylus. 5. Carefully remover the tape. Too much force will damage the cover and stylus. 5. Carefully remover the tape. Too much force will damage the cover and stylus. Tape Installing the platter and turntable mat platter and turntable mat...

  • Page 7: Install Dust Cover

    2. Still holding the belt, flip the platter over, then insert the platter onto the spindle in the center of your turntable. 3. Align the round hole in the platter with the pulley and use your finger to hook the belt onto the pulley.

  • Page 8: A Aching And Adjusting The Counterweight

    2. Hold the dust cover and insert it into the hinges. the dust cover and insert it into the hinges. Note: To remove the dust cover, grasp the two sides of the dust cover and To remove the dust cover, grasp the two sides of the dust cover and To remove the dust cover, grasp the two sides of the dust cover and slowly li upward to remove the dust cover together with hinges.
  • Page 9 3. Set the Anti-Skating control to control to 0 (zero). Anti-Skating control 4. Release the lock catch, push the tone arm lifter forward so that the tone arm Release the lock catch, push the tone arm lifter forward so that the tone arm Release the lock catch, push the tone arm lifter forward so that the tone arm leaves the base, then push the tone arm left to the position above the leaves the base, then push the tone arm left to the position above the turntable.
  • Page 10 6. Hold the metal counterweight at the back of the tone arm. Hold the metal counterweight at the back of the tone arm. Metal counterweight 7. Hold the metal counterweight to keep it from Hold the metal counterweight to keep it from moving, and then carefully rotate then carefully rotate the front black number ring so that 0 is in the 12 o'clock position.

  • Page 11: Using Your Turntable

    Using your turntable Plug one end of the power cord into the AC power jack on the back of the Plug one end of the power cord into the AC power jack on the back of the turntable, turntable, and then plug the other end into a power outlet. then plug the other end into a power outlet.
  • Page 12 5. Push the tone arm lifter forward to raise the tone Push the tone arm lifter forward to raise the tone arm. Tone arm lifter 6. Gently push the tone arm to the left over the turntable. Gently push the tone arm to the left over the turntable. Tone arm lifter Lock catch Tone arm...

  • Page 13: Listening To Music Using Bluetooth Speakers

    Notes: 1. Closing the top cover helps prevent dust from settling on the turntable. 1. Closing the top cover helps prevent dust from settling on the turntable. 2. Always re-lock the tone arm clip before transporting your turntable. lock the tone arm clip before transporting your turntable. 3.

  • Page 14: Listening To Music Through The Line Out Jacks

    5. Listen away! Volume will need to be adjust on your external speaker. Listen away! Volume will need to be adjust on your external speaker. 6. To reset Bluetooth, press and hold the button for 10 seconds until th To reset Bluetooth, press and hold the button for 10 seconds until the status e status indicator lights turn off.

  • Page 15: Replacing The Stylus

    Replacing the stylus The stylus should last about 300 hours under normal use. However, it The stylus should last about 300 hours under normal use. However, it is recommended that the stylus be replaced as soon as you notice a change in sound recommended that the stylus be replaced as soon as you notice a change in sound recommended that the stylus be replaced as soon as you notice a change in sound quality.

  • Page 16: Enjoying Your Sound Experience

    AC 220V~50Hz...

  • Page 17: Troubleshooting Guide

    Troubleshooting guide In case of trouble with the unit, please look through below and see if you can solve the problem by yourself before calling your dealer. Problem Solution My turntable doesn t turn on 1). Make sure that the power cord is connected to your turntable and a working power outlet.
  • Page 18 The Bluetooth indicator turn 1). Make sure that your Bluetooth speaker is not connected to red. another Bluetooth device. 2). If it is connected to another device, turn off the device or delete the Bluetooth connection name from your speaker's list of devices.
  • Page 19 Need some help? Can’t get it to pair? Not accepting phone calls? Just have a question? Call us at: 1- 877-698-4883 CAUTION RISK OF ELECTRIC SHOCK The lightning flash with arrowhead within DO NOT OPEN The exclamation point within an an equilateral triangle is intended to alert equilateral triangle is intended to alert CAUTION:TO PREVENT...
  • Page 20 13. Unplug the apparatus during lighting storms or when unused for long periods of time. 14. Refer all servicing to qualif ied personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 21 Important Safety Instructions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
