Summary of Contents for ESAB Origo Vac Cart W3

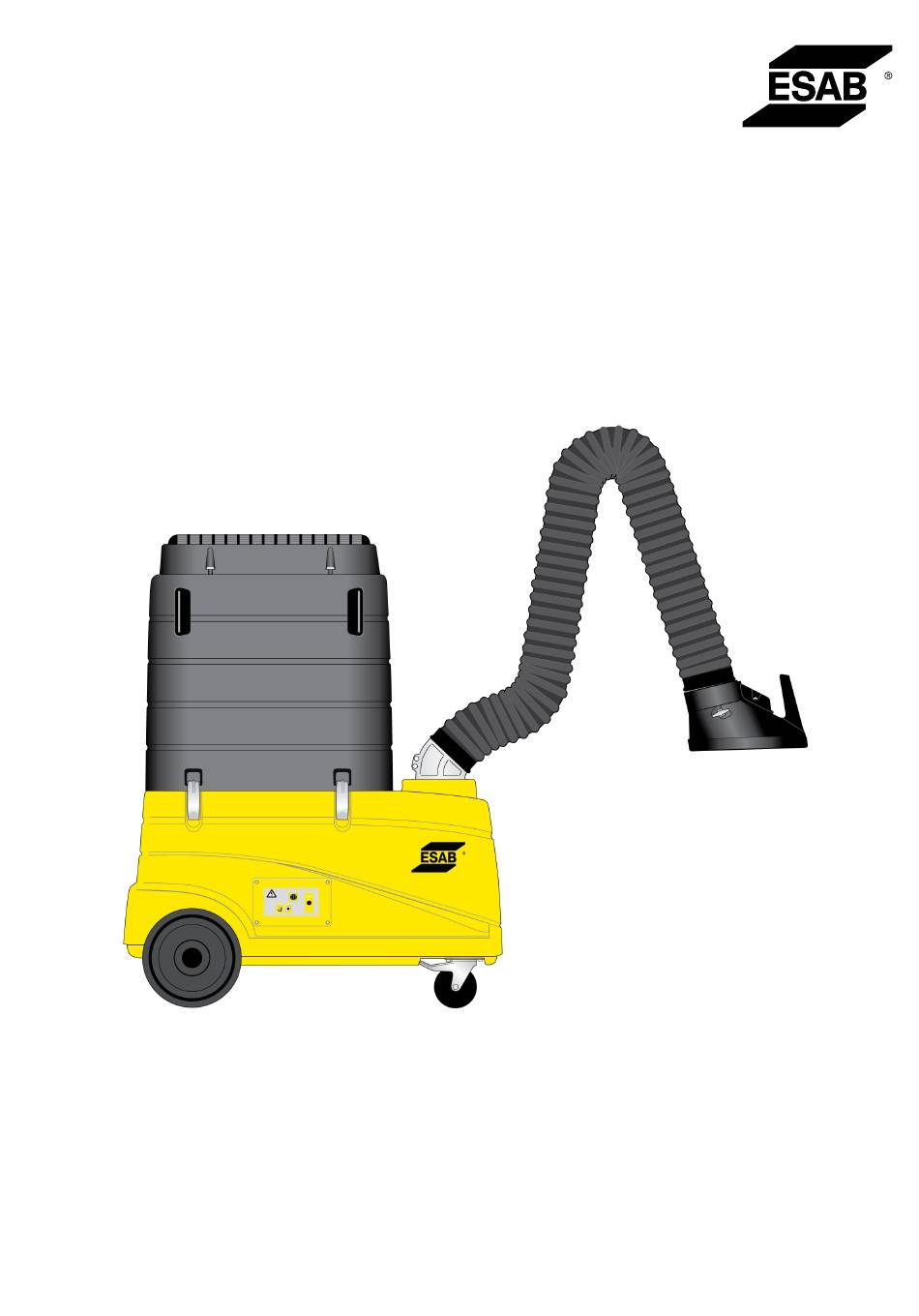

- Page 1 Origo Vac Cart W3 Instruction manual Original instructions 0448 046 001 GB 20230906...
-
Page 4: Table Of Contents
Control panel indicators ......................Directions for use .......................... MAINTENANCE ..................Changing the filter cartridge ............... Changing the HEPA-filter (accessory) ..........................WIRING DIAGRAM ......................... ORDERING NUMBERS ..........................SPARE PARTS LIST ............................. ACCESSORIES 0448 046 001 - 4 - © ESAB AB 2023... -
Page 5: Safety
Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 6 If equipped with ESAB cooler Use ESAB approved coolant only. Non-approved coolant might damage the equipment and jeopardize product safety. In case of such damage, all warranty undertakings from ESAB cease to apply. For ordering information, see the "ACCESSORIES" chapter in the instruction manual.
-
Page 7: California Proposition 65 Warning
For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. California proposition 65 warning WARNING! Welding or cutting equipment produces fumes or gases which contain chemicals known in the State of California to cause birth defects and, in some cases, cancer. -
Page 8: Introduction
2 INTRODUCTION INTRODUCTION The Origo Vac Cart W3 filters out pollutants such as fumes and dust, class W3. Moreover, it filters out welding fumes containing CMR (Carcinogenic Mutagenic Reprotoxic) substances, e.g. generated by welding high alloyed steels or welding consumables with more than 5 % (Cr, Ni). -
Page 9: Technical Data
3 TECHNICAL DATA TECHNICAL DATA Origo Vac Cart W3 Capacity 675–1050 m /h (397–620 cfm) Main filtration efficiency > 99 % average weight filtration efficiency. Minimum Efficiency W3 (99%), EN ISO 15012-1, MERV 14 (ASHRAE 52.2)* HEPA filtration efficiency (accessory) >... -
Page 10: Installation
The light diode (3) indicates a blinking green light (stand by). 4) Start the Origo Vac Cart W3 with the switch (1) or as an alternative with the switch on the hood of the extractor arm. -
Page 11: Fitting The Fume Extractor Hood
3) Make sure that the swiveling arm has the correct tension and can be easily positioned. 4) Fasten the hose into the hood and secure it using the tightening ring. Adjust the links so that the hood easily can be positioned. See the following image. 0448 046 001 - 11 - © ESAB AB 2023... -
Page 12: Operation
5 OPERATION OPERATION Overload protector The Origo Vac Cart W3 is equipped with an overload protector which means that the power will disconnect automatically if the fan motor is overloaded. See Section 4.1 "Initial operation", page 10: 3 Red light indicates disconnected power and released overload protector. - Page 13 (according to above), for example at work shifts. The filter in the cartridge must be changed. 4. The Origo Vac Cart W3 is ready for use and 8. The light-emitting diode indicates fixed red light after a while, the light-emitting diode indicates and an intermittent alarm signal starts.
-
Page 14: Directions For Use
See Section 4.1 "Initial operation", page 10 and the following image. 1. 1 Lever for adjusting the damper. 2 Switches 3. The Origo Vac Cart W3 is to be moved from for fan and spotlight. behind and with the wheels unlocked. -
Page 15: Maintenance
The filter cartridge is disposable and is to be thrown away after use. The life span of the filter cartridge varies greatly depending on how the Origo Vac Cart W3 is used and how much and what type of pollutants are collected. - Page 16 4) Use a duster to wipe off the filter cartridge contact surfaces in the Origo Vac Cart W3. Put the duster in the plastic bag with the filter cartridge and close the bag with the band supplied.
-
Page 17: Changing The Hepa-Filter (Accessory)
6 MAINTENANCE Changing the HEPA-filter (accessory) If the Origo Vac Cart W3 has been supplied with a HEPA-filter, this is to be changed at the same time as the main filter cartridge is changed. WARNING! Use PPE (Personal Protective equipment) when changing the HEPA-filter. - Page 18 6) Verify that the UP-arrow (2) is pointing upwards. Handle the HEPA-filter very carefully and fit it in the Origo Vac Cart W3. Ensure it is fitted in the correct position and that the seal is downwards. Check that the seal not is damaged.
-
Page 19: Wiring Diagram
Fan motor, 0.75 kW (1 hp) Circuit card Transformer, 24 V secondary Fan relay Overload protector relay Spotlight, 20 W, 24 V Alarm signal, 2.9 kHz Alarm signal, 2.9 kHz 0448 046 001 - 19 - © ESAB AB 2023... -
Page 20: Ordering Numbers
APPENDIX ORDERING NUMBERS Ordering number Type Notes 0700 003 895 Origo Vac Cart W3 230V 50Hz, 3m EUR + Light 0700 003 898 Origo Vac Cart W3 230V 50Hz, 3m 0700 003 899 Origo Vac Cart W3 110V 50Hz, 3m... -
Page 21: Spare Parts List
Filter Nanofiber Origo Vac Cart Overload protection w enclosure 8A 0700003920 for 230/240V motor Overload protection w enclosure 16A 0700003921 for 110/120V motor 0700003902 Control Panel FC W3 w circ.board 0448 046 001 - 21 - © ESAB AB 2023... -
Page 22: Accessories
APPENDIX ACCESSORIES 0700 003 219 HEPA filter H13 OrigoVacCart 0700 003 217 Spark filter for Origo Vac Arm hood 0448 046 001 - 22 - © ESAB AB 2023... - Page 23 APPENDIX 0448 046 001 - 23 - © ESAB AB 2023...
- Page 24 For contact information visit http://esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 manuals.esab.com...
