Rear Panel - Kenwood TS-130SE Instruction Manual

@ VOX GAIN CONTROL
@ DELAY CONTROL
This control is used to adjust the "Hold" time of the VOX cir-
cuit. Clockwise adjustment gives longer hold-time.
@ ANTI-VOX CONTROL
NOTE: —
@ ANT CONNECTOR
@ CW KEY JACK
discarded. It is provided to protect the panel during ma-
nufacture, and is not intended as a permanent part of the
radio.
@ FIX INDICATOR
The FIX indicator illuminates when the internal fixed
frequency oscillator controls transceiver operation.
VFO INDICATOR
The VFO indicator illuminates when the internal VFO
controls transceiver operation.
The indicator is not lighted
during fixed channel or remote VFO operation.
@EXT VFO CONNECTOR
i ®
Cal wees REFERENCE FREQUENCY
e ADJUSTMENT ACCESS
(5) REMOTE CONNECTOR
(J) DC POWER CONNECTOR

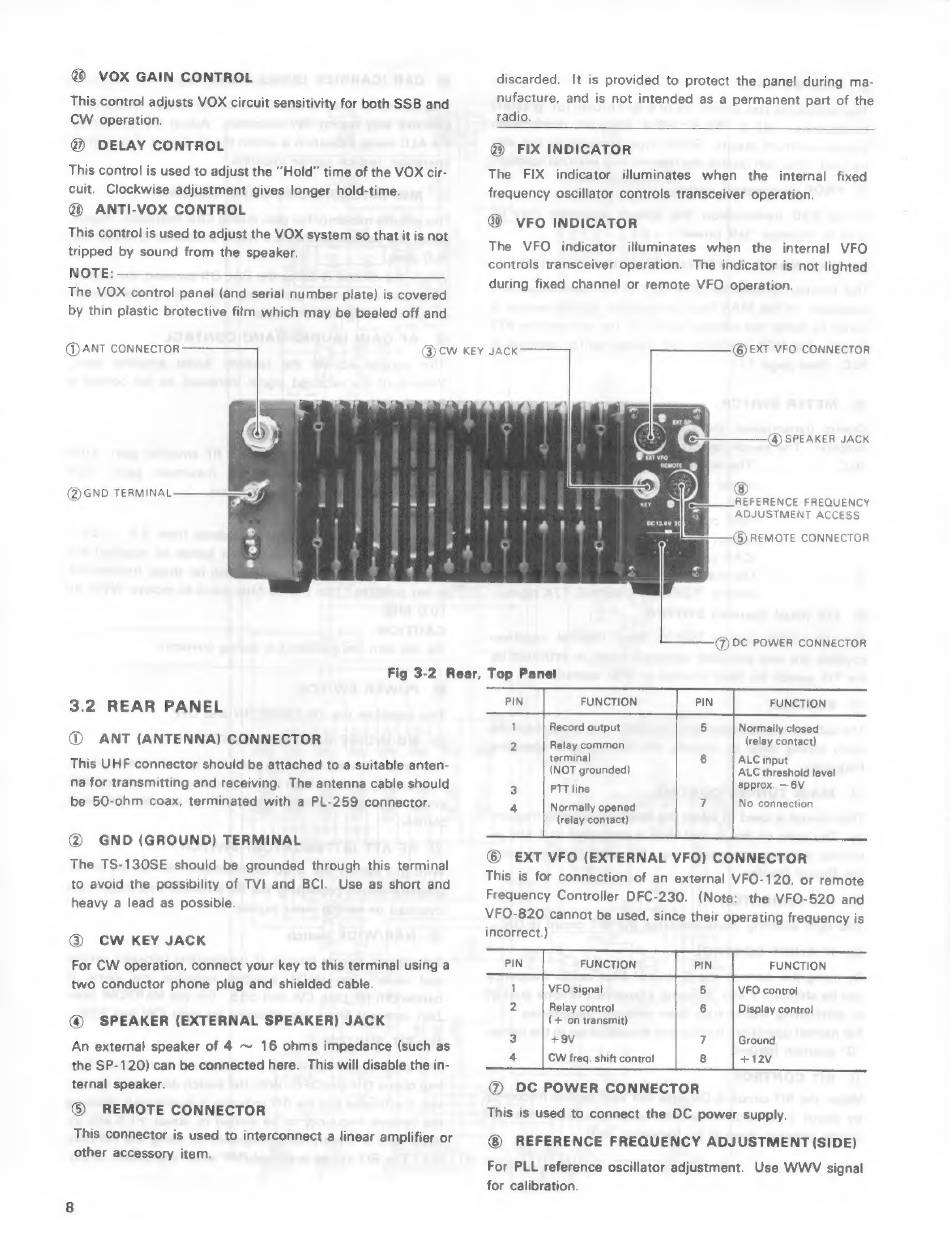

Fig 3-2 Rear, Top Panel
3.2 REAR PANEL
@® ANT (ANTENNA) CONNECTOR
This UHF connector should be attached to a suitable anten-
na for transmitting and receiving. The antenna cable should
be 50-ohm coax, terminated with a PL-259 connector.
@ GND (GROUND) TERMINAL
The TS-130SE should be grounded through this terminal
to avoid the possibility of TVI and BCI. Use as short and
heavy a lead as possible.
@ CW KEY JACK
For CW operation, connect your key to this terminal using a
two conductor phone plug and shielded cable.
@ SPEAKER (EXTERNAL SPEAKER) JACK
An external speaker of 4 ~ 16 ohms impedance (such as
the SP-120) can be connected here. This will disable the in-
ternal speaker.
@© REMOTE CONNECTOR
FUNCTION
Record output Normally closed
(relay contact)
2 Relay common
terminal ALC input
(relay contact)
© EXT VFO (EXTERNAL VFO) CONNECTOR
incorrect.)
FUNCTION
| VFO signal VFO control
2 Relay control Display control
(+ on transmit)
3 +9V Ground
4 CW freq. shift control +12V
@ DC POWER CONNECTOR
This is used to connect the DC power supply.
REFERENCE FREQUENCY ADJUSTMENT (SIDE)
For PLL reference oscillator adjustment. Use WWYV signal
for calibration.
