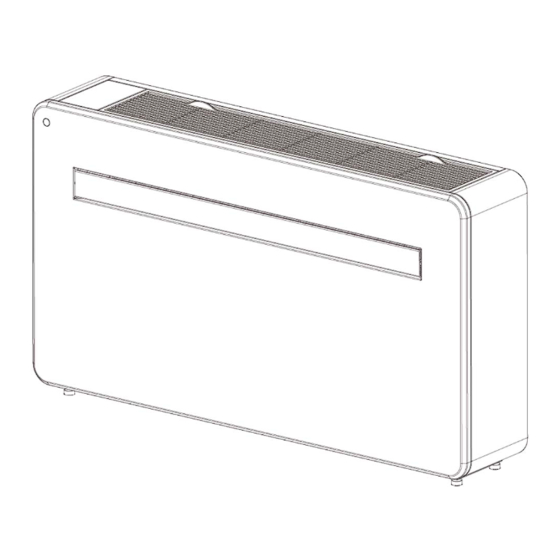

- Page 1 COOLFLOW32 USER MANUAL TPHE10K10E6 208-230V,60HZ WITH ELECTRIC HEAT WALL MOUNTED TWIN PIPE AIR CONDITIONER WITH HEAT PUMP AND WIFI SMART APP...
-
Page 2: Table Of Contents
CONTENTS SAFETY AND INSTRUCTIONS PRODUCT OVERVIEW PRODUCT DIAGRAM FEAT URES WHAT’S INCLUDED INSTALLATION TOOLS REQUIRED INSTALLATION OPERAT I ON CONTROL PANEL REMOTE CONTROL FUNCTIONS WIFI SETUP AND SMART FEATURES S E T U P REGISTER THE APP CONNECTING USING BLUETOOTH & WIFI TROUBLESHOOTING ERROR CODES MAINTENANCE... -
Page 3: Safety And Instructions
Safety and Instructions READ ALL INSTRUCTIONS BEFORE USE. Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. - Page 4 WARNING To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following: INSTALLATION ●Before use, the appliance must be properly installed as described in this manual. ●Contact the authorized service technician for repair or maintenance of this unit.
- Page 5 ●Keep the cord out from under heavy objects like tables or chairs. ●Do not place the power cord near a heat source. ●Do not use an adaptor or plug the product into a shared outlet. ●Do not tamper with controls. ●If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact dealer.
- Page 6 REFRIGERANT (FOR R32 ONLY) CAUTION: FIRE READING THE MAUAL CAREFULLY BEFORE USING THE APPLIANCE R32 refrigerant gas complies with international environmental directives. This appliance contains approximately 19.40 Oz refrigerant gas. Warnings Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 7 When using the product, the room should keep any required ventilation openings clear of obstruction. Notice that servicing shall be performed only as recommended by the manufacturer. Unventilated area ●That an unventilated area where the appliance using flammable refrigerants is installed shall be so constructed that should any refrigerant leak, it will not stagnate so as to create a fire or explosion hazard.
-
Page 8: Product Overview
PRODUCT OVERVIEW PRODUCT DIAGRAM FRONT AIR INLET CONTROL PANEL LOUVER FRONT PANEL BACK WALL HANGING MOUNTS BACK PANEL AIR INLET AIR OUTLET DRAINAGE PIPE... -
Page 9: Features
FEATURES ◆ Simple operation. ◆ Self-evaporative function with energy saving technology. ◆ Sleek design that seamlessly fits into any style home. ◆ Bright LED screen-indicates temperature and current mode. ◆ On / off timer function-allows you to choose when the unit operates. ◆... -
Page 10: Installation
INSTALLATION Apply the sealing strip in the accessories along the edge of the back for the whole perimeter of the machine, cut off the excessive length if needed. Note：1.The sealing strip should be applied along the edge of the machine, as shown in Figure1. 2. -
Page 11: Tools Required
TOOLS REQUIRED SPIRIT LEVEL TAPE MEASURE PENCIL SHARP KNIFE 180mm CORE DRILL 8mm(5/16")MASONRY 25mm(1")MASONRY DRILL DRILL BIT BEFORE STARTING INSTALLATION, PLEASE ENSURE YOU HAVE ALL SUITABLE EQUIPMENT AVAILABLE AND UNDERSTAND THE STEPS INVOLVED IN INSTALLATION. IF IN ANY DOUBT, PROFESSIONAL ADVICE SHOULD BE SOUGHT. THE INSTALLER MUST ENSURE THAT THE PLANNED POSITION OF THE AIR CONDITIONER IS SUITABLE, AND THAT THERE ARE NO CABLES AND PIPES INSIDE THE WALL, AND NO OTHER OBSTRUCTIONS FIXED ON THE WALL, WHICH WOULD PRESENT A DANGER AND/OR PREVENT... - Page 12 Paste the supplied installation template paper in position on the wall, ensuring that the reference line is level using a spirit level. The hole for the drainage pipe must be drilled using a 25mm (1 ") Drill bit. Ensure the hole is at a downward angle (min 5 degrees) so that the water will drain correctly.
- Page 13 Trim off the excess vent tube using a sharp knife, keeping the edge as neat as possible. Insert the indoor fixing ring from the vent cover onto the indoor side of the air vent. Then fold the external vent cover in half. Attach the chains to each side of the vent cover, before sliding the cover outside through the vent hole.
- Page 14 Once the chains are fitted and secured, any excess chain should be removed by cutting the chain. Lift the unit onto the wall, align the hanging holes with the hooks on the hanging rail and gently rest the unit into place. At the same time, slide the drain pipe through the drainage hole.
- Page 15 Fixed plate 4x10 tapping screw...
-
Page 16: Operat I
OPERATION CONTROL PANEL REMOTE CONTROL The air conditioner can be controlled with the remote control. Two AAA-batteries are required. NOTE: Further details of the functions can be found on the following page. POWER Press the POWER button to turn the machine on or off. Press the MODE button to switch between cooling, heating, MODE fan and dry modes. - Page 17 INSERTING AND REPLACING BATTERIES Your air conditioning unit comes with two AAA batteries. Put the batteries in the remote control before use. 1.Remove the cover on the back of the remote control. 2.Insert the new batteries and make sure that the (+) and (-) terminals of the batteries are installed correctly.
-
Page 18: Functions
● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment. - Page 19 ℉/15℃-30℃ Used within cooling and heating modes to adjust the desired temperature . Also 60-86 used while setting the timer to adjust the duration. INCREASE AND DECREASE After machine turns on, press the “SWING” button, louver will swing continuously up and down; by SWING pressing the button again the movement will stop and the louver remain in that position.
-
Page 20: Wifi Setup And Smart Features
turn off Presses the PTC button again or change to other mode to turn off PTC function, the lights on remote control and the unit display will be off at the same time. NOTE: ⚫ The unit will work without PTC function as a default until the “PTC” button on remote control is pressed. -
Page 21: Register The App
REGISTER THE APP If you don't have an App account , register an account or sign in with verification code by SMS. This page describes the registration process. Press on the “Sign Up” button at the bottom of the screen, as shown in the picture 1. The system automatically recognizes your country/ area. -
Page 22: Connecting Using Bluetooth & Wifi
To change the unit between the two WiFi connection modes, hold the Speed button for 3 seconds. CONNECTING USING BLUETOOTH & WIFI Before initiating the connection, make sure the unit is in standby mode and connected to the wifi network. Open the Bluetooth of your phone as shown in the picture 4. - Page 23 Picture 7 Picture 8 Picture 9 If you don’t want to use Bluetooth connection, just need to Exit the Bluetooth connection prompt or turn off Bluetooth and follow the below steps to connect the unit with Wifi connection. 1. Click "Add Device" for operation, as shown in the picture 10. Select the type of device as “Large Home Appliance”, as shown in the picture 11.
- Page 24 Connect a WIFI and enter the password. as shown in the picture 12. Picture 10 Picture 11 Picture 12 4. Ensure the WIFI light on the air conditioner is flashing twice per second, as shown in the picture 13. Enter the device connection interface after the progress bar is finished and the device is successfully connected.
-
Page 25: Troubleshooting 2
Picture 13 Picture 14 Picture 15 *Due to continuous development of the app, the layout and available features may be subject to change. TROUBLESHOOTING Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform operations advised here. -
Page 26: Error Codes 2
Doors or windows are open; there are a Close doors and windows; increase air lot of people; or in cooling mode, there conditioning power The cooling or heating are other sources of heat (e.g. fridges) effect is poor The filters screen is dirty. Clean or replace the filter screen. -
Page 27: Maintenance
AC Input voltage protection Fan motor error(outdoor) AC over-current protection Fan feedback fault AC undervoltage protection EE error(indoor) Coil tube overload protection(indoor) Maintenance Note: Please turn off the unit and unplug it before cleaning. 1. The filter can be removed in the direction shown in picture. After removal, the filter can be vacuumed and cleaned. - Page 28 B. When buying a new product, the retailer will take back the old product at least free of charge. C. The manufacture will take back the old appliance for disposal at least free of charge to the user. D. As old products contain valuable resources, they can be sold to scrap metal dealers. Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain.
