JL Marine POWER-POLE MOVE REAL-FEEL Instructions

INCLUDED HARDWARE

TOOLS

LABEL
• Fine-tip Marker
• Electric Drill A
B
• 9/64" Drill Bit
C
• Phillips Head Bit
D
E
F
G
H
I
A

DRILL MOUNTING HOLES

STEP 1 Choose a flat surface with adequate space to mount the Foot Pedal
STEP 2
Using the included mounting template, mark and drill (4) pilot holes for
Mounting Screws D
IMPORTANT! If installing to gel-coat, follow the drilling procedure in
Appendix A of the Installation & Owner's Guide to ensure
you do not crack or chip the gel-coat.
Need help? Contact our Technical Support Team at 1 + 813.689.9932 Option 2

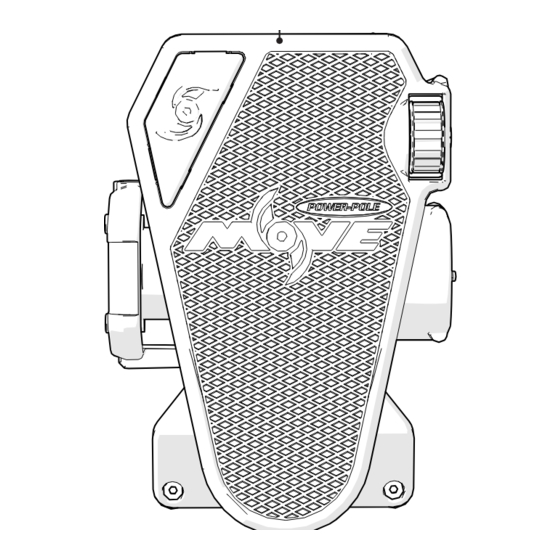

REAL-FEEL FOOT PEDAL
™
INSTRUCTIONS
ITEM #
SA-0032 Foot Pedal Assembly
AVG-MP-0915 1/4" Thick Rubber Bushing
AVG-MH-WS-0283 Small Stainless Washer
AVG-MH-SC-0278 #10 x 1 1/4" Panhead Sheet Metal Screw
AVG-MP-1003 Heat Shrink Butt Connector, 14-16 AWG
AVG-MP-1011 Heat Shrink Ring Terminal, 14-16 AWG #10
AVG-MP-1012 Heat Shrink Ring Terminal, 14-16 AWG, 3/8"
AVG-MP-0934 Fuse Holder, ATC, and ATO, 14 AWG, Red Leads
magnet-bot-PP Pairing Magnet
B
C
E
G
H
using a 9/64" Drill Bit.
DESCRIPTION
Dimensions Cord Length
8" x 1 1 3/4"
D
F
I
A
.
1 1 3/4"
QTY.
1
4
4
4
1
2
2
1
1
Wire Gage Fuse Size
~5' 14 AWG 3 Amp Mini
Check the area beneath where the Foot
Pedal will be mounted to ensure there
are no hoses, wires, lines, tanks, or other
sensitive components.
8"
Mounting Holes
Mounting Holes
