JL Marine Power-Pole Advanced Foot Switch Operating Instructions

Operating Instructions
Using Speed Control
1. The foot switch has three speed settings (slow, medium, & fast).
Depressing and releasing the "speed" button on the foot switch will
toggle through the three settings. (See Figure 1)

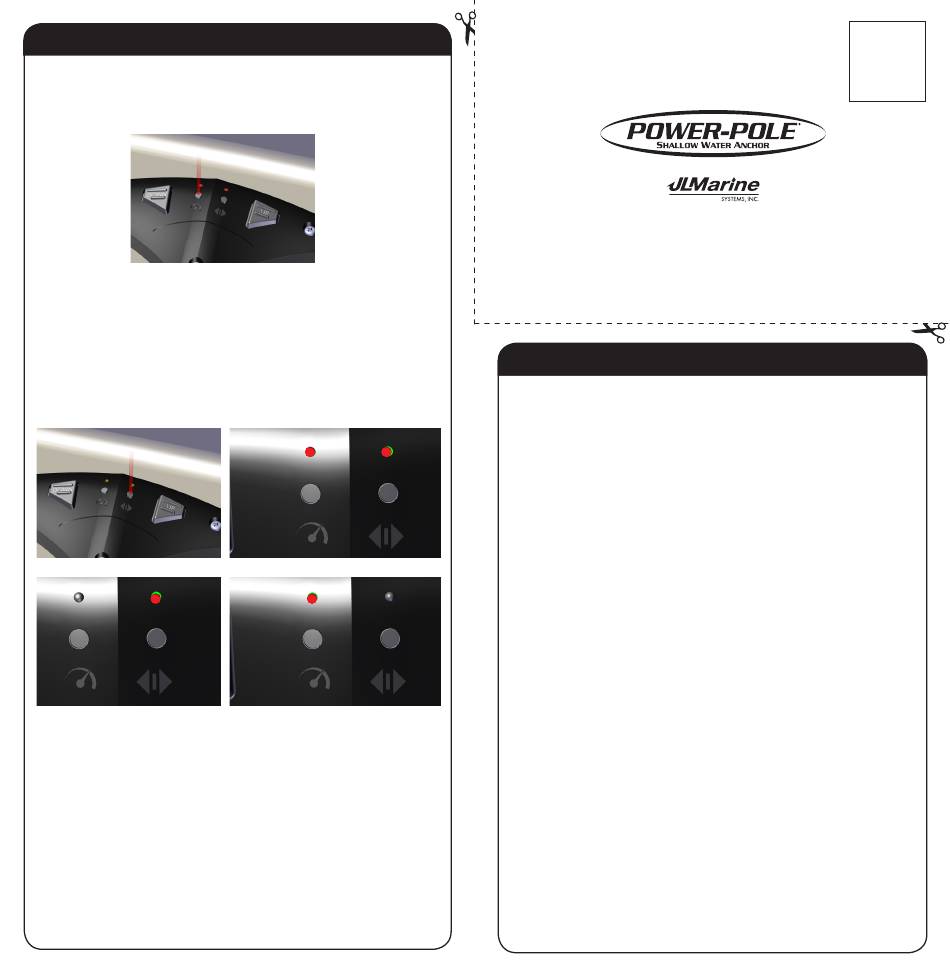

Figure 1
2. The LED on the foot switch will flash at a speed corresponding to either a
slow, medium, or fast setting.
Dual Power-Pole Operation
1. With dual Power-Pole shallow water anchors installed, the foot switch can
also be used to toggle between independent or simultaneous control of
the anchors. Depressing and releasing the "directional" button on the
foot switch will toggle through the three settings (port side only, starboard
side only, or simultaneous control).
(See Figure 2, 3, 4 and 5)
Figure 2
Figure 4
2. The LED will flash either port side only, starboard side only, or on both
sides to indicate the current control settings
3. To raise or lower the Power-Pole shallow water anchor, press and hold
either the "up" or "down" button on the foot switch. The anchor will only
continue to move so long as you keep the button depressed.
4. Auto Mode: Double tapping (depressing and releasing 2 times within 1
second) either the "up" or the "down" button on the foot switch will cause
the anchor to retract or deploy automatically. The Power-Pole anchor will
continue to move in said direction until it either retracts completely or
senses the bottom.
Sleep Mode: Press both buttons for 3 seconds, LED lights will flash indicating
the Foot Switch is now in Sleep Mode. To reactivate, press both buttons
again for 3 seconds until LED lights flash.
Figure 3
Figure 5
