Summary of Contents for BRASS MONKEY GH1676

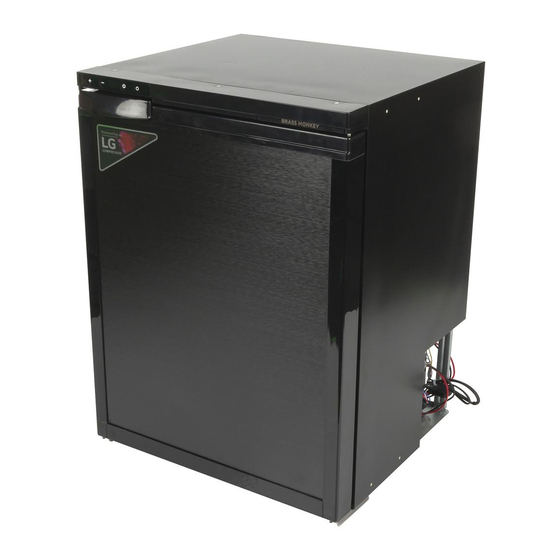

- Page 1 GH1676 CARAVAN FRIDGE INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ................ 3 Before First Use ....................4 Features ........................ 5 Box Contents ......................5 Product Diagram ....................5 Operation ......................6 Installation......................7 Adjusting the Freezer Zone ................8 Door Hinge Direction ..................9 Troubleshooting ....................10 Cleaning, Care, Storage &... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse Warnings • Do not operate the appliance if it is visibly damaged. • Do not block the gaps of the fridge with things like pins or wires, etc. •... -
Page 4: Before First Use
Notice • Disconnect the power supply before each cleaning and maintenance and after every use. • Do not use sharp tools to defrost; Do not damage the refrigerant circuit. • Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors: leave the shelves in place so that children may not easily climb inside. -
Page 5: Features
FEATURES • High efficiency DC compressor and module which is robust and durable. • Fast cooling to 0° C (based on 25° C ambient temperature). • Intelligent voltage detect system to protect car battery. • CFC free and low energy consumption. •... -
Page 6: Operation
OPERATION How to Turn on the Fridge • Connect to 12/24V power • press the power button • The internal temperature will display Temperature Setting • Press , to display ‘FR’( freezer zone temperature setting) or ‘RE’ (refrigerator zone temperature setting). •... -
Page 7: Installation
INSTALLATION Ensure that the refrigerator is in good order and not damaged when opening the packaging for the first time. Any transportation damage must be reported promptly to the place of purchase within 24 hours of taking delivery. Handle the product with the utmost care and attention. 1. -
Page 8: Adjusting The Freezer Zone
5. Verify the installation Once the installation had been finished, check the continuity of the negative circuit and carry out all electrical safety testing provided for by current regulations. Protect and fix the cables in order to prevent accidental pulling of the cable and from it disconnecting from any connections or the power source and ensure it doesn’t come into contact with heat sources with... -
Page 9: Door Hinge Direction
DOOR HINGE DIRECTION 1. Unscrew the bottom hinge (9) 2. Take off the door body (keep the fridge stable) 3. Unscrew and take off the door latch (8), install it into the new location of door latch (6) 4. Remove the door head decorative sheet (5), install it into new location of the door head decorative sheet (7). -
Page 10: Troubleshooting
TROUBLESHOOTING ISSUE SUGGESTED REMEDY Refrigerator does not work • Check if the switch is on. • Check if the plug and socket are connected well. • Check if the fuse has been burnt. • Check if the power supply is malfunctioned. •... -
Page 11: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE WARNING: Never use hard or sharp tools to remove ice or to loosen objects frozen in place. Cleaning • Unplug the device first to avoid electric shock. • Use wet cloth to clean the device and dry it. •... -
Page 12: Smart Control - Fridge App Instructions
SMART CONTROL - FRIDGE APP INSTRUCTIONS (Battery is not supported on this model) -
Page 13: Specifications
SPECIFICATIONS Rated Voltage DC 12/24V Power Consumption Capacity Noise Emission ≤45dB Temperature Range 0-8°C(RE)/ -12~-20°C(FR) Climate Class T/ST/N/SB Dimensions(W*H*D) 430*630*470 mm N.W. 19.06KG G.W. 21.21KG... -
Page 16: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 3 years. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
