Summary of Contents for Goldmund PULP

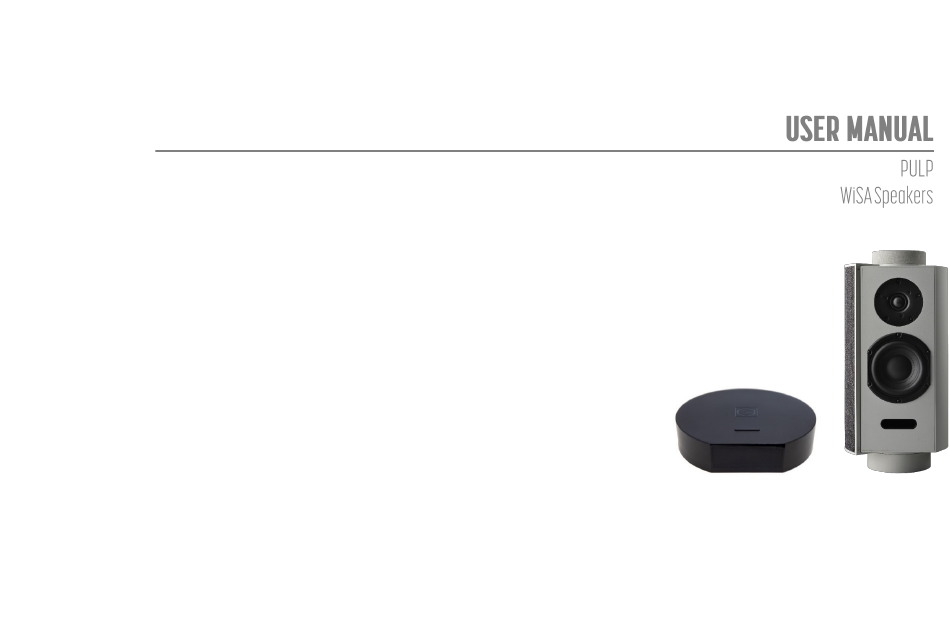

- Page 2 Since 1978, Goldmund has been dedicated to developing audio equipment of the highest quality and accuracy to immerse you in the most realistic audio experience possible. At Goldmund, we are committed to being at the forefront of the creation, development, and manufacture of the industry's most advanced technologies, including audio systems and music distribution.
- Page 3 Nevertheless, if the instructions are carried out in full, you will notice that the use of the PULP is quite simple and convenient. IMPORTANT PLEASE DO NOT CONNECT ANY CABLES OR MOVE ANY PARTS BEFORE READING THE FOLLOWING INSTRUCTIONS.
- Page 4 User Manual – PULP – Bluetooth Speaker - 4 -...

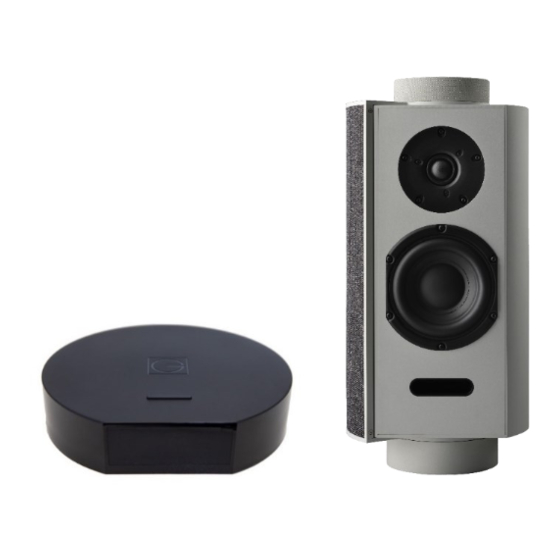

- Page 5 The PULP loudspeaker uses revolutionary technologies to achieve a level of definition and neutrality never reached before in a loudspeaker system. For optimal use of your active speakers, please carefully read the following instructions. For professionals, musicians and all those who expect the very best in audio reproduction, we advocate the use of the highest quality components, especially in terms of electronics and cables.
- Page 6 INPUT INDICATOR LED TOP BUTTON SCREEN DIGITAL OUTPUT S/PDIF POWER HDMI OPTICAL (eArc) (upgrade) User Manual – PULP – Bluetooth Speaker - 6 -...
- Page 7 Pulp TWEETER POWER GRID RESET DIGITAL BUTTON INPUT WOOFER VENT LOADING User Manual – PULP – Bluetooth Speaker - 7 -...
-
Page 8: Network Standby
NETWORK STANDBY When the display shows "NETWORK STANDBY," it indicates that the Pulp Hub is in a low-power state where essential functions such as Bluetooth and HDMI remain active. The device can be awakened using the mobile app (coming soon) or TV controls. - Page 9 Press and hold the 'IN+' button on the remote control for more than 6 1. Select the Bluetooth input on the Pulp Hub using the remote control's “IN+/IN-“ keys. The input name seconds to enter Bluetooth pairing will display on the hub's screen.
- Page 10 As a preamplifier, the Hub offers both wired digital and WiSA wireless output options for connecting to the Pulp speakers. Please note that only one output type can be used at a time. Select your preferred output mode in the Hub settings.
-
Page 11: Reset Connections
The Hub can connect to a multitude of inputs as shown in the product rear feature. RESET CONNECTIONS By default, the Pulp Hub comes paired with the Pulp Speakers from factory. To reset this connection, activate the advance mode, then long press 7 seconds the top button and the screen will display “Factory Reset”. This resets all Wi-Fi speaker connection to the Hub and activates the S/PDIF output mode. - Page 12 You can control the sound volume using the remote control. The Pulp Hub features a Volume Memory function that allows you to conveniently store and retrieve the current audio volume level. To memorize the volume, simultaneously press both VOL+/VOL- keys on the Pulp Hub's remote control for a duration of 3 seconds.
- Page 13 NOTE: these functions are activate only in WiSA output mode. The Pulp App allows for intuitive management of left and right speaker settings, reset the Pulp speakers, adjustment of the logo LED light intensity, and manipulation of the speaker grid.
-
Page 14: Speaker Settings
SPEAKER SETTINGS Left/Right Speaker Identification To identify which of the Pulp speaker units is set to receive left or right signals, long press the speaker icon and the corresponding speaker will emit a chime noise. WiSA pairing Pulp stereo speakers are WiSA configured from factory as indicated in each speaker. - Page 15 Device Version Stay informed about your hub's software version for troubleshooting and updates. This section displays as well the Pulp Hub Bluetooth MAC address. Audio Format This section is crucial for maintenance purposes. It displays the current audio format decoded by the Hub. All audio formats received by the Hub are converted to stereo format for compatibility with the Pulp stereo speakers.
-
Page 16: Power Supply
Dolby TrueHD, Doldby Atmos • • DTS, DTS-ES, DTS-HD, DTS-Express, DTS :X • POWER SUPPLY Nominal line voltage: 100-240 V, 50/60Hz (auto-switchable) • Max power consumption: 10W (Erp < 0.5W) • User Manual – PULP – Bluetooth Speaker - 16 -... - Page 17 INPUTS Digital input • • Wireless audio stream (WiSA) VOLTAGE • Nominal range:115 V or 230 V (+/-15%) SIZE & WEIGHT • 23W x 48H x 23D (cm) 14kg • User Manual – PULP – Bluetooth Speaker - 17 -...
- Page 18 Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved. www.goldmund.com User Manual – PULP – Bluetooth Speaker - 18 -...
