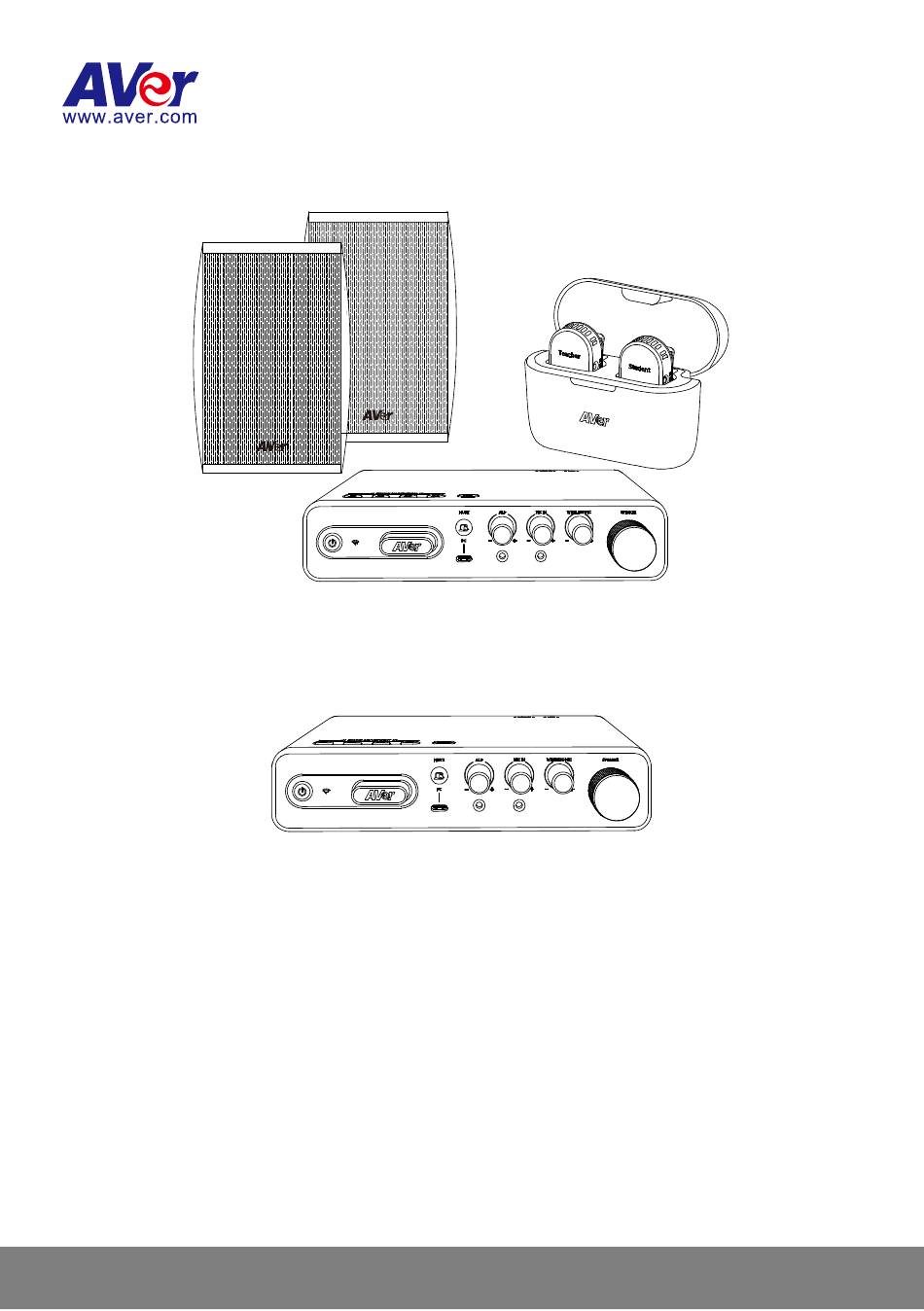

  • Page 1 SAA5 Streaming Audio System SAB5V2 Streaming Audio Box — — User Manual...
  • Page 2 This product is intended to be supplied by a UL Listed Certificate power adapter and power cord, output comply with LPS or PS2, rated 19Vdc, 3.42A min., and Tma 35 degree C min. Please contact manufacturer, UL File owner or AVer for further information and assistance. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules.
  • Page 3 IC Notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 4 © 2023 AVer Information Inc. All rights reserved. | December 21, 2023 All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or...
  • Page 5 Tel: +81 (0) 3 5989 0290 テクニカル・サポート: https://jp.aver.com/technical-support Vietnam Branch Office Công ty TNHH AVer Information (Việt Nam) Tầng 5, 596 Nguyễn Đình Chiểu, P.3, Quận 3, Thành phố Hồ Chí Minh 700000, Việt Nam Tel: +84 (0)28 22 539 211...

  • Page 6: Table Of Contents

    Contents Overview ......................1 Package Contents ..................1 SAB5V2 Streaming Audio Box ..............1 Pendant Microphones ................1 Pendant Microphones Optional Accessories ..........2 Speakers ....................2 Dimensions ..................... 3 Controls and Connections ................4 SAB5V2 Streaming Audio Box ..............4 Pendant Microphones ................
  • Page 7 In the Classroom ..................15 Hybrid Learning ..................16 Web Application Settings ................18 Access to the web application ..............18 Login ......................19 Device Status ....................20 Audio ......................21 Network ......................23 System ......................25 Specification ....................26 SAB5V2 Streaming Audio Box ..............

  • Page 8: Overview

    Overview Package Contents SAB5V2 Streaming Audio Box SAB5V2 Streaming Audio Box Power Adapter 3.5 Stereo to 3.5 & Power Cord(s) Stereo Cable (10m) USB 3.0 Type-C to Type-A SAB5V2 QR Code Card Cable (1.83m) Pendant Microphones SAT5 Pendant Microphones Lanyard (x2) USB 3.0 Type-C to Type-A Cable (1.5m) SAR5 Microphone Receiver...

  • Page 9: Pendant Microphones Optional Accessories

    Pendant Microphones Optional Accessories SAC5 Charging Case USB 3.0 Type-C to Type-A Cable (3m) Speakers Speakers Wall Mount Bracket Knob (x4) Bracket (x2) Speaker Cable (20m) Drill Template (x2) SAA5 QR Code Card...

  • Page 10: Dimensions

    Dimensions SAB5V2 Audio Streaming Box Charging Case Pendant Microphones 122.3mm (4.81”) 88.7mm (3.49”) 51.3mm (2.02”) Speakers 170mm (6.69”) 250mm (9.84”) 150mm (5.90”)

  • Page 11: Controls And Connections

    Controls and Connections SAB5V2 Streaming Audio Box Top Cover Sound Adjustment Buttons Front Panel Power Button Short press: Power on. Long press for 5 seconds: Enter Standby Mode.  Solid green: Power on  Flashing green: Start-up  Solid red: Wake-on-LAN mode (when connected to power) ...
  • Page 12 Back Panel 10. Volume Controls: USB Audio Class (UAC) / Line In 11. Ethernet Port 12. USB Type-A Port 13. Line In Port 14. Page Mute Port 15. Kensington Lock 16. Line Out Port 17. Speaker Push-in Terminal Connector Block 18.

  • Page 13: Pendant Microphones

    Pendant Microphones 1. Power/Mute Switch Press and hold for 3 seconds to turn the microphone on or off. 2. Mic In Port 3. USB Type-C Port Emergency Button (on Teacher Microphone) 5. Volume Up/Down 6. Battery LED  Solid green: Normal ...

  • Page 14: Charging Case

    Charging Case  USB Type-C Port Solid green: Fully charged  Kensington Lock Solid red: Charging Speakers 1. Wall Mount Bracket Knob 2. Speaker Spring Binding Post Terminal Connector...

  • Page 15: Power Connection

    Power Connection Connect the included power adapter and power cord to a power outlet with earthing connection. Wall Mount Installation The speakers should be mounted 2.13m (7 feet) from a wall outlet. 1. Level and tape the template to the wall. Drill pilot holes through the template and into the wall. 2.

  • Page 16: Getting Started

    Set up Your SAB5V2 Streaming Audio Box Insert the Microphone Receiver (Dongle) 1. Remove the plug and insert the microphone receiver (dongle) included in the SAA5 Streaming Audio System. 2. Short press the Power button to turn on the SAB5V2 Streaming Audio Box.

  • Page 17: Use Your Microphone

    Use Your Microphone Please follow the instructions below for optimal audio quality. 1. Tuck the lanyard through the hook and pull hard to secure the lanyard. Then wear it around your neck. 2. Adjust the lanyard to position the microphone approximately 15cm (5.9”) from mouth.

  • Page 18: For Emergencies

    For Emergencies The emergency feature is only available in the US. 1. Connect the SAB5V2 Streaming Audio Box to your local network with an Ethernet cable and the Device Management software. 2. Press and hold the SOS button on the Teacher Microphone for 3 seconds to broadcast your location.

  • Page 19: Replace Your Microphone Battery

    Replace Your Microphone Battery [Note] The battery should be replaced by its manufacturer, service technician or a similarly qualified person. 1. Turn off the microphone. Loosen the screw and open the battery door 2. Remove the battery by gently pulling up from the notch on the bottom. 3.

  • Page 20: Audio Features

    Audio Features Page Mute When the page mute input terminal sense a strong enough signal, it will automatically mute all other audio inputs sources. This is to allow that everyone can hear the broadcasts from the Public Address System.

  • Page 21: Audio Output To Assistive Listening Devices (Ald)

    Audio Output to Assistive Listening Devices (ALD) Assistive listening devices (ALD) can help students hear a teacher speaking across the room or hear a conversation in a noisy room. Turn the ALD volume control all the way down on the SAB5V2 Streaming Audio Box.

  • Page 22: In The Classroom

    In the Classroom 1. Short press to turn on the SAB5V2 Streaming Audio Box. Press and hold the Power/Switch button for 3 seconds to pair your pendant microphone. 2. Or use a wired microphone by:  Plugging it into the Mic In port on the pendant microphone that has been paired with the SAB5V2 Streaming Audio Box.

  • Page 23: Hybrid Learning

    Hybrid Learning 1. Short press to turn on the SAB5V2 Streaming Audio Box. Press and hold the Power/Switch button for 3 seconds to pair your pendant microphone. 2. Connect devices. A slight popping sound during connection is considered a normal phenomenon. ...
  • Page 24 3. Open your video conferencing software, such as Google Meet, Skype, Microsoft Teams or Zoom, and select “SAB5 Series” as the microphone and speaker source. 4. Sound Adjustment Button behaviors: Icon Action Function Press and release Mute the whole Audio System. Short press Lower volume in steps.

  • Page 25: Web Application Settings

    Web Application Settings Access to the web application 1. Connect your SAB5V2 Streaming Audio box to the power adapter and the Ethernet cable. 2. To find your SAB5V2 Streaming Audio Box IP address, download the AVer IPCam Utility from https://www.aver.com/Downloads/search?q=AVer%20IPCam%20Utility%20for%20Camera%20IP %20Searching and launch the application.

  • Page 26: Login

    Login 1. Enter the default Username and Password: admin / admin to log in. 2. For first time login, the system will ask you to change your Username and Password. 3. Read anonymous usage data policy. Select the checkbox to agree, and then click Done. 4.

  • Page 27: Device Status

    Device Status Item Description Export Logs Click to download the logs for current settings to your local files. 1. Click to restart your Streaming Audio Box, and click OK on the pop-up window to continue. It may take a few minutes to reboot. Reboot 2.

  • Page 28: Audio

    Audio Audio Out Item Description Click the toggle switch to turn on or off the public amplifier mute function. Page Mute For more information about this function, please refer to <Page Mute>.  Drag the slider to adjust the volume. Master Knob Control ...
  • Page 29 Audio In Item Description Click the toggle switch to lock or unlock input settings. Input Lock When the switch is on, you cannot change MIC in, UAC and Line in values. Wireless MIC  Drag the slider to adjust the volume. ...

  • Page 30: Network

    Network Network Setting Item Description Click the toggle switch to switch between DHCP and Static IP.  DHCP: The system will assign a related IP address to the device. DHCP  Static IP: You may manually enter IP Address, Netmask, Gateway and DNS.
  • Page 31 HTTPS Settings Click the HTTPS toggle switch to turn on or off the function. When HTTPS function is on, it will establish a secure connection between your browser and your Streaming Audio Box. 1. Create a SSL certificate file for encryption and decryption. 2.

  • Page 32: System

    View your device information, including Model Name, Serial Number, Information IP Address, MAC Address, and Firmware Version. 1. Download firmware update file from Aver Download Center to your computer. Upgrade Firmware 2. Click Choose File to select the firmware update file.

  • Page 33: Specification

    Specification SAB5V2 Streaming Audio Box DC Power Standby Mode <1.5W (WoL) Power Consumption 65W max. Dimensions (W x D x H) 210 x 110 x 48.5mm (excluding rubber) Net Weight 530g ±50g  Solid green: Power on  Flashing green: Start-up ...
  • Page 34 UAC Port USB Type-A 2.0 Line In Port 3.5mm stereo Line Out Port 3.5mm stereo Speaker Out Speaker push-in terminal connector block Ethernet Port DC Power Jack Kensington Lock Page Mute Port...

  • Page 35: Pendant Microphones

    Pendant Microphones Teacher Student Style Pendant with clip and lanyard Channels Transmission Type Wireless Wireless Frequency 2.4 GHz Frequency Response 50 Hz - 20 kHz Coverage 20m (65 ft.) Microphone Capsule Omni-directional electret condenser Battery Rechargeable and removable Li-ion battery Battery Power 3.7V Talk Time...

  • Page 36: Wireless Receiver Dongle

    When in use:  Solid green: Normal  Flashing red: Low battery Battery LED When charging:  Solid green: Fully charged  Solid red: Charging Mic In Port 3.5mm stereo USB Type-C Port Power Rating 5 VDC, 0.4A Wireless Receiver Dongle Transmission Type Wireless Wireless Frequency...

  • Page 37: Environmental Specifications

    Distortion Frequency Response 88Hz -25kHz ± 3dB Sensitivity 88 dB 1 Watt (1M1W) Impedance 6 Ohms nominal Mounting Wall mount Dimensions (W x D x H) 170 x 250 x 150mm Net Weight 4.75kg Power Output 15W RMS each Environmental Specifications Working temp.

  • Page 38: Troubleshooting

    Troubleshooting Microphone doesn’t pair.  Make sure the SAB5V2 Streaming Audio Box is turned on. A solid green or orange light on the Power button will indicate that it is powered on.  Make sure the SAB5V2 Streaming Audio Box is not placed in an enclosed space where the Wi-Fi signal may be obstructed.
