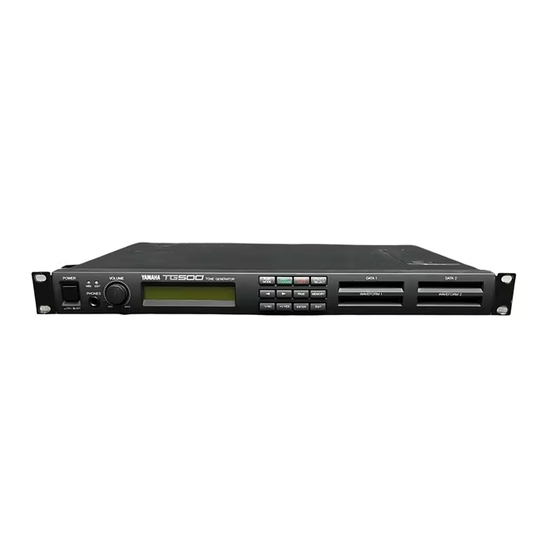

Yamaha TG-500 Supplementary Manual

TG500
MIDI DATA FORMAT
1. Synthesizer mode
1. MIDI reception/transmission block diagram
<MIDI reception conditions> 1/2
Ｒch ---- Voice Receive ch.
Poly AT FLT
Control chg.
FLT
VCE,PFM
MIDI
MULTI
VCE,PFM
MULTI
<MIDI reception conditions> 2/2
MIDI
≠off
＜Dev No＞
Dev No = Device Number
$FE ACTIVE SENSING
VCE,PFM
＜ Ｒch ＞
$8n NOTE OFF
＜each ch＞
$9n NOTE ON/OFF
MULTI
VCE,PFM
＜ Ｒch ＞
$An POLY AFTER TOUCH
＜each ch＞
MULTI
VCE,PFM
＜ Ｒch ＞ $Bn,$00 controllers
↓
＜each ch＞ ↓
MULTI $Bn,$78
PLAY MODE Program Change
$Bn,$20
＜ Ｒch ＞
$Bn,$00 BANK SELECT
on on
I, C, and P are switched.
＜each ch＞
Program Change
PLAY MODE
＜ Ｒch ＞
$Cn PROGRAM CHANGE
on
on
I, C, and P are not switched
＜each ch＞
VCE,PFM
＜ Ｒch ＞ $Dn AFTER TOUCH
＜each ch＞
MULTI
VCE,PFM
＜ Ｒch ＞
$En PITCH BENDER
＜each ch＞
MULTI
$F0,$43,$10,$29,$08,$00
SW REMOTE
Bulk Protect
$F0,$43,$0n,$7A NORMAL VOICE bulk
(LM__0065VC)
off
$F0,$43,$0n,$7A DRUM VOICE bulk
(LM__0065DR)
$F0,$43,$0n,$7A PERFORMANCE bulk
(LM__0065PF)
$F0,$43,$0n,$7A SONG(MULTI) bulk
(LM__0065MU)
$F0,$43,$0n,$7A SYNTH SETUP bulk
(LM__0066SY)
$F0,$43,$0n,$7A Sample bulk(SY99)
(LM__0040SA)
Sample Dump Standard
$F0,$7E,$cc,$01 Dump Header
$F0,$7E,$cc,$02 Data Packet
$F0,$43,$1n,$29,$xx Parameter change
$F0,$43,$1n,$04,$40 Parameter change
(Master Tuning)
$F0,$43,$2n,$7A VOICE bulk D.req.
(LM__0065VC)
$F0,$43,$2n,$7A PERFORMANCE bulk D.req.
(LM__0065PF)
$F0,$43,$2n,$7A MULTI bulk D.req.
(LM__0065MU)
$F0,$43,$2n,$7A Synth Setup bulk D.req.
(LM__0066SY)
$F0,$43,$2n,$7A 1 Sample bulk D.req.
(LM__0040SA)
Sample Dump Standard
$F0,$7E,$cc,$03 Dump Request
$F0,$7E,$cc,$7C Wait
$F0,$7E,$cc,$7D Cancel
$F0,$7E,$cc,$7E NAK
$F0,$7E,$cc,$7F ACK
<MIDI transmission conditions>
Voice bulk
Performance bulk
Multi bulk
Synth setup bulk
Sample bulk
Sample dump standard
Parameter change
Sample Dump Request
2. Channel message
2.1 Reception
↓
↓
↓ 2.1.1 Note Off
Reception note range
Velocity range
2.1.2 Note On/Off
Reception note range
Velocity range
2.1.3 Polyphonic After Touch
Polyphonic After Touch is received when it is set to on during
system setup.
Reception note range
If the received note exceeds the above range, the effect is applied
to the maximum and minimum note values.
2.1.4 Control change
The parameters in the table below can be controlled by MIDI.
* Pan is received only when MULTI is generated.
1
＜Dev No＞
≠off
= C-2...G8
= Not received
= C-2...G8
= 0...127
= E0...G6
cntrl parameter data rng
10 Pan* 0 ∼ 127
16 Effect Control 1 0 ∼ 127
17 Effect Control 2 0 ∼ 127
18 MIDI Control 3 0 ∼ 127
19 MIDI Control 4 0 ∼ 127
0 ∼ 119 Volume 0 ∼ 127
0 ∼ 120 MIDI Control 1 0 ∼ 127
0 ∼ 120 MIDI Control 2 0 ∼ 127
0 ∼ 120 MIDI Control 3 (add) 0 ∼ 127
0 ∼ 120 MIDI Control 4 (add) 0 ∼ 127
0 ∼ 120 Effect Control 1 (add) 0 ∼ 127
0 ∼ 120 Effect Control 2 (add) 0 ∼ 127
64 Sustain Switch 0, 127
MIDI
