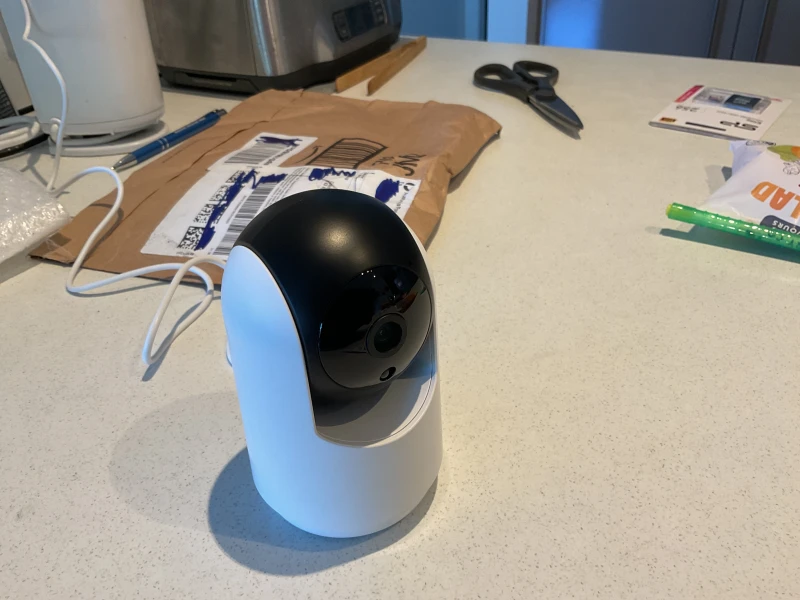

- Page 1 User Manual Smart 2K Pan & Tilt Indoor Camera LSH-2K360-375...
-
Page 2: Safety Information
SAFETY INFORMATION • For indoor use only. • Only use recommended power adapters as indicated in the specifications. • Keep device away from water, fire, humidity or hot areas. • Don't try to open, fix or modify the device. • Don't use the device where wireless devices are not allowed. -
Page 3: What's In The Box
UHS Speed Class 1 (U1) or higher. • Smartphone or tablet connected to a 2.4GHz Wi-Fi network. • Wi-Fi network password Installation process: 1. Install the Laser SmartHome app on your smartphone or tablet. 2. Connect the camera using the app. 3. Install the camera. -
Page 4: Install App
INSTALL APP Scan the QR code to get the Laser SmartHome app on your iOS or Android device. Apple App Store Laser SmartHome Google Play (supported on app icon Store (supported iOS 11.0 and up) on Android 6.0 and up) Launch the app. -
Page 5: Configure Settings
CONFIGURE SETTINGS Configure recommended app settings: 1. Tap on Me icon in the bottom right. 2. Tap on (Settings) icon in the top right. NOTE: App features and screenshots may change as we keep improving the app. - Page 6 CONFIGURE SETTINGS continued... 3. Select App Notifications. 4. Turn on all notification settings. 5. Return to the app's home screen.
- Page 7 TURN ON CAMERA • Ensure Wi-Fi is enabled on your smartphone or tablet. NOTE: Use a stable 2.4GHz Wi-Fi network only. • Manually rotate the camera upwards to find the Reset button and the microSD card slot. • Insert a microSD card (up to 256GB) with metal contacts facing up and push it in until you hear a clicking noise.
- Page 8 TURN ON CAMERA continued... • Wait for the camera to start up. A voice prompt will confirm it's ready to connect. A fast blinking blue LED also indicates readiness to connect. If the blue LED blinks slowly, tilt the camera up, locate the Reset button, press it with a pin until it beeps, then let go.
- Page 9 CONNECT WITH APP Discover device The app will find the device; tap Add. If not, go to Camera & Lock > Smart Camera (Wi-Fi) on the left panel.
- Page 10 CONNECT WITH APP Reset Device Confirm the blue LED is blinking rapidly.
- Page 11 CONNECT WITH APP Confirm Wi-Fi Network Confirm/enter Wi-Fi network name and password. NOTE: Your device must be connected to a 2.4GHz Wi-Fi network.
- Page 12 CONNECT WITH APP Scan QR Code Hold your device with the QR code 15-20cm in front of the camera. Slowly move it back and forth or sideways until the camera detects it clearly. When the camera reads the code, it will beep and start connecting to your Wi-Fi.
- Page 13 CONNECT WITH APP continued... Wait for the app to confirm the camera is added. If it fails, restart the process from page 6.
-
Page 14: Install Camera
INSTALL CAMERA After adding your camera in the Laser SmartHome app, choose where to put it: on a table, shelf, wall, or ceiling using the camera base and screws provided. Ensure a strong Wi-Fi signal for the best video streaming by placing the camera near your router. -
Page 15: Access Camera
ACCESS CAMERA Laser SmartHome App Home Screen View video from all connected cameras Tap to access the app for the camera: view live video, view recorded video and configure Manage account information Manage automation and tap-to-run scenes... -
Page 16: App Interface
APP INTERFACE Camera App Home Screen Access device settings (see page 18) Tap to listen/ mute live audio Tap to select Tap to view live video in different resolution: SD aspect ratios: or HD widescreen or narrow Change camera view by swiping in any direction;... - Page 17 APP INTERFACE Additional Features Go back to previous screen Watch manually Swap between recorded light/dark app media themes View automatically Stop recording recorded manually media Enable/ Control disable motion infra-red detection lights: on/ Additional off/auto features See notification Enable/disable tracking messages moving object Reduce/eliminate video...
- Page 18 SETTINGS Change device name, icon and location See IP & MAC addresses, Wi-Fi signal strength and device ID Turn off video capturing to ensure privacy Refer to page 20 Control infra-red lights: On/Off/Automatic Access motion detection-related settings (see page 21) Format microSD card;...
- Page 19 SETTINGS continued... Schedule and configure video recording Access cloud storage (subscription sold separately) Enable offline notification Share access to the device with others Add camera to Home screen of your device Check current firmware version, update camera firmware Remove camera from account...
-
Page 20: Basic Function Settings
BASIC FUNCTION SETTINGS Enable to flip camera image (when ceiling mounted) Enable to display date & time on video Reduce or eliminate flickering effects in video Optimise camera performance... - Page 21 MOTION DETECTION SETTINGS Turn on/off motion detection Adjust motion detection sensitivity level: Low, Medium or High Turn on/off monitoring specific area Define area for monitoring (see next page) Enable to filter out humans to avoid getting notifications about them Turn on/off tracking a moving object Turn on/off sound detection...
- Page 22 DEFINE MONITORING AREA Drag/resize the red frame to set the active monitoring area.
-
Page 23: Recording Settings
RECORDING SETTINGS Turn on/off recording to microSD card Select continuous recording or when motion event has been detected Schedule when to start/end recording. Schedule the event: determine its frequency and timing. Turn notifications on/off for events. Turn recording on/off to microSD card. -
Page 24: Playback Recordings
PLAYBACK RECORDINGS Timestamp Audio on/off Record video from footage (and watch them in Gallery) Capture photo from footage Watch in (watch them in full screen Gallery) landscape mode Pick date Zoom in/out with spread Recorded and pinch video gestures to stretch/shrink timeline *These recordings will be saved on your phone or tablet. - Page 25 GALLERY Captured photos and videos from live stream or event recordings can be viewed here. Share recording Delete recording...
-
Page 26: Additional Resources
ADDITIONAL RESOURCES Check out this website for instructional videos on: • Connecting your Laser SmartHome devices with Google Home and Amazon Alexa. • Using Google and Amazon voice assistants to control your devices. • Setting up scenarios and automations. •... - Page 27 Can I register my devices to another Laser SmartHome account? • A device can only be linked to one Laser SmartHome account. • If you want to connect the device to a different account or pass it on to a family member, you must first remove it from your account.
- Page 28 Tap > to send us an unbinding request via the app. Can I stream live video if I'm travelling overseas? Yes, just make sure your smartphone with Laser SmartHome app and Laser SmartHome devices are connected to the internet. Additional charges for international data roaming may apply.
- Page 29 • Make sure notifications are enable within the Laser SmartHome app (see page 5-6). • Make sure the Laser SmartHome app is running in the background. If you restarted your phone, open the app again. • Check the 'Do Not Disturb' toggle in the...
- Page 30 This can cause delays in notifications. To fix this: • Go to Settings > Apps. • Find Laser SmartHome in the apps list and tap on it. • Tap Battery. • Change from 'Optimized' to 'Unrestricted' to allow the app to run in the background without interference.
-
Page 31: Troubleshooting
TROUBLESHOOTING The device does not appear on the app: • If the camera's blue LED is not blinking rapidly, tilt the camera up, locate the Reset button, press it with a pin until it beeps, then let go. Wait for the camera to restart and confirm it's ready to connect. - Page 32 TROUBLESHOOTING continued... • If both 2.4GHz and 5GHz bands are using the same SSID, find the settings that allow you to separate the 2.4GHz and 5GHz bands. Usually, there will be an option to configure each band individually. Change the SSID for one or both bands to make them distinct.
-
Page 33: Specifications
Built-in microphone and speaker Wi-Fi standard 802.11 b/g/n Wi-Fi Frequency 2.4GHz External storage microSD card slot (supports up to 256GB) Laser SmartHome (supported on Android 6.0 and up; iOS 11.0 and up) Voice control Amazon Alexa, Google Assistant Power USB-C... - Page 34 Thank you for your purchase! Laser Corporation is 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and...
- Page 35 Visit our website www.laserco.com.au Check us out at www.youtube.com/lasercoau...
