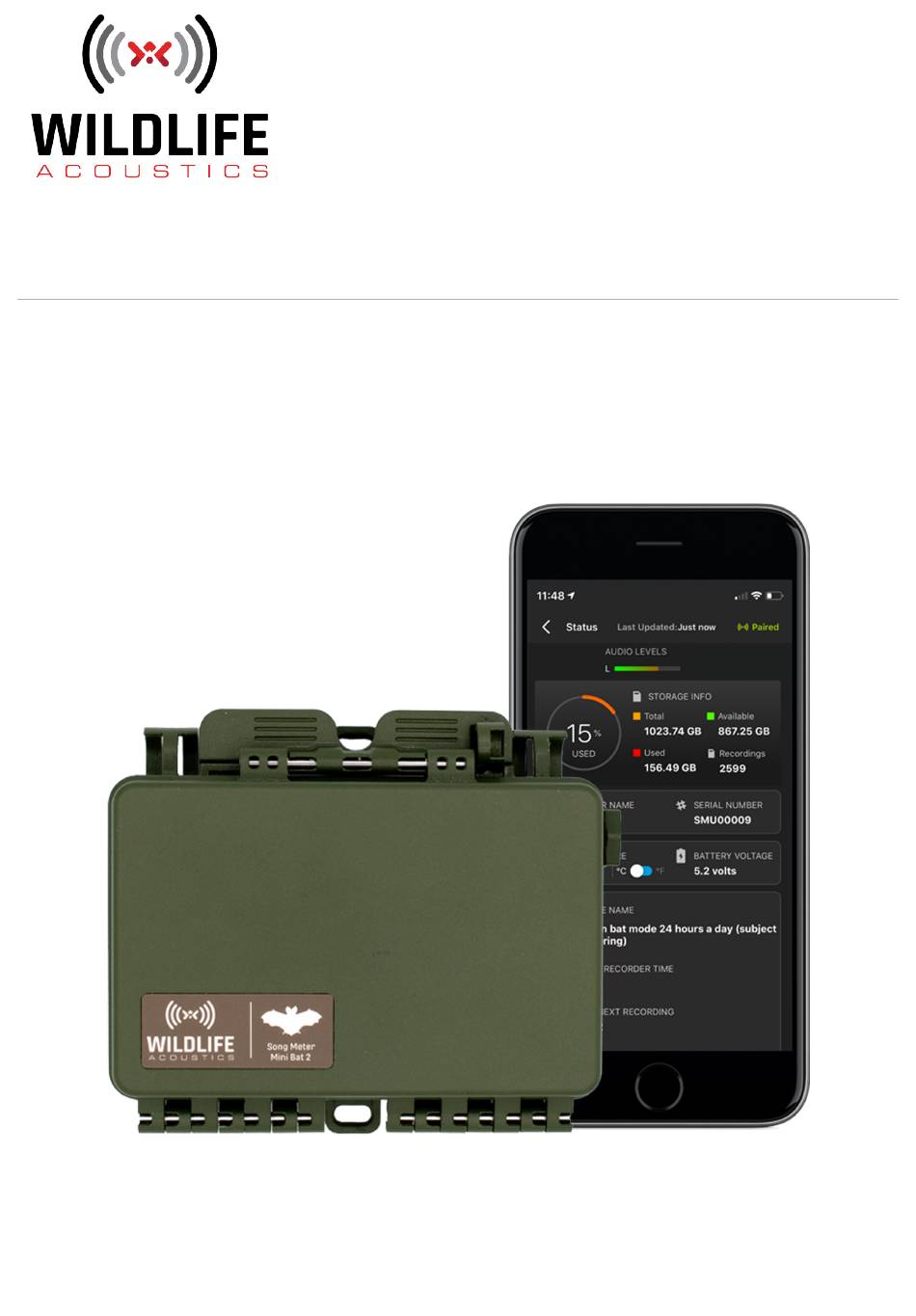

Page 1 Song Meter Mini Bat 2 User Guide April 1, 2024...
Page 2: Table Of Contents
Song Meter Mini Bat 2 User Guide Table of Contents 1. Song Meter Mini Bat 2 Quickstart Guide ....5 2. About the Song Meter Mini Bat 2 ......8 2.1. Battery Configuration Versions ....9 2.2. Comparing the Song Meter Mini Bat and Song Meter Mini Bat 2 ......
Page 3 Song Meter Mini Bat 2 User Guide 5.6. Deployment Length Estimations ..149 6. Maintaining and Protecting the Song Meter Mini Bat 2 ............158 6.1. Update the Recorder's Firmware ..158 6.2. Testing Microphone Sensitivity ... 168 6.3. Weatherproofing ......... 177 6.4.
Page 4 Song Meter Mini Bat 2 User Guide 9.3. Unable to Pair App with Recorder ..265 9.4. SD Card Error Messages ..... 268 9.5. Restore Recorder to Factory Defaults . 274 9.6. Export Diagnostics Files ...... 277 10. Useful Resources .......... 282 10.1.
Page 5: Song Meter Mini Bat 2 Quickstart Guide
Song Meter Mini Bat 2 User Guide 1. SONG METER MINI BAT 2 QUICKSTART GUIDE Out of the box, the Song Meter Mini Bat 2 can be quickly configured to run one of several preset schedules that cover common use cases.
Page 6 Recorders screen. Press and hold the PAIR/STATUS button on the Song Meter Mini Bat 2 for three seconds. The Bluetooth LED will blink green, indicating the recorder is ready to pair with the app.
Page 7 13. Tap the < (back) button to return to the Recorders screen. 14. Tap Unpair. The Song Meter Mini Bat 2 will now begin running the schedule you selected. SETTINGS CHANGES ARE SAVED AUTOMATICALLY...
Page 8: About The Song Meter Mini Bat 2
Song Meter Mini Bat 2 User Guide 2. ABOUT THE SONG METER MINI BAT 2 The Wildlife Acoustics Song Meter Mini Bat 2 is an ultrasonic bioacoustics recorder designed for recording bats and other wildlife with ultrasonic vocalizations. With the addition of an optional, acoustic microphone, it can...
Page 9: Battery Configuration Versions
The Song Meter Mini Bat 2 can be purchased with one of two options for battery power: • The Song Meter Mini Bat 2 AA can run on either four or eight AA batteries. Alkaline, NiMH, and Energizer® Ultimate Lithium™...
Page 10 Song Meter Mini Bat 2 User Guide • The Song Meter Mini Bat 2 Li-ion can run on between one and six 18650 Lithium-ion (Li-ion) batteries. See Lithium-Ion Battery Requirements (page 293) details on choosing compatible batteries. NOTE These are two separate versions of the Song Meter Mini Bat 2.
Page 11: Comparing The Song Meter Mini Bat And Song Meter Mini Bat 2
2.2. COMPARING THE SONG METER MINI BAT AND SONG METER MINI BAT The Song Meter Mini Bat 2 builds on the first-generation Song Meter Mini Bat by taking into account the feedback we have received from users running all types of deployments since the original product's launch in 2020.
Page 12 While the first-generation Song Meter Mini Bat's enclosure was comprised of a separate base and lid, the enclosure of the Song Meter Mini Bat 2 is joined by a permanent hinge, and the new, lockable latch can be more easily operated with one hand. The latch can be locked close using an appropriately sized padlock, without requiring an additional security bracket.
Page 13 The back of the Song Meter Mini Bat 2 features a tripod- style, ¼”-20 threaded mounting point. This enables you to mount the recorder using many accessories designed for trail cameras and similar devices.
Page 14 Song Meter Mini Bat. AA Batteries The Song Meter Mini Bat 2 AA can be used with either four or eight AA batteries. With eight AA batteries installed, you can record for twice as long as the original Song Meter Mini Bat could with AA batteries.
Page 15 Lithium-Ion Batteries The Song Meter Mini Bat 2 Li-ion can be used with any number of 18650 batteries between one and six. Unlike the first-generation Song Meter Mini Bat's Lithium-ion Lid accessory, 18650 batteries do not need to be installed...
Page 16 New Ultrasonic Microphone The Song Meter Mini Bat 2 uses a different microphone than the original Song Meter Mini Bat. While the characteristics are generally very similar, it is...
Page 17 Both recorders can also share configuration files. A configuration file exported from a Song Meter Mini Bat can be imported into a Song Meter Mini Bat 2, and vice-...
Page 18 Song Meter Mini Bat 2 User Guide versa. This provides a simple way to maintain consistent settings across a mixed fleet of recorders. NOTE Configuration files that include the use of an optional second microphone cannot be completely imported into a recorder that does not have the second microphone installed.
Page 19: Hardware Overview
Song Meter Mini Bat 2 User Guide 3. HARDWARE OVERVIEW 3.1. EXTERNAL FEATURES Durable, Weather-Proof Enclosure The Song Meter Mini Bat 2 recorder is designed for long-term, outdoor deployment. Made from durable polycarbonate plastic, it is UV-resistant and weatherproof. The enclosure meets IP67 standards, meaning it can withstand temporary submersion in water up to a depth of one meter without leaking.
Page 20 Song Meter Mini Bat 2 User Guide Figure 2. Front-Left View The Enclosure Latch snaps into place to keep the enclosure sealed. One of two Mounting Loops, which can accommodate bungee cords, rope, or cable locks up to a diameter of 0.420 in. (10.67 mm). See...
Page 21 Song Meter Mini Bat 2 User Guide Figure 3. Front-Right View A Padlock Loop allows the enclosure to be locked closed. See Lock Compatibility (page 24) for padlock size recommendations. One of two Mounting Loops, which can accommodate bungee cords, rope, or cable locks up to a diameter of 0.420 in.
Page 22 Song Meter Mini Bat 2 User Guide The Barcode Label lists the recorder's Model Name and Serial Number. This information is also visible in the Song Meter Configurator app on the Status Screen (page 195). A waterproof Humidity Vent regulates humidity and pressure inside the enclosure.
Page 23 Song Meter Mini Bat 2 User Guide Versatile Mounting Options The enclosure of the Song Meter Mini Bat 2 is equipped with attachment points that support a wide range of mounting options: • Mounting Tabs at the top and bottom of the enclosure's back feature holes suitable for bolts or screws up to 3/16 in.
Page 24 Take extra care when attaching the recorder to young trees. The tree's growth over the course of a deployment could increase the strain on the enclosure. Lock Compatibility The enclosure of the Song Meter Mini Bat 2 is designed to support two layers of security:...
Page 25 Cable Lock Compatibility A cable lock can be threaded through the two Mounting Loops along the top of the Song Meter Mini Bat 2 to keep it attached to a tree or structure. The diameter of a cable lock must be narrower than 0.420 in.
Page 26 Support (page 284) to arrange a repair. Optional Acoustic Microphone Port The Song Meter Mini Bat 2 has a port for an optional, acoustic microphone. When installed, this allows the recorder to alternate between recording ultrasound and recording audio in the range of human hearing.
Page 27 Song Meter Mini Bat 2 User Guide For instructions on installing the optional acoustic microphone, see Install a Second Microphone (page 44).
Page 28: Internal Features
Song Meter Mini Bat 2 User Guide 3.2. INTERNAL FEATURES Figure 5. Internal Overview The Status LED Key provides a guide for understanding the STATUS LEDs . This table can also be found under STATUS LEDs (page 38). The Control Panel is where you'll find several basic, physical controls.
Page 29 See Microphones (page 43). Battery Compartment The lid of the Song Meter Mini Bat 2 holds the recorder's batteries. Depending on the version of the recorder, it holds either AA batteries or 18650 Lithium-ion batteries. AA Battery Compartment...
Page 30 Song Meter Mini Bat 2 User Guide The AA battery compartment holds two plastic battery trays. Each tray holds four AA batteries, and you can power the recorder with four or eight AA batteries in total. If you use only four AA batteries, all four must be installed in the same tray.
Page 31 Song Meter Mini Bat 2 User Guide For information on the different types of AA batteries, including Energizer® Ultimate Lithium™, see Types of AA Batteries (page 293). BEST PRACTICES FOR AA BATTERIES • Do not mix new or freshly charged batteries with used or uncharged batteries.
Page 32 Song Meter Mini Bat 2 User Guide Lithium-Ion Battery Compartment The lid of the Li-ion version of the Song Meter Mini Bat 2 holds between one and six lithium-ion 18650 batteries. You can install any number of 18650 batteries in any of the slots, and the recorder will work as intended, but using more batteries provides longer run time.
Page 33 Song Meter Mini Bat 2 User Guide BEST PRACTICES FOR LITHIUM- ION BATTERIES • Do not mix freshly charged batteries with drained batteries. • Unlike many rechargeable AA batteries, lithium-ion batteries are shipped with no stored charge. You must charge them before initial use.
Page 34 Song Meter Mini Bat 2 User Guide SD Card Slot The Song Meter Mini Bat 2 recorder saves recording files and a summary log to an SD card installed in the memory card slot. To insert an SD card, slide it into the SD Card Slot until it clicks into place.
Page 35 Song Meter Mini Bat 2 User Guide NOTE Be sure the card’s write-protection switch is set to the unlocked position. The Song Meter Mini Bat 2 recorder will not record to a write-protected card.
Page 36 Song Meter Mini Bat 2 User Guide Figure 6. Control Panel The ON/OFF switch powers the recorder on or sets it to a low-power, idle state. See ON/OFF Switch (page 37). The PAIR/STATUS button serves two functions: Press and hold the button to initiate pairing with the Song Meter Configurator app.
Page 37 • OFF (down position): The recorder enters a low- power idle state. Schedule is stopped. When the Song Meter Mini Bat 2 recorder is first powered on, the STATUS LEDs show Bluetooth , Recording , and SD Card status. If the recorder is unpaired and its buttons are not touched for one minute, the LEDs will turn off.
Page 38 Song Meter Mini Bat 2 User Guide NOTE When the Song Meter Mini Bat 2 recorder is switched off, it goes through a routine to end and save any current recording. This can take a few seconds. This process means it is safe to set the switch to OFF at any time.
Page 39 Song Meter Mini Bat 2 User Guide Table 1. Status LED Key LED Label Status Meaning Activity Bluetooth Not paired with the Song Meter Configurator app Green Ready to pair with Blinking the Song Meter Configurator app Green Paired with the Song...
Page 40 Error: SD Card issue Triggered ultrasonic mode only. Function Button and LEDs The physical controls on the Song Meter Mini Bat 2 allow you to perform four utility functions without the Song Meter Configurator app. Instructions on performing these utility functions using the physical controls and using the Song Meter Configurator app can be found elsewhere in this documentation.
Page 41 Song Meter Mini Bat 2 User Guide FUNCTION button or the Song Meter Configurator app. Diagnostics Files (page 256) for a description of what diagnostics files are and when they are useful. • Load : This loads a configuration file (ending in .miniconfig) and/or firmware file (ending in .smm)
Page 42 It resets the structure of the card and reduces the likelihood of data corruption. Reformatting can be done using the Song Meter Mini Bat 2 or using the SD Association's official, free formatting utility for Windows and Mac.
Page 43: Microphones
An optional acoustic-range microphone can be purchased and added to the right side of the Song Meter Mini Bat 2. This allows you to use the same recorder to alternate between ultrasonic recording and audible-range recording.
Page 44 Interface (page 221). Install a Second Microphone The Song Meter Mini Bat 2 has a port available for a second, optional microphone, which you can install yourself. To do so, you'll need to remove the plastic hex bolt that occupies the Right Microphone port and install...
Page 45 Once the microphone is installed, it should only be removed if it needs to be replaced. Open the lid and place the Song Meter Mini Bat 2 on a flat surface. Use a 3/4" or adjustable hex wrench to gently loosen the bolt from the nut, then use your hand to completely unscrew the bolt.
Page 46 Song Meter Mini Bat 2 User Guide If the recorder is laid flat on its back, the internal hex nut will stay in place. The nut is necessary to secure the new microphone. Thread the wire connector for the second microphone through the hole.
Page 47 Song Meter Mini Bat 2 User Guide When the microphone is correctly installed, the recorder's Status screen will display RIGHT MICROPHONE: Attached. For info on how to view the recorder's status screen via the Song Meter Configurator app, see Status Screen (page...
Page 48 Song Meter Mini Bat 2 User Guide IMPORTANT The front face of the SD card holder is used to keep the batteries in place when the lid is closed. The microphone wire must not be loose or in front of the SD card holder.
Page 49: Deploying The Song Meter Mini Bat 2
Song Meter Mini Bat 2 User Guide 4. DEPLOYING THE SONG METER MINI BAT 2 4.1. DEPLOYMENT CHECKLIST Below are some basic steps we recommend taking as part of each deployment. These steps are described in greater detail elsewhere in this documentation.
Page 50 Song Meter Mini Bat 2 User Guide Download Firmware Updates (page 283) update instructions. ☐ On the Status screen, check for SD Card Error Messages (page 268). ☐ Pair with the recorder and confirm that all settings and the schedule are correct (see...
Page 51 .minidiags files. SD Card Contents (page 244) for information about the types of files the Song Meter Mini Bat 2 saves to the SD card. ☐ If you will be storing the Song Meter Mini Bat 2 for a long period of time, remove the batteries to prevent the possibility of battery leakage.
Page 52: Install The Song Meter Configurator App
Song Meter Mini Bat 2 User Guide 4.2. INSTALL THE SONG METER CONFIGURATOR APP The Song Meter Configurator app is available free-of- charge and is necessary to configure the Song Meter Mini Bat 2. The Song Meter Configurator app is available on the Apple App Store for iOS devices and on the Google Play store for Android devices.
Page 53 Song Meter Mini Bat 2 User Guide If you are unable to install the Song Meter Configurator app, check your installed version of iOS. The version number must be at least 12.0. If you are unable to check your iOS version or...
Page 54: Pair The Recorder With The Song Meter Configurator App
4.3. PAIR THE RECORDER WITH THE SONG METER CONFIGURATOR APP To set the Song Meter Mini Bat 2's date and time and to configure the recorder's settings using the Song Meter Configurator mobile app, you must pair the app with the...
Page 55 Song Meter Mini Bat 2 User Guide NOTE The Song Meter Configurator app can only be paired with a single recorder at a time. When you are done configuring one recorder, unpair from it before trying to pair with the next one.
Page 56 Open the Song Meter Configurator app and tap on the Recorders icon if the Recorders screen is not already shown. Turn on the Song Meter Mini Bat 2 If the recorder had been set to broadcast Bluetooth beacons, the recorder name will appear in the Recorders list.
Page 57 Song Meter Mini Bat 2 User Guide A Pair icon will appear to the right of the recorder's name in the Recorders screen. Tap the Pair icon in the app. The app will display messages indicating it is updating the recorder's clock and reading the recorder's settings.
Page 58: Format The Sd Card
Formatting an SD card erases all of its content and resets the structure of the card. This reset allows the Song Meter Mini Bat 2 to make full use of all of the card's available space. We recommend formatting the...
Page 59 Bat 2 from making use of the full space and resulting in missing recordings. Beginning in firmware version 4.2, formatting an SD card using the Song Meter Mini Bat 2 will rename the card "WildlifeAco." Several SD card errors can be resolved by reformatting the card.
Page 60 Song Meter Mini Bat 2 User Guide Format the SD Card Using the Song Meter Configurator App When paired with a Song Meter Mini Bat 2 that has an SD card installed, you can use the Song Meter Configurator app to format the SD card.
Page 61 Configurator app for SD Card Error Messages (page 268). Beginning in firmware version 4.2, formatting an SD card using the Song Meter Mini Bat 2 will rename the card "WildlifeAco." Format the SD Card Using the Recorder's Physical Controls You can format an SD card installed in the Song Meter Mini Bat 2 without the Song Meter Configurator app using the recorder's FUNCTION button.
Page 62 SD Card Error Messages (page 268). Beginning in firmware version 4.2, formatting an SD card using the Song Meter Mini Bat 2 will rename the card "WildlifeAco." Format the SD Card Using a Computer The SD Association provides a free program for formatting SD cards at https://www.sdcard.org/...
Page 63: Begin A Recording Deployment
When to Reformat the SD Card It is important to reformat the SD card prior to each deployment to allow the Song Meter Mini Bat 2 to make full use of the card's storage space. However, if you wish to use your SD card to update the recorder's...
Page 64: Check The Song Meter'sstatus Over Bluetooth
4.6. CHECK THE SONG METER'S STATUS OVER BLUETOOTH By default, the Song Meter Mini Bat 2 broadcasts status beacons over Bluetooth once every ten seconds. When your mobile device is within Bluetooth range of the...
Page 65: Transect Mode
During a transect, the Song Meter Configurator app must be paired with the Song Meter Mini Bat 2. Location information is saved to a Keyhole Markup Language (KML) file every five seconds, recording the position of your mobile device.
Page 66 Song Meter Mini Bat 2 User Guide During a transect, the Song Meter Mini Bat 2 ignores its programmed schedule while using all non-schedule settings programmed in the Configuration Editor. It will monitor for the entire length of the transect, regardless of the programmed schedule.
Page 67 This location is saved when the triggered audio file ends. In non-triggered mode, when Non-Triggered Recording is enabled, the Song Meter Mini Bat 2 will record continuous audio, broken up into segments defined by Maximum Recording Length (page 122) parameter.
Page 68 App and Recorder Must Remain Paired The Song Meter Configurator app must be paired to the Song Meter Mini Bat 2 for the entirety of the transect. Transect location information is taken from the mobile device’s location. For accurate location data and to maintain the paired connection, keep the mobile device close to the recorder for the duration of the transect.
Page 69 Song Meter Mini Bat 2 User Guide Transect Interface The Transect screen includes the following interface elements: < Transect Tap to exit the Transect (back) button interface and return to the Configuration Editor. An active transect will continue running in the background.
Page 70 Song Meter Mini Bat 2 User Guide Satellite / Map Tap to toggle the map interface button between a simplified map view and one constructed from satellite imagery. Hide Path / Tap to hide or show the Show Path path representing the mobile...
Page 71 • Pinch with two fingers to zoom in and out by spreading two fingers apart or bringing them together. Record a Transect Pair the Song Meter Mini Bat 2 with the Song Meter Configurator app (see Pair the Recorder with the Song Meter Configurator App (page 54)).
Page 72 Song Meter Mini Bat 2 User Guide The path of your movement is displayed in white or black, depending on the color theme of the map. When you want to end your transect, tap the Stop Transect button.
Page 73 Song Meter Mini Bat 2 User Guide The Song Meter Mini Bat 2 will resume its normal recording schedule, and a KML Alert dialog box will appear. To save the location data of your transect as a .kml file for later use: Enter a file name for the .kml file into the KML...
Page 74: Configuring The Song Meter Mini Bat 2
DEPLOYMENT LOCATION, AND TIME ZONE Automatically Set the Recorder’s Clock The first time the Song Meter Mini Bat 2 recorder is configured, or if the batteries have been removed for some time, the internal clock will not be set. When the...
Page 75 Automatically Set the Recorder’s Deployment Location The Song Meter Mini Bat 2 can save one set of latitude and longitude coordinates at a time. This saved location is used to calculate the times of sunset and sunrise each day, and it is also saved as metadata to each recording file and to the recorder's summary text file.
Page 76 Manually Set the Recorder's Deployment Location When you Pair the Recorder with the Song Meter Configurator App (page 54), the app will prompt you to update the Song Meter Mini Bat 2's deployment location...
Page 77 Location & Time Zone Screen (page 214). Set Location to Address The Song Meter Mini Bat 2's saved location can be set using a street address, based on the location saved for that address in the Google Maps database. Open the Location & time zone screen in the Song Meter Configurator app: Open the Configuration Editor.
Page 78 Song Meter Mini Bat 2 User Guide Search results will automatically populate as you type. Tap the search result that matches your desired address. The address window will close, the LATITUDE and LONGITUDE fields will reflect the address's location, and the map view will show the saved location marked with a red pin.
Page 79 Song Meter Mini Bat 2 User Guide • To configure a saved configuration file, see Edit a Saved Configuration File (page 107). Tap Location & time zone to open the Location & Time Zone Screen (page 214). Set LATITUDE hemisphere and value: Under LATITUDE, tap the N or S to open a drop- down menu.
Page 80 Manually Set the Recorder's Time Zone When you Pair the Recorder with the Song Meter Configurator App (page 54), the app will prompt you to update the Song Meter Mini Bat 2's time zone setting if it does not match your mobile device's time zone.
Page 81 Song Meter Mini Bat 2 User Guide If you instead want to manually set the recorder's time zone either by directly configuring a paired recorder or by configuring a time zone in a configuration file, you can do so in the Location &...
Page 82: Configure The Recorder'ssettings
Song Meter Mini Bat 2 User Guide Select a time zone using either of these methods: • Tap SET to update the saved time zone setting to match your mobile device's current time zone. • Tap the drop-down menu labeled Select other time zone to manually set the time zone.
Page 83 Song Meter Mini Bat 2 User Guide A Song Meter Mini Bat 2 can also be configured by applying a configuration file. See Manage Configuration Files (page 94) for more information about creating and managing configuration files. • To load a configuration file from the Configuration...
Page 84 Settings Reference (page 116) for detailed descriptions of all available settings. The STATUS LEDs on the Song Meter Mini Bat 2 flash green three times, indicating that the setting has been updated and applied to the recorder.
Page 85 Rename a Recorder Each Song Meter Mini Bat 2 can be assigned a name. This name identifies the recorder in the Recorders screen, and it is also added as a prefix to the name of each audio recording, summary file, and diagnostics file the recorder saves to its SD card.
Page 86 Song Meter Mini Bat 2 User Guide where the files were recorded or the project they were associated with. This can be helpful for keeping your files organized during analysis. To rename a recorder: Pair the Recorder with the Song Meter Configurator App (page 54).
Page 87 Song Meter Mini Bat 2 User Guide Recorder Name Requirements Recorder names must be 12 or fewer characters. Valid characters include: • Capital, unaccented, Roman letters • Numbers • Hyphens Configure a Recorder Using a Configuration File This section describes how to configure a Song Meter Mini Bat 2's settings using a configuration file.
Page 88 Song Meter Mini Bat 2 User Guide want multiple recorders to use identical settings, or if you want to maintain consistent settings from one deployment to the next. A single configuration file can be used repeatedly, on multiple Song Meter Mini Bat or Song Meter Mini Bat 2 recorders.
Page 89 A Success window will display a message confirming the configuration has been loaded. All of the Song Meter Mini Bat 2's STATUS LEDs will flash green to indicate the configuration has been loaded. Load a Configuration File from an SD Card A configuration file can be loaded from an SD card to configure all of a Song Meter Mini Bat 2's settings.
Page 90 SD Card This is one of multiple ways to apply a configuration file to a Song Meter Mini Bat 2, updating all of the recorder's settings to match the configuration file. For a full list of methods for programming a recorder's settings, see Configure the Recorder's Settings (page 82).
Page 91 Manage Configuration Files (page 94) instructions on saving configuration files directly from a Song Meter Mini Bat 2 or by using a computer. Insert the SD card into the Song Meter Mini Bat 2. Install brand-new or freshly charged batteries into...
Page 92 Song Meter Mini Bat 2 User Guide IMPORTANT Partially drained batteries can cause the load process to fail. In the Song Meter Configurator app, open the Utilities menu: Pair the Recorder with the Song Meter Configurator App (page 54). Configure and Unpair icons will appear next to the recorder's name.
Page 93 There must be only one configuration file on the card. Manage Configuration Files (page 94) instructions on saving configuration files directly from a Song Meter Mini Bat 2 or by using a computer. Install brand-new or freshly charged batteries into the Song Meter Mini Bat 2.
Page 94: Manage Configuration Files
Song Meter Mini Bat 2 User Guide IMPORTANT Partially drained batteries can cause the load process to fail. Set the recorder's ON/OFF switch to ON . Press the FUNCTION button twice to highlight the Load function LED. Press and hold the FUNCTION button, then let go when the Load LED begins blinking.
Page 95 Song Meter Mini Bat can be imported into a Song Meter Mini Bat 2. .miniconfig files cannot be shared between recorders of different models. For example, a .miniconfig file exported from a Song Meter Mini Bat 2 cannot be imported into a Song Meter Mini 2.
Page 96 Song Meter Mini Bat 2 User Guide When viewed in a file browser outside the Song Meter Configurator app, configuration files have the extension .miniconfig. For instructions on using a configuration file to set a recorder's settings, see Configure a Recorder Using a Configuration File (page 87).
Page 97 The configuration file's location and time zone will overwrite the previously saved location and time zone on the Song Meter Mini Bat 2 recorder when the saved configuration file is loaded, either directly from the Song Meter Configurator app or via an SD card.
Page 98 Song Meter Mini Bat 2 User Guide Configuration Files in the Configuration Library The Song Meter Configurator app's Configuration Library allows you to save as many configuration files as you want, for multiple recorder models. Configuration files can be added to the Configuration Library screen by three methods: •...
Page 99 Song Meter Mini Bat 2 User Guide Configuration files can be exported from the Configuration Library screen and sent to someone else with the Song Meter Configurator app installed, allowing multiple people to program recorders with matching settings. • To export a configuration file from the Configuration...
Page 100 Song Meter Mini Bat 2 User Guide If this option is disabled, fields will appear to manually enter coordinates or an address or to tap a location on a map. Choose whether to Use Mobile Device Time Zone or not.
Page 101 Song Meter Mini Bat 2 User Guide and it is also a way to back up your settings before you experiment with changes to how a recorder is configured. The following procedure uses the Song Meter Configurator app to save a configuration file from a paired recorder to the app's Configuration Library.
Page 102 Song Meter Mini Bat 2 User Guide Tap the Configuration Library button at the bottom of the Recorders screen. Your configuration will be listed in the Configuration Library screen. To make further changes to the saved configuration, Edit a Saved Configuration File (page 107).
Page 103 Song Meter Mini Bat 2 User Guide Open the iOS Mail app. Open the message containing the .miniconfig file attachment. Tap on the attachment to open a preview window. Do not tap on the Download icon, shown as a square with a downward arrow.
Page 104 Song Meter Mini Bat 2 User Guide This opens the iOS interface for sharing files between apps. If the Song Meter app is not shown in the list of apps in the sharing interface, tap the More icon at the far-right end of the list.
Page 105 Song Meter Mini Bat 2 User Guide From the Apps list, tap the Song Meter app. The Configuration file will be imported and visible in the Configuration Library.
Page 106 Song Meter Mini Bat 2 User Guide Android: Import from Gmail If a .miniconfig file is sent to you as an email attachment, you can import the file into the Song Meter Configurator's Configuration Library. Importing files sent via other means, such as a message app, a cloud storage app, or the device's file browser, works via a similar series of steps.
Page 107 Song Meter Mini Bat 2 User Guide The Configuration file will be imported and visible in the Configuration Library. Edit a Saved Configuration File You can edit any configuration stored in the Configuration Library, whether it was created from scratch, saved from a paired recorder, or imported from an email or file storage app.
Page 108 Song Meter Mini Bat 2 User Guide Tap the Configuration Name at the top of the screen to return to the Configuration Library screen. Delete a Saved Configuration File To remove a saved configuration from the Configuration Library: In the Configuration Library screen, tap on the selection circle to the left of any configuration to select it.
Page 109 Song Meter Mini Bat 2 User Guide Tap the Delete icon in the upper right of the screen. A message will ask if you're sure you want to delete the configuration. Tap DELETE. Share a Saved Configuration File A configuration file can be shared to other iOS/Android devices or a computer.
Page 110 Song Meter Mini Bat 2 User Guide Selected configurations have the selection circle icon filled in with a check mark. Repeat Step 1 to select multiple configurations, if desired. Tap the Share icon at the top right of the screen.
Page 111 Song Meter Mini Bat 2 User Guide The iOS or Android interface for sharing files between applications will open. From the operating system's file-sharing interface, select the desired method for sharing the file. For example, you can send the configuration file as an email attachment or use your device's file manager to save the configuration file to an SD card.
Page 112 SD Card Using the Recorder's Physical Controls (page 280). There are also multiple ways to import a configuration file from an SD card to a Song Meter Mini Bat 2. These methods allow you to use a single SD card to program multiple recorders with identical settings.
Page 113 Song Meter Mini Bat 2 User Guide • To load a configuration file from an SD card using only the physical controls on the Song Meter Mini Bat 2 hardware, see Load a Configuration File from an SD Card Using the Physical Controls (page 93).
Page 114 To export a Configuration file and Diagnostics file using only the buttons on the Song Meter Mini Bat 2 hardware: Install new or fully charged batteries, and set the ON/OFF switch to ON .
Page 115 Song Meter Mini Bat 2 User Guide Press and hold the FUNCTION button for three seconds. When the Diags LED starts flashing green, let go of the FUNCTION button. All four LEDs will flash green three times to indicate that the .minidiags and .miniconfig files have been saved...
Page 116: Settings Reference
102). 5.4. SETTINGS REFERENCE This section provides a detailed description of each of the Song Meter Mini Bat 2's available settings. The organization of this section mimics the organization of settings within the Song Meter Configurator app. For example, all settings found in the Acoustic Settings...
Page 117 Song Meter Mini Bat 2 User Guide Ultrasonic Settings Screen The ULTRASONIC SETTINGS screen is accessed from the Configuration Editor screen. The parameters on the ULTRASONIC SETTINGS screen describe how audio is recorded by the Song Meter Mini Bat 2 during ultrasonic recording periods.
Page 118 Song Meter Mini Bat 2 User Guide The ULTRASONIC SETTINGS page includes the following settings: Recording Format • Options: Full-Spectrum; Zero-Crossing; Zero-Crossing and Full-Spectrum. • Default: Full-Spectrum. During triggered ultrasonic recording Song Meter Mini Bat 2 can record full-spectrum or zero-crossing format files.
Page 119 256 kHz option. If Zero-Crossing (only) is the selected recording format, Full-Spectrum sample rate will be disabled. Non-Triggered Recording • Options: Off or On. • Default: Off. By default, the Song Meter Mini Bat 2 uses a Triggered Recording system.
Page 120 SD card space on periods of relative silence. In this mode, when the Song Meter Mini Bat 2 is scheduled to record, it monitors for incoming sound that meets the defined trigger parameters. When it detects such a sound, it starts recording until either: •...
Page 121 A signal must be above the minimum trigger frequency in order to trigger an actual recording. Any signal below the minimum trigger frequency will not trigger a recording. This can prevent low-frequency sounds from filling up the Song Meter Mini Bat 2 SD card.
Page 122 • Options: 1 to 15 seconds in 1-second increments. • Default: 3 seconds. The Song Meter Mini Bat 2 continues to record for this amount of time after the last signal that satisfies the minimum trigger frequency is detected unless the recording reaches the Maximum Recording Length first.
Page 123 “scrubbing” the noise. Noise-Scrubbing Parameters The parameters that define which recordings get “scrubbed” (removed) by the Song Meter Mini Bat 2 are recorded in the metadata of each recording (see GUANO Metadata Fields (page 250)).
Page 124 The parameters on the ACOUSTIC SETTINGS screen affect how the Song Meter Mini Bat 2 records audio in the range of human hearing during acoustic recording periods.
Page 125 Song Meter Mini Bat 2 User Guide To make changes to any setting on this page, tap on the setting label. A new window will appear to let you select the available options for that setting. To exit the ACOUSTIC SETTINGS screen, tap the < icon at the top left, or tap the text displaying the recorder's name and model.
Page 126 Song Meter Mini Bat 2 User Guide recording length, but they allow you to record a broader frequency range of sound (subject to the sensitivity of the microphone). Choose a sample rate at least double the highest frequency you want to record. For example, a sample rate of 24,000 Hz will capture sounds up to 12,000 Hz.
Page 127 Highest Quality and Low-Power modes. Low-Power Mode Effects on Audio Quality In Low-Power mode, the Song Meter Mini Bat 2 's anti- alias filter is less effective. The anti-alias filter removes frequencies that are too high for the selected sample rate to record.
Page 128 Song Meter Mini Bat 2 User Guide sources in nature above 12 kHz. Echolocating animals like bats are the most obvious exception, but some species of droning insects may present a more severe problem. If you are recording in an environment with significant...
Page 129 SD card space and battery life until the specified date. If the Delay Start date is enabled, but you power on the Song Meter Mini Bat 2 on or after the specified date, it will begin running its schedule immediately. Configure Delay Start...
Page 130 Song Meter Mini Bat 2 User Guide Tap on the Delay Start entry to open a calendar interface. Tap the Set delay start date toggle switch to enable or disable the Delay Start setting. When the toggle is enabled, the calendar is active.
Page 131 The recorder must then be manually paired with the Song Meter Configurator app in order for the current status to be updated in the app. Disabling Send Bluetooth Beacons? will not affect the recording functions of the Song Meter Mini Bat 2 recorder.
Page 132: Design A Custom Schedule
Song Meter Mini Bat 2 User Guide In most cases, we recommend keeping this setting enabled. Enabling Bluetooth beacons has no significant effect on the Song Meter Mini Bat 2's battery life. Bluetooth beacons allow you to check the recorder's status when you are...
Page 133 Schedules and Schedule Blocks A schedule for the Song Meter Mini Bat 2 can be made up of up to ten schedule blocks. If a schedule block were just a single recording period, having only ten would be severely limiting.
Page 134 Song Meter Mini Bat 2 User Guide Luckily, this type of schedule can be programmed with just one schedule block: Example: Record Five Minutes Every Hour For accessibility and ease of reading on multiple screen sizes, further examples will only present schedules as plain text.
Page 135 Duty Off: 00:55 END TIME: Time 00:00 With five simple commands, this one schedule block has told the Song Meter Mini Bat 2 to record five minutes at the start of each hour. The following sections expand on how each component works.
Page 136 Song Meter Mini Bat 2 User Guide The START TIME and END TIME commands are best understood in relation to each other. Everything the schedule block does occurs after the START TIME and continues until it reaches the END TIME. This is the case even when the START TIME and END TIME share the same value, as they do here.
Page 137 Song Meter Mini Bat 2 User Guide NOTE When you start your deployment for the first time, the Song Meter Mini Bat 2 will pick up in the middle of any schedule block that should be occurring at that time. The recorder does not need to wait for the next occurrence of the START TIME when it turns on.
Page 138 We can also define the START TIME and END TIME relative to sunrise and sunset, which the Song Meter Mini Bat 2 calculates each day based on its latitude, longitude, and time zone...
Page 139 Song Meter Mini Bat 2 User Guide This means that, if your goal is to record the dawn chorus each day, the Song Meter Mini Bat 2 can time its recording period to follow sunrise as it shifts earlier and later in the day over the span of weeks and months.
Page 140 Song Meter Mini Bat 2 User Guide START TIME: Set - 01:30 Set means the START TIME is defined relative to the time of sunset on a given day. The negative sign, -, means the block starts earlier than sunset, and the offset, 01:30, means it starts 1 hour and 30 minutes prior to sunset.
Page 141 START TIME and END TIME and use a DUTY CYCLE. On a Song Meter Mini Bat 2 with the optional acoustic microphone installed, each block can have its recording MODE to be either Ultrasonic or Acoustic. The blocks in...
Page 142 For example, if block 1 includes a recording period from 13:45 to 14:15, and block 2 includes a recording period from 14:00 to 15:00, the Song Meter Mini Bat 2 will treat the time from 13:45 to 15:00 as one single recording...
Page 143 Ultrasonic recording is set to Triggered or Non-Triggered mode. Date Range and Day Duty Cycle By default, every Song Meter Mini Bat 2 schedule block runs every single day, starting from when the recorder is powered on or until the...
Page 144 Song Meter Mini Bat 2 User Guide The rules for what occurs when multiple recording periods overlap, described in Schedules with Multiple Blocks (page 141), still apply. Enable Date Range and Day Duty Cycle To enable these features for any schedule block, tap the Add Date Range icon at the top of the schedule block.
Page 145 Song Meter Mini Bat 2 User Guide beginning of the START DATE, and it will stop running at midnight at the end of the END DATE. If the END DATE is set to the same date as the START DATE, or if it is set to one day before the START DATE, the schedule block will run year-round.
Page 146 Song Meter Mini Bat 2 User Guide Active days and inactive days always occur as consecutive blocks. For example, if Duty On is set to three days and Duty Off is set to five days, the schedule block will run for three days in a row, then it will skip five days in a row, then it will run for three days in a row, and so on.
Page 147 Song Meter Mini Bat 2 User Guide long recording periods will be split up into segments whose length is set by the Maximum Recording Length setting on the Acoustic Settings Screen (page 124) Ultrasonic Settings Screen (page 117), respectively. Record Continuously All Hours of Every Day...
Page 148 Song Meter Mini Bat 2 User Guide Duty On: 00:05 Duty Off: 00:55 END TIME: Time 00:00 Record from Sunset to Sunrise The following schedule starts every day at sunset and records until sunrise on the following day: START TIME: Set + 00:00...
Page 149: Deployment Length Estimations
Song Meter Mini Bat 2 User Guide 5.6. DEPLOYMENT LENGTH ESTIMATIONS The Song Meter Configurator app can estimate the expected run time it will take the Song Meter Mini Bat 2 to run out of battery power or SD card space. There are multiple factors that can affect battery life, so these estimations should be treated as approximate.
Page 150 Song Meter Mini Bat 2 User Guide The Estimate battery and card life window contains the following elements: X (exit) button Tap to close the Estimate battery and card life window.
Page 151 Song Meter Mini Bat 2 User Guide Deployment Tap on the text showing the start date selected start date to open a interactive calendar window and select a calendar new start date. Changing the expected start date directly affects the estimated end dates for SD card space and battery life.
Page 152 Song Meter Mini Bat 2 User Guide Batteries Select type and quantity of drop-down batteries to use for estimating when the batteries will die. If configuring a paired recorder, Use Current Batteries measures the voltage of the installed batteries and estimates the remaining available energy.
Page 153 Song Meter Mini Bat 2 User Guide Trigger ratio Only used for schedules that slider include triggered ultrasonic recording. This slider sets the percentage of time during triggered ultrasonic recording periods during which the Song Meter Mini Bat 2 is assumed to be actively recording audio.
Page 154 Song Meter Mini Bat 2 User Guide Battery life Displays the date on which depleted on: the batteries are estimated to lose power, based on the recorder configuration and battery settings listed above. The Battery Life estimation assumes the recorder never runs out of SD card space.
Page 155 Song Meter Mini Bat 2 is assumed to be recording nearby bats. For example, if you have the Song Meter Mini Bat 2 scheduled to run triggered, ultrasonic recording for 10 hours each night on a bat flyway, there may be significant periods of silence in between passing bats.
Page 156 Song Meter Mini Bat 2 User Guide the Trigger Ratio to a higher value will provide a more realistic estimate of your battery and SD card life. Factors Affecting SD Card Estimations When you select a preset SD card size in the Estimate battery and card life window, the estimation assumes that all of the card space is completely unused.
Page 157 Song Meter Mini Bat 2 User Guide at its default setting of 10%, the Song Meter Configurator app assumes that 10% of the length of each ultrasonic recording period is recorded to the SD card, and the remaining 90% of each period is unrecorded silence.
Page 158: Maintaining And Protecting The Song Meter
Song Meter Mini Bat 2 User Guide 6. MAINTAINING AND PROTECTING THE SONG METER MINI BAT 2 6.1. UPDATE THE RECORDER'S FIRMWARE We regularly publish new firmware versions that improve the functionality of the Song Meter Mini Bat 2. If your recorder is running an outdated version of...
Page 159 Song Meter Mini Bat 2 User Guide FIRMWARE COMPATIBILITY The Song Meter Mini family of recorders and Song Meter Micro family of recorders require different firmware files. All recorders in the Song Meter Mini family can be updated using a firmware file with the name format sys-X.Y.smm.
Page 160 Song Meter Mini Bat 2 User Guide Update Firmware Using the Song Meter Configurator App When paired with a Song Meter Mini Bat 2, you can use the Song Meter Configurator app to initiate a firmware update. LOAD A CONFIGURATION AND...
Page 161 There must be only one firmware file on the card. Eject the card from your computer's operating system before physically removing the card. Insert the SD card into the Song Meter Mini Bat 2's SD card slot.
Page 162 Tap PROCEED to start the update. An Updating... activity indicator will appear. The Song Meter Mini Bat 2 will unpair from the Song Meter Configurator app. The app will return to the Recorders screen. Tap the Status icon next to the recorder name to open the Status screen.
Page 163 Song Meter Mini Bat 2 User Guide Update Firmware Using the Recorder's Physical Controls You can initiate a firmware update using the FUNCTION button on the Song Meter Mini Bat 2's control panel. LOAD A CONFIGURATION AND FIRMWARE UPDATE FROM A...
Page 164 Eject the card from your computer's operating system before physically removing the card. Insert the SD card into the Song Meter Mini Bat 2's SD card slot. Install brand-new or freshly charged batteries into the Song Meter Mini Bat 2.
Page 165 Song Meter Mini Bat 2 User Guide Turn on the Song Meter Mini Bat 2. Tap the FUNCTION button multiple times. A green LED will cycle through the four positions to highlight the selected function. When the Load LED is highlighted, press and hold the FUNCTION button for three seconds.
Page 166 Song Meter Mini Bat 2 User Guide Install brand-new or freshly charged batteries into the Song Meter Mini Bat 2. Save the latest firmware file to an SD card: Download the current version firmware file from our Downloads page at www.wildlifeacoustics.com/account/...
Page 167 Song Meter Mini Bat 2 User Guide Eject the card from your computer's operating system before physically removing the card. Insert the SD card into the Song Meter Mini Bat 2's SD card slot. Turn on the recorder. Press the FUNCTION button twice to highlight the Load function LED.
Page 168: Testing Microphone Sensitivity
Song Meter Mini Bat 2 User Guide 6.2. TESTING MICROPHONE SENSITIVITY The Song Meter Configurator app includes a utility that can be used to test the sensitivity of a paired recorder's installed microphones. It displays real-time measurements of the volume of each microphone's incoming signal in decibels relative to full scale (dBFS).
Page 169 Song Meter Mini Bat 2 User Guide IMPORTANT In order to test a microphone's sensitivity, it is necessary to have a signal generator that produces a sound at a known frequency and amplitude, a fixed distance from the microphone. Without a consistent reference sound...
Page 170 Tap the Utilities icon in the upper-right corner of the Configuration Editor. In the Utilities menu, tap Test microphone. Close the lid of the Song Meter Mini Bat 2. Turn on the Ultrasonic Calibrator and toggle the mode switch to CAL .
Page 171 Song Meter Mini Bat 2 User Guide Observe the amplitude reading in the Test microphone window. If the value is higher than -32 dB, the microphone has passed and is ready to use. If the value is lower, the microphone has lost some or...
Page 172 Instead, it involves generating loud, ultrasonic chirps that superficially resemble those produced by a bat. When the Song Meter Mini Bat 2 is set up for triggered, ultrasonic recording, these ultrasonic chirps should trigger the recorder to begin recording and save the resulting files to its SD card.
Page 173 100dB SPL. Prolonged exposure to high-intensity ultrasonic signals may cause permanent hearing loss at audible frequencies. Prepare the Song Meter Mini Bat 2 for recording and place it no more than 20 m (65 ft) away from the Ultrasonic Calibrator. NOTE...
Page 174 If the Ultrasonic Calibrator is held very close to the microphone, the calibrator signal may be too loud for the Song Meter Mini Bat 2 to record correctly. The recorded signal will be distorted, and artificial harmonics will be present in the resulting recording.
Page 175 Meter Mini Bat 2 in the Recorders screen. Tap the Utilities icon in the upper-right corner of the Configuration Editor. In the Utilities menu, tap Test microphone. Close the lid of the Song Meter Mini Bat 2. Remove the foam windscreen from the acoustic microphone.
Page 176 Song Meter Mini Bat 2 User Guide Connect the calibrator to the acoustic microphone according to the calibrator's instructions. Turn the calibrator on. If the calibrator has the option of multiple test frequencies and amplitudes, select 1 kHz and 94 dB SPL.
Page 177: Weatherproofing
-10 dB would pass, while a reading of -20 dB would fail. 6.3. WEATHERPROOFING The Song Meter Mini Bat 2 is designed to work in all kinds of weather, and will not let in any water under normal circumstances. However, there are a few routine checks that should be done to make sure that your recorder is as weatherproof as it was when you received it.
Page 178 Note that DEET, a common ingredient in insect repellent, is known to degrade the plastic used in the Song Meter Mini Bat 2 enclosure. When possible, avoid contact with insect repellent. Some plant oils may also soften the recorder's rubber gasket over extended periods of exposure.
Page 179: Mounting
6.4. MOUNTING Avoid putting strain on the Song Meter Mini Bat 2 case by mounting it too tightly. This can distort the case and break the seal with the lid, causing a gap that may leak.
Page 180 0.420 in. (10.67 mm) to fit through these loops. To keep the lid of the Song Meter Mini Bat 2 locked closed, a padlock can be inserted in the loop on the right side of the latch. The internal diameter of this padlock loop is 0.268 in.
Page 181: Protecting Unused Acoustic Microphones
The connections between the microphone and the Song Meter Mini Bat 2 were not designed with repeated stress in mind, and repeatedly...
Page 182 Song Meter Mini Bat 2 User Guide removing and reinstalling a microphone may damage these connections. In most situations, it is fine to leave the optional microphone installed, even if it will not be used for a given deployment. If you wish to provide an extra layer of protection against animals or extreme weather conditions, you can install an optional Stub Mic Cover.
Page 183: Song Meter Configurator App Overview
(see Design a Custom Schedule (page 132)). • For instructions on maintaining the recorder, such as updating its firmware and testing the microphone, see Maintaining and Protecting the Song Meter Mini Bat 2 (page 158).
Page 184: About The Song Meter Configurator App
The Song Meter Configurator app provides a simple interface for configuring the schedule and settings of the Song Meter Mini Bat 2. It runs on phones and tablets running iOS and Android, and, once installed, it does not require an internet connection. See...
Page 185 Pair the Recorder with the Song Meter Configurator App (page for pairing instructions. By default, when the Song Meter Mini Bat 2 recorder is powered on, it generates a Bluetooth status beacon once every few seconds. If the recorder is within Bluetooth...
Page 186 30 feet, assuming a clear line of sight between the Song Meter Mini Bat 2 and the phone or tablet. Use Without Cellular Service An internet connection is required to install the Song Meter Configurator app from the Apple App store or Google Play store.
Page 187 Bluetooth communication. Note on GPS and Location Data The Song Meter Configurator can use your device's real- time location to automatically save deployment location to the Song Meter Mini Bat 2 (see Automatically Set the Recorder’s Deployment Location (page 75)). Location data can also be entered manually in the Location &...
Page 188 Song Meter Mini Bat 2 User Guide to provide more precise location data that can be used to set the Song Meter Mini Bat 2's saved deployment location. Supported Operating Systems The Song Meter Configurator app is available for Android and iOS devices.
Page 189: Recorders Screen
Song Meter Mini Bat 2 User Guide • English • French • Spanish • Portuguese • Chinese • German • Japanese The display language of the Song Meter Configurator app will follow the Android or iOS system language setting. To manually set the language of the app, see Information Screen (page 240).
Page 190 Song Meter Mini Bat 2 User Guide The Recorders screen lists each recorder within Bluetooth range and detected by the Song Meter Configurator app. Previously detected recorders that are out of Bluetooth range or powered off will remain in the list until removed.
Page 191 Song Meter Mini Bat 2 User Guide Sort Tap this icon to open a Sort Recorders menu with options to sort the recorders by one of two options. The currently used sort option is indicated by an upwards or downwards arrow. To toggle the sorting...
Page 192 Song Meter Mini Bat 2 User Guide Tap to sort recorders by their recorder RECORDER NAMES in alphabetical or name reverse-alphabetical order. Configuration Editor Screen (page 206) for instructions on editing the RECORDER NAME. Detected Recorders List Unpaired Recorders The entries for unpaired recorders are represented...
Page 193 Song Meter Mini Bat 2 User Guide Status Tap this icon to open the Status screen for the recorder, which displays the information the app most recently received from the recorder. See Status Screen (page 195) for a breakdown of all information included on the Status screen.
Page 194 Song Meter Mini Bat 2 User Guide For instructions on pairing with a recorder, see Pair the Recorder with the Song Meter Configurator App (page 54). Lower Navigation Bar The navigation bar at the bottom of the Recorders screen shows icons for the Recorders, Configuration Library, and App Info screens.
Page 195: Status Screen
Song Meter Mini Bat 2 User Guide 7.3. STATUS SCREEN The Status screen displays all of the status information broadcast from a Song Meter Mini Bat 2 and received by the Song Meter Configurator app. It shows information about the recorder's SD card, batteries, schedule settings, microphones, and firmware version.
Page 196 Bluetooth range. While a Song Meter Mini Bat 2 is paired with the Song Meter Configurator app on one mobile device, it will not broadcast Bluetooth beacons for other mobile devices to receive.
Page 197 Song Meter Mini Bat 2 User Guide < Status Tap this button to exit the (back button) Status screen and return to the Recorders screen. Last Updated This text indicates when the Song Meter Configurator app last received status information from the selected recorder.
Page 198 NOTE If the Song Meter Mini Bat 2 is currently recording only on the left microphone, then the level meter for the right microphone will not respond to sound,...
Page 199 Song Meter Mini Bat 2 User Guide ULTRASONIC This meter displays a real-time LEVEL representation of the volume of sound being picked up by the ultrasonic microphone if the recorder is currently running an ultrasonic recording period. ACOUSTIC If an acoustic microphone is...
Page 200 Song Meter Mini Bat 2 User Guide Error If there is a problem with Message the SD card, an error message Readout will be displayed underneath the STORAGE INFO text. See SD Card Error Messages (page 268) descriptions of common error messages.
Page 201 Song Meter Mini Bat 2 User Guide the SD card will make all of the card's space available. See Format the SD Card (page 58). Other Info Panels RECORDER Displays the model name of the MODEL recorder.
Page 202 Song Meter Mini Bat 2 User Guide RECORDER Displays the name of the NAME recorder. By default, the name is the recorder's serial number, but it can be customized in the Configuration Editor Screen (page 206). SERIAL Displays the serial number of NUMBER the recorder.
Page 203 Song Meter Mini Bat 2 User Guide BATTERY LEVEL Displays the state of the recorder's batteries. The V/% toggle switch determines whether the battery level is displayed as a Voltage reading or an estimation of the remaining battery life percentage.
Page 204 This text will only display if an SD card is installed with enough available space for the next recording period. REMAINING If the Song Meter Mini Bat 2 is RECORDING running a preset schedule and PERIOD TIME is currently recording, this the amount of time remaining in the current recording period.
Page 205 Song Meter Mini Bat 2 User Guide BATTERY TYPE Indicates which type of battery is powering the recorder. AA refers to AA batteries of any type, including alkaline, NiMH, and Energizer® Ultimate Lithium™ (Lithium/ Iron Disulfide). Lithium refers to 18650 lithium-ion batteries.
Page 206: Configuration Editor Screen
7.4. CONFIGURATION EDITOR SCREEN The Configuration Editor screen is the interface for editing all of the Song Meter Mini Bat 2's settings. When the Song Meter Configurator app is paired with a recorder, you can edit the recorder's settings directly, updating the recorder immediately with each setting change.
Page 207 Song Meter Mini Bat 2 User Guide Alternatively, you can create a saved configuration in the Song Meter Configurator app's Configuration Library, and this configuration can be loaded onto multiple recorders, shared with a colleague, or saved for later use.
Page 208 Song Meter Mini Bat 2 User Guide Paired Configuration Editor When you directly configure a paired recorder, the Configuration Editor has several unique features that are not available when editing a configuration in the Configuration Library. Top-Most Info Bar < (back),...
Page 209 Song Meter Mini Bat 2 User Guide Save Tap to save a copy of the paired recorder's settings to the Configuration Library with a custom Configuration Name. Save a Configuration File from a Paired Recorder to the Configuration Library (page 100) full instructions.
Page 210 Song Meter Mini Bat 2 User Guide Transect Tap to access the Transect Interface (page 69), which allows you to record location data alongside your recordings during a moving survey. For a detailed description of what a transect is, how it...
Page 211 Song Meter Mini Bat 2 User Guide < (back), Tap the < symbol or any of the Configuration text displayed here to return to Name, and the Configuration Library. Recorder This text displays the name Model of the configuration currently...
Page 212 Song Meter Mini Bat 2 User Guide Utilities Menu When configuring a paired Song Meter Mini Bat 2, the Utilities menu provides easy access to several useful functions. To access the Utilities menu, tap the Utilities icon at the top right of the Configuration Editor screen when configuring a paired recorder.
Page 213 Song Meter Mini Bat 2 User Guide Format SD Tap to format the Song Meter card Mini Bat 2's SD card, erasing all contents and resetting the card to a initialized state. Format the SD Card (page for instructions on multiple methods of formatting the SD card.
Page 214 Location & Time Zone screen, accessed from the Configuration Editor screen. Location and time zone information are embedded in the metadata of files created by the Song Meter Mini Bat 2 recorder (see SD Card Contents (page 244)).
Page 215 Song Meter Mini Bat 2 User Guide Deployment location and time zone can be set automatically when the Song Meter Mini Bat 2 recorder is first paired with the Song Meter Configurator app (see Pair the Recorder with the Song Meter Configurator App (page 54)).
Page 216 Google Maps as an offline map, this panel will display an interactive map. The location saved to the paired Song Meter Mini Bat 2 or to the configuration is indicated by a red pin, and the mobile device's current location is indicated by a blue dot.
Page 217 Song Meter Mini Bat 2 User Guide NOTE Map data for specific regions can be saved to your mobile device for offline use using the Google Maps app. For full instructions, refer to this Google support article. NOTE Many tablets that do not have cellular connectivity also lack a built-in GPS antenna.
Page 218 Song Meter Mini Bat 2 User Guide navigating the map mimic those used in the Google Maps app. • Touch and drag with one finger to pan across the map in any direction. • Double-tap with one finger to zoom in on the tapped location.
Page 219 Song Meter Mini Bat 2 User Guide Transect Interface The Transect screen includes the following interface elements: < Transect Tap to exit the Transect (back) button interface and return to the Configuration Editor. An active transect will continue running in the background.
Page 220 Song Meter Mini Bat 2 User Guide Satellite / Map Tap to toggle the map interface button between a simplified map view and one constructed from satellite imagery. Hide Path / Tap to hide or show the Show Path path representing the mobile...
Page 221 Song Meter Mini Bat 2 User Guide • Pinch with two fingers to zoom in and out by spreading two fingers apart or bringing them together. Schedule Editor Interface The Schedule Editor occupies the lower half of the Configuration Editor Screen (page 206).
Page 222 Song Meter Mini Bat 2 User Guide The Schedule Editor interface includes the following elements, listed from top to bottom, left to right.
Page 223 Song Meter Mini Bat 2 User Guide Schedule Editor: Upper Elements Estimate Tap to open the Estimate battery and Battery and Card Life Window card life (page 149). Show on Tap to open the Schedule Calendar Calendar (page 230) for the active schedule.
Page 224 Song Meter Mini Bat 2 User Guide Preset schedules for acoustic recording (when the optional acoustic microphone is connected) are: • Record birds/frogs 24 hours a day • Record birds/frogs for 30 minutes of every hour. • Record birds/frogs for 5 minutes of every hour •...
Page 225 Song Meter Mini Bat 2 User Guide If editing a configuration file, the selected preset is immediately applied to the configuration file. Schedule Block Elements Each schedule can be composed of up to 10 schedule blocks, listed vertically below the Preset Schedules drop-down menu.
Page 226 Song Meter Mini Bat 2 User Guide START TIME Section These controls determine when, during a 24-hour period, the schedule block starts running. Time / When Time is selected, the Rise / Set schedule block will start at a fixed drop-down time on the clock each day.
Page 227 Song Meter Mini Bat 2 User Guide DUTY CYCLE Section Always / Cycle Tap to select whether the drop-down schedule block runs continuously between its start and end times or follows a duty cycle. Duty On: When Cycle is selected, these...
Page 228 Song Meter Mini Bat 2 User Guide + / - drop- Not active when Time is selected. down When Rise or Set is selected: • + specifies an offset after sunrise or sunset. • - specifies an offset before sunrise or sunset.
Page 229 Song Meter Mini Bat 2 User Guide Duty On: When Cycle is selected, Days determines the length, in days, of the active portion DAY DUTY CYCLE. Duty Off When Cycle is selected, determines the length, in days, of the inactive portion DAY DUTY CYCLE.
Page 230 Song Meter Mini Bat 2 User Guide Schedule Calendar The Schedule Calendar provides a visual representation of your recording schedule. It shows when your recorder will be active during any given day. This is especially useful for complex schedules comprised of multiple schedule blocks.
Page 231 Song Meter Mini Bat 2 User Guide • Check whether any recording periods from multiple blocks overlap with each other. • Find any conflicts between ultrasonic and acoustic recording periods. • See how changes in sunrise and sunset during the course of a deployment will affect your schedule.
Page 232 Song Meter Mini Bat 2 User Guide There are two methods to exit the Schedule Calendar: • Tap the < icon or the Schedule Name in the top-left corner of the screen. • Touch the left edge of the screen with one finger and swipe right.
Page 233 Song Meter Mini Bat 2 User Guide main panel. The Selected Date determines the values of sunrise and sunset times displayed in the calendar (see Sunrise and Sunset Times (page 234)). Scroll and Zoom the Calendar Time of day is visually segmented into one-hour blocks in the calendar's main panel.
Page 234 Song Meter Mini Bat 2 User Guide 12-hour convention (left) and 24-hour convention (right). Sunrise and Sunset Times The Schedule Calendar displays calculated sunrise and sunset times for the Selected Date along the vertical axis. Sunrise is indicated by a yellow line and a icon.
Page 235 Song Meter Mini Bat 2 User Guide NOTE Sunrise and sunset are calculated for each date based on the recorder’s saved deployment location and time zone. If the sunrise and sunset times shown on the calendar for the current date do not match reality, check the Location &...
Page 236: Configuration Library Screen
Intervals when acoustic and ultrasonic recording periods overlap with each other are shown in red. The Song Meter Mini Bat 2 can only use one recording mode at a time. During these conflicts, the recorder will record in acoustic mode.
Page 237 Song Meter Mini Bat 2 User Guide Bat 2. Configuration files provide a way to consistently apply the same settings to multiple recorders or across multiple deployments. See Manage Configuration Files (page 94) for more information. Configuration Library Interface The top-most info bar on the Configuration Library...
Page 238 Song Meter Mini Bat 2 User Guide Share After selecting one or multiple configurations from the list, tap this button to share the configuration file using another app on your device. See Share a Saved Configuration File (page 109). The entry for each configuration includes the following...
Page 239 Song Meter Mini Bat 2 User Guide + (Add Tap this icon to create a new Configuration) configuration from scratch. Create a Configuration File in the Configuration Library Screen (page 99). Below the interface for the Configuration Library itself are buttons for accessing the...
Page 240: App Information Screen
Song Meter Mini Bat 2 User Guide 7.6. APP INFORMATION SCREEN The App Information screen is accessed by tapping the App Info button at the bottom right of the Recorders or Configuration Library screens. It contains: • Information about the current version of the app •...
Page 241 Song Meter Mini Bat 2 User Guide • Language settings for the Song Meter Configurator • Contact info for Wildlife Acoustics • Information about other Wildlife Acoustics products App Version Number and Release Notes The current version of the Song Meter Configurator app is listed.
Page 242 Song Meter Mini Bat 2 User Guide default, the app will use the language system setting of the iOS or Android device if a translation exists for that language. A manual selection from this menu will override the default setting.
Page 243 Song Meter Mini Bat 2 User Guide Join Our Mailing List Opens your web browser to a page where you can join our Mailing List. Join our mailing list to get notified about upcoming training opportunities, important technical service bulletins, webinars, our quarterly grant program, and product updates.
Page 244: Sd Card Contents
8.2. SD CARD ORGANIZATION The Song Meter Mini Bat 2 saves all non-audio files to the top level of the SD card, meaning they are not placed into a folder within the card. These non-audio files include: •...
Page 245: File Name Conventions
Data, and acoustic recordings are saved to a folder named Data2. 8.3. FILE NAME CONVENTIONS Files saved by the Song Meter Mini Bat 2 use file names that identify which recorder produced each file and when the file was saved.
Page 246: Audio Files
June 1st, 2024 at 14:05:05, or 5 seconds after 2:05 PM. 8.4. AUDIO FILES This section covers the types of audio recordings the Song Meter Mini Bat 2 saves to its SD card and what metadata is included in those recordings. Full-Spectrum Recording Files Acoustic recordings and full-spectrum ultrasonic recordings are saved as .wav files.
Page 247 Full-spectrum .wav files include additional metadata not shown in the GUANO fields. If you open a .wav recording from a Song Meter Mini Bat 2 in the desktop Mini/Micro configurator, the program will display all of the settings and schedule parameters that were programmed on the recorder that produced the recording.
Page 248 W4V compression will remain if the file is converted back to .wav format. Zero-Crossing Recording Files When the Song Meter Mini Bat 2's Recording format is set to include Zero-Crossing, these files are saved with the file extension .zc. Zero-Crossing is a more limited format than full- spectrum .wav files.
Page 249 Song Meter Mini Bat 2 User Guide are still used in applications where minimizing data storage use is a priority. Zero-Crossing File Metadata Metadata is additional information embedded into each recording alongside the recorded audio. The Song Meter Mini Bat 2 saves metadata in the open GUANO format.
Page 250 GUANO Metadata Fields Full-spectrum .wav files and Zero-Crossing .zc files saved by the Song Meter Mini Bat 2 include the following GUANO fields: • Firmware version: Firmware version installed on the recorder at the time of recording.
Page 251 • trig min freq: Records the value of the Minimum Trigger Frequency (page 121), in hertz. • trig max freq: Non-adjustable, locked at 128000. This parameter records the maximum frequency, in hertz, that will trigger the Song Meter Mini Bat 2 to start recording.
Page 252: Summary File
NAME]_Summary.txt. A new line is written to the summary file for every minute the Song Meter Mini Bat 2 is awake and recording or monitoring in triggered ultrasonic mode. Each line of text is broken up by commas into data fields, with column headers listed in the first line of the file.
Page 253 Song Meter Mini Bat 2 User Guide Throughout a summary file, you may see the header row (normally the first row in the file) repeat. Each instance of the header row indicates that the recorder powered on and began running its schedule.
Page 254 A value of E indicates an eastern longitude, and a value of W indicates a western longitude. POWER(V) Indicates the measured voltage of the Song Meter Mini Bat 2 's batteries, in volts.
Page 255 Song Meter Mini Bat 2 User Guide TEMP(C) Indicates the temperature measured by the Song Meter Mini Bat 2 's internal temperature sensor, in degrees Celsius. Because this sensor is located inside the recorder's enclosure, its reading can deviate significantly from the ambient temperature.
Page 256: Diagnostics Files
Song Meter Mini Bat 2 User Guide 8.6. DIAGNOSTICS FILES Diagnostics file are named with the format [RECORDER NAME]_[DATE]_[TIME].minidiags. These files save a copy of the recorder's settings, as well as additional status information and a record of what the recorder was doing before the diagnostics file was generated.
Page 257 Automatic Diagnostics Generation If the Song Meter Mini Bat 2 experiences a sudden reboot, it will save a diagnostics file to the SD card as soon as it powers on. The date and time in the file name of the .minidiags file indicate the time when the file...
Page 258: Analyzing Your Recordings
The Song Meter Mini Bat 2 will attempt to shut itself down cleanly before the batteries reach this point, but that shut-down is based on the typical behavior of 18650 Li-ion batteries and alkaline AA batteries.
Page 259 Song Meter Mini Bat 2 User Guide Kaleidoscope Lite Kaleidoscope Lite is the free version of our professional analysis software, Kaleidoscope Pro. In Kaleidoscope Lite, you can perform many useful functions with your recordings. • Separate distinct sounds from periods of silence.
Page 260 Kaleidoscope Pro Trial page. Third-Party Software The Song Meter Mini Bat 2 creates standard .wav files and zero-crossing (.zc) files. Many types of audio analysis and editing software support .wav files, but note that not all audio software supports the high sample rates required for full-spectrum, ultrasonic recordings.
Page 261: Troubleshooting
Check that all installed batteries are brand-new or freshly charged and properly installed. The AA version of the Song Meter Mini Bat 2 must have either four or eight AA batteries installed. If using only four batteries, they must all be installed in the same battery tray.
Page 262: App Not Receiving Status Updates
284)). 9.2. APP NOT RECEIVING STATUS UPDATES If your Song Meter Mini Bat 2 does not appear in the Song Meter Configurator app's Recorders screen, or if the app is not receiving status updates from the recorder several times per minute, there are several possible causes to check.
Page 263 Song Meter Mini Bat 2 User Guide NOTE If the installed batteries are mostly drained, it is possible for the recorder to have enough power to show LED activity, but not enough power to communicate over Bluetooth. Make sure all installed batteries are in good condition.
Page 264 Song Meter Mini Bat 2 User Guide • On Android: Open the Settings app. Tap Apps. Tap on the Song Meter app entry. Tap Permissions. Enable all permissions on this page. IMPORTANT On some devices, GPS and Bluetooth connections are handled by the same...
Page 265: Unable To Pair App With Recorder
9.3. UNABLE TO PAIR APP WITH RECORDER If you are unable to pair the Song Meter Configurator app with the Song Meter Mini Bat 2, first check the following: Confirm that the Song Meter Mini Bat 2 is powered on and that pressing the FUNCTION button causes one or more of the FUNCTION LEDs to light up.
Page 266 App Not Receiving Status Updates (page 262) this is not the case. If the Song Meter Mini Bat 2 is powered on with fresh batteries and sending regular status updates to the Song Meter Configurator app, but the pairing process...
Page 267 Song Meter Mini Bat 2 User Guide On the Recorders screen, tap the Status icon for the recorder to open the Status screen. Under the BATTERY LEVEL label, set the %/V toggle switch to V. Check that the voltage level is sufficiently high.
Page 268: Sd Card Error Messages
Song Meter Mini Bat 2 User Guide for further troubleshooting assistance and to arrange a repair, if necessary (see Contacting Support (page 284)). 9.4. SD CARD ERROR MESSAGES These error messages might appear on a recorder's Status screen, in the STORAGE INFO panel.
Page 269 Failing to eject the card according to these instructions can cause the Song Meter Mini Bat 2 to display error messages. • On Windows, refer to this Microsoft support article safely removing hardware (including SD Cards).
Page 270 Doing so will help determine whether there's an underlying issue with the card or with the Song Meter Mini Bat 2's SD card slot. SD Card Full This message means there is not enough available space on the card for the Song Meter Mini Bat 2 to save any more audio files to the card.
Page 271 Song Meter Mini Bat 2 User Guide contents of the card. In the case of the Song Meter Mini Bat 2, this means the recorder cannot save any new files to the card, nor can it reformat the card. If this error appears, check that the card's Write Protect...
Page 272 284)). SD Card Bad Format This indicates that the card is not formatted correctly. The Song Meter Mini Bat 2 expects cards to have one of two particular file systems, depending on the size of the card: • For SDHC cards, which range in size from 4 GB to 32 GB, the file system must be FAT32.
Page 273 Song Meter Mini Bat 2 User Guide and it will cause this error message to appear and prevent the Song Meter Mini Bat 2 from using the card. In some cases, it can even cause errors that persist after the Song Meter Mini Bat 2 attempts to reformat the card.
Page 274: Restore Recorder To Factory Defaults
Any data saved to the card before the dirty bit was raised will be retained. 9.5. RESTORE RECORDER TO FACTORY DEFAULTS The Song Meter Mini Bat 2 can be reset to its factory default settings. This does not reset the recorder's...
Page 275 Song Meter Mini Bat 2 User Guide internal clock, but it does reset its time zone setting to UTC. Ultrasonic Settings Screen (page 117) for default ultrasonic audio settings. Acoustic Settings Screen (page 124) for default acoustic audio settings. The default location setting is 0° latitude and 0° longitude, and the default time zone is UTC + 00:00, equivalent to Greenwich Mean Time.
Page 276 A RESETTING activity indicator will appear, followed by a confirmation message. Restore Factory Defaults Using the Recorder's Physical Controls You can restore the Song Meter Mini Bat 2 to factory default settings using the FUNCTION button on the recorder's control panel. Install brand-new or freshly charged batteries into the Song Meter Mini Bat 2.
Page 277: Export Diagnostics Files
Meter Mini Bat 2 has been reset to factory defaults. 9.6. EXPORT DIAGNOSTICS FILES The Song Meter Mini Bat 2 can generate diagnostics files that record the results of internal tests as well as a log of the recorder's internal processes before the diagnostics file was generated.
Page 278 Email Diagnostics File to Wildlife Acoustics Using the Song Meter Configurator app, it is possible to generate a diagnostics file from a paired Song Meter Mini Bat 2 and send it Wildlife Acoustics support via email. NOTE You must have your mobile device's built-...
Page 279 (see Troubleshooting (page 261))? If the diagnostics file is related to an ongoing case with Wildlife Acoustics support, add the Case Number to the message's subject line. Tap Send to send the email to Wildlife Acoustics support.
Page 280 Song Meter Mini Bat 2 User Guide Export Diagnostics File to an SD Card Using the Recorder's Physical Controls This procedure exports two files to the Song Meter Mini Bat 2's SD card: • Diagnostics File: [RECORDER NAME]_[DATE]_[TIME].minidiags • Configuration File: [RECORDER NAME].miniconfig This is a file containing all of the recorder's settings.
Page 281 Song Meter Mini Bat 2 User Guide this happens, check that the SD card has available space and displays no error messages on the recorder's Status screen (see Status Screen (page 195)).
Page 282: Useful Resources
Song Meter Mini Bat 2 User Guide 10. USEFUL RESOURCES 10.1. WHERE TO FIND THIS USER GUIDE This user guide is published in multiple locations: • View a PDF in your web browser or download to your device at www.wildlifeacoustics.com/resources/user- guides.
Page 283: Download Firmware Updates
Downloads page. You can export a configuration file from the configurator to load into the Song Meter Mini Bat 2 (see Load a Configuration to a Paired Recorder from an SD Card (page 90)).
Page 284: Video Tutorials
Song Meter Mini Bat 2 User Guide Note that the Song Meter Configurator mobile app must be used to update the Song Meter Mini Bat 2's date and time over Bluetooth. 10.4. VIDEO TUTORIALS Visit our Video Tutorials page to view tutorial videos for the Song Meter Mini Bat 2.
Page 285 Song Meter Mini Bat 2 User Guide • www.wildlifeacoustics.com/contact-us • North America (toll-free): 1-888-733-0200 • Outside North America (toll charges may apply): +1 978-369-5225...
Page 286: Specifications
Song Meter Mini Bat 2 User Guide 11. SPECIFICATIONS 11.1. PHYSICAL SPECIFICATIONS Height 4.7 in. (120 mm) Width (with no 5.6 in. (142 mm) right microphone) Depth 1.6 in. (40 mm) Weight with no AA Version: 0.53 lb. (240 g) batteries Li-ion Version: 0.51 lb.
Page 287: Audio And Microphone Specifications
Song Meter Mini Bat 2 User Guide Operating -4°F to +185°F or -20°C to Temperature 85°C Range Batteries may have narrower operating temperature range. 11.2. AUDIO AND MICROPHONE SPECIFICATIONS Audio Specifications Recording 16-bit PCM .wav and/or Zero- Format Crossing (.zc)
Page 288 Song Meter Mini Bat 2 User Guide High Pass Filter 2-pole 8.25 kHz (Ultrasonic Channel) Digital Anti- Ultrasonic channel: none Alias Filter Acoustic channel, Highest Quality setting: -5.0 dB @ 0.4 f -12 dB @ 0.6 f Ultrasonic Microphone Specifications All measurements taken with default gain settings, unless otherwise stated.
Page 289 Song Meter Mini Bat 2 User Guide Figure 9. Ultrasonic Microphone Signal-to- Noise Ratio...
Page 290 Song Meter Mini Bat 2 User Guide Figure 10. Ultrasonic Microphone Polar Response: Front View...
Page 291 Song Meter Mini Bat 2 User Guide Figure 11. Ultrasonic Microphone Polar Response: Top View Acoustic Microphone Specifications • Directional Characteristic: Omnidirectional • On-Axis Sensitivity: +12 ± 4 dB FS re: 1 Pa at 1 kHz, measured at 18 dB gain setting...
Page 292 Song Meter Mini Bat 2 User Guide Figure 12. Sensitivity and Noise Floor, Linear Frequency Scale Figure 13. Sensitivity and Noise Floor, Logarithmic Frequency Scale...
Page 293: Batteries And Power
• Lithium/Iron Disulfide, sold as Energizer® Ultimate Lithium™: This is a type of single-use battery. At room temperature, and when used with a low-power device like the Song Meter Mini Bat 2, they last slightly longer than typical alkaline batteries. However, in near-freezing or below-freezing...
Page 294 Song Meter Mini Bat 2 User Guide lid accessory for the first-generation Song Meter Mini and Song Meter Mini Bat. Wildlife Acoustics sells high- quality 18650 batteries that are compatible with the first-generation Song Meter Mini and new Song Meter Mini Bat 2 models.
Page 295 Song Meter Mini Bat 2 User Guide protrudes from one end of the battery. This protruding button ensures the battery makes proper contact with the positive end of the recorder’s battery tray. • The batteries must be between 67.0 and 70.5 mm in length, button included.
Page 296 Song Meter Mini Bat 2 User Guide Power Consumption and Expected Battery Life The tables in this section display measured power consumption for the Song Meter Mini Bat 2 in various recording modes. All measurements were taken using the same SanDisk SD card. NOTE SD cards can vary significantly in the amount of power they draw.
Page 297 Song Meter Mini Bat 2 User Guide Acoustic Recording Power Consumption Power consumption measurements taken using a single SanDisk 256 GB Extreme 180 MB/s SD card. Power consumption can vary significantly between cards, even among those with similar labels from a single manufacturer.
Page 298 Song Meter Mini Bat 2 User Guide Table 3. Expected Recording Time: Default Acoustic Settings, Mono Channel Battery Highest Low Power Configuration Quality Recording Recording Time (Hours) Time (Hours) 8x Alkaline AA 6x Lithium-Ion 1040 1330 Ultrasonic Recording Power Consumption Power consumption measurements taken using a single SanDisk 256 GB Extreme 180 MB/s SD card.
Page 299: Sd Card Compatibility
11.4. SD CARD COMPATIBILITY SD Card Capacity Range: 4 GB - 2 TB The Song Meter Mini Bat 2 supports SDHC and SDXC cards. These two formats encompass SD cards between 4 GB and 2 TB in capacity. We recommend SanDisk cards as the first choice, but other major brands from a reliable electronics retailer will also work.
Page 300 Song Meter Mini Bat 2 User Guide BEWARE COUNTERFEIT SD CARDS! Large, online marketplaces that allow third-party sellers may include listings for counterfeit SD cards, which are likely to have misleading specifications and may lead to data loss. We recommend buying SD cards from a reputable electronics or photography supply retailer.
Page 301 Song Meter Mini Bat 2 User Guide Meter Mini Bat 2 is C4, meaning a minimum sustained write speed of 4 MB/s. The Song Meter Mini Bat 2 gains no benefit from faster cards, though backing up files to your computer may be faster.
Page 302: Warranty And Disclosures
Song Meter Mini Bat 2 User Guide 12. WARRANTY AND DISCLOSURES Except as specifically provided herein, Wildlife Acoustics makes no warranty of any kind, express or implied, with respect to this product. 12.1. HARDWARE LIMITED WARRANTY Product Components Warra Period...
Page 303 Song Meter Mini Bat 2 User Guide Warranty table at the top of this page for the applicable warranty period from the original date of purchase. WAI warrants refurbished WAI products, marked and sold as such, for ninety (90) days from the original purchase date.
Page 304 Song Meter Mini Bat 2 User Guide Any third party products, including software, included with WAI products are not covered by this WAI warranty and WAI makes no representations or warranties on behalf of such third parties. Any warranty on such products is from the supplier or licensor of the product.
Page 305 Song Meter Mini Bat 2 User Guide provider of WAI products or from WAI directly. All requests for warranty service authorization must be made within the applicable warranty period. Dated proof of original purchase will be required. Products or parts shipped by Customer to WAI must be sent postage-paid and packaged appropriately for safe shipment.
Page 306 Song Meter Mini Bat 2 User Guide LIMITATIONS OF LIABILITY NEITHER WAI NOR ITS SUPPLIERS SHALL BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, LOSS OF INFORMATION OR DATA, LOSS OF REVENUE, LOSS OF BUSINESS OR OTHER...
Page 307: Declaration Of Conformity
Song Meter Mini Bat 2 User Guide the duration of the applicable written warranty. This warranty gives you specific legal rights; you may have other rights that may vary depending on local law. Your statutory rights are not affected. GOVERNING LAW...
Page 308 Song Meter Mini Bat 2 User Guide Conforms to the appropriate country standards and governing regulations listed below. As the manufacturer, we are fully responsible for the design and production of the above-mentioned equipment. • (FCC) Code of Federal Regulations, Title 47, Part 15, Subpart B: Class B Device (2015): Radio Frequency Devices –...
Page 309 Song Meter Mini Bat 2 User Guide Radiated, radio-frequency, electromagnetic field immunity test • (FCC) Code of Federal Regulations, Title 47, Part 15.247 (2015): Radio Frequency Devices – Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz • ISED RSS-247, Issue 1 (2017): Digital Transmission...
Page 310: Electromagnetic Interference
Song Meter Mini Bat 2 User Guide Marking appears as follows: This product was tested in a typical configuration. Ian Agranat Wildlife Acoustics, Inc. December 21, 2023 12.4. ELECTROMAGNETIC INTERFERENCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 311: Environmental Testing
Wildlife Acoustics, Inc. could void the user's authority to operate the equipment. 12.5. ENVIRONMENTAL TESTING The Song Meter Mini Bat 2 was found to meet IP67 standards, with the exclusion of acoustic microphones. This rating means the enclosure is dust-tight and can withstand temporary submersion in water up to a depth of one meter without leaking.
Page 312: Product Documentation
While every precaution has been taken in the preparation of this document, individually, as a series, in whole, or in part, Wildlife Acoustics, the publisher, and the author assume no responsibility for errors or omissions, including any damages resulting...
Page 313: Patents
U.S. Patent and Trademark Office. SDHC and SDXC Logos are trademarks of SD-3C,LLC. All other trademarks are the property of their respective owners. 12.8. PATENTS The Song Meter Mini Bat 2 is covered under the following patents: • US 8,627,723 • US 10,670,704 •...
Page 314: Wildlife Acoustics Contact Information
Song Meter Mini Bat 2 User Guide 12.9. WILDLIFE ACOUSTICS CONTACT INFORMATION Wildlife Acoustics, Inc. 3 Mill and Main Place, Suite 110 Maynard, MA 01754 United States of America +1 (978) 369-5225 or toll-free in the U.S. +1 (888) 733-0200.

This manual is also suitable for:

Song meter mini 2

Wildlife Acoustics Song Meter Mini Bat 2 User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Wildlife Acoustics Song Meter Mini Bat 2

Summary of Contents for Wildlife Acoustics Song Meter Mini Bat 2

This manual is also suitable for:

Table of Contents
