Summary of Contents for Bayrol Automatic SALT

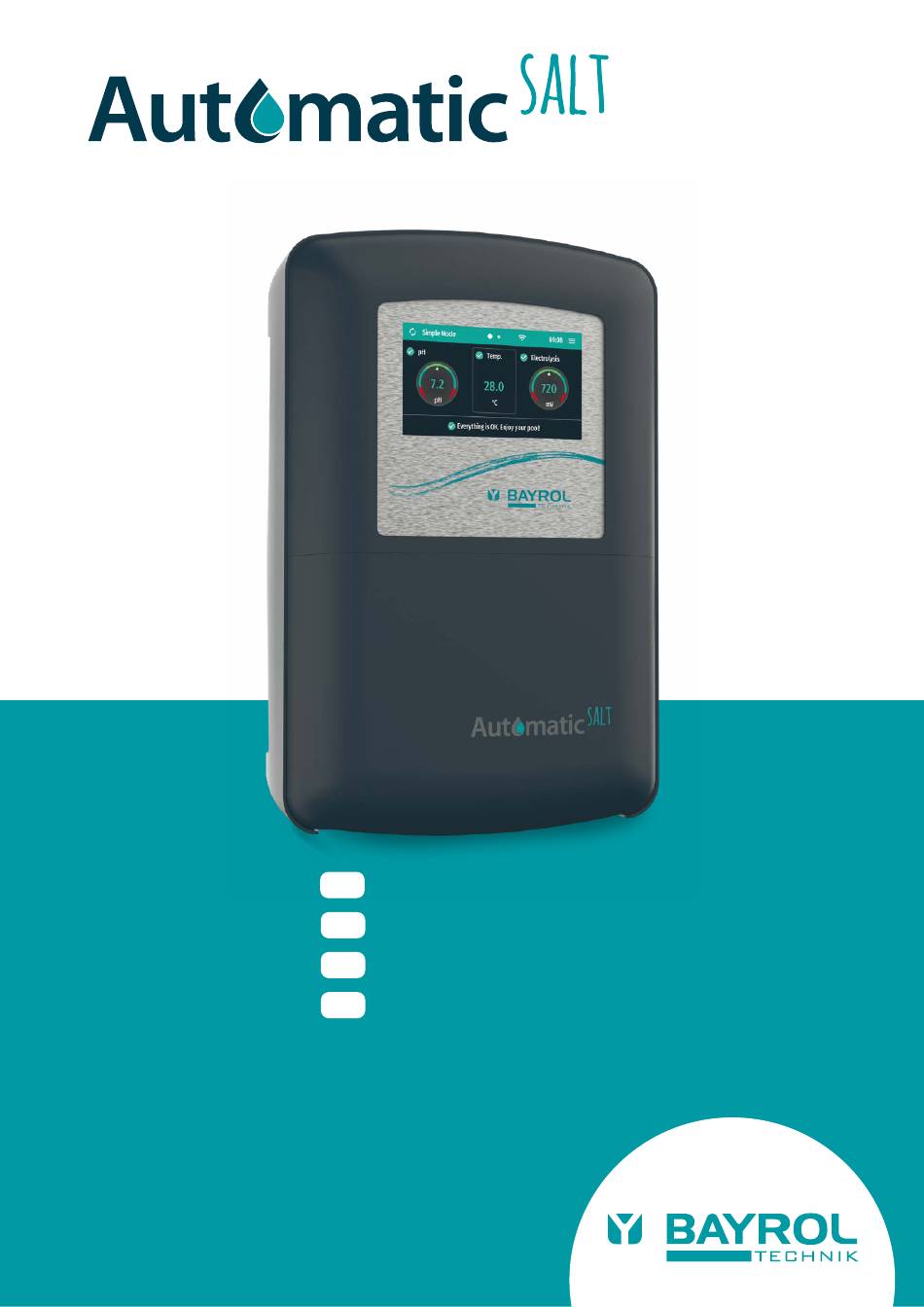

- Page 1 Bedienungsanleitung – Seite 3 Mode d‘emploi – page 16 Instructions for use – page 29 Instrucciones de uso – página 42...
-
Page 2: Scope Of Delivery
You have chosen the best thing that can happen to your health and/or equipment and installation hazards! saltwater pool. – Only use BAYROL water care products! The use of other products will invalidate the warranty! – The housing of the Automatic... - Page 3 RECOMMENDATION Additional instructions To effectively prevent possible calci cation of the chlorine generation cell caused by the system, it is recommended to add BAYROL Calcinex (300 ml/10 m³) to the pool water. For Step 1: Adding the salt ® The risk of calci cation can be further reduced by using Add the salt granules directly to the pool.
-
Page 4: Installation Scheme
® (DPD1) of 0.6 – 1.2 mg/l throughout the pool. Please note The manual chlorine measurement (e.g. with BAYROL Elec- Procedure for outdoor pools tronic Pool Tester or test kits) displays the sum of free and Before adding chlorine to the pool, the level of stabilizer protected chlorine at the same time. -
Page 5: Sensor Installation
Injection valve installation Sensor installation Connection of the hoses to the dosing pump Please consider Installation Paddle-Flow-Switch ow direction! -
Page 6: Operation
Electrical connections on the device IMPORTANT The controller must be grounded and the mains supply must be equipped with a residual current protection (30 mA). Redox-Sensor USB connection pH-Sensor Paddle-Flow-Switch Temperature Sensor Cover cable (191049 Cable 2.5 m for cover) Level switch (e.g. - Page 7 Operation Salt electrolysis operating mode Auto The Automatic automatically regulates the chlorine production depending on the desired redox value in the pool. SALT Auto plus+ The Automatic automatically regulates the chlorine production depending on the desired redox value in the pool. SALT plus+: An additional chlorine production is triggered that in an adjustable way may overshot the desired redox value in the pool.
-
Page 8: Additional Functions
Message list A corresponding connection cable is available in the If relevant events occur during operation the Automatic BAYROL Technik range (191049 Cable 2.5 m for Cover). SALT displays corresponding messages. The setting is made in the initial start-up menu or later in... -
Page 9: Remote Access
– In the device list of the web portal: Press app link button – A QR code with URL (https://bayrol-poolaccess ...) will now be displayed to you – Please note the App Link Code displayed, it will be used later to enter it in the app. -
Page 10: Maintenance
Store your pH-Minus canister in a dry and cool but frost- free place. Maintenance The indicated amount of maintenance is just the minimum out) and treat it with BAYROL Cell Renov. Follow the requirement. The frequency of maintenance depends on instructions on the product label. the intensity of use. -
Page 11: Maintenance Plan
Please note – Carry out a visual inspection of the system for leaks in all Only use original BAYROL Technik components. The use components, lines and hose of third-party components can lead to malfunction during operation. BAYROL Deutschland GmbH disclaims all liability and warranty for this. -
Page 12: Technical Data
EC – EMC Directive (2014/30/EU) Harmonizing standards used: EN 60730-1:2011, EN 55022:2010, EN 55014-1:2006 + A1:2009 + A2:2011 EN 61000-3-2:2006 + A1:2009, EN 61000-3-3:2008 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 Date, manufacturer signature: 01.03.2022 Lars Birckenstaedt, Managing Director BAYROL Group Signer’s information:... - Page 13 Indication for disposal Disposal of waste electrical and electronic domestic systems in the European Union All the product marked with this symbol indicate that the product shall not be mixed or disposed with your household waste at their end of use. lt is responsibility of the user to eliminate this kind of wastes depositing them in a recycling point adapted for the selective disposal of electrical and electronic wastes.
-
Page 14: Safety Instructions
– Always follow the relevant health and safety regulations BAYROL spare parts only. when installing and using the device. – BAYROL does not accept liability for issues caused by using – Never let the ends of the dosing hoses connected to the other manufacturers’ products or spare parts. - Page 15 BAYROL Deutschland GmbH Robert-Koch-Straße 4 · D-82152 Planegg Telefon + 49 (0)89 85701-0 info@bayrol.de · www.bayrol.de BAYROL France SAS Chemin des Hirondelles – BP52 F-69572 Dardilly Cedex Tél. +33 (0)4 72 53 23 87 www.bayrol.fr BAYROL Deutschland GmbH Robert-Koch-Str. 4 · D-82152 Planegg Phone + 49 (0)89 85701-0 info@bayrol.de ·...
