Esseci SCMQ10A-x1000 Manual

MADE IN ITALY
Thank you for choosing EsseCI
Master Qbo with MODBus serial port to command up to 16 serial slave units.
UK
Suitable to manage heating or evaporative cooling or wine making installation.;

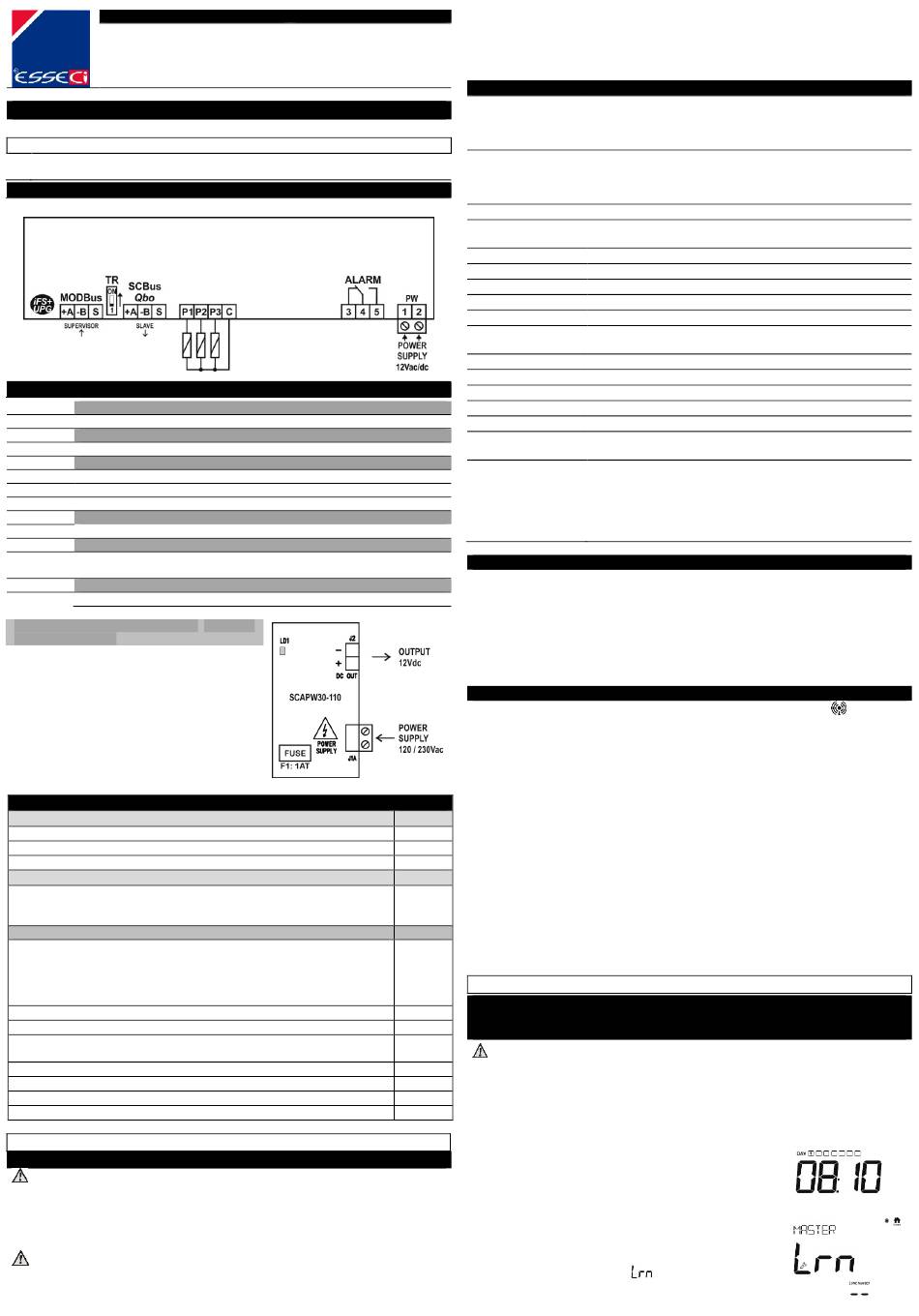

WIRING DIAGRAM
WIRING DIAGRAM
1 - 2 : Power supply 12Vac/dc
SCMQ10A-B1000
3 - 4 - 5 Alarm relay 1A 24Vac
C – P1 (C) Common of sensor, (P1) global temperature sensor 1.
C – P2 (C) Common of sensor, (P2) global temperature sensor 2.
C – P3 (C) Common of sensor, (P3) outside temperature sensor.
+A, -B, S SLAVE : SCBus RS 485 serial connection to the slave modules
+A, -B, S
SUPERVISOR : RS485 MODBus network connection to a SCADA or supervisor.
SUPERVISOR
TR End of line resistor
SCMQ10A-F1000 = SCMQ10A-B1000 + SCAPW30W-
110 built inside the box
POWER SUPPLY INPUT : J1A: power supply input 120 /
230Vac +/-10%
POWER OUT : J2 12Vdc output. Connect J2 to the
terminals 1 and 2 of the SCMQ10
F1: 5x20mm fuse, value 1AT.
LD1: status led of the SCAPW30.
- On : SCAPW30 under power supply;
Off : SCAPW30 without power supply.
POWER SUPPLY INPUT : J1A: power supply input 120 /
230Vac +/-10%
QUICK GUIDE
MASTER SCMQ10: INSTALLATION
 Warnings
 Technical features
 MODBus
FIRST START
 SCMQ10 first start:
- clock / calendar setup;
- acquisition of the zone modules.
USE
 SCMQ10 front panel:
- keypad;
- display: icons and symbols;
- menu / parameters setup;
- lock / unlock SCMQ10 keypad;
 On / off, stand-by of the zone module.
 Set-point of the zone module.
 Automatic-manual operation mode of the zone module:
- Timer programs of the zone module;
 Menu list of the zone module;
 Menu list and parameters of the SCMQ10 master
 Alarms and display warnings
 Burner reset
MASTER SCMQ10: INSTALLATION
WARNINGS
1.
BEFORE OPERATING ON THE DEVICE, PLEASE CAREFULLY READ THE INSTRUCTIONS IN
THIS MANUAL. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE
Use the appliance only for its intended purpose as described in this manual. The Manufacturer declines
all responsibility for inappropriate use or incorrect setting of the controls. To ensure safe operation:
 Appliance must be properly installed and maintenance must be performed according to this manual;
 Supply voltage and environmental conditions fall within the values specified on appliance data plate.
ELECTRIC CONNECTIONS
THE DEVICE IS NOT PROTECTED AGAINST CIRCUIT OVERLOADING: EQUIP POWER
SUPPLY INPUT AND ALL OUTPUTS WITH NECESSARY SAFETY DEVICES.
INSTRUMENTATION
ENGLISH
SCMQ10A-x1000
POWER SUPPLY
ALARM OUTPUT
PROBES
SCBus Qbo SERIAL CONNECTION
MODBus SERIAL CONNECTION
SWITCHES
 Avoid crossing cables by separating ELV ExtraLowVoltage from load-referred connections.
www.esseci.com
 Protect the device power supply and probe inputs from electric disturbances.
SAFETY
 Disconnect the appliance from the power supply before carrying out any maintenance;
AND CONTROL
 Do not EVER open the device plastic enclosure
2. TECHNICAL FEATURES
E1386A1
Power supply:
Insulation guaranteed by the
power supply
Operation field:
PTC 990Ω accuracy:
Unit consumption:
Housing:
Fixing:
Data storage:
Front protection:
Employment conditions:
Relative environment hum:
Connection:
Display:
Inputs:
Outputs:
Insulation guaranteed
by the output
Serial Connections:
3. MAIN FEATURES
SCBUS AND INFRANet, 2-WIRE BUS CONNECTION: A two-pole cable is required to connect the
master to the zone slave modules. This simplifies the connection.
The two-way communication runs along a RS-485 serial line made of a 2-wire twisted shielded cable (i.e.
Belden 8762 with PVC sheathing 2 twisted terminals + copper sheathing, 20 AWG, 89pF cables nominal
capacity, 161pF cable / copper sheathing nominal capacity). 1.000m max length tolerated for the network;
LCD DISPLAY: a large LCD display helps to keep the thermostat always under control at a glance. Scrolling
text messages and symbols describe the operations in progress. The display decimal range is: –50,0 and
999.0, out of this range the device switches automatically to integer numbers.
4. MODBus
MODBus communication enabled in write/read mode only if H0r= 0, in this case the icon
Through this parameter you enable/disable the MODBus connection, BMS, and the possibility to change the
parameters of the devices only by MODBus or by SCMQ10 keyboard. Especially if H0r is:.
0 = the MODbus is always enabled, change of the parameters of the devices are allowed only by MODBus,
you can not change them by SCMQ10, with the exclusion of the parameters Lrn, rSt or H0r;
NOTE: if H0r = 0 the value of the Modbus register n°141 tells to the SCMQ10 if the BMS is connected or not.
The value of the index n°141 is the time, expressed in seconds, after which the connection to the BMS is no
Point
longer considered active, the SCMQ10 shows an alarm A 62 and the A-M parameter of all the network
devices connected to the terminal SCMQ10 is automatically fixed to oFF. When the value of the index n°141
1
becomes ≠ 0, BMS connected, the BMS must set again the A-M value of all the network devices, if
2
different from oFF .
4
To avoid this alarm write cyclically, before it expires, the value of the BMS time-out on the index 141.
For example: if you want that the BMS connection becomes invalid after 10 minutes, 600 seconds, write 600
on the index 141 at least every 5minutes / 300 seconds
5
5.1;
1 = MODBus always disabled. Change of the parameters of the devices are allowed only by SCMQ10,
5.2;
anyway you can read the parameters both by SCMQ10 and MODBus;
6
For the MODBus parameters of the terminal SCMQ10 see datasheet E1313O.
6.1;
6.2;
6.3;
6.4;
5. SCMQ10, FIRST START:
7
- CLOCK / CALENDAR SETUP;
8
- ACQUISITION OF THE ZONE MODULES;
9
NOTE: BEFORE POWER ON THE SCMQ10 FOR THE FIRST TIME CHECK:
9.1;
- WHEN CONNECTING THE TERMINAL SCMQ10 TO THE SERIAL DEVICES, see "SCBus network
10
connection"; DO NOT SWAP +A / –B WIRES.
11
- MAKE A LINEAR NETWORK CONNECTION: NOT STAR, RING OR TREE.
12
- MAKE SURE THE REMOTE CONTROLS ARE CONNECTED AND SUPPLIED, BEFORE
13
PROCEEDING.
- CONNECT MAX 16 ZONE MODULES TO THE SCMQ10. ADDRESSES FROM 0 TO 15.
At the SCMQ10 first start up the master device shows for ~5s. the clock, for
ex.: 8:10, Monday. (1 = Monday; 2 = Tuesday;...7 = Sunday).
If the clock is not correct set it correctly. To change/set the clock and the
calendar see the paragraph n° 5.1 : CLOCK / CALENDAR SETUP.
Should the device lack of a previously acquired network, an acquiring
process will automatically after the clock visualization i.e. at the SCMQ10
start up . Now the SCMQ10 shows the
At the end, the display shows the list of the acquired devices:
E1386A1 - 6
SCMQ30A-B1000: 12Vac/dc +/-10%. use only SELV power supply with a
315mA slow-blow fuse on the secondary.
Only for SCMQ30A-F1000: 120/230Vac with SCAPW30W-110 device built
inside the box.
For 230V: Insulation from very low voltage parts : reinforced.
Insulation from relay output : reinforced.
For 12Vac-dc: use only a safety isolating transformer (SELV)
-50.0...150°C
~2 °C nel range –60T50 °C;
~5 °C nel range +50T160 °C;
5W
plastic enclosure 180 x 150 x 65mm
on wall
on EEPROM memory
IP44
environment temperature 10...40°C
storage temperature 0...60°C
30 / 80%, without condensation
screw terminal, cables max cross section 2,5mm
LCD display
1 input for PTC 990 Ω @25°C (if enabled)
1 relay ALARM SPDT 1A 24Vac
Insulation from very low voltage parts : reinforced;
2 serial port RS-485:
- SLAVE: to SCBus i NEt. 1.000m max length tolerated for the network;
2
- SUPERVISOR: to MODBus.
1 iFS serial interface TTL to the expansion key:

device firmware update;
 quick arameter setting (copy/paste);
FIRST START
label.
2
is on.
