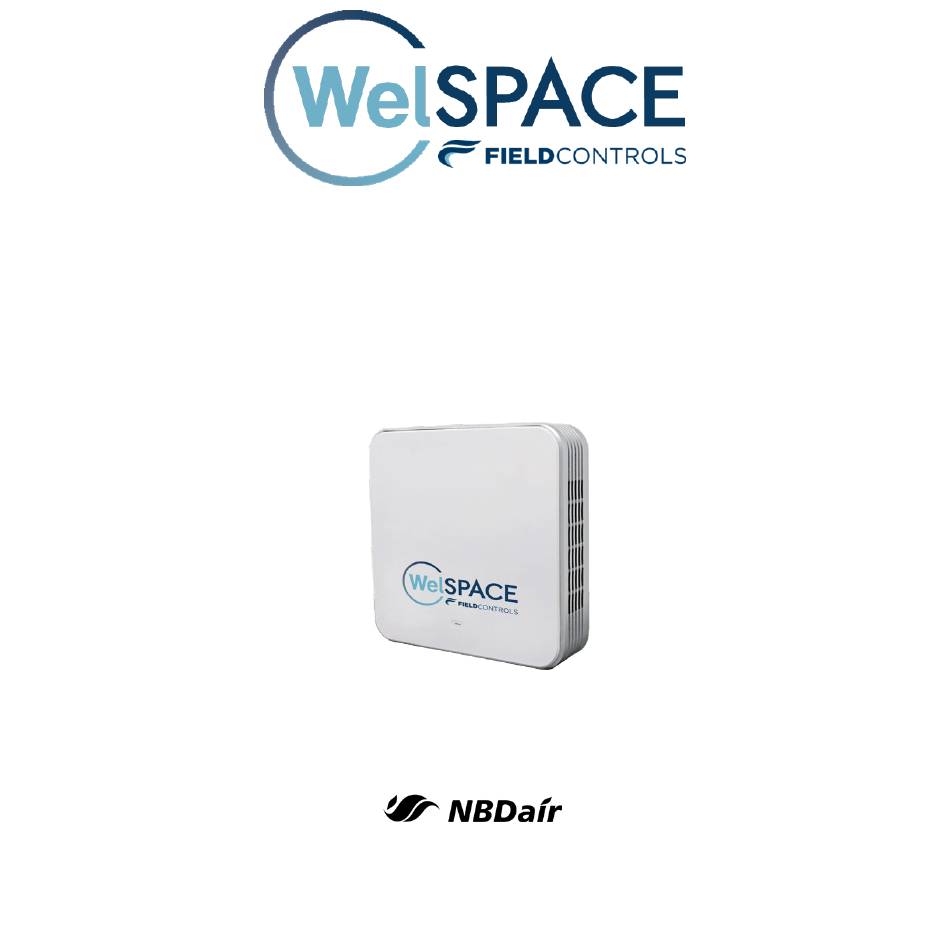

  • Page 1 Air Box User Manual Powered by (NO.：V.1.11.05)
  • Page 2 Safety This appliance includes a Class III Device and 100-240 Vac, 50/60Hz Power  supply. The Class III Device is only to be used with the power supply unit provided with  the appliance. The Class III Device must only be powered with short-circuit proof, safety extra ...

  • Page 3: Product Introduction

    Product Introduction The Field Controls welSpace indoor air quality sensor is an ingenious smart indoor air quality system designed to revolutionize the way you experience your environment. This cutting-edge solution empowers you to save electricity costs and effortlessly monitor, operate, and manage crucial indoor air quality (IAQ) conditions, including carbon dioxide (CO2) levels, temperature, relative humidity (RH), VOCs, formaldehyde (HCHO), and particle (PM2.5) count.

  • Page 4: Equipment Parameters

    Equipment Parameters Power supply：DC 12V - 24V, 1A Electric current：150mA / Average, 300mA / Peak Signal output： RS485, Wi-Fi Air inlet mode： Natural ventilation Shell material： ABS Degree of protection： IP30 Installation options: Desk or surface, wall-mounted, or ceiling-mounted Size：130mm×130mm×35mm Operating environment：-14 to 122℉；0-90%RH（No condensation）...
  • Page 5 Air Box SET-UP 1. Power On Device For Plug-and-Play operation, use the wall socket power cord. Insert the round plug of the power adapter into the circular power cord socket of the Air Box. For Hardwired operation, use the hardwire power supply. Connect the blue power cord to the "+"...
  • Page 6 Mounting To mount Air Box to the wall or ceiling, attach the base plate to the desired location using adhesives or screws. Align base plate teeth with the back of the Air Box slots and rotate clockwise to lock them into place.
  • Page 9 2. Download the APP Please scan the QR code below with your smartphone to download and install the APP.
  • Page 10 3. Create Account Open the App and register as a new account.

  • Page 11: Add A Device

    4. Add a Device To add a new Air Box, click on the upper right corner and scan the QR code below to add a device. NOTE: Make sure the mobile phone is connected to the 2.4GHz Wi-Fi band.
  • Page 12 Enter in the Wi-Fi account and password. Click the button “Next”. NOTE: The device will only connect to 2.4GHz Wi-Fi. If you do not know if the Wi-Fi is 2.4GHz, talk with your IT department. The “Guest” Wi-Fi is typically 2.4GHz.
  • Page 13 Press and hold button on back of Air Box for 5 seconds to turn on pairing mode. Confirm the indicator on the Air Box is blinking rapidly; Click the button “ Next ” .
  • Page 14 The app and device will configure its network automatically.
  • Page 15 Once the device has been added successfully, the page will automatically jump to the homepage (Front Page) after three seconds or click the return button in the upper left corner to quickly return.

  • Page 16: Troubleshooting

    Troubleshooting The Air Box device did not connect: • Check to confirm the Air Box indicator flashes • Confirm you have connected to 2.4GHz Wi-Fi The Air Box indicator does not flash or flashes at an abnormal frequency: • Check the power cord is plugged into power and inserted into the back of •...

  • Page 17: Indication For Use

    is indicated by a blue light on the front when the power is on. Precautions 1. Do not connect the transmitter to a place where the voltage is above 24VDC. 2. Please refer to the product appearance and size drawings in the user manual to install the equipment.

  • Page 18: Legal Notice

    Field Controls will not be liable for any loss or damage in any case of misuse or installation by a non-qualified person or not in compliance with the directions included in this manual.

  • Page 19: Warranty

    Warranty For warranty information about this or any Field Controls product, visit www.fieldcontrols.com/warranty Field Controls Customer Service 252-522-3031 For more information, including specifications and additional resources, please visit the product webpage: www.fieldcontrols.com/indoor-air-quality-sensor Field Controls LLC. 2630 Airport Rd. Kinston NC 28504 |...
