American Lighting TRULUX RF-RGBW-3Z Installation Instructions

TRULUX RF RGB+WW Touch Control
12-24V
INSTALLATION INSTRUCTIONS
RF-RGBW-3Z
WARNING
These products may represent a possible shock or
fire hazard if improperly installed or attached in any
way. Products should be installed in accordance
with these instructions, current electrical codes,
and/or the current National Electric Code (NEC).
WARNING
This controller requires a 12-24V DC power
supply (LED-DR series driver sold separately).
Disconnect supply power at the source prior
to installation.

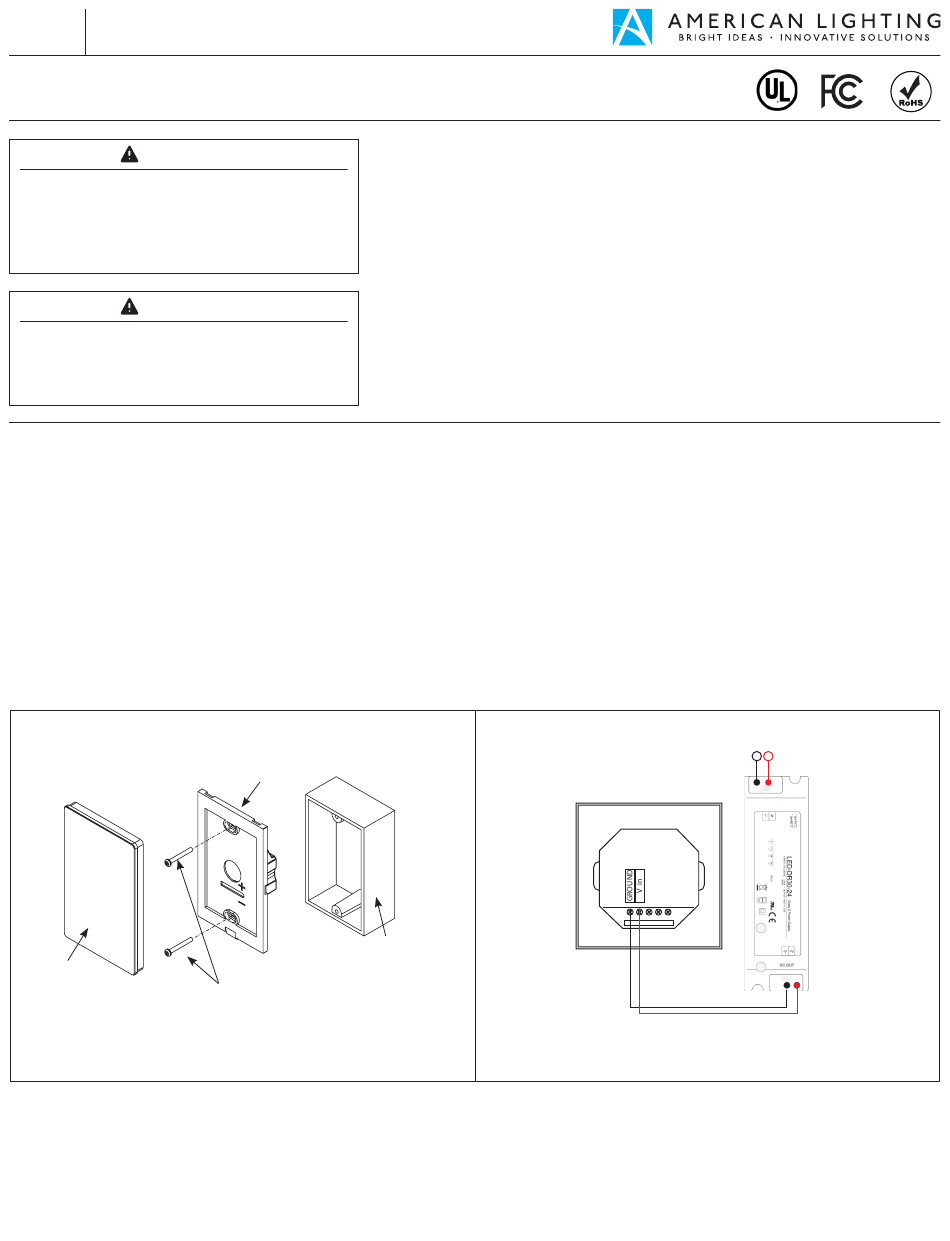

INSTALLING CONTROLLER (SEE FIGURES 1 & 2):
This controller requires a 12-24V DC power supply (LED-DR series driver sold separately).
This controller requires a Radio Frequency receiver for operation (REC-5A-4Z or REC-5A-4Z-WiFi sold separately).
1. Determine desired location of controller. Cut a hole approximately 1-3/4" wide x 2-5/8" high.
2. At the base of the controller, there is a slot where the faceplate meets the mounting plate. Insert a flathead screwdriver into the slot to pop the
two pieces apart.
3. Bring 12-24V DC supply power to the controller, matching polarity (See Figure 2).
4. Set the mounting plate into the 1-3/4" x 2-5/8" cut hole.
5. Secure mounting plate to mounting surface with appropriate screws on both the top and bottom of the controller. (Controller includes two #8-32
screws for optional single-gang switch j-box mounting; j-box not included)
6. Set faceplate cover over installed mounting plate and snap into place.
FIGURE 1
Faceplate
Mounting Screws
(Be sure to use
screws appropriate
for mounting surface)
©2019 American Lighting, Inc. REV1913 www.AmericanLighting.com

SAFETY INFORMATION

• Read all instructions before beginning; Save these instructions for future use.
• To reduce the risk of fire, electric shock, or injury to persons, pay close attention
to this manual and stay within its guidelines when using this product.
• This controller is rated IP20; avoid the sun and moisture.
• Avoid using controller in areas where extreme hot, cold, dust, or humidity exist.
• This controller is suitable for indoor, dry locations only.
• Always be sure to mount this controller in an area with proper ventilation to
avoid overheating.
Mounting
Plate
Optional Single Gang
Switch J-Box
(Not included)
FIGURE 2
-
-
Controllers and receivers may be powered
by the same driver on the secondary side
Page 1 of 2 11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: 303-695-7633
to 120V AC
+
+
- +
12-24V DC
power driver
(LED-DR Series
not included)
