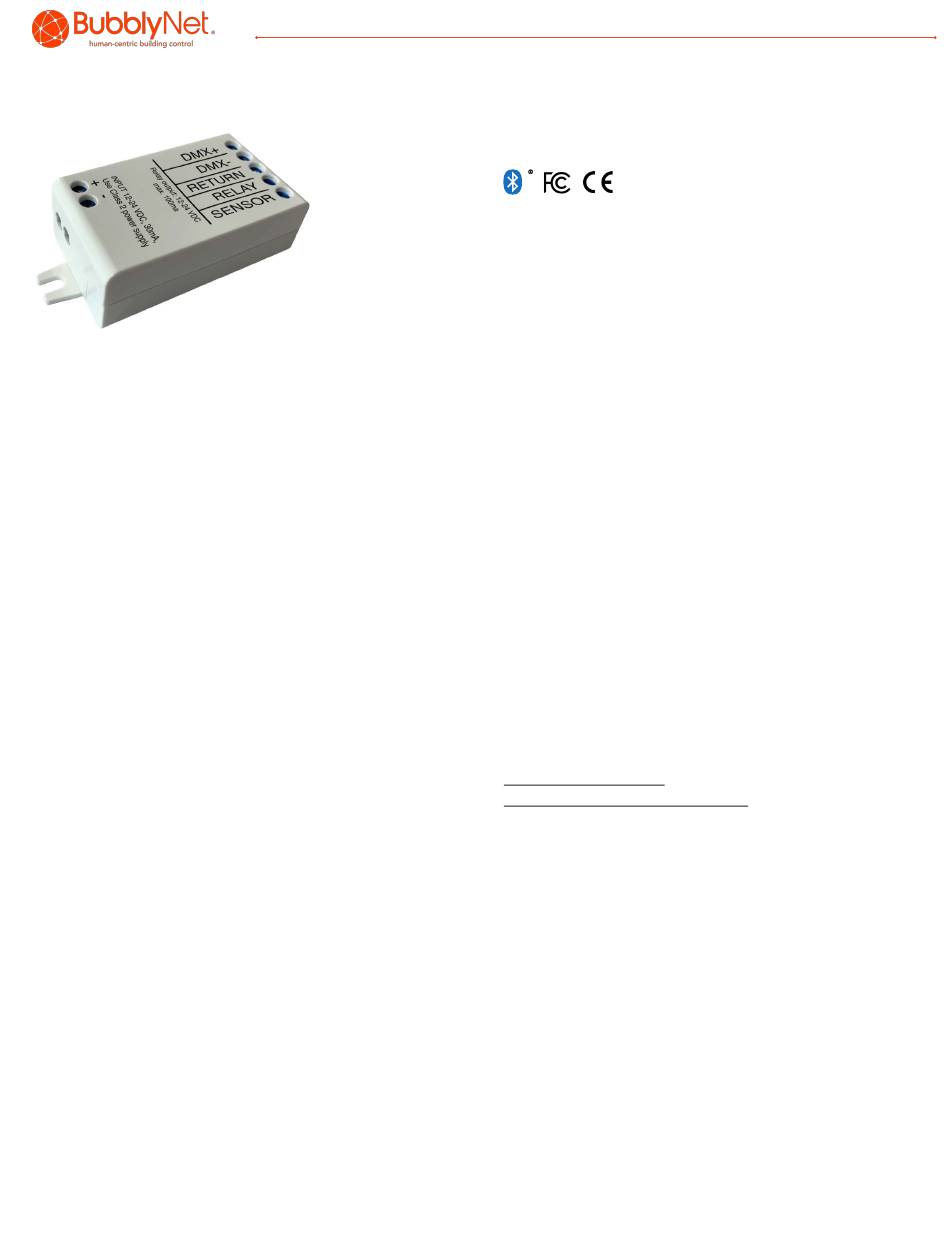

BubblyNet C-X51-24-DS00 Quick Start Manual

Specifications
Input Voltage Range - 12-24 VDC
•
No-Load Input Current - 30 mA
•
Controls up to 28 DMX Channels (Slots)
•
Max Power - 1W
•
Aux-Relay Control Output - 12-24 VDC, same as input
•
• Max Output Current - 100mA
Aux-Sensor Input Voltage - Max 24 VDC
•
Ambient Temperature, ta - -13 to 113°F(-25 to 45°C)
•
Max Relative Humidity - 0 to 80%, non-cond.
•
• Wire Range, Solid & Standard - 0.5-1.5 mm, 14-22
AWG
Wire Strip Length - .25" (6-7 mm)
•
Dimensions - 2.2" x 1.2" x 0.7" (72.6 x 30.0 x 18.0 mm)
•
Weight: 0.8 oz (23 g)
•
Installation
Connect a Class 2 power supply with 12-24 VDC output
voltage to the input connector of the DMX Controller.
Make sure not to use a constant current LED driver and
that the cable polarity is correct.
The product can be installed outside of a junction box.
Make sure to comply with National Electric Code in
installation and when selecting installation wires.
Description

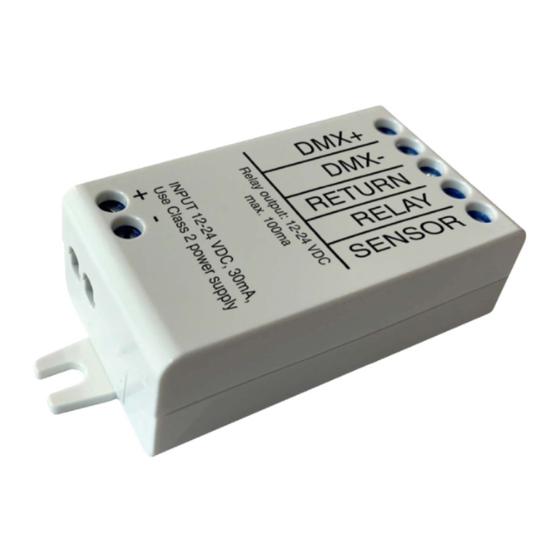

The DMX Controller can control up to 28 DMX channels
(slots) making it an ideal controller for multi-channel
luminaires as well as multiple luminaires on a single DMX
run, RGBW, RGB+W, TW + TW, BubblyNet color-picker
controller. The DMX is powered by a 12-24 VDC Class 2
power supply and provides a DMX control, relay output,
and sensor input.
BubblyNet - 615 Drew St., Clearwater, FL 33755
and specifications at any time without notice. The manufacturer accepts no liability for consequential damage which is occasioned to the user based on the data provided.
DMX-OUT Controller |
• Ph 727.316.5319 • Fx: 727.683.9720
Model: C-X51-24-DS00
Certifications
Different BubblyNet enabled products can be used
from a simple one luminaire direct control to a
complete and full featured light control system where
thousands of units form automatically an intelligent
mesh network. The DMX Controller can be controlled
with the BubblyNet App which can be downloaded free
of charge from Apple App Store and Google Play
Store. Relay output and sensor input is included.
BubblyNet uses mesh network technology so each
DMX Controller acts also as a repeater. When testing
the network, it is important to test that each unit can be
controlled from any point of the network covered area.
The device controls up to 28 independent channels.
The Bluetooth Mesh Signal Speed is not as fast as
DMX wired. This is not the right technical solution if
animations are desired. Please contact BubblyNet to
discuss your transition speed requirements.
Connectivity
Devices are repeaters for other devices and should be
installed within a certain maximum distance from each
other.
Typical maximum distance:
Outdoor (line of sight): Ou
Indoor (through building material):
Glass:
Drywall:
Cinderblock:
Brick:
Concrete + rebar
Devices with external antenna should have the antenna
outside any metal box and away from metal surfaces as
metal reduces connectivity.
For design purposes a 60ft. maximum distance is
appropriate for most installations.
