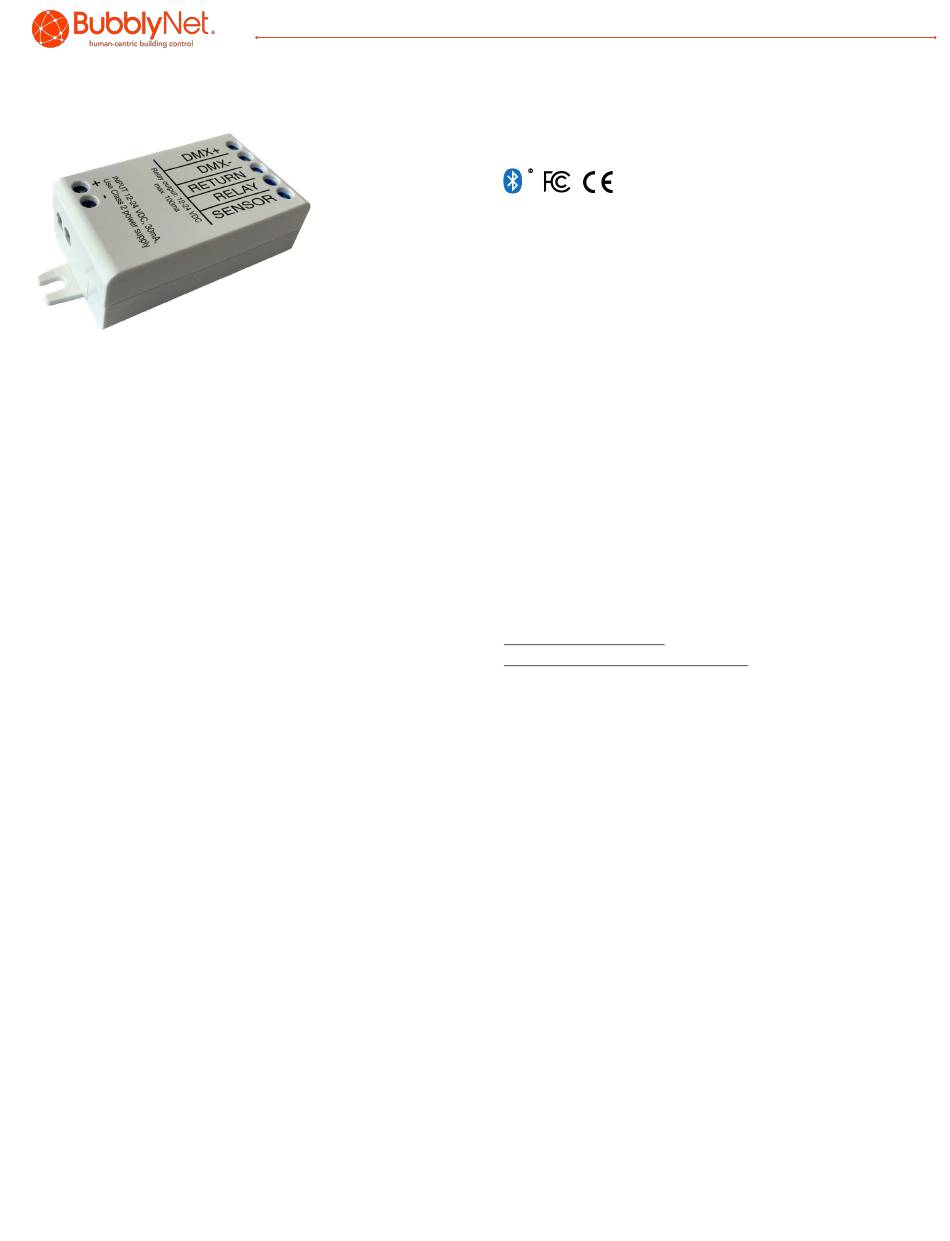

BubblyNet C-IX8-24-DS00 Manual

Specifications

• Input Voltage Range - 12-24 VDC
• No-Load Input Current - 30 mA
• Aux-Relay Control Output - 12-24 VDC, same as input
• Aux-Sensor Input Voltage - Max 24 VDC
• Ambient Temperature, ta - -13 to 113°F(-25 to 45°C)
• Max Relative Humidity - 0 to 80%, non-cond.
• Wire Range, Solid & Standard - 0.5-1.5 mm, 14-22 AWG
• Wire Strip Length - .25" (6-7 mm)
• Dimensions - 2.2" x 1.2" x 0.7" (72.6 x 30.0 x 18.0 mm)
• Weight: 0.8 oz (23 g)

Installation

Connect a Class 2 power supply with 12-24 VDC output
voltage to the input connector of the
Make sure not to use a constant current LED driver and
that the cable polarity is correct.
The product can be installed outside of a junction box.
Make sure to comply with National Electric Code in
installation and when selecting installation wires.

Description

The DMX-IN Controller can monitor up to eight DMX
channels (slots) which can be configured to control upto 8
different zones in the BubblyNet network irrespective of the
application. The DMX is powered by a 12-24 VDC Class 2
power supply and provides a relay output, and sensor input.
BubblyNet - 615 Drew St., Clearwater, FL 33755
and specifications at any time without notice. The manufacturer accepts no liability for consequential damage which is occasioned to the user based on the data provided.

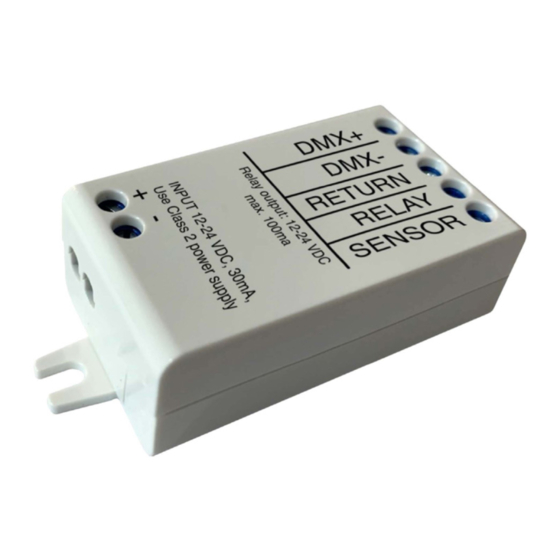

DMX-IN Controller |
DMX-IN Controller.
• Ph 727.316.5319
Model: C-IX8-24-DS00

Certifications

Different BubblyNet enabled products can be used from
a simple one luminaire direct control to a complete and
full featured light control system where thousands of units
form automatically an intelligent mesh network. The DMX-
IN Controller can be controlled with the BubblyNet App
which can be downloaded free of charge from Apple App
Store and Google Play Store. Relay output and sensor
input is included.
BubblyNet uses mesh network technology so each DMX
-IN Controller acts also as a repeater. When testing the
network, it is important to test that each unit can be
controlled from any point of the network covered area.

Connectivity

Devices are repeaters for other devices and should be
installed within a certain maximum distance from each
other.
Typical maximum distance:
Outdoor (line of sight): Ou
Indoor (through building material):
Glass:
Drywall:
Cinderblock:
Brick:
Concrete + rebar
Devices with external antenna should have the antenna
outside any metal box and away from metal surfaces as
metal reduces connectivity.
For design purposes a 60ft. maximum distance is
appropriate for most installations.
• Fx: 727.683.9720 • The manufacturer reserves the right to change or modify the design, dimensions
bubblynet.com
727.316.5319
•
10.13.2023
200ft
100ft
70ft
60ft
50ft
0ft
