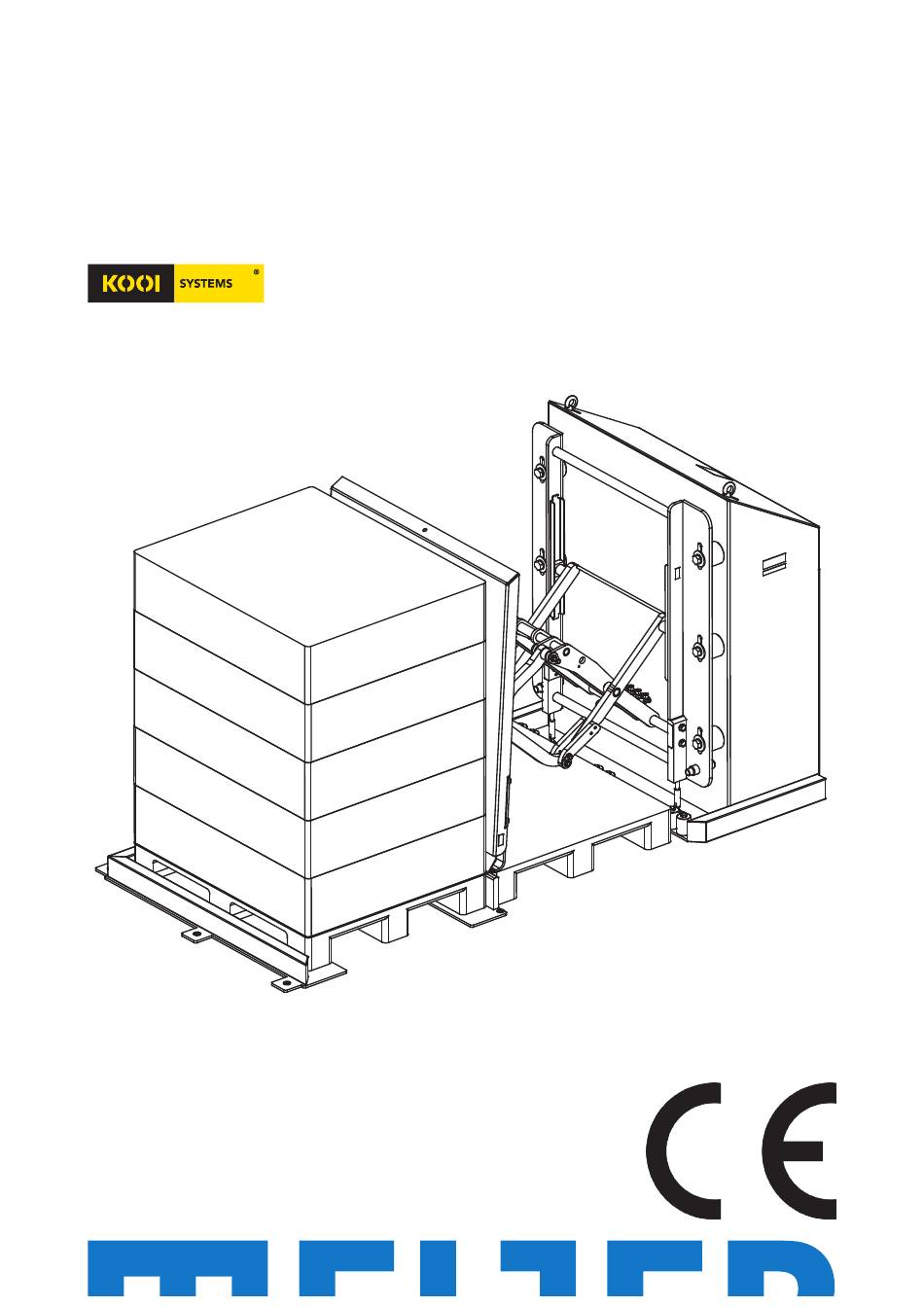

- Page 1 INSTRUCTIONS AND PARTS MANUAL STATIONARY PULL INSTALLATION STAINLESS STEEL SPI06-1020 RVS ORIGINAL INSTRUCTIONS MANUFACTURER: MEIJER HANDLING SOLUTIONS B.V. MANUAL NUMBER: MA1910202002 PUBLISHING DATE: 19-04-2021 LANGUAGE ENGLISH REVISION:...
- Page 2 Information in this manual, including but not limited to images and text, may not be reproduced without prior written permission of Meijer Handling Solutions B.V. The information in this manual is provided without any form of guarantee. Meijer Handling Solutions B.V. shall in no case be liable for injuries and damages resulting from use of this manual.
-
Page 3: Table Of Contents
Maintenance schedule............................14 Malfunction, fault-finding, and trouble-shooting ....................15 Technical specifications ............................17 Parts list - SPI06-1020 RVS ........................... 18 Parts list - Electronics ............................20 Parts list - Safeguard ............................21 Parts list - Pusher / Puller ............................. 22 Parts list - Frame clamp ............................ -
Page 4: Introduction
B.V. has been audited and found to be in accordance with the requirements of the following management system standard: • NEN-EN-ISO 9001:2015 Quality management systems – Requirements With the CE marking Meijer Handling Solutions B.V. declares that the Stationary Pull Installation Stainless Steel fulfils all the relevant provisions of: •... -
Page 5: General Description
Misuse and residual risks Meijer Handling Solutions B.V. has carried out a risk assessment, to determine the health and safety requirements which apply to the machinery. Measures are taken to elimate or reduce any risk thoughout the foreseeable liftetime of the machinery. -
Page 6: Transportation
400 mm clearance (1000 mm recommended). lower than 2°C or higher than 25°C. Do not start-up the machine before all the packaging is Do not install the machine in an outdoor environment. removed completely. 6 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... - Page 7 If the use is not Electrical cables on the floor should be avoided. restricted because of the hygienic regulations, it can be applied as described (see labeling). MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 7 of 32...
-
Page 8: Adjusting The Height
Make sure to check the hydraulic hoses after adjusting Make sure to check the hydraulic hoses after adjusting the height for damage and routing. the position of the faceplate for damage and routing. 8 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... -
Page 9: Controls And Safety Features
- Right: maximum sound level Light curtain Light curtain receiver Light curtain sender Light curtain mirror - - - Light curtain activated: Safe to use the machine Light curtain deactivated: Check safety conditions MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 9 of 32... -
Page 10: Start-Up & Testing
Do not use the machine when it is not completely Do not use the machine with any damage, leaks, or installed and fastened. deviations that compromise a safe use of the machine. 10 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... - Page 11 Check visually if the load moves smoothly b. Check if the clean pallet is higher then the shipping pallet b. Check visually if the load is completely on the pallet MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 11 of 32...
- Page 12 Do not remove the pallet with load when it is visually Do not use the machine with insufficient visibility on damaged or contaminated the moving parts of the machine and/or the load. 12 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02...
-
Page 13: Maintenance & Cleaning
To ensure that the disposal of the machine meets the applicable national regulations, it is recommended to contact an authorized and qualified company for the disposal of the machine. The materials used for the components of the machine can be looked up in the parts lists. MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 13 of 32... -
Page 14: Maintenance Schedule
Do not make changes/welds to the machine without successfully the scheduled maintenance and cleaning. specific authorization of the manufacturer. Do not make use of contaminated tools. Do not use toxic (non-food safe) products for maintenance and cleaning. 14 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... -
Page 15: Malfunction, Fault-Finding, And Trouble-Shooting
- Remove obstructions. Scraping surfaces - Check and test the machine The machine vibrates during Machine makes noices movements - Replace the worn parts Worn parts - Check and test the machine MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 15 of 32... - Page 16 Sound module damaged Replace sound module No light during pressing the Incorrect settings Adjust settings No light signal during buttons of the remote control movements Light module damaged Replace light (module) 16 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02...
-
Page 17: Technical Specifications
Technical specifications Model: SPI06-1020 RVS Weight: 1380 Kilograms Main dimensions: 4688 mm x 2294 mm x 2535 mm (customer-specific layout) MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 17 of 32... -
Page 18: Parts List - Spi06-1020 Rvs
Parts list - SPI06-1020 RVS 06 07 09 10 18 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... - Page 19 The round bars can be used to adjust the position of the faceplate. The Spill tray, Pallet bumpers, and/or Pallet detection sensor are optional, and are only included when selected with the order. MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 19 of 32...
-
Page 20: Parts List - Electronics
* Wireless remote control, and wireless receiver are optional Electronics Main fuse: Main Power: 400 VAC - 50/60 Hz Control power 24 VDC The electronic circuit diagram and specifications are provided with the machine (project number: 254561) 20 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... -
Page 21: Parts List - Safeguard
AISI 316L Plate 1990x0385x05 10114765 Hexagon socket countersunk head screw M8x25 10115292 A4 70 (stainless steel) Fnishing Washer M8 M00039604 PA6 Hexagon domed cap nut M8 10115293 A4 70 (stainless steel) MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 21 of 32... -
Page 22: Parts List - Pusher / Puller
Parts list - Pusher / Puller 24 25 26 34 34 35 35 33 34 22 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... - Page 23 Iglidur® A350 34 Sleeve bearing A350SM 30 40 10115161 Iglidur® A350 35 Flange bearing A350FM 30 16 10115158 Iglidur® A350 The position and the usage depends on the position of the faceplate MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 23 of 32...
-
Page 24: Parts List - Frame Clamp
Mass: ± 144 kilograms Safety notices Do not use the machine without removing both M12 Do not use the machine without replacing the frame lifting eye bolts clamp and its components 24 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... -
Page 25: Hydraulic Circuit Diagram
T= 70 °C Hysterese= 15 °C P=3 kW Versie Version n= 1420 r·min-¹ Vsl=5 cm³/rev Vmin= ±16 dm³ Blad van Q=± 7 l·min-¹ Sheet of 1 1 / Formaat/Siz ISO A3 Kader/Heade 2018 MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 25 of 32... -
Page 26: Parts List - Hydraulic Hoses And Tubes
10115589* PTFE, FKM, AISI 316L, AISI 304 10 Tube 12L 030-90-060 RVS 10115582 AISI 316L 11 Tube 12L 060-90-110 RVS 10115583 AISI 316L 12 Tube 12L SPI06 014-90-030-25-066 RVS 10119707 AISI 316L * detailed information on request 26 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... -
Page 27: Parts List - Hydraulic Components
180 bar Type of oil NEVASTANE AW 46 Motor - FCA 100LB 4/PHE COS ϕ r/min Δ 230 / Y 400 1435 10.47/6.02 0.82 Δ 265 / Y 400 1722 10.69/6.16 0.82 MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 27 of 32... -
Page 28: Parts List - Spill Tray (Optional)
A spill tray can be mounted inside the frame of the SPI06-1020 RVS for the containment of oil drips, leaks or spillages. The spill tray can accommodate ±... -
Page 29: Parts List - Pallet Bumper (Optional)
(stainless steel) 03 Nord-lock washer M16 SP 10114843 A4 70 (stainless steel) 04 Pallet detection sensor W 10117711 Aisi 316L 05 Connector and cable 10117706* Various materials * detailed information on request MA19102020-02 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS 29 of 32... -
Page 30: Position Of The Labels And Nameplate
***Warning 400V stickers are placed on front of the door of the control panel, on the Perspex covers (inside control panel), and the trunking (inside the control panel) 30 of 32 COPYRIGHT® 2021 MEIJER HANDLING SOLUTIONS MA19102020-02... -
Page 31: Recommended Spare Parts
Recommended spare parts To minimalize the downtime of the machine, Meijer Handling Solutions B.V. recommends the following spare parts. Description: Article: Quantity: Pendant remote control 10117642 Hydraulic hose RVS 3-8 12L 90 180 L620 10115586 Clamp profile L1190 10115052 Cylindrical vibration damper D30x20... - Page 32 Address of the manufacturer Contact details Meijer Handling Solutions B.V. Telephone: +31 (0)518 492929 Oudebildtdijk 894 E-mail: info@meijer-group.com 9079 NG Sint Jacobiparochie Website: www.meijer-group.com The Netherlands...
