- Page 1 USER MANUAL LASERGUIDE MINI ○ R.45.TC R.45.TC .PRO ○...
- Page 2 Australia Pty Ltd MCE Lasers ® is a registered trademark of MOBA Mobile Automation Australia Pty Ltd All rights reserved. No part of this manual may be reproduced in any form or by any means without prior written permission from the publishers.
- Page 3 Repairs made out of warranty MOBA Australia or its authorised service centre will repair or replace, at its option, any defective part or component of which notice has been given during the warranty period. If service in the field is necessary to repair machine-mounted equipment under warranty, MOBA Australia may authorize on- site repairs at no charge for parts and labour.
- Page 4 SAFETY INFORMATION Please become familiar with the important safety information in this section. Improper use or installation of the MOBA Laserguide may result in personal injury or damage to the receiver unit. 1. Read and become familiar with the manufacturer's operating manual for your machine, including safety information, before installing or using your Laserguide receiver.
-
Page 5: Table Of Contents
...................1 onnecting DB.UNI.PRO via wired CAN connection ............1 4 Using the DB.UNI.PRO display panel................Connecting to MOBA Xsite 2D machine control system ............2 6. Technical Specifications ......................22 7. Declaration of Conformity ......................23 © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 6: Features Of The Laserguide

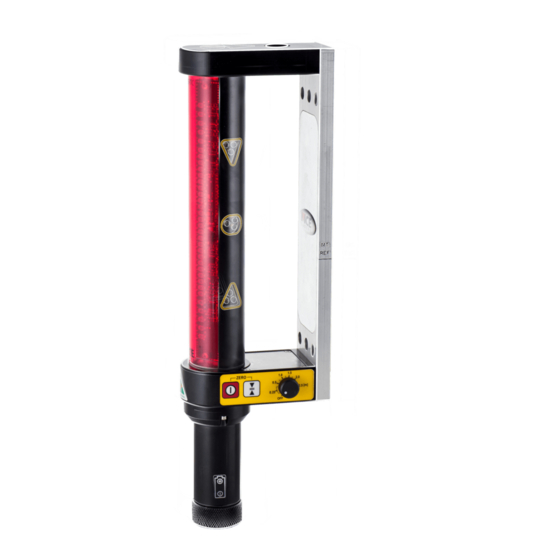

4. Centre LED Cluster (GREEN) 11. Battery Compartment (Holding Handle) 5. Power On LED 12. Battery Cap 6. Mounting Reference Mark 13. Magnetic Bracket Protective Plate 7. Bottom LED Cluster (ORANGE) © Copyr t MOBA Mobile Automation Australia Pty Ltd... - Page 7 4. Centre LED Cluster (GREEN) 11. CAN Connectors 5. Power On LED 12. Battery Cap 6. Mounting Reference Mark 13. Dismounting Lever 7. Bottom LED Cluster (ORANGE) 14. Magnetic Bracket Protective Plate © Copyr t MOBA Mobile Automation Australia Pty Ltd...
-
Page 8: Using The Laserguide
On power up, the sensor will do an LED test sequence, activating in turn the red, green and amber LEDs. It will then show the current accuracy selection by briefly flashing appropriate LED pattern (see section 2.4). 2.2 Mounting and Setting Up IN-TRENCH SETUP Figure 2.2.1 © Copyr t MOBA Mobile Automation Australia Pty Ltd... - Page 9 With regard to above f igures refer to section 2.2.1 if intending to use the tilt compensation feature or to section 2.2.2 if intending NOT to use the tilt compensation feature. © Copyr t MOBA Mobile Automation Australia Pty Ltd...
-
Page 10: Setting Up With Tilt Compensation On
LED clusters. A failed attempt can be caused if the R.45.TC/R.45.TC.PRO is angled too far from the vertical or if the Reference Dial (9) is in the off position. © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 11: Setting Up With Tilt Compensation Off
If the dipper arm is tilted more than the compensation range whilst the R.45.TC/R.45.TC.PRO is receiving a laser beam, the indication LEDs and buzzer will flash/buzz at a slower frequency to alert the user. © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 12: Accuracy (Centre Band)
If a laser beam is on the receiving area at the time of low battery, the flashing frequency of the indication LEDs will slow and the buzzer will turn off to preserve power. © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 13: Replacing The Batteries
2. 9 Powering via external power supply The R.45.TC.PRO can also be powered with 12-24 V DC external power supply (Figure 2.9.1). TO CIGARETTE LIGHTER OUTLET A.RS.105 +12v DC A.RS.104 Figure 2.9.1 © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 14: Using The R.45.Tc.pro With An Android Device
WITH R 45 .TC.PRO pp Figure 3.1.1 1. Download the MOBA R.45.TC.PRO.APP to the Android device from Google Play or from MOBA downloads page at moba automation.com.au/downloads or by contacting MOBA Australia. Please note the app is available only for Android devices. -
Page 15: Using The Android App
(Accuracy) With tilt compensation switched on, indicates R.45.TC.PRO is within tilt ANDROID APP compensation range. Brightness Select With tilt compensation R45PRO switched off, indicates R.45.TC.PRO is plumb within ±2.5°. Figure 3.2.1 © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 16: Using The R.45.Tc.pro With Db.uni.pro
The DB.UNI.PRO will automatically pair with the R.45.TC.PRO and start to mirror its LED clusters. If the two do not establish communication, switch both off and on again. See section .2 if this does not work. © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 17: C Onfiguring Bt On Db.uni.pro
If setup fails again, switch off the DB.UNI.PRO and then press and hold the On/Off button (10) on the R.45.TC.PRO for 20 secs until 2 long beeps sound. Repeat step 3. Note: These settings will be saved and not required to be repeated once successfully setup. © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 18: Connecting Db.uni.pro Via Wired Can Connection
A.RS.102, 5m Power Cables A.RS.104, 5m, Free Wires A.RS.105, 5m, Cigarette Lighter DB.UNI.PRO TO CIGARETTE LIGHTER OUTLET Bandwidth FINE WIDE Brightness Power A.RS.105 +12v DC GND A.RS.104 A.RS.102 A.RS.103 Figure 4.3.1 © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 19: Using The Db.uni.pro Display Panel
DB.UNI.PRO. The current centreband selection is shown via the lit LED next to one of ‘FINE’, ‘NORMAL’, or ‘WIDE’. The DB.UNI.PRO’s LED brightness level can be changed via the Brightness Select button. One of five brightness levels can be selected. © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 20: Connecting To Moba Xsite 2D Machine Control System
2. Mount the R.45.TC.PRO on the stick between stick and bucket G2 sensors (Figure 5.1). 3. Connect the R.45.TC.PRO to the stick and bucket G2 sensors using the supplied CAN cables. 4. Follow the normal calibration procedure in the MOBA XSite manual. Please contact MOBA Australia for more detailed instructions. G2 Stick... - Page 21 Value is positive, if the laser receiver is above the boom line. Refer to the MOBA XSITE manual on how to use the system as a whole. Figure ©...
-
Page 22: Technical Specifications
¹ Tested with VIS.2NA laser transmitter. ² Dependent on mounting distance from bucket pivot pin. ³ With buzzer off and continuous laser beam reception. Submersed to 20cm. Excluding connectors, RAM mount ball and antenna. © Copyr t MOBA Mobile Automation Australia Pty Ltd... -
Page 23: Declaration Of Conformity
Seal: COMMON SEAL Si ne d by: Daniel Ramondetta Managi ng irector MOBA Mobile Automa o ti n Austral a i PTY LTD MO BA M obile Automati Aus ral ia PTY LTD ABN-866 279 90 Wil lan a Drive...
