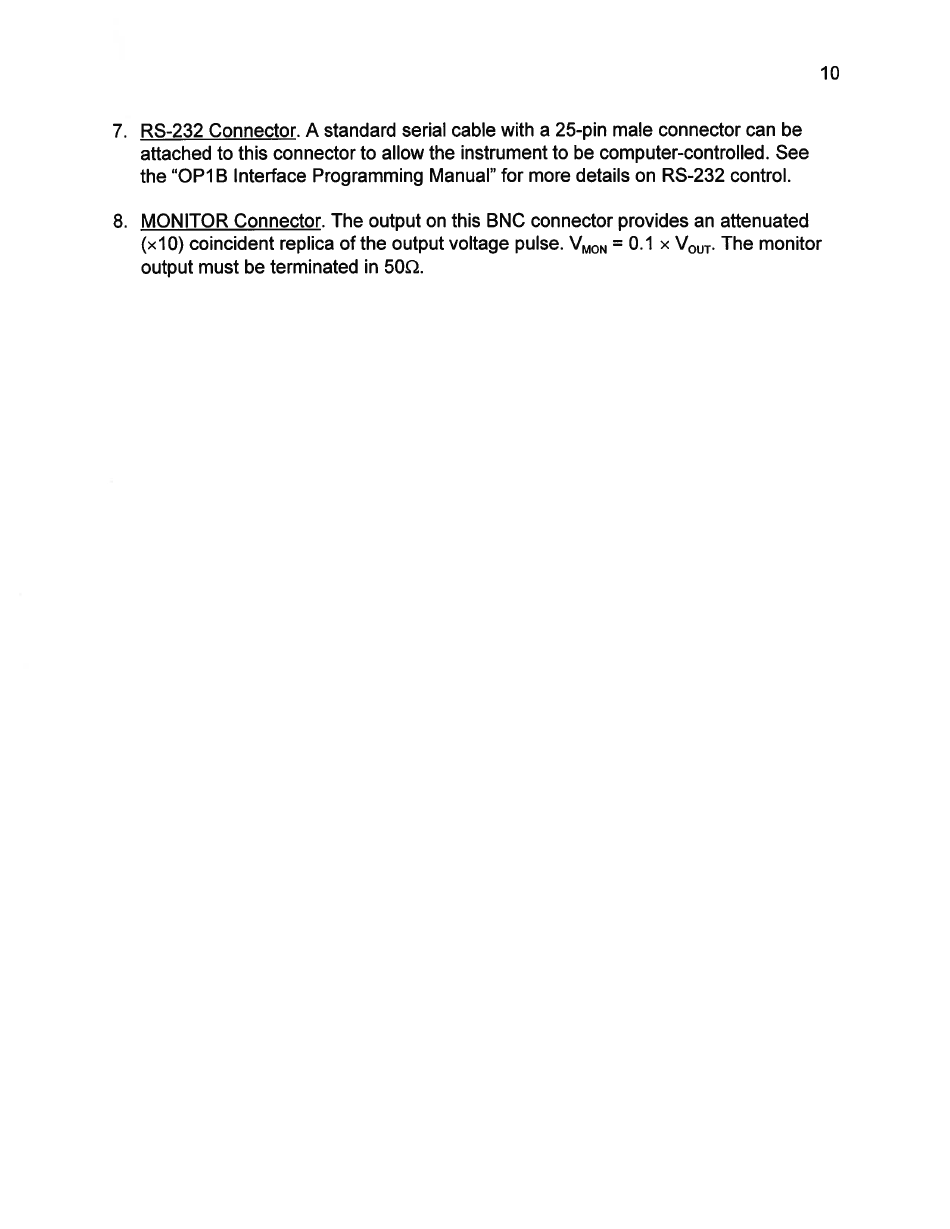

RS-232 Connector. A standard serial cable with a 25-pin male connector can be
attached to this connector to allow the instrument to be computer-controlled. See
the "OP1B Interface Programming Manual" for more details on RS-232 control.
8.
MONITOR Connector. The output on this BNC connector provides an attenuated
(x10) coincident replica of the output voltage pulse. Vyoy = 0.1 x Voy. The monitor
output must be terminated in 50Q.
