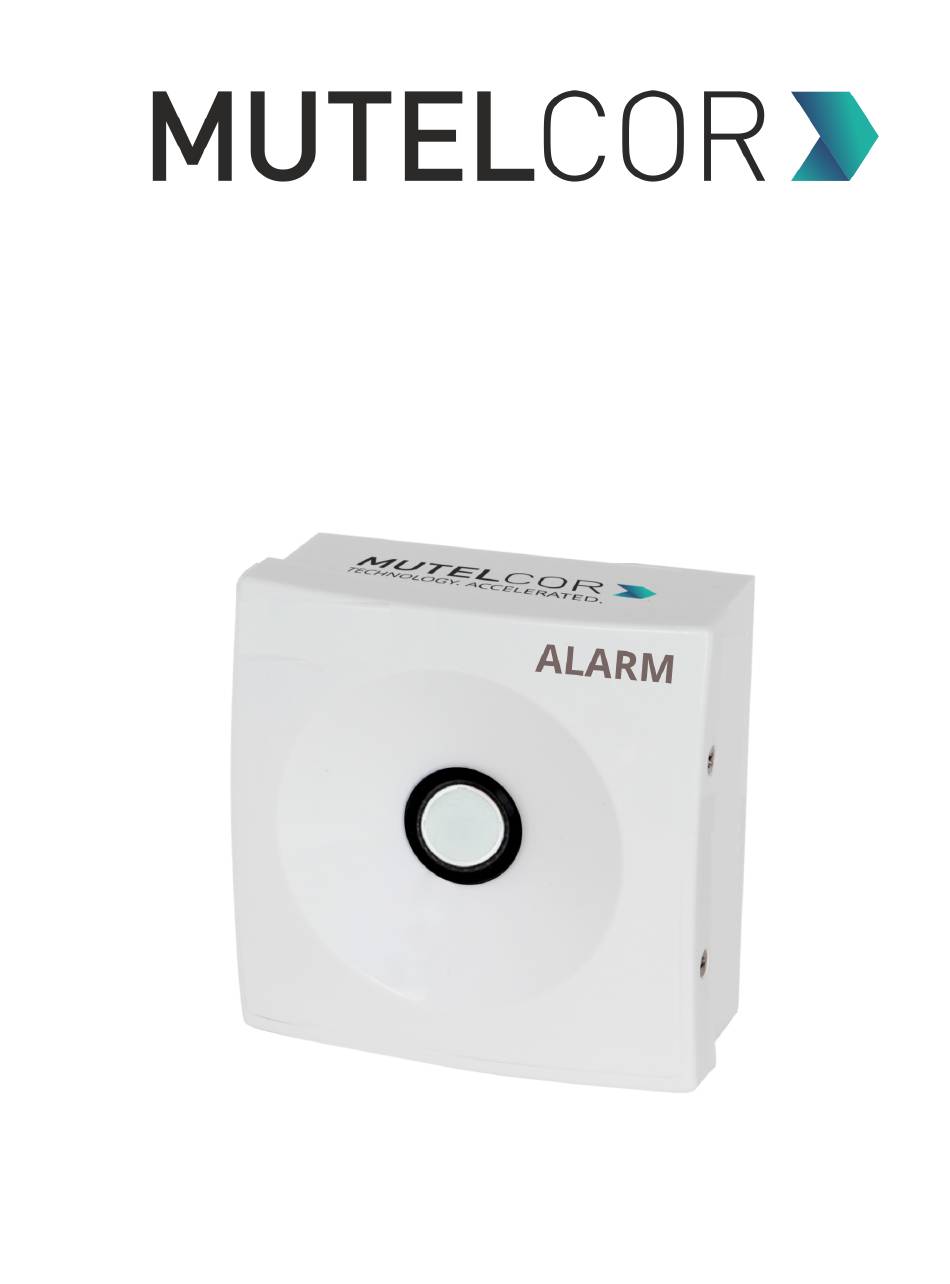

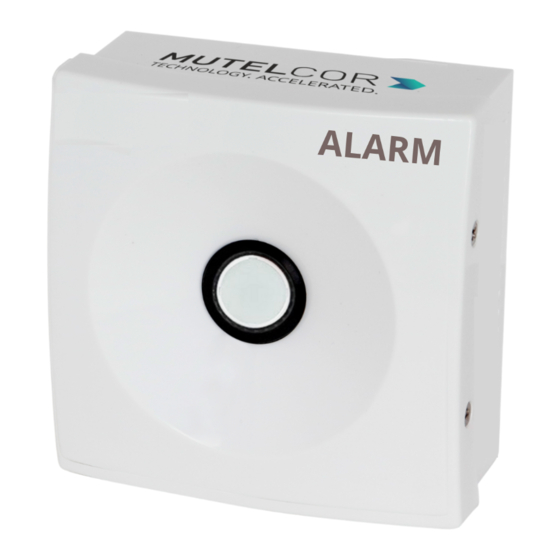

- Page 1 LoRa Alarm Unit MTC-XX-AU02 / MTC-XX-AU04 Quick Start Guide Thank you for choosing Mutelcor GmbH. We are proud to be part of your project.
-
Page 2: Need Help
1. Need Help? For any other query related to our product, please contact the local distributor or Mutelcor at support@mutelcor.com 2. Manufacturer Mutelcor GmbH: An der Bastei 42a, 47259 Duisburg, Germany Office: +49 203 72996070, Fax: +49 203 72996071, Web: www.mutelcor.com 3. Safety Read the instructions carefully before device installation, operation and maintenance Maintenance and repair must be carried out by qualified personnel authorized by reseller... -
Page 3: Product Description
4. Product Description At a Glance Description Description Button / Multi-color LED Power supply Enclosure Ingress Protection Holes for Wall Mount DevEUI with QR code Model Name Device info Access Sticker (optional) Module ID ©Mutelcor GmbH. All rights reserved... -
Page 4: Opening And Closing The Device
Be careful not to break button slots. See Fig 5.1. After performing the tasks, gently and carefully attach the PCB back to the button slots Gently close the top and bottom of the enclosure together and tighten all the four screws ©Mutelcor GmbH. All rights reserved... - Page 5 To replace the batteries: Follow step 1 and 2 of section 6 “Insertion and Replacement of Batteries”. Hold the LoRa PCB and carefully remove the batteries from the holders and follow step 5 and 6 of Section 6 “Insertion and Replacement of Batteries”. Fig. 6.1 ©Mutelcor GmbH. All rights reserved...
-
Page 6: Activating The Device
Time duration of LED ● Buzzer Sound (OFF, ON, Beep) ● Buzzer duration (Time with number of beeps) ● The above parameters and the behavior of each Alert Type are fully configurable via OTA commands. ©Mutelcor GmbH. All rights reserved... - Page 7 OTA Configurator and Payload documentation or contact your local distributor or Mutelcor GmbH at support@mutelcor.com LoRa Alarm Unit in combination with Mutelcor LoRa Products Here are a few examples of the different settings of the LoRa Alarm Unit when used with other Mutelcor LoRa products and Mutelcor Backend Application.
- Page 8 Areas that are susceptible to vibration ● Areas near the high-voltage cables ● The device may be mounted on the wall. Four screws (not included) are needed. Mounting information is depicted in the following Fig 8.1. ©Mutelcor GmbH. All rights reserved...
-
Page 9: Resetting The Device
Position and hold the PCB as shown in fig 9.1. Ensure 2 AA-Alkaline Batteries are inserted in the battery holders. On the PCB, carefully observe a small reset button as shown in fig 9.1 Press (do not hold) the button shortly for a second ©Mutelcor GmbH. All rights reserved... -
Page 10: Technical Specifications
-18°C to +55°C LoRa IN: IN865-867 Temperature Frequency US: US 902-928 Transmission Max 25mW (14 dBm) AU: AU915-928 Power AS: AS923-1 KR: KR920-923 IL: AS923-4 OTAA and ADR supported LoRaWAN MAC V1.0.3 Ingress IP67 Version Protection ©Mutelcor GmbH. All rights reserved... -
Page 11: Declaration Of Conformity
3.2 effective use of the spectrum of 2014/53/EU The CE mark appears due to the issued declaration of conformity under responsibility of Mutelcor GmbH as manufacturer, who declares that the used radio equipment is in compliance with relevant EC Directives. -
Page 12: Warranty
The forgoing is buyer's sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Mutelcor GmbH be liable for any consequential, special or incidental damages 15.
