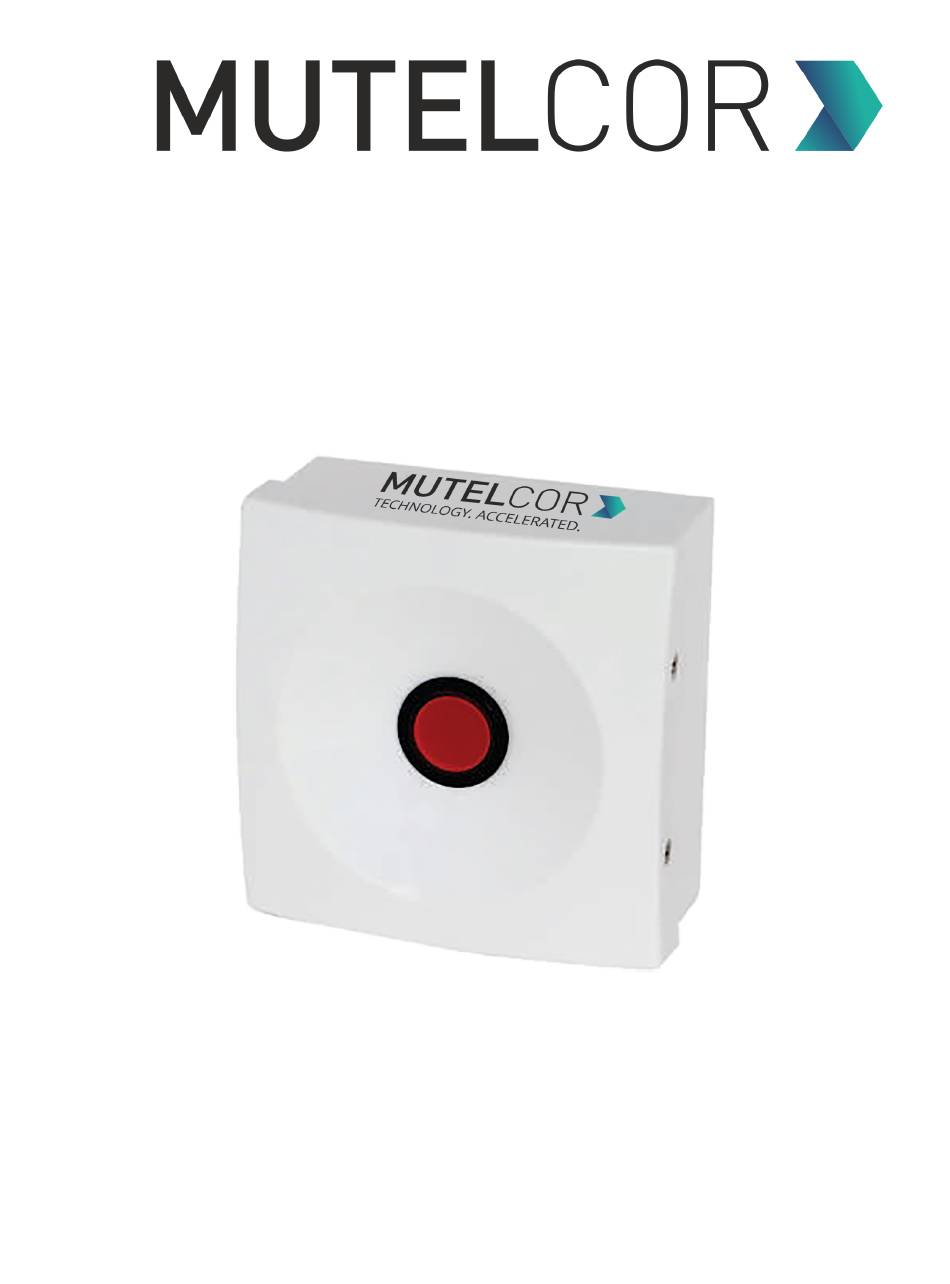

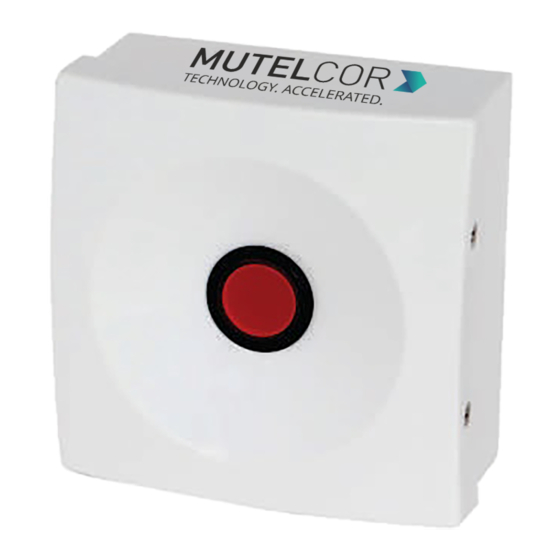

- Page 1 LoRa Panic Button MTC-XX-PB01 / MTC-XX-PB02 Quick Start Guide Thank you for choosing Mutelcor GmbH. We are proud to be part of your project.
-
Page 2: Need Help
1. Need Help? For any other query related to our product, please contact the local distributor or Mutelcor at support@mutelcor.com. 2. Manufacturer Mutelcor GmbH: An der Bastei 42a, 47259 Duisburg, Germany Office: +49 203 72996070, Fax: +49 203 72996071, Web: www.mutelcor.com 3. Safety Read the instructions carefully before device installation, operation and maintenance. -
Page 3: Product Description
4. Product Description At a Glance Description Description Push Button Voltage Ingress Protection Holes for Wall Mount DevEUI with QR code Model Name Device info Access Sticker (optional) Module ID ©Mutelcor GmbH. All rights reserved... -
Page 4: Opening And Closing The Device
Be careful not to break button slots. See Fig 5.1. After performing the tasks, gently and carefully attach the PCB back to the button slots Gently close the top and bottom of the enclosure together and tighten all the four screws ©Mutelcor GmbH. All rights reserved... - Page 5 To replace the batteries: Follow step 1 and 2 of section 6 “Insertion and replacement of batteries”. Hold the LoRa PCB and carefully remove the batteries from the holders and follow step 5, 6 and 7 of Section 6 “Insertion and Replacement of Batteries”. Fig. 6.1 ©Mutelcor GmbH. All rights reserved...
-
Page 6: Activating The Device
(with Alarm Confirmation active) Alarm message sent via LoRa is repeated two extra times. Each repeat is sent after 10 ● seconds and at a different frequency channel (with Alarm Confirmation inactive) ©Mutelcor GmbH. All rights reserved... - Page 7 For all details on the payload sent on LoRa, changing values via OTAA, provisioning of the device in a LoRa network, please contact the local distributor or Mutelcor GmbH at support@mutelcor.com Note: If the buzzer in the device continuously beeps in every 8-second interval, then there is a software error.
- Page 8 Areas that are susceptible to vibration. ● Areas near the high-voltage cables. ● The device may be mounted on the wall. Four screws (not included) are needed. Mounting information is depicted in the following Fig 8.1. Fig 8.1 ©Mutelcor GmbH. All rights reserved...
-
Page 9: Resetting The Device
The reset will trigger the device to re-register to a LoRaWAN network. Upon successful registration, the device will trigger 3 short beeps (chirps) in rapid succession. This implies that the device is activated in a LoRa network and will send heartbeats and alarms via LoRa. Fig 9.1 ©Mutelcor GmbH. All rights reserved... -
Page 10: Technical Specifications
3.2 effective use of the spectrum of 2014/53/EU The CE mark appears due to the issued declaration of conformity under responsibility of Mutelcor GmbH as manufacturer, who declares that the used radio equipment is in compliance with relevant EC Directives. -
Page 11: Warranty
The forgoing is buyer's sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Mutelcor GmbH be liable for any consequential, special or incidental damages... - Page 12 15. Find us on social media We would like to hear from you: any tips, any news to share? www.facebook.com/mutelcor Mutelcor GmbH We stay at your disposal for any help on your project requirements Mutelcor GmbH Team ©Mutelcor GmbH. All rights reserved...
